Name: ROLINE Industrial Converter, 10G Ethernet Multirate Converter
Brand: Roline
SKU: 3798270

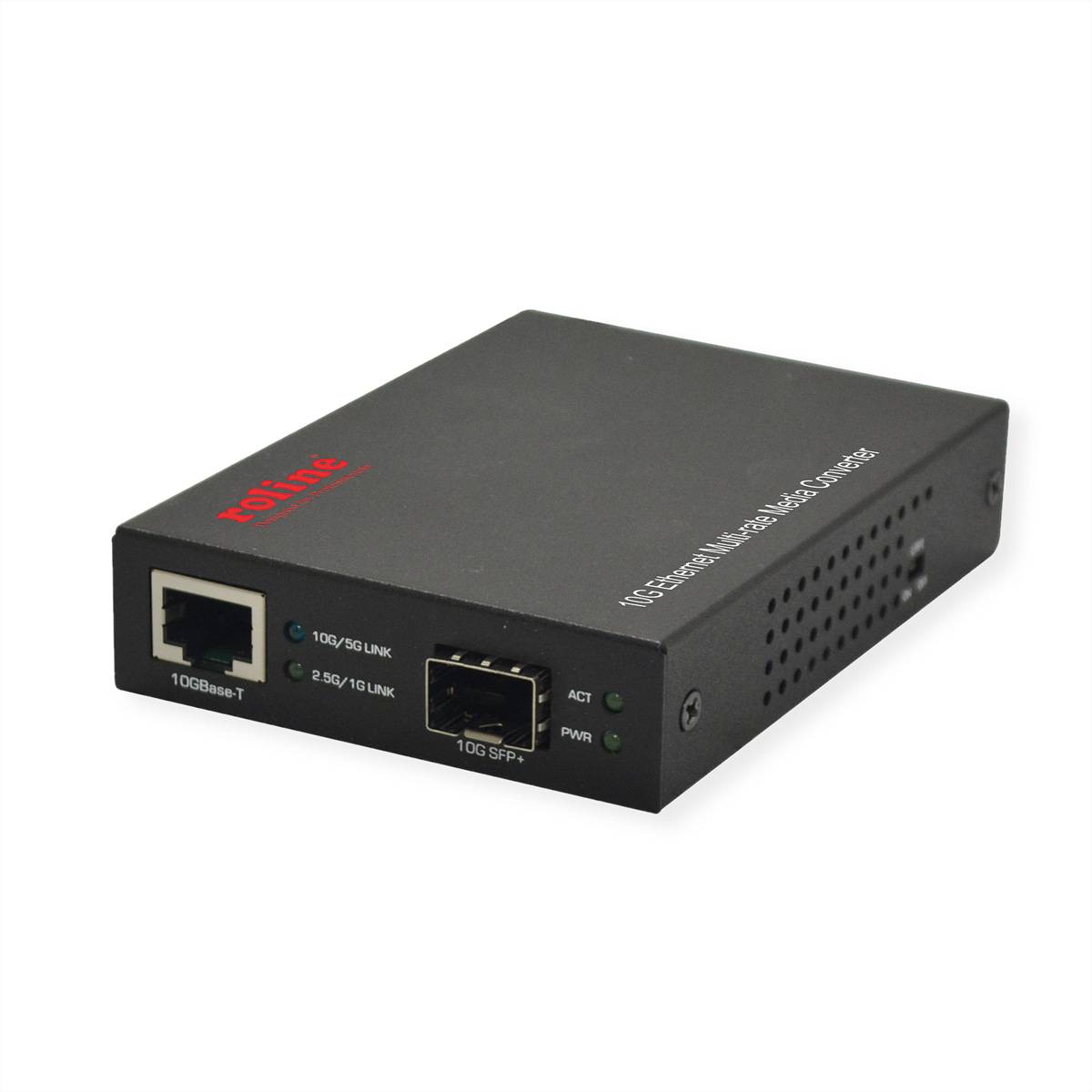

ROLINE Industrial Converter, 10G Ethernet Multirate Converter-0

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Roline 21.13.1133 Network Media Converter 10000 Mbit/s black

Cable connected
10000 Mbit/s
Number of Ethernet LAN connections (RJ-45): 1
Number of fiber connections 1 SFP, SFP+
Black

Technical specifications

Maximum data transfer rate of 10000 Mbit/s.
Optical cable connector SFP,SFP+

Product type: Network switch

LAN transfer rate: 10000 MBit/s

10/100/1000 Mbps ports: 1 x

Weight: 279.55 g

Width: 75 mm

Height: 22.2 mm

Depth: 102 mm

Type: 21.13.1133

Factory colour: Black

Cable design: Round

Version: Cable

Length: 102 mm

Interfaces: RJ45

Cable use: C13/C14 appliances

Link: LAN

Input voltage: 5 V

Transfer type: Corded

UKCA: yes

Operating temperature (T-T): -20 - 70 °C

Auto-negotiation: yes

Internal: no

Fiber ports quantity: 1

Auto MDI/MDI-X: yes

Power consumption (max): 3.8 W

Documents & Downloads

Datasheet

Datasheet 3798270 ROLINE Industrial Converter, 10G Ethernet Multirate Converter

User & Safety Instructions

User & Safety Instructions 3798270 ROLINE Industrial Converter, 10G Ethernet Multirate Converter

Description

10G Ethernet converter for use in industrial environments The converter supports multi-rate media conversion at the following transfer rates: 10G, 5G, 2.5G, 1G. Supports auto negotiation and auto MDI/MDI-X. Transparent conversion of any package type, regardless of the packet size. Offers Link Fault Pass-Through (LFPT) function. TP port: RJ45; fiber optic port: SFP or SFP+. LED-display for Power, activity, status of the speed connection. Current input 5V DC 1.5A at a power consumption of max. 3.8 W. Operating temperature range: 0 °C - +50 °C. Dimensions 75 x 102 x 22.2 mm (W x D x H)

This text is machine translated.
