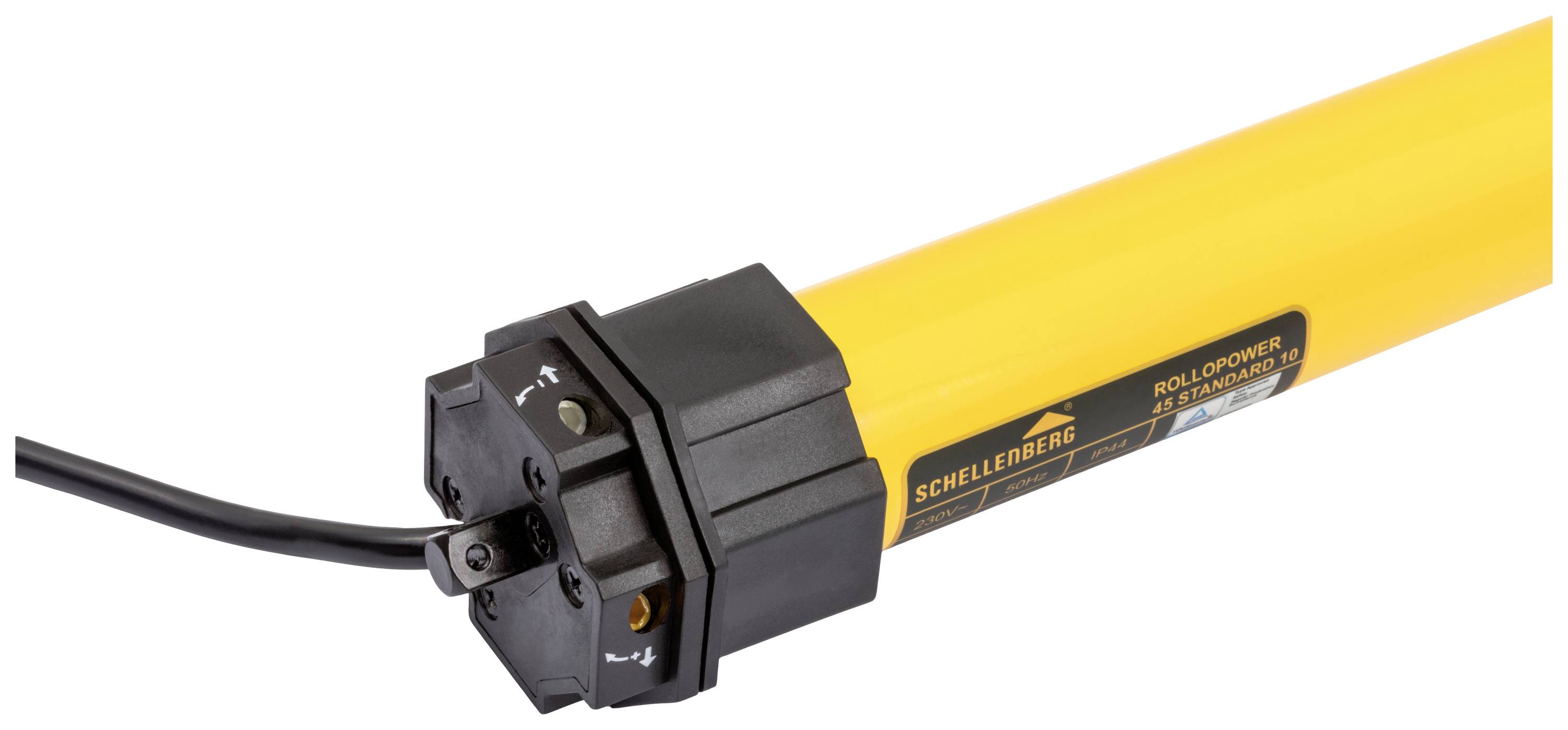

Schellenberg Maxi STANDARD 10Nm 20611 Tubular motor 60 mm 20 kg 112 W 10 Nm

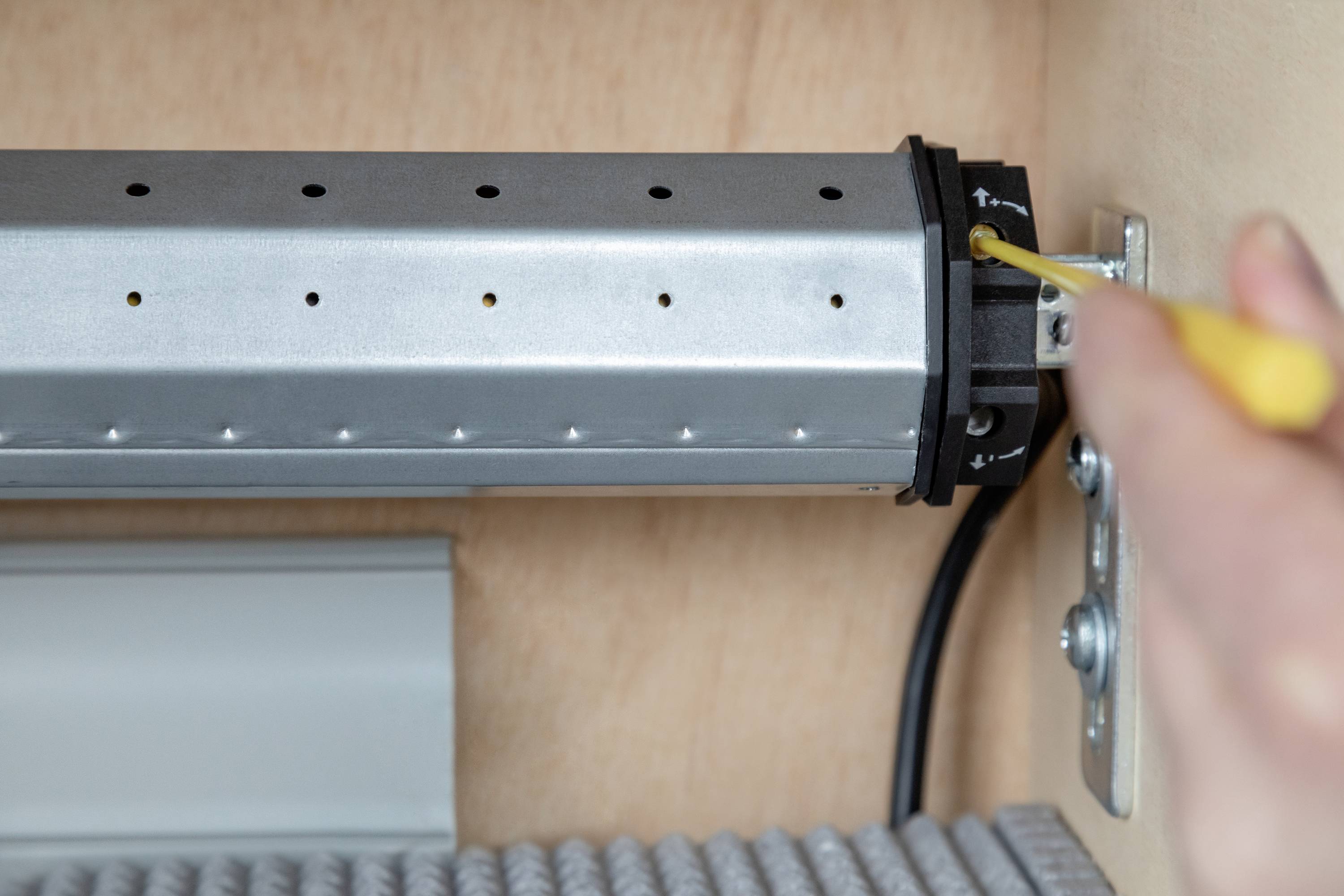

The standard 10 Nm mechanical tubular motor is used to motor a roller shutter up to 4.2 m² and weighs 20 kg. It is designed for the Maxi roller shutter system and is installed directly in the octagonal shaft with a diameter of 60 mm. After installation, the end positions are mechanically adjusted with an adjustment pin.The smooth-running tubular motor STANDARD is characterized by a strong, low-wear brake as well as a maintenance-free motor with a high-quality gear unit with sintered gears. An extra-wide carrier compensates for an odd-cut roller shutter shaft and the adapter's special size ensures optimum power transmission to the roller shutter shaft. Thermal overload protection switches the motor off in the event of overheating and thus protects the motor. A separately available control element is required for controlling the standard tubular motor. The Schellenberg roller shutter switches or the Schellenberg timer switches are suitable for this purpose. The control of several roller shutter motors can be realized by using a relay. A height-adjustable wall bearing is included in the delivery for installation in the roller shutter box. The power is supplied via a four-wire connection cable with a length of 2 m.With the standard tubular motor, you have the option to retrofit a radio control at a later time. For this you need a Schellenberg wireless shutter switch or a Schellenberg wireless receiver module. The radio control allows the motor to be operated remotely, with a Schellenberg handheld transmitter or a Schellenberg radio timer. After a radio retrofit, the standard tubular motor can be integrated into a compatible smart home system from smart friends or Schellenberg.
