Schlegel Contact reset function 2 breakers, 1 maker momentary 1 pc(s)

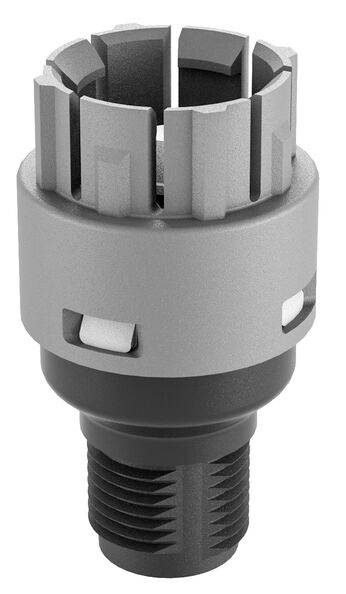

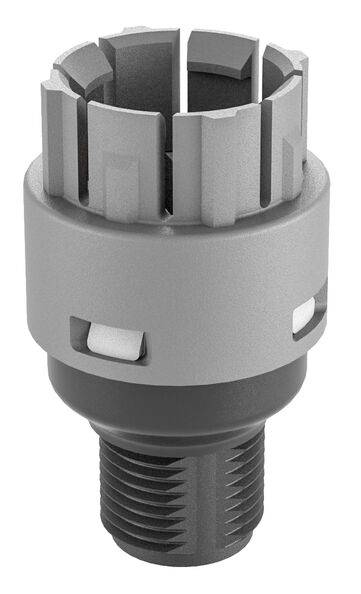

A metallic cylindrical adapter with ribbed sides and multiple grooves, used in mechanical or technical applications.
Drawing of a cylindrical connector with dimensions: diameter 21.5 mm, length 38.5 mm. Shows a 5-pin connection view from below.
Circuit diagram with PIN1 and PIN4 at switch, PIN2 at transistor, PIN3 (-) and PIN5 (+) at lamp, diode on the right.
Diagram shows pin configuration. At the top: Pin1/Pin4 with black and white sections. Below: Pin5/Pin2 with four equally sized segments.
1/4
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
3 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 31.99 / piece)
€ 31.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 3 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Category: Contact providerSeries: FRT connect contact transmitterIP00 protectionLighting: YesContact material AgNiStandards IEC/EN 60947-5-1Contact type 1NC + 1NOM12-5-pin, A-coded, AIDA connectionProtection class II (protective insulation)Accessory type: Contact donorsLamp holder: None, 3 mm LED integratedSwitching function: Key functionStroke: 3 mmForced opening: Acc. To EN60947-5-1, Anh K
Product type

Contact

Switch/button features

reset function

Connection

M12 plug

Functions

momentary

Contact type

2 breakers

1 maker

Contact material

AgNi

IP00

Content

1 pc(s)

Type

FRTLOI_C121

Lighting type

LED

Documents & Downloads

Datasheet

Datasheet 2865192 Schlegel Contact reset function 2 breakers, 1 maker momentary 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2865192 Schlegel Contact reset function 2 breakers, 1 maker momentary 1 pc(s)

Description

Contact maker FRT connect contact pins 1NC 1 S M12 connection 4-pin
