Name: Schneider Electric ATS490D32Y Soft starter Motor power at 400 V 15 kW Motor power at 230 V 7.5 kW
Brand: Schneider Electric
SKU: 3754669
Availability: BackOrder

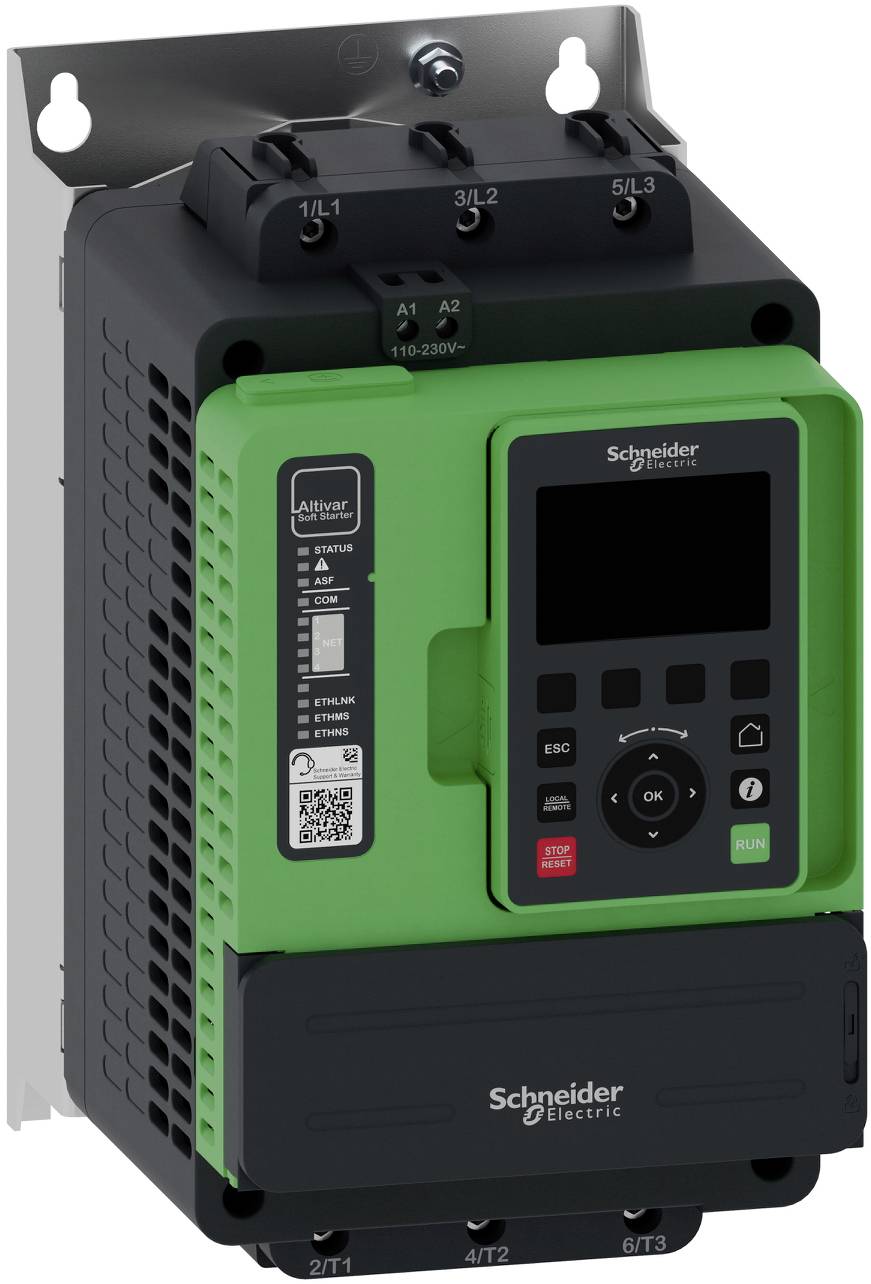

Schneider Electric Altivar variable frequency drive, a green-and-black industrial motor controller with digital keypad and display.<br>

Side view of an industrial electronic module with black vented housing, green connector block, and silver mounting plate.<br>

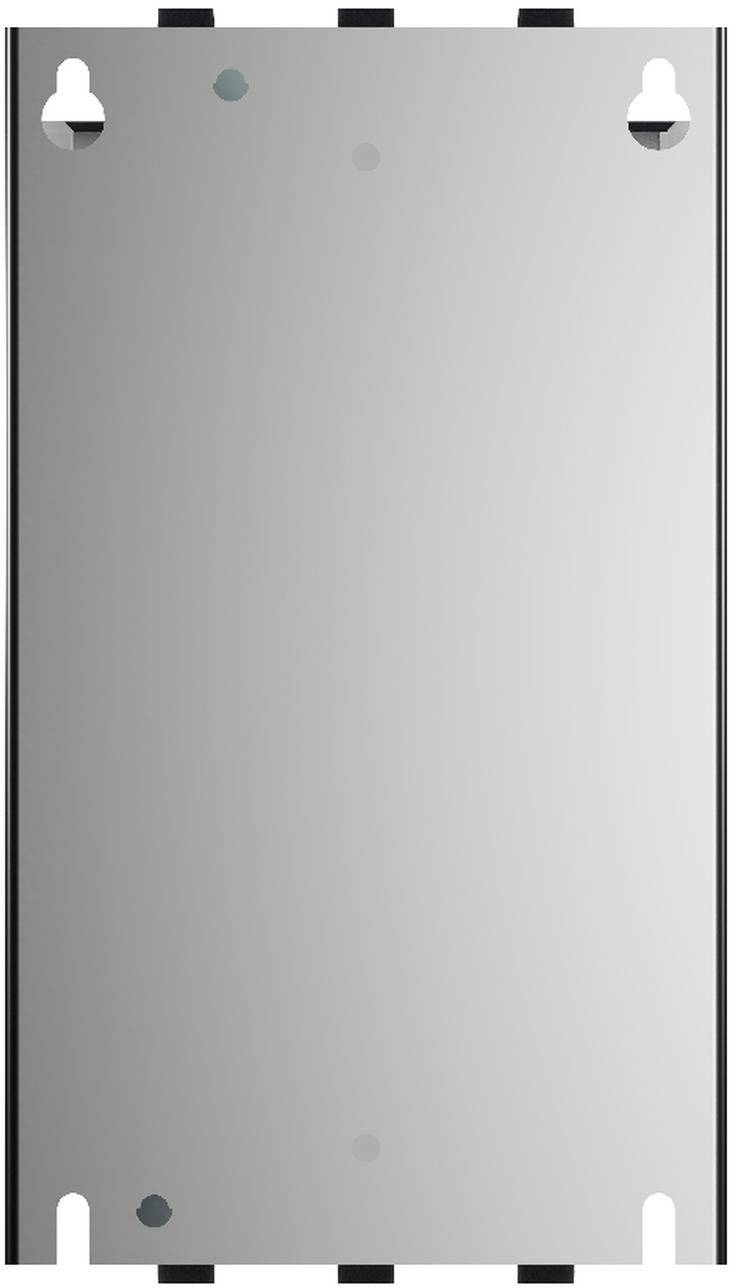

Blank gray metal panel with corner fasteners and mounting tabs, shown front view.<br>

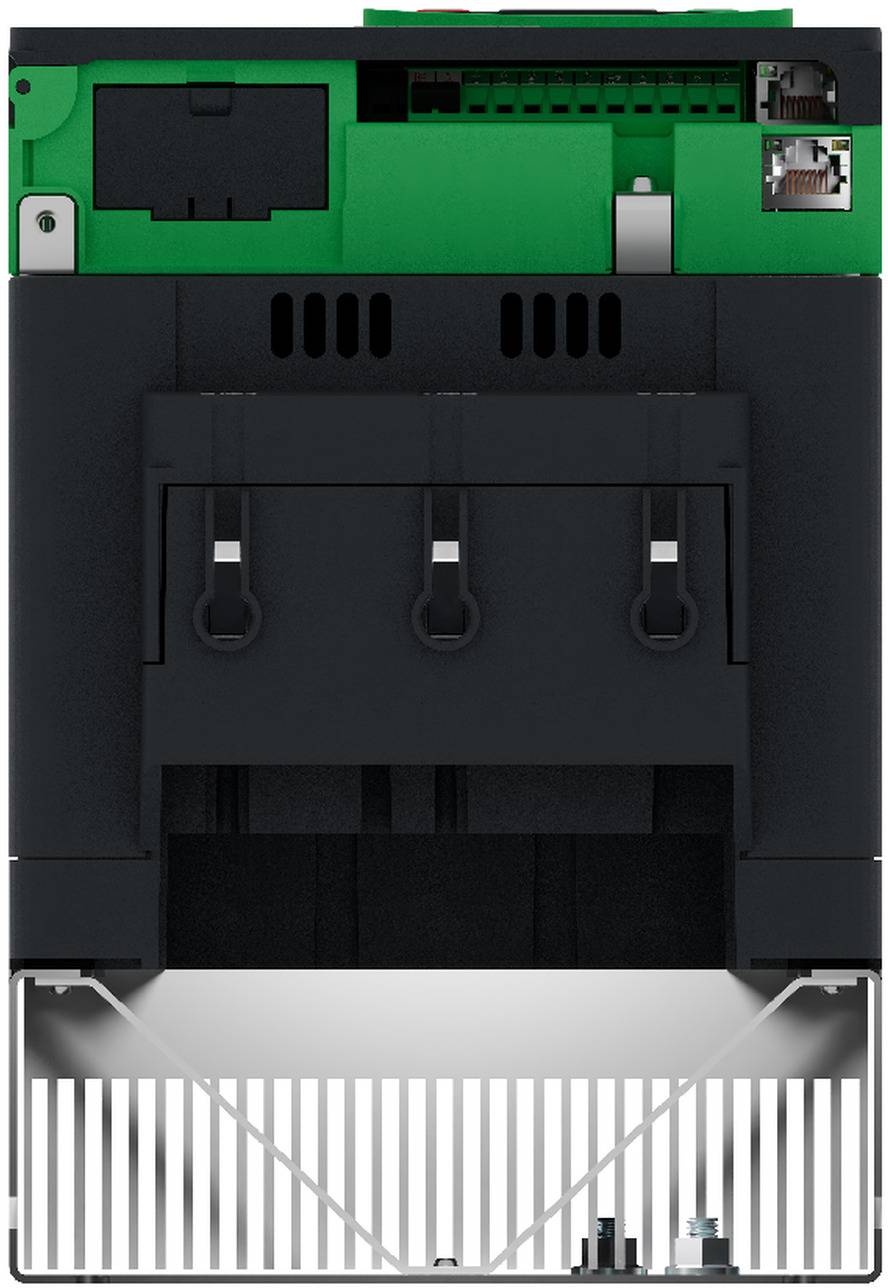

Front view of a black and green electronic device or module with vent slots, latches, and a white connector area at the bottom.

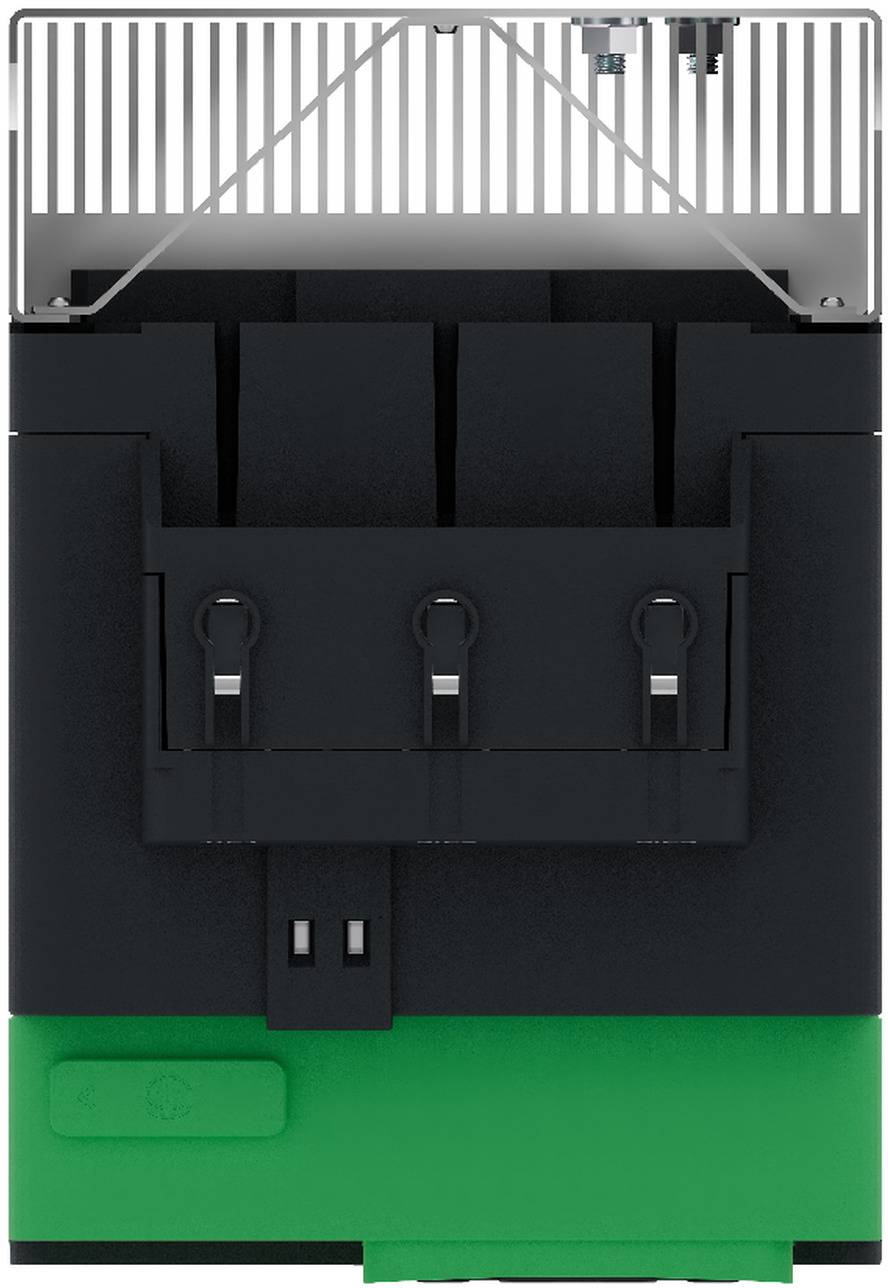

Close-up of a black and green electrical connector or circuit module with multiple metal pins and terminals on top.

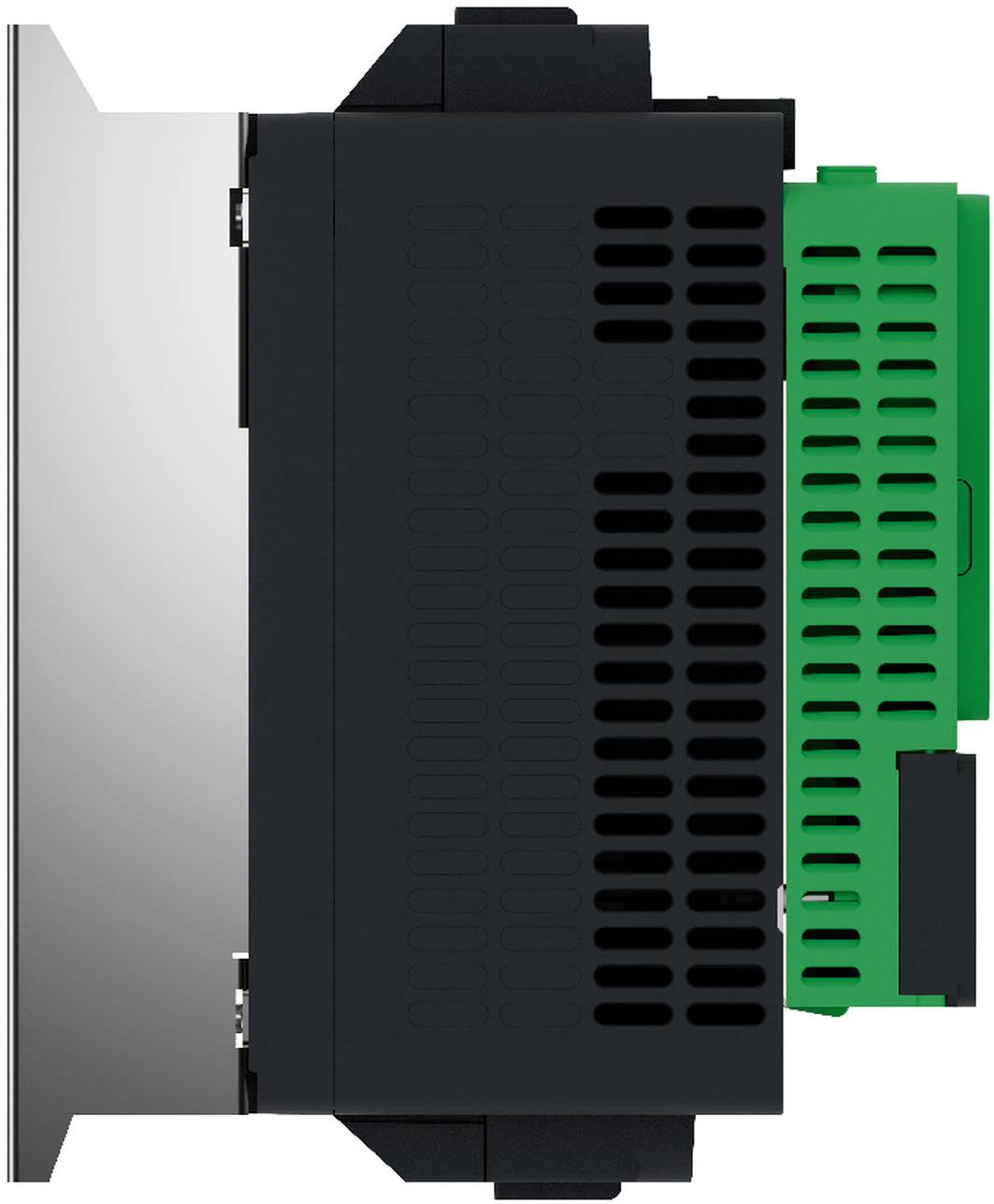

Side view of a black and green industrial electronic module with vented casing and metal mounting flange.

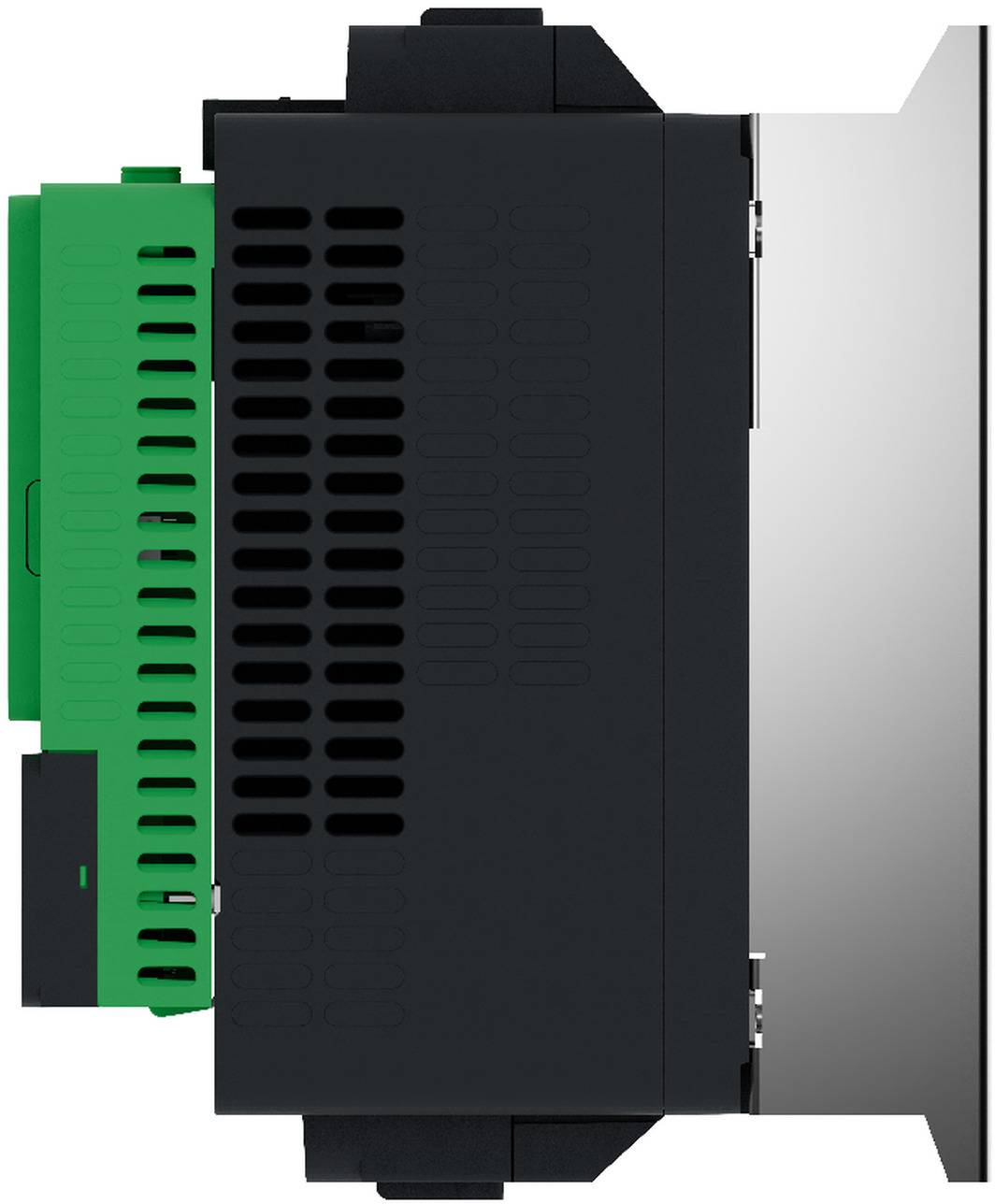

Side view of an industrial electrical enclosure or control panel with a black vented cover, green module, and silver mounting plate.

1/7

Datasheet (PDF)

Dispatches on Thu 29 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,089.00 / piece)

€ 1,089.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Tripping class CLASS 10
Rated operating current Ie at 40 °C Tu:32 A.
Rated power 3-phase motor, standard circuit, at 230 V: 7.5 kW
Rated power 3-phase motor, standard circuit, at 400 V: 15 kW
Rated power 3-phase motor, root 3 circuit, at 230 V: 15 kW
Rated power 3-phase motor, root 3 circuit, at 400 V: 22 kW
Rated control supply voltage AC 50 Hz: 110-230 V
Rated control supply voltage AC 60 Hz: 110-230 V
Rated control supply voltage DC 24-24 V
Rated ambient temperature without derating: 40°C.
Torque control: Yes
Integrated overload protection of the motor: Yes
Internal bridging: Yes
With display: Yes
Protection class (NEMA): Other
Type of voltage for activation: AC

Motor voltage: 208 bis 690 V

Product type: Soft starter

Motor power at 230 V: 7.5 kW

Motor power at 400 V: 15 kW

Manufacturer part #: ATS490D32Y

Type: ATS490D32Y

Max. temperature: 40 °C

: IP20

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Motor power at 400 V

Motor power at 230 V

Schneider Electric ATS430C11S6 Soft starter Motor power at 400 V 55 kW Motor power at 230 V 30 kW

Item no:3754674

Dispatches on Thu 29 Oct

Conrad Electronic

55 kW

30 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,265.00^*

Schneider Electric ATS430C14S6 Soft starter Motor power at 400 V 75 kW Motor power at 230 V 37 kW

Item no:3754677

Dispatches on Thu 29 Oct

Conrad Electronic

75 kW

37 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,455.00^*

Schneider Electric ATS430C17S6 Soft starter Motor power at 400 V 90 kW Motor power at 230 V 45 kW

Item no:3754680

Dispatches on Thu 29 Oct

Conrad Electronic

90 kW

45 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,679.00^*

Schneider Electric ATS430C21S6 Soft starter Motor power at 400 V 110 kW Motor power at 230 V 55 kW

Item no:3754683

Dispatches on Thu 29 Oct

Conrad Electronic

110 kW

55 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,989.00^*

Schneider Electric ATS430C25S6 Soft starter Motor power at 400 V 132 kW Motor power at 230 V 75 kW

Item no:3754685

Dispatches on Thu 29 Oct

Conrad Electronic

132 kW

75 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,295.00^*

Schneider Electric ATS430C32S6 Soft starter Motor power at 400 V 160 kW Motor power at 230 V 90 kW

Item no:3754687

Dispatches on Thu 29 Oct

Conrad Electronic

160 kW

90 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,645.00^*

Schneider Electric ATS430C41S6 Soft starter Motor power at 400 V 220 kW Motor power at 230 V 110 kW

Item no:3754689

Dispatches on Thu 29 Oct

Conrad Electronic

220 kW

110 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,369.00^*

Schneider Electric ATS430C48S6 Soft starter Motor power at 400 V 250 kW Motor power at 230 V 132 kW

Item no:3756410

Dispatches on Thu 29 Oct

Conrad Electronic

250 kW

132 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4,109.00^*

Schneider Electric ATS430C59S6 Soft starter Motor power at 400 V 315 kW Motor power at 230 V 160 kW

Item no:3754691

Dispatches on Thu 29 Oct

Conrad Electronic

315 kW

160 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4,949.00^*

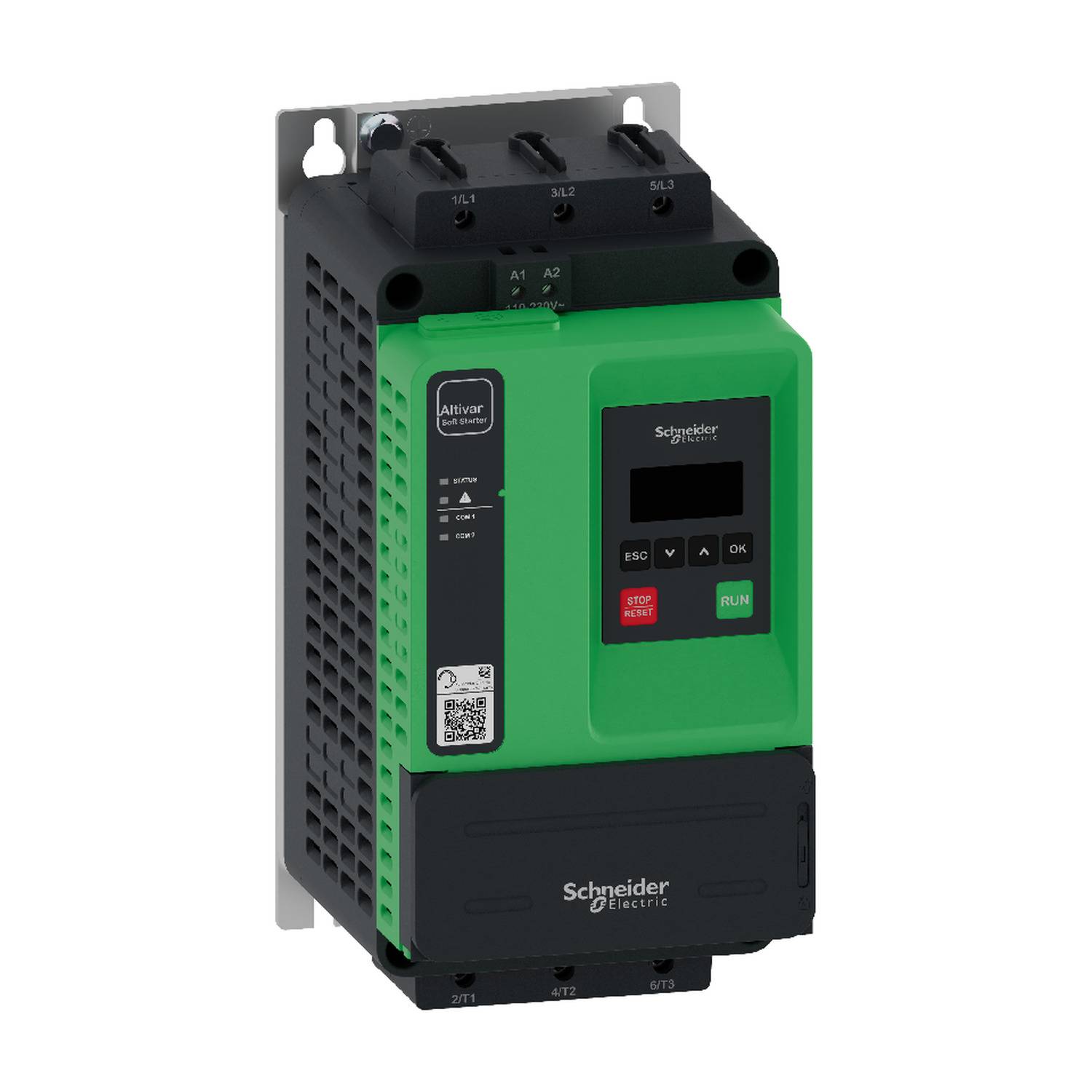

Schneider Electric ATS430D17S6 Soft starter Motor power at 400 V 9 kW Motor power at 230 V 4 kW

Item no:3754694

Dispatches on Thu 29 Oct

Conrad Electronic

9 kW

4 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

Documents & Downloads

Datasheet

Datasheet 3754669 Schneider Electric ATS490D32Y Soft starter Motor power at 400 V 15 kW Motor power at 230 V 7.5 kW

User & Safety Instructions

User & Safety Instructions 3754669 Schneider Electric ATS490D32Y Soft starter Motor power at 400 V 15 kW Motor power at 230 V 7.5 kW

Description

The Altivar ATS490 soft starter is designed to gently start and stop asynchronous motors from 208 to 690V. With an efficiency of 99.5%, special application functions and complete monitoring with data reporting the ATS490 enables an advanced motor control. Certified cyber security, Safe Torque Off, and health monitoring capabilities increase uptime, reduce operating costs, and simplify project planning. The ATS490 provides comprehensive system monitoring, including the engine, application, power and energy, with an accuracy of over 95%. The ATS490 has a native Ethernet port for Modbus TCP or Ethernet/IP and a serial Modbus port. The Altivar ATS490 soft starter meets the requirements of applications such as pumps, fans, compressors, conveyor belts, mixers, Cutting machines, grinding machines and crushers. ATS490 conforms to IEC/EN 60947-4-2 and certifications cULus, UKCA, RCM, CCC, EAC and DNV. There are many accessories available, such as an IP65 mounting kit to attach the graphics display to the control cabinet door and communication modules to extend connectivity to other protocols. The packaging is made from recycled cardboard and contains less disposable plastic. The ATS490 soft starters must be mounted vertically in a housing. The built-in and innovative features of the ATS490 improve the competitiveness, operational resilience and sustainability of the equipment. The ATS490 soft starter reduces the total cost of ownership and operates even the most demanding applications.
