Schneider Electric C2534V250 C2534V250 Electronics module
Product type
Electronics module
Number of pins
3
Content
1 pc(s)
Switch/button features
+ LED
Rated permanent current Iu
250 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1,695.00 / piece)
€ 1,695.00
incl. VAT
Only 5 Piece(s) available
Technical specifications
- Product type
Electronics module
- Number of pins
3
- Content
1 pc(s)
- Switch/button features
+ LED
250 A
3.0
Delayed
FALSE
3000
3000
Electronic release
AC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2935193 Schneider Electric C2534V250 C2534V250 Electronics module
Datasheet 2935193 Schneider Electric C2534V250 C2534V250 Electronics module
User & Safety Instructions
User & Safety Instructions 2935193 Schneider Electric C2534V250 C2534V250 Electronics module
User & Safety Instructions 2935193 Schneider Electric C2534V250 C2534V250 Electronics module
Description

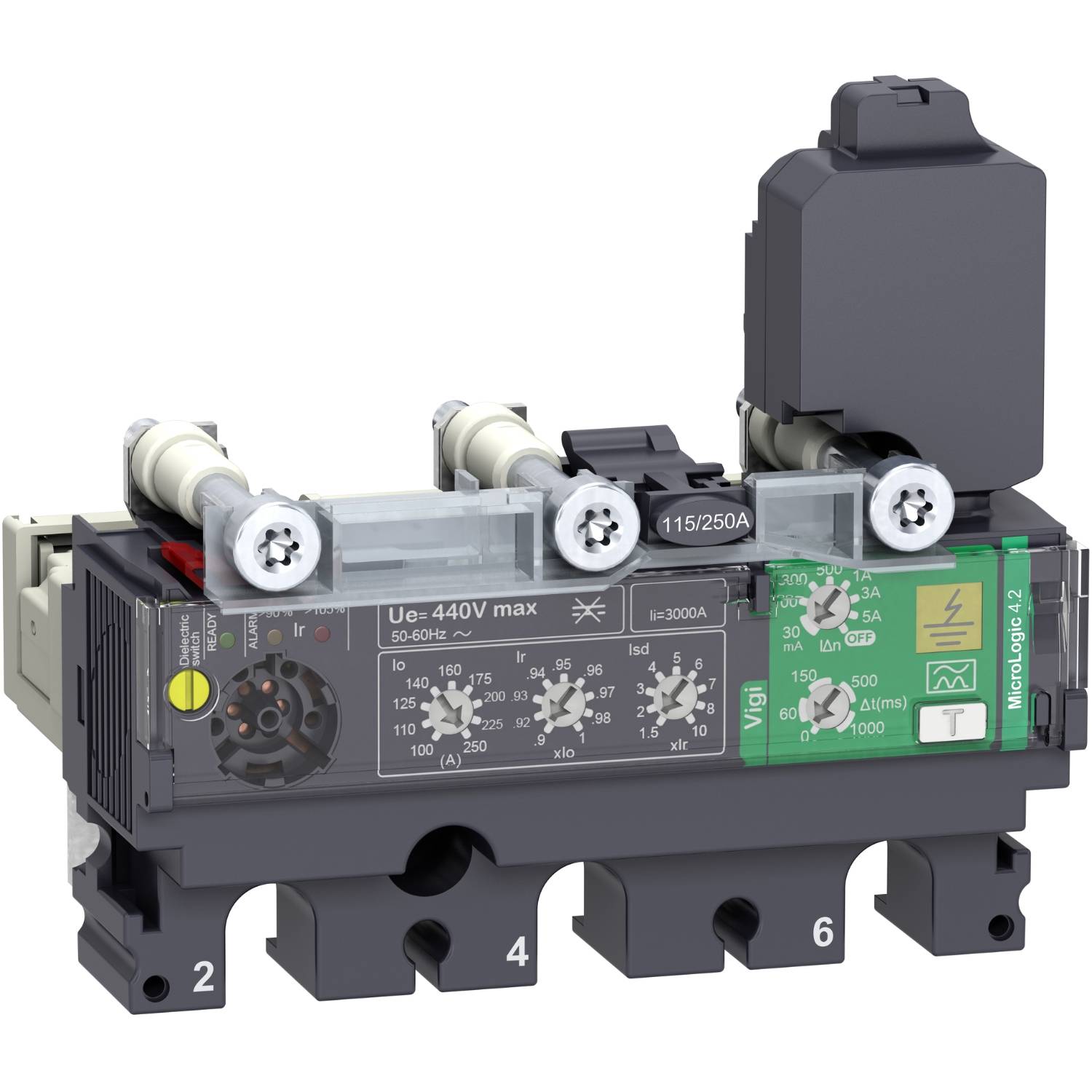

This MicroLogic 4.2 is a 3-pin 3D-electronic trigger device, which is used in the Compact NSX 250 power circuit breakers. This electronic trigger with a rated power of 250 A is the best choice for all standard and special applications. It has an adjustable long-term protection against overload. It also offers an adjustable short-term protection and a fixed instantaneous short-circuit protection. The MicroLogic 4.2 Vigi release unit offers an integrated, adjustable differential current protection. MicroLogic 4.2 indicates overloads with alarm LEDs. The green Ready LED flashes when the circuit breaker is ready to trip. A differential current pre-alarm can be available remotely by installing the optional SDX module (LV429532). This product is part of our EcoStruxure Power architecture, provided it is combined with the PowerTag NSX and Compact NSX Basic Switch.
This text is machine translated.
This text is machine translated.
What kind of MCB are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
