Schneider Electric C2536M220 C2536M220 Electronics module
Product type
Electronics module
Number of pins
3
Factory colour
Green
Content
1 pc(s)
Rated permanent current Iu
220 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1,039.00 / piece)
€ 1,039.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
Electronics module
- Number of pins
3
- Factory colour
Green
- Content
1 pc(s)
220 A
3.0
Delayed
TRUE
3300
3300
Electronic release
AC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2935201 Schneider Electric C2536M220 C2536M220 Electronics module
Datasheet 2935201 Schneider Electric C2536M220 C2536M220 Electronics module
User & Safety Instructions
User & Safety Instructions 2935201 Schneider Electric C2536M220 C2536M220 Electronics module
Description

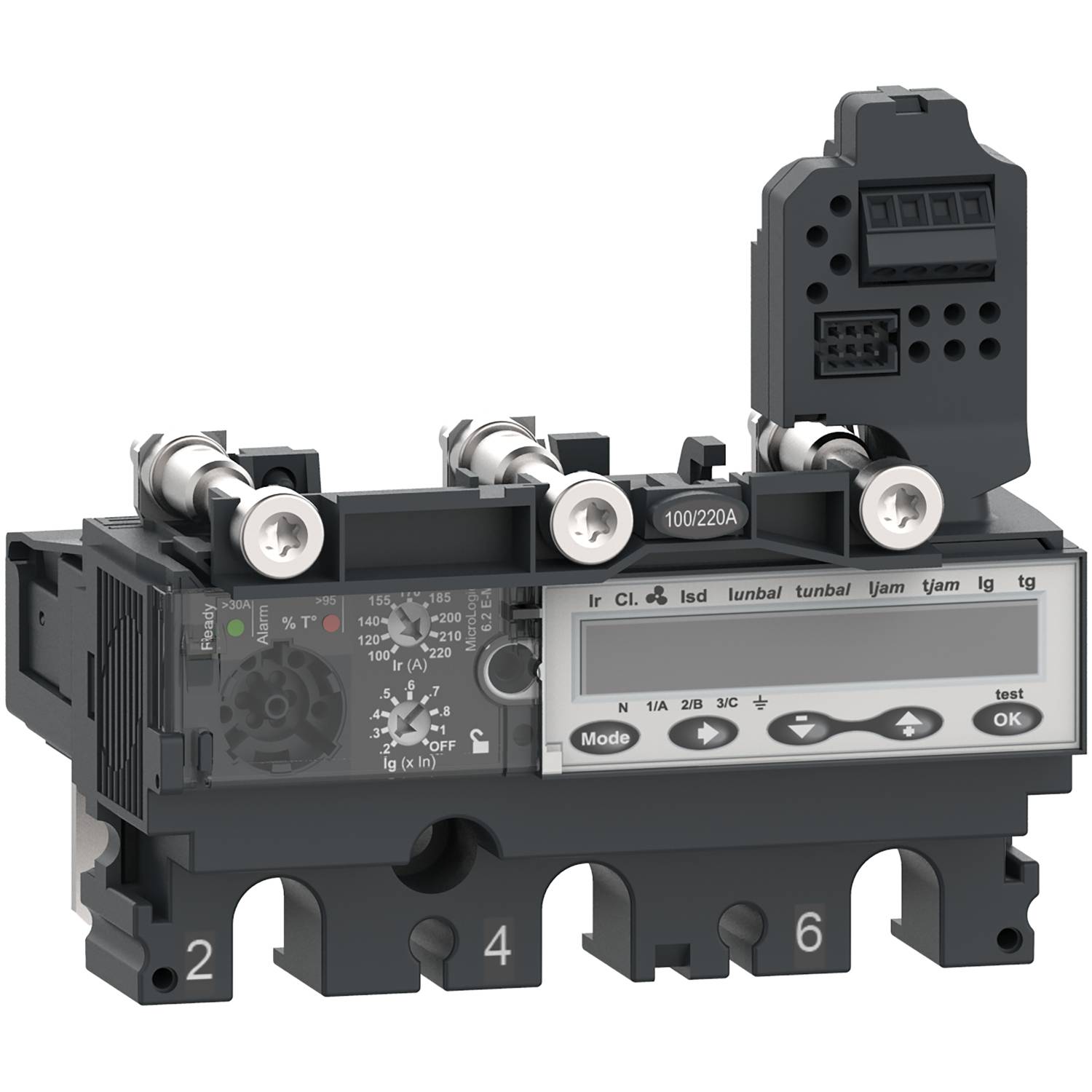

This 3-pin MicroLogic 6.2 E-M (Energy) 3D electronic release device is an electronic trigger device used in Compact NSX 250 circuit breakers. This electronic trip unit with a rated power of 220 A is the best choice for motor protection applications. They have an adjustable, long-term protection against overload. It also offers an adjustable short-term protection and a fixed instantaneous short-circuit protection. It offers phase unbalance or phase failure protection and an additional, adjustable ground fault protection. MicroLogic 6.2 E-M indicates overloads with alarm LEDs. The green Ready LED flashes when the circuit breaker is ready to trip. MicroLogic 6.2 E-M is equipped with a display module that enables power measurement and fine tuning. This product is part of our EcoStruxure Power architecture, provided it is combined with the PowerTag NSX and Compact NSX Basic Switch.
This text is machine translated.
This text is machine translated.
