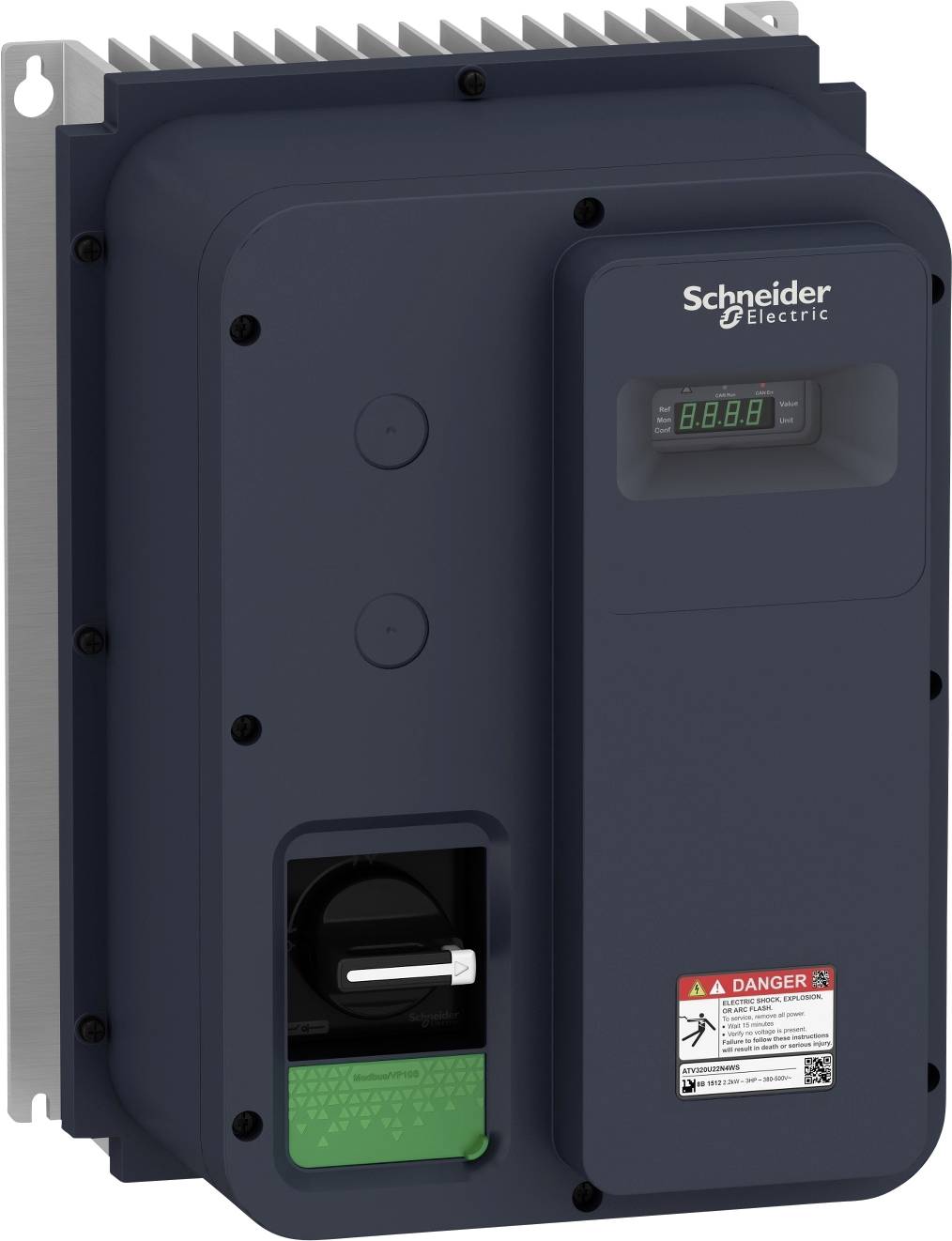

Schneider Electric Frequency inverter ATV320U22M2WS 2.2 kW 1-phase 200 V, 240 V
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Surface-mounted
- Communication protocol: Modbus. Serial; CANopen
- Nominal auxiliary voltage [UH,nom]: 200-240 V -15 - +10 %
- Number of digital inputs: 7
- Number of analogue inputs: 3
- Number of analogue outputs: 1
- Number of logic outputs: 3
- Rated clock frequency 4 kHz
- Apparent power 4.8 kVA at 240 V (high overload)
- Operating ambient temperature -10…40 °C without load reduction; 40…60 °C with
- Input voltage
200 V
240 V
- Product type
Frequency inverter
- Output rating (max.)
2.2 kW
- Max. frequency
0.599 kHz
- Network
1-phase
- Frequency range
0.599 kHz (max)
- Nominal current
24 A
- Depth
235 mm
- Height
340 mm
- Width
250 mm
IP65
- Type
ATV320U22M2WS
- Filter class
C2
- Dim
(W x H x D) 250 x 340 x 235 mm
- Manufacturer part #
ATV320U22M2WS
- Weight
7.8 kg
- UKCA
yes
