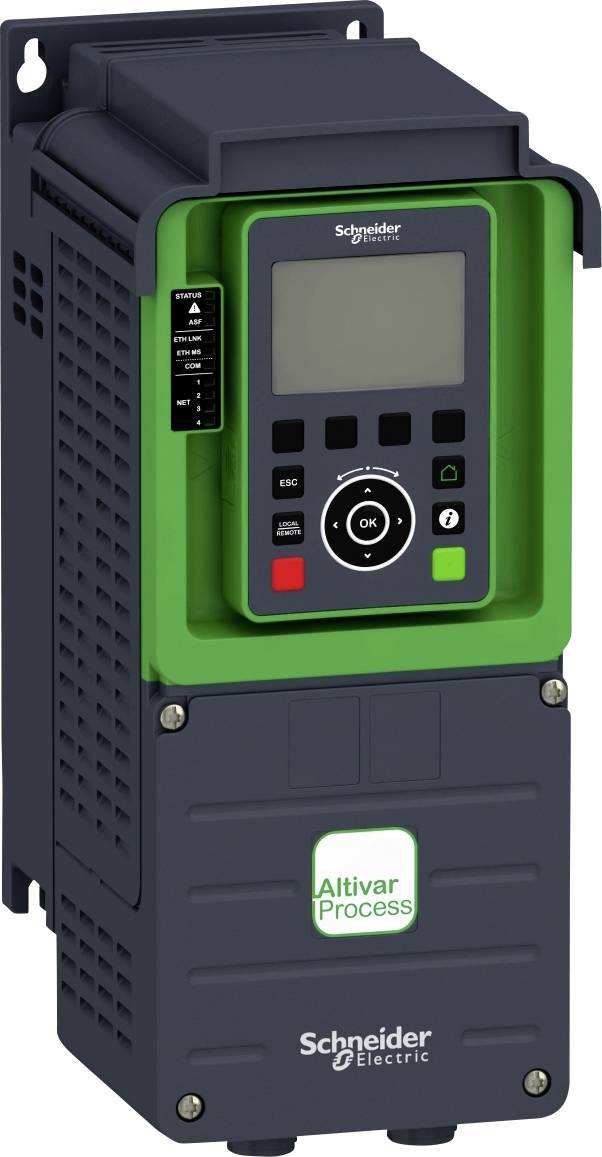

Image similar
Schneider Electric Frequency inverter ATV630U22N4 2.2 kW 3-phase 380 V, 480 V
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Surface-mounted
- Communication protocol: Modbus TCP; Modbus. Serial; Ethernet
- Nominal auxiliary voltage [UH,nom]: 380-480V -15 - +10 %
- Number of digital inputs: 8
- Number of analogue inputs: 3
- Number of analogue outputs: 2
- Rated clock frequency 4 kHz
- Apparent power 3.2 kVA at 480 V (standard overload); 2.4 kVA at 480 V (high overload)
- Operating ambient temperature -15…50 °C (without load reduction); 50…60 °C (with)
- Engine Power (HP): 3 HP standard overload; 2 HP high
- Output rated current: 5.6 A at 4 kHz for standard overload; 4 A at 4 kHz for high overload
- Noise level 54.5 dB
- Cooling air volume: 38 m3/h.
- Input voltage
380 V
480 V
- Product type
Frequency inverter
- Output rating (max.)
2.2 kW
- Max. frequency
0.5 kHz
- Min. frequency
0.0001 kHz
- Network
3-phase
- Frequency range
0.0001 kHz - 0.5 kHz
- Nominal current
4.3 A
- Depth
203 mm
- Height
350 mm
- Width
144 mm
IP21
- Type
ATV630U22N4
- Filter class
C2
- Dim
(W x H x D) 144 x 350 x 203 mm
- Manufacturer part #
ATV630U22N4
- Weight
4.5 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2373957 Schneider Electric Frequency inverter ATV630U22N4 2.2 kW 3-phase 380 V, 480 V
