Buy Schneider Electric GZ1E10 GZ1E10 Motor surge protector switch 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

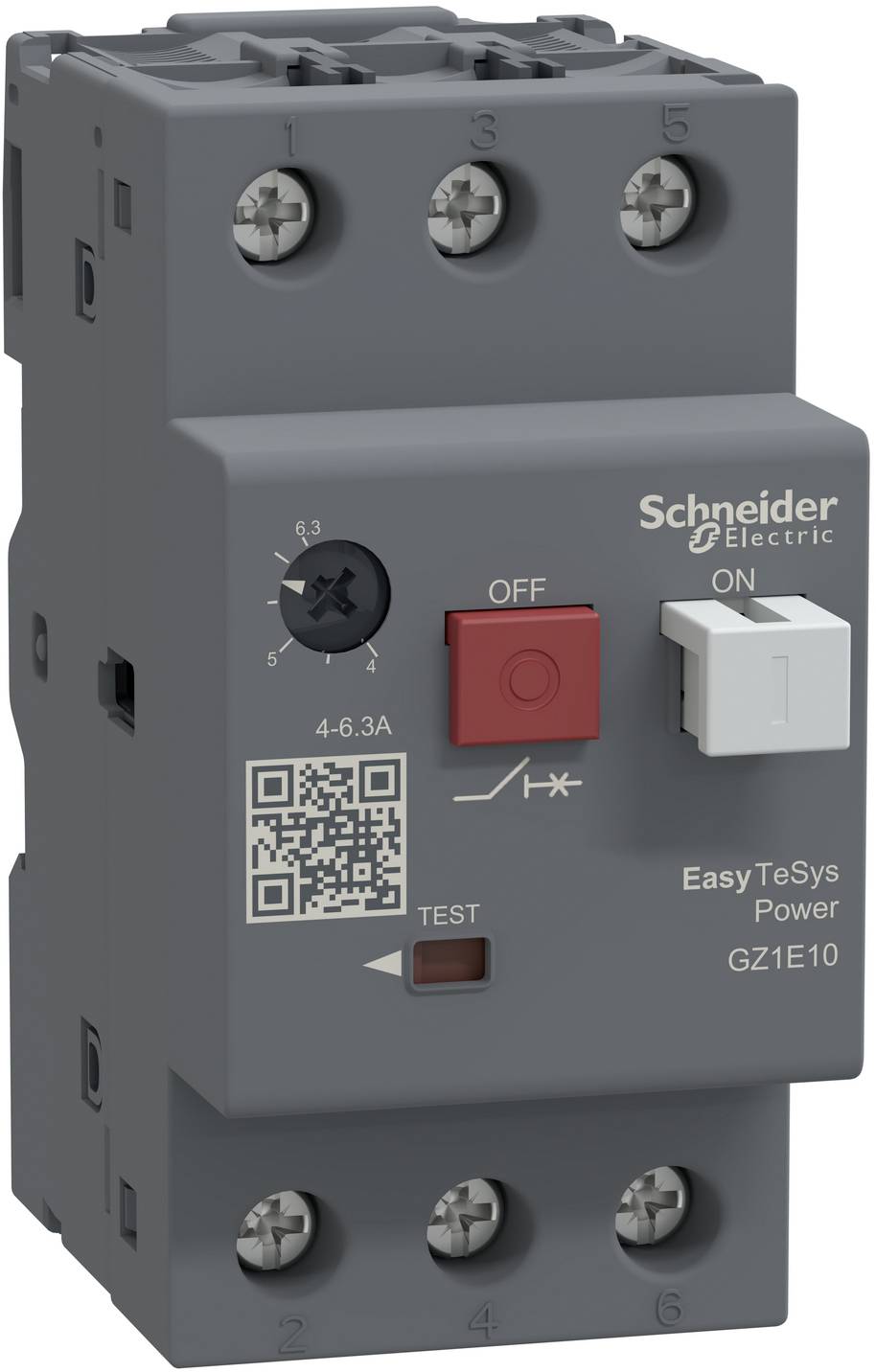

Schneider Electric EasyTeSys Power GZ1E10 motor circuit breaker with rotary current setting, OFF/ON switch, test button, and terminal screws.

Schneider Electric EasyTeSys Power GZ1E10 motor circuit breaker with rotary current setting, OFF/ON switch, test button, and terminal screws.

Schneider Electric

Product type

Motor surge protector switch

IP rating

IP20

Width

44.5 mm

Height

89 mm

Content

1 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 96.79 / piece)

€ 96.79

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Connection type main circuit: Screw terminals
Actuator type: Pushbutton
Activation technology: Thermomagnetic
Rated operating power at AC-3, 230 V: 1.1 kW
Rated operating power at AC-3, 400 V: 2.2 kW
Rated operating voltage 690-690 V
Rated continuous current IU 6.3 A
Rated limit short circuit switch-off current ICU at 400 V, AC:100 kA
Setting range of the undelayed short-circuit release: 78-78 A.
Device type: Complete unit in housing
With integrated auxiliary switch: No.
With integrated undervoltage release: No.
With thermal overload protection: Yes
Phase failure sensitive: Yes
Power loss: 2.5 W
Overload release current setting 4-6.3 A

Product type: Motor surge protector switch

: IP20

Width: 44.5 mm

Height: 89 mm

Content: 1 pc(s)

Type: GZ1E10

Dim: (W x H x D) 44.5 x 89 x 78 mm

Depth: 78 mm

Number of pins: 3

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3754783 Schneider Electric GZ1E10 GZ1E10 Motor surge protector switch 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3754783 Schneider Electric GZ1E10 GZ1E10 Motor surge protector switch 1 pc(s)

Description

GZ1E are 3-pole (3P) thermal magnetic circuit breakers for motor protection, compliant with IEC 60947-2 and IEC 60947-4-1. Thermal setting range from 4-6.3A. It offers standard reliability and an electrical/mechanical life of 0.1 MIO cycles. These circuit breakers are designed for connection with screw terminals. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliance.

This text is machine translated.

Description

GZ1E are 3-pole (3P) thermal magnetic circuit breakers for motor protection, compliant with IEC 60947-2 and IEC 60947-4-1. Thermal setting range from 4-6.3A. It offers standard reliability and an electrical/mechanical life of 0.1 MIO cycles. These circuit breakers are designed for connection with screw terminals. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliance.

This text is machine translated.
