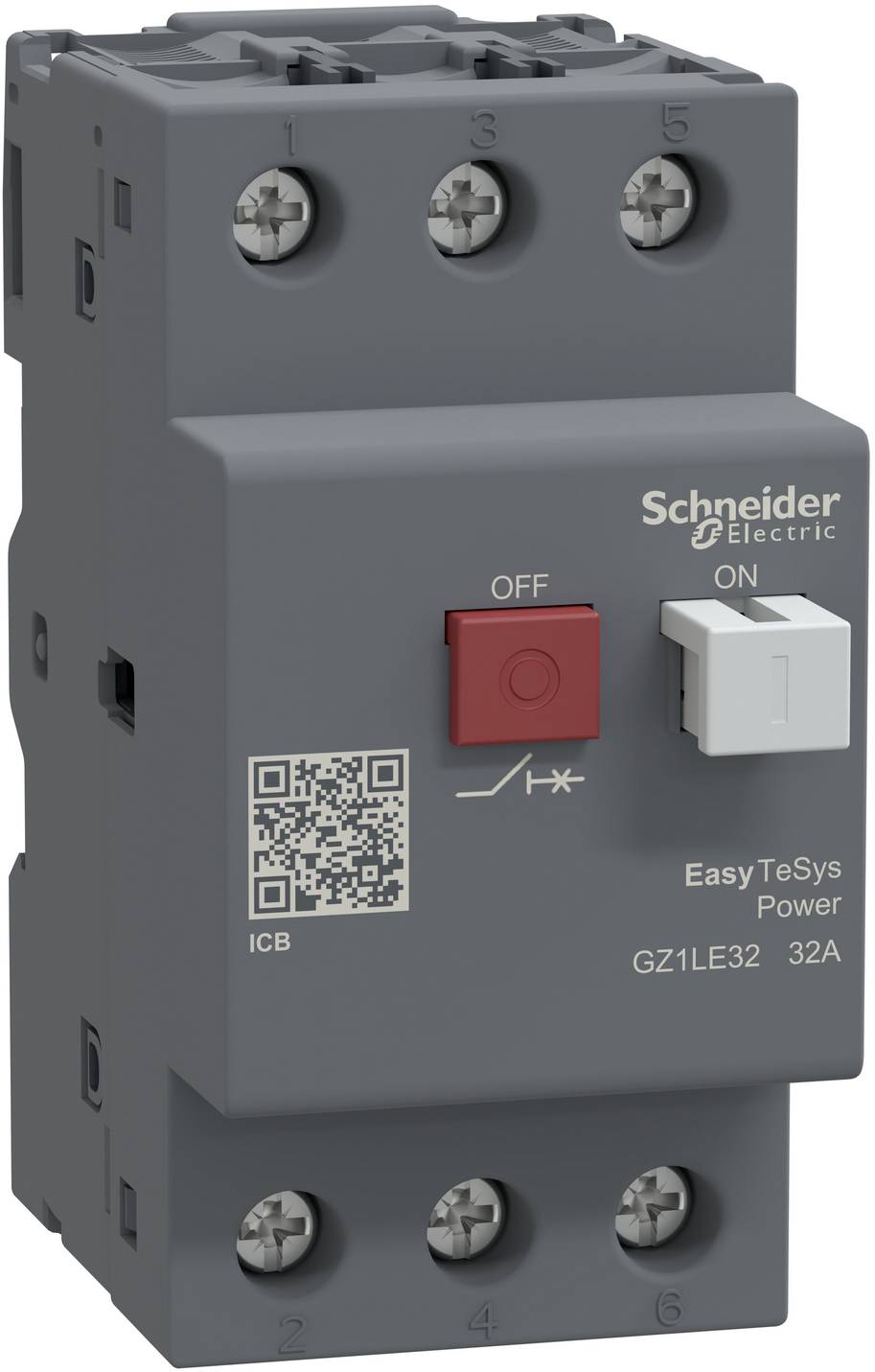

Gray Schneider Electric Easy TeSys Power circuit breaker with red OFF and white ON switches, labeled GZ1LE32 32A and ICB.

Gray Schneider Electric Easy TeSys Power circuit breaker with red OFF and white ON switches, labeled GZ1LE32 32A and ICB.

Schneider Electric

Product type

Motor surge protector switch

IP rating

IP20

Width

44.5 mm

Height

89 mm

Content

1 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 191.59 / piece)

€ 191.59

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Connection type main circuit: Screw terminals
Actuator type: Pushbutton
Trigger technology: Magnetic
Rated operating power at AC-3, 230 V: 7.5 kW
Rated operating power at AC-3, 400 V: 15 kW
Rated operating voltage 690-690 V
Rated continuous current IU 32 A
Rated limit short circuit switch-off current ICU at 400 V, AC:10 kA
Setting range of the undelayed short-circuit release: 416-416 A.
Device type: Complete unit in housing
With integrated auxiliary switch: No.
With integrated undervoltage release: No.
With thermal overload protection: No.
Phase failure sensitive: No.

Product type: Motor surge protector switch

: IP20

Width: 44.5 mm

Height: 89 mm

Content: 1 pc(s)

Type: GZ1LE32

Dim: (W x H x D) 44.5 x 89 x 78 mm

Depth: 78 mm

Number of pins: 3

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3754797 Schneider Electric GZ1LE32 GZ1LE32 Motor surge protector switch 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3754797 Schneider Electric GZ1LE32 GZ1LE32 Motor surge protector switch 1 pc(s)

Description

GZ1LE are 3-pole magnetic circuit breakers specially designed to control and protect motors in accordance with IEC 60947-2 and IEC 60947-4-1 standards. The magnetic protection rating is 2.5 A with magnetic trigger. It provides standard reliability and durability with an electrical/mechanical life of 0.1 MIO cycles. These circuit breakers are designed for connection with screw terminals. They are available worldwide, multiple certified (IEC, UL, CSA, CCC, EAC, Marine) and RoHS/REACH compliant.

This text is machine translated.

Description

GZ1LE are 3-pole magnetic circuit breakers specially designed to control and protect motors in accordance with IEC 60947-2 and IEC 60947-4-1 standards. The magnetic protection rating is 2.5 A with magnetic trigger. It provides standard reliability and durability with an electrical/mechanical life of 0.1 MIO cycles. These circuit breakers are designed for connection with screw terminals. They are available worldwide, multiple certified (IEC, UL, CSA, CCC, EAC, Marine) and RoHS/REACH compliant.

This text is machine translated.
