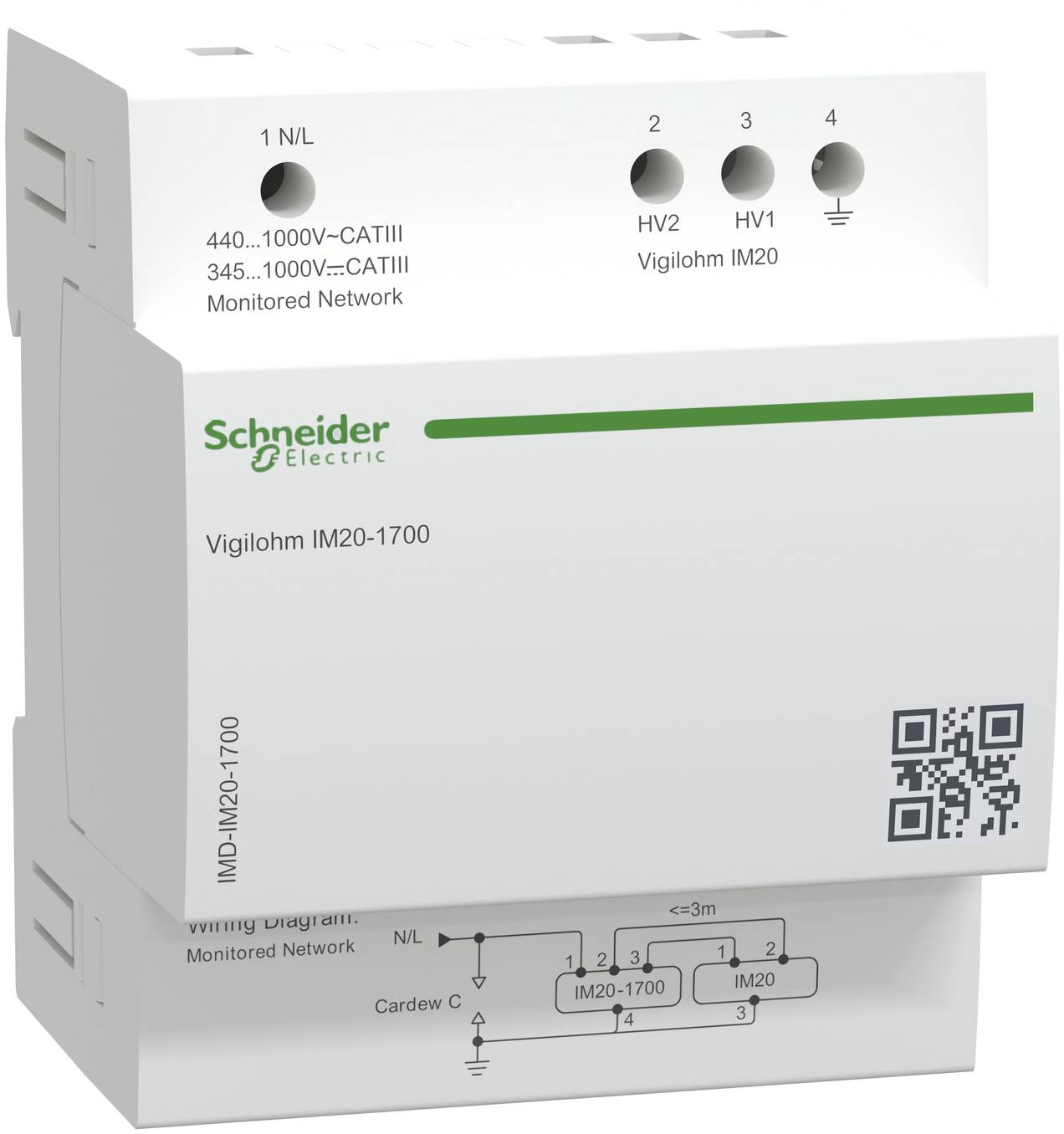

Schneider Electric IMD-IM20-1700 IMD-IM20-1700 Voltage monitoring relay

This accessory is part of the Vigilohm range, which has been developed for monitoring in ungrounded power supplies (IT systems) at the exit level in accordance with the installation and product standards. This accessory is a voltage adapter that is connected between the monitored mains and the insulation monitoring device. It enables the monitoring of the isolation level of networks with a higher voltage level than that, WAS the devices can handle natively. This product can be used in industrial environments. For use with an IM20 insulation monitoring device in a network from 600 VAC to 1700 VAC, between the phases when the neutral conductor is accessible. Or in a mains of 440 V AC to 1000 V AC between the phases, if the neutral wire is not accessible. Also compatible with 345V DC to 1000V DC networks. The dimensions of this voltage adapter are 90mm in height, 71mm in width, 67.5mm in depth with a product weight of 200 grams.
