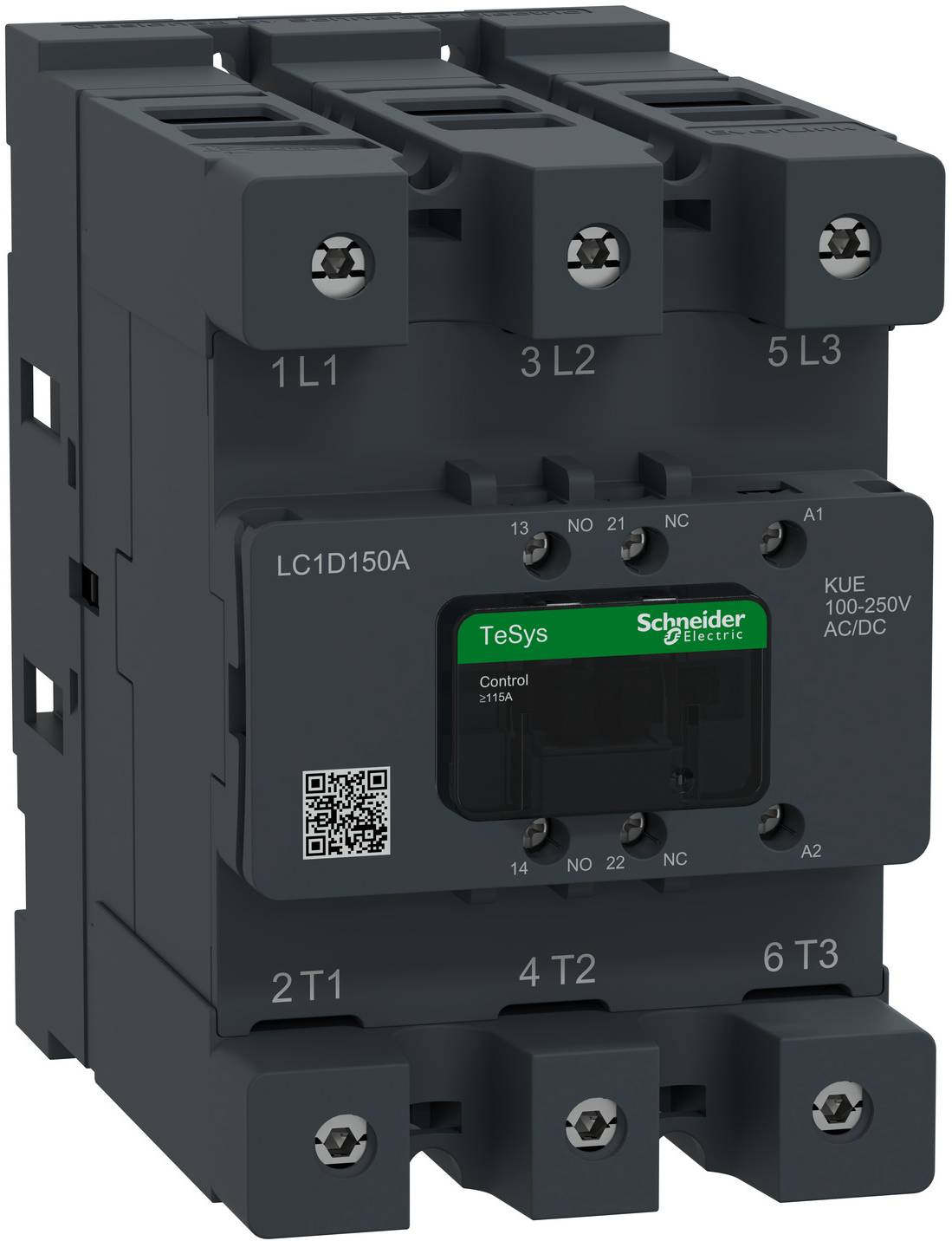

Schneider Electric LC1D150AKUE Electrical contactor 3 makers 75 kW + auxiliary contact Piece 1 pc(s)

TeSys DECA advanced contactor, 3 pole (3NO) for applications in category AC-3 to 150A 75kW 400_440V. It is equipped with an electronic broadband coil 100 - 250V AC/DC which has a lower power consumption, as well as with integrated 1NC+1NO auxiliary contacts. The mounting position is arbitrary and LRD43 can be mounted directly under the contactor. The operating temperature range is between -40 °C and 70 °C and can be installed at heights up to 3000 m without any loss of power. It is designed for demanding applications with improved performance under harsh environmental conditions such as salt fog, dust and strong impacts. The dimensions are 152 mm x 97 mm x 155 mm (H x W x D). The compact size reduces the space required. Simple cabling with front access to the control circuit improves accessibility and security. Front IP20 and an improved robustness of the main power connection are achieved by EverLink. Certified according to several standards (CE, CB, CCC, cULus, KC, RCM). Unique QR code allows quick access to complete product data.
