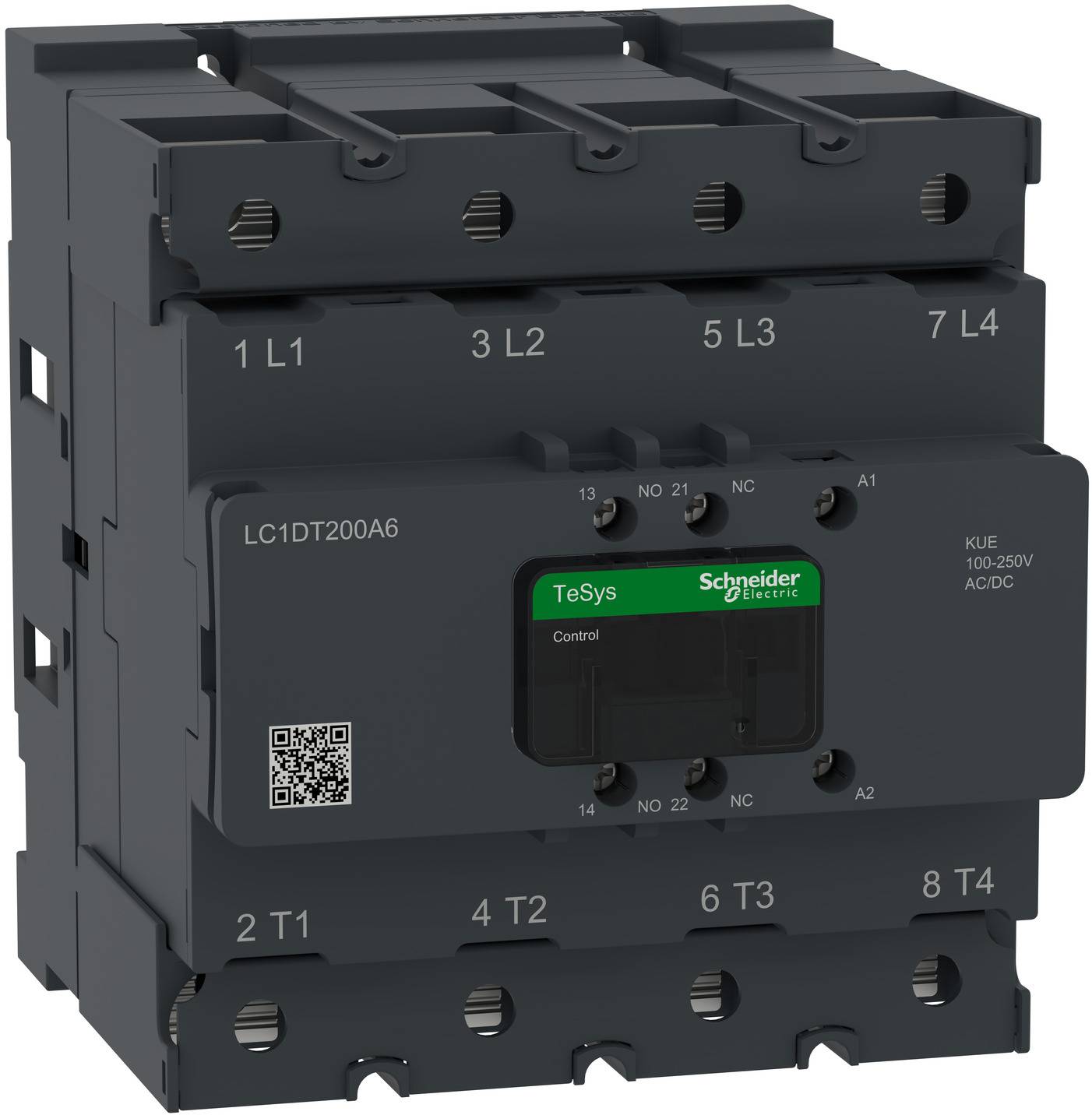

Schneider Electric LC1DT200A6KUE Electrical contactor 4 makers + auxiliary contact 1 pc(s)

TeSys DECA advanced contactor, 3 pole (3NO) for applications in category AC-1 to 200A 400_440V. It is equipped with an electronic broadband coil 100 - 250V AC/DC which has a lower power consumption, as well as with integrated 1NC+1NO auxiliary contacts. The mounting position is arbitrary and LRD43 can be mounted directly under the contactor. The operating temperature range is between -40 °C and 70 °C and can be installed at heights up to 3000 m without any loss of power. It is designed for demanding applications with improved performance under harsh environmental conditions such as salt fog, dust and strong impacts. The dimensions are 152 mm x 134 mm x 155 mm (H x W x D). The compact size reduces the space required. Simple cabling with front access to the control circuit improves accessibility and security. Front IP20 and improved robustness and connectivity of the main power connections are achieved by the bolt connections. Certified according to several standards (CE, CB, CCC, cULus, KC, RCM). Unique QR code allows quick access to complete product data.
