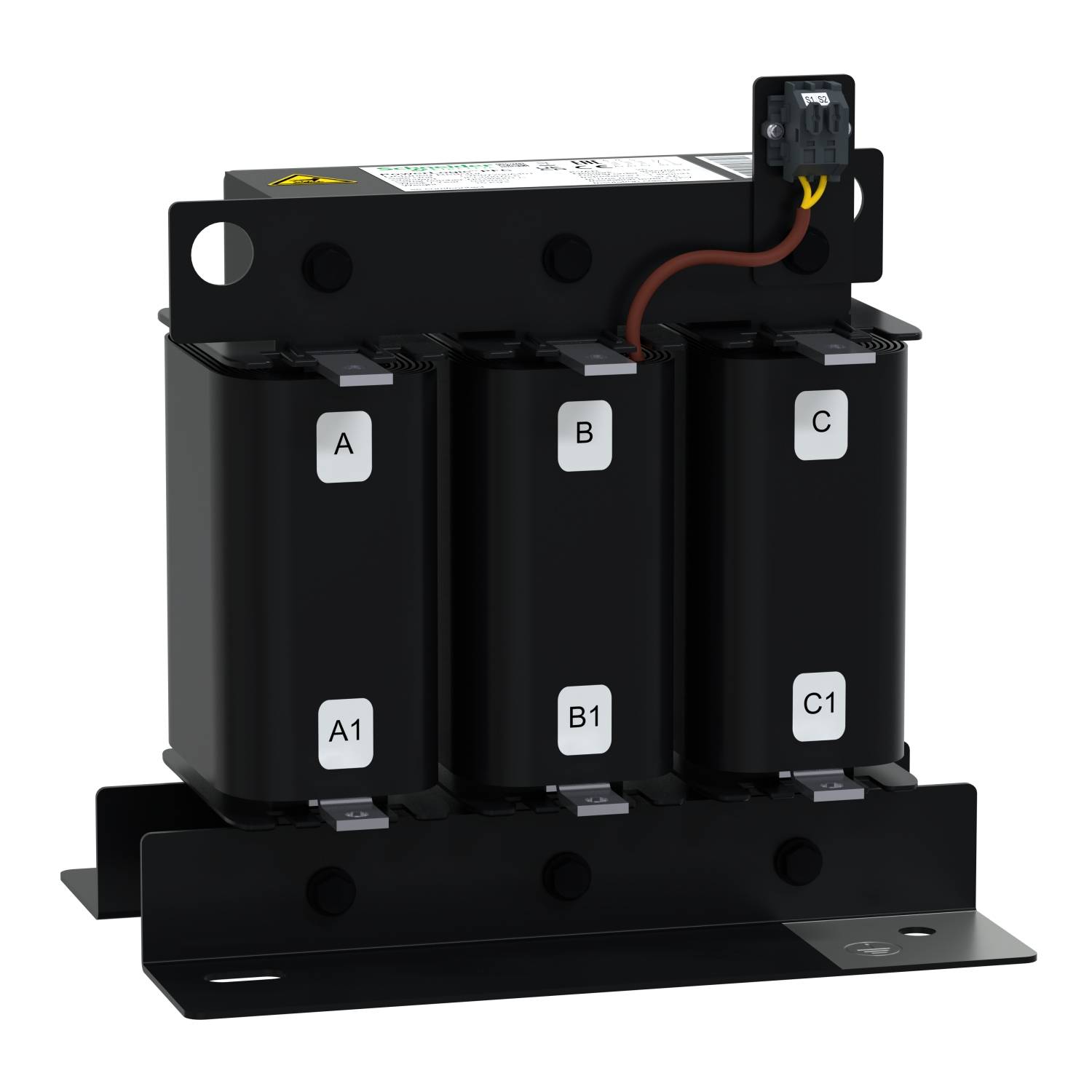

Schneider Electric LVR07250A40T Line choke 1 pc(s)
EAN:
Part number:
Item no:
Product type
Line choke
Length
160 mm
Width
240 mm
Height
220 mm
Weight
15 kg
Datasheet (PDF)
Number
Total (€ 474.79 / piece)
€ 474.79
plus VAT.
14-day return policy included
Technical specifications
- Product type
Line choke
- Length
160 mm
- Width
240 mm
- Height
220 mm
- Weight
15 kg
- Content
1 pc(s)
- Dim
(L x W x H) 160 x 240 x 220 mm
- Type
LVR07250A40T
IP00
25
400 V
43
3
7
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2927417 Schneider Electric LVR07250A40T Line choke 1 pc(s)
Datasheet 2927417 Schneider Electric LVR07250A40T Line choke 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2927417 Schneider Electric LVR07250A40T Line choke 1 pc(s)
Description
The VarPlus throttle coils are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and reactors are configured in the series oscillating circuit. Adjusted so that the serial resonance frequency is below the lowest harmonic frequency in the system. This choke is designed for 25 kVar output power with 3,8/190 Hz tuning order at 400V AC at 50 Hz. Relative impedance, 7%. This component complies with the IEC 60068 standards. This component requires forced convection, a fan must be added. The dimensions of the case are 220 mm in height, 240 mm in width and 160 mm in depth. For a product weight of 15 kg.
