Name: Schneider Electric LVS04031 Distribution Block 1 pc(s) Single
Brand: Schneider Electric
SKU: 2936395
Availability: InStock

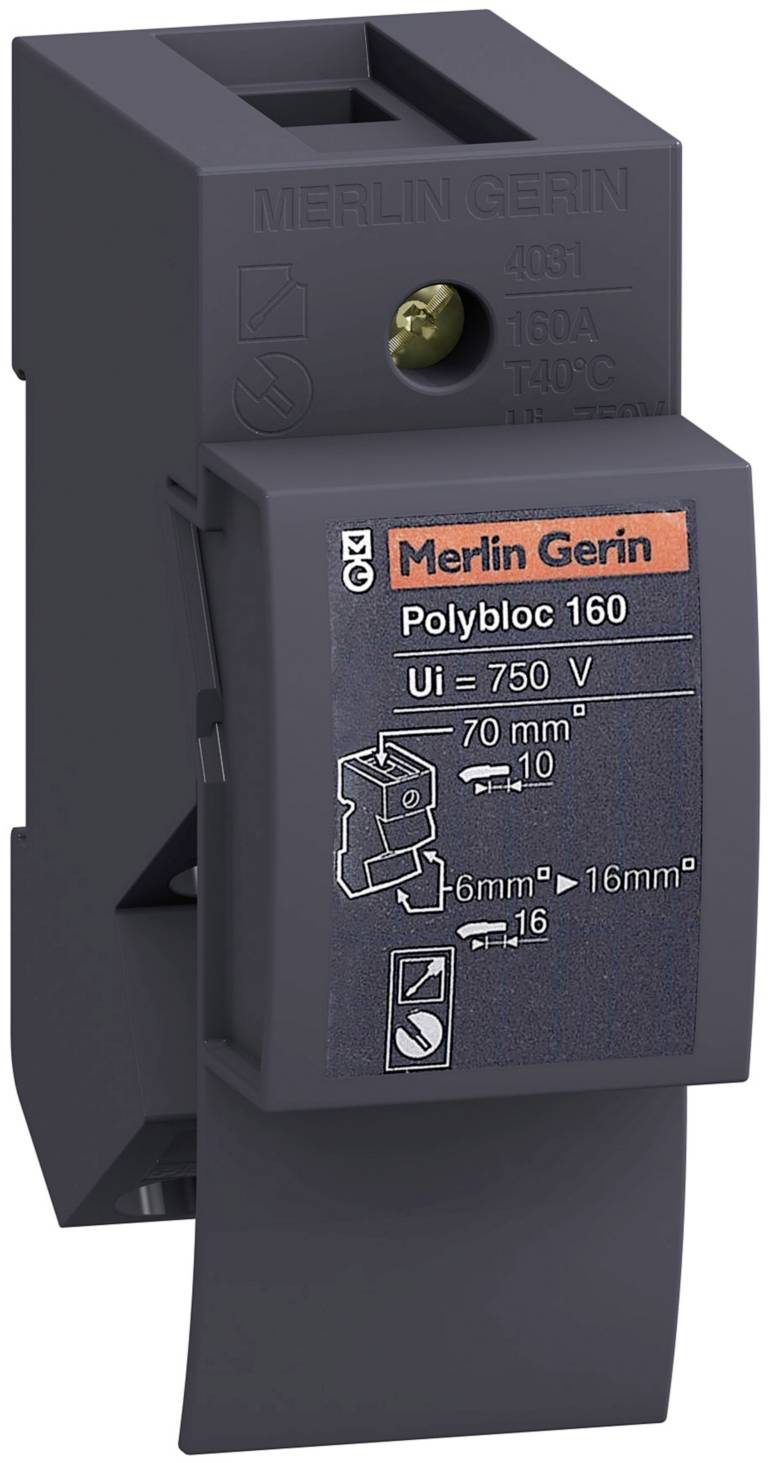

'Merlin Gerin Polybloc 160' fuse holder for 750 V, shows installation instructions with drawing and dimensions for cable diameter.

Packaging type

Single

Product type

Distribution Block

Width

18 mm

Height

95 mm

Dim

(W x H) 18 mm x 95 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 11 Nov

87 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 16.99 / piece)

€ 16.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Single

Product type: Distribution Block

Width: 18 mm

Height: 95 mm

Dim: (W x H) 18 mm x 95 mm

Content: 1 pc(s)

Type: LVS04031

Number of pins: 1

: 160 A

: DIN rail

: 36

: 95 mm

: 70 mm

: Screwless

: 1

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2936395 Schneider Electric LVS04031 Distribution Block 1 pc(s) Single

User & Safety Instructions

User & Safety Instructions 2936395 Schneider Electric LVS04031 Distribution Block 1 pc(s) Single

Information

Information 2936395 Schneider Electric LVS04031 Distribution Block 1 pc(s) Single

Description

PrismaSet P. Linergy DX distribution block 1-pin with a permissible current of up to 160 A with feed terminals up to 70 mm² and output-side connection capacity for cables of 6 x 16 mm², with a rated surge current strength (Ipk) 24 kA. Rated short-circuit current (ISC) 150 kA with inlet-side protection of 150 kA (ICC), rated insulation voltage (UI) 750 V AC, rated voltage (Ue) 690 V AC, rated surge resistance (Uimp) 8 kV. IPXXB degree of protection for mounting on a DIN rail with a width of 2 module units (18 mm), a height of 95 mm and a depth of 70 mm.
