Name: Schneider Electric LVS04046 Distribution Block 1 pc(s)
Brand: Schneider Electric
SKU: 2936413
Availability: InStock

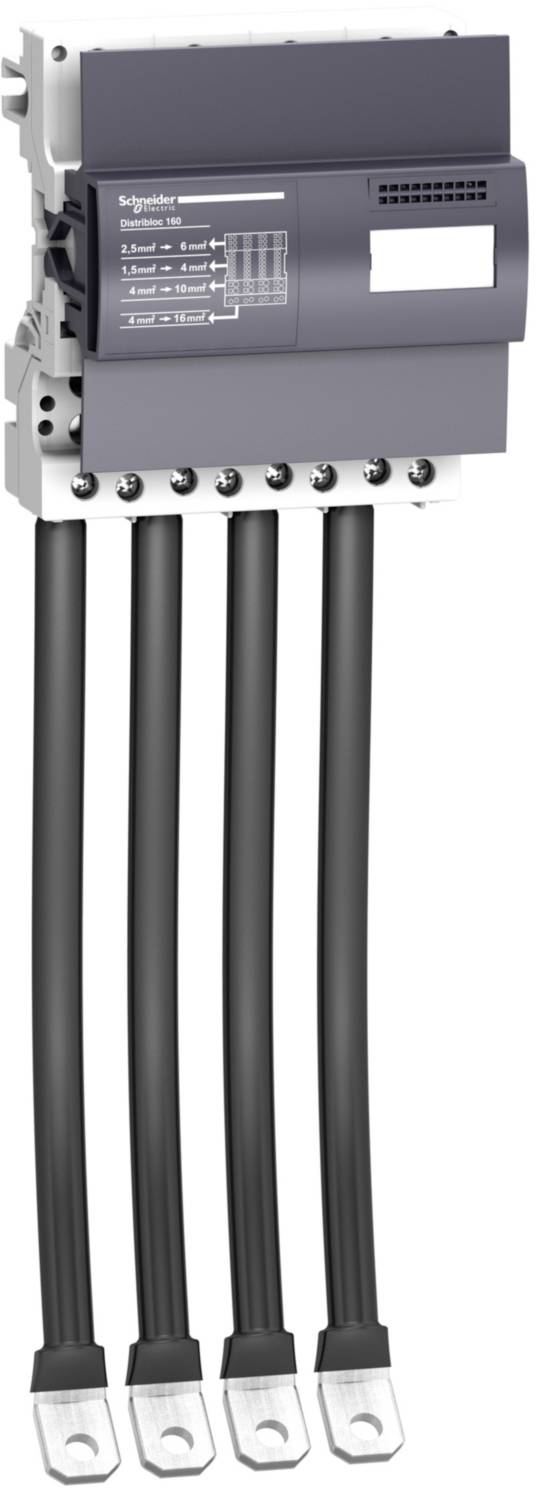

A grey electrical distribution unit with four black cables at the bottom. A label with multiple lines is visible on the top.

Product type

Distribution Block

Content

1 pc(s)

Type

LVS04046

Nominal current

160 A

Mounting method

DIN-rail/screw

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 91.99 / piece)

€ 91.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Distribution Block

Content: 1 pc(s)

Type: LVS04046

: 160 A

: DIN-rail/screw

: 108

: 127 mm

: 48 mm

: Screwless

: 4

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2936413 Schneider Electric LVS04046 Distribution Block 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2936413 Schneider Electric LVS04046 Distribution Block 1 pc(s)

Information

Information 2936413 Schneider Electric LVS04046 Distribution Block 1 pc(s)

Description

PrismaSet P. Linergy DX distribution block 4-pin with a permissible current of up to 125 A with pre-assembled power supply connection and outlet-side connection capacity for cables of 7 x 4 mm² per phase and 3 x 6 mm² per phase. And 2 x 10 mm² per phase and 1 x 16 mm² per phase, with a rated surge resistance (Ipk) 20 kA, rated short-circuit current (ISC) 150 kA with supply-side protection of 150 kA (ICC), rated insulation voltage (UI) 750 V AC. Rated voltage (Ue) 690 V AC, rated surge resistance (Uimp) 8 kV, with protection type IPXXB for mounting on a DIN rail or screwed onto a mounting plate. With a width of 6 module units (18 mm), a height of 127 mm and a depth of 48 mm.
