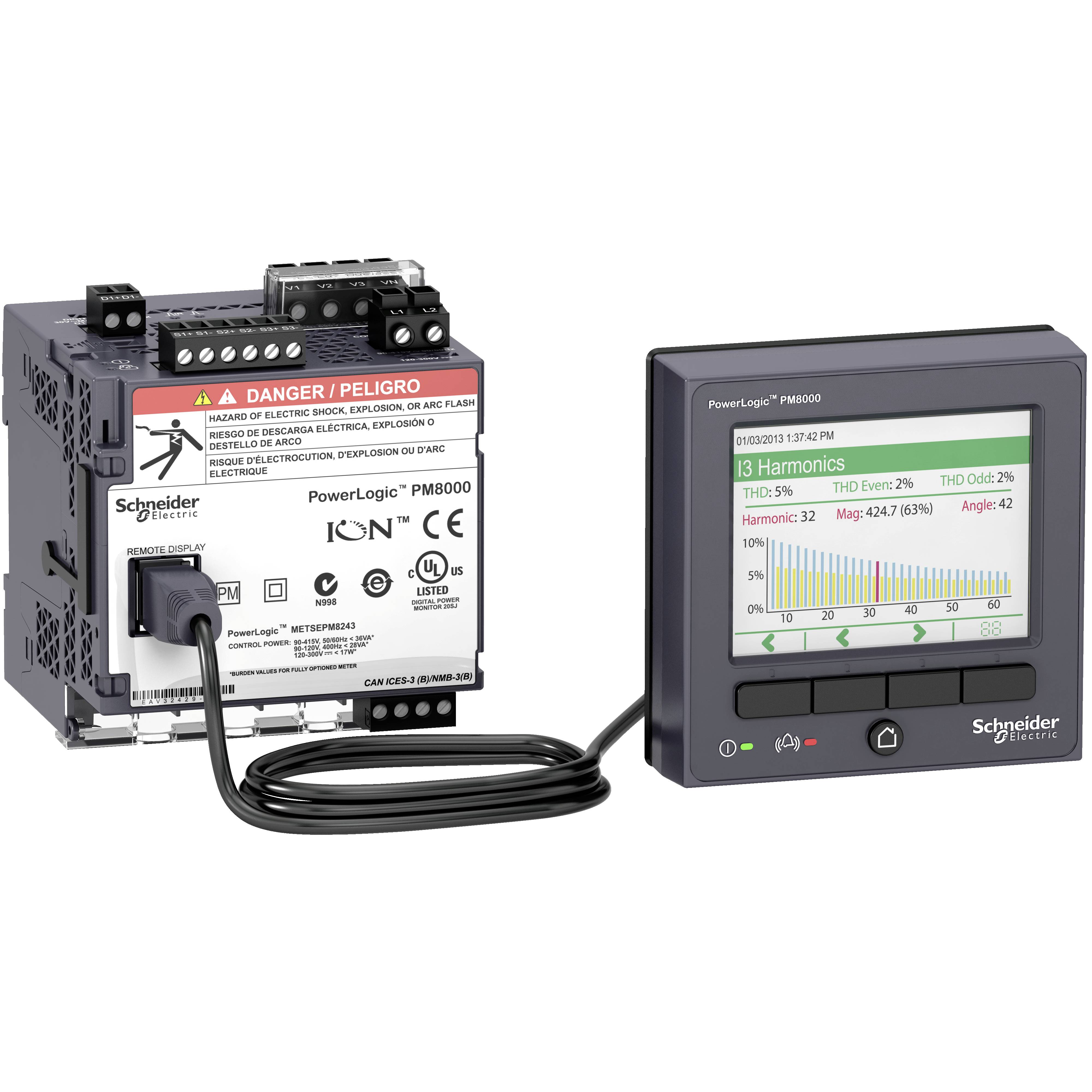

Schneider Electric METSEPM8314 Network diagnostics Graphic display

The PowerLogic PM8314 is a mains analyzer for DIN rail in low and medium voltage applications with separate display for front installation 96 x 96 mm and LVDC control voltage. It is designed to ensure the availability and efficiency of your energy-critical equipment. It creates energy transparency and provides data that can be used to complex network quality conditions. With the modular, flexible and powerful ION-technology individual applications can be created for each measuring device. It has high accuracy, multiple communication ports, a web-based user interface and a graphical color display. This mains analyzer also has an integrated power quality analysis and a patented interference direction detection. Certified by independent laboratories for the accuracy of class 0.2S at active power (IEC62052-11, IEC62053-24, IEC62053-22). Also certified for network quality (IEC62586-2, IEC61000-4-30 class A). Cybersecurity features include secure protocols (HTTPS, SFTP, Secure ION), security event logging, syslog protocol. Ability to enable/disable communication ports and support 50 configurable user accounts to manage access. With 512 MB of memory for up to 64 data protocols (1024 channels), more than 50 user-definable alarms, waveform recording with up to 512 sampling values/cycle, 1/2-cycle effective value (RMS) logging. The storage can also be used for custom web pages, min/max logs, power trends, and operating hours. Time stamp for events with an accuracy of +/-1ms using time synchronization. Time synchronization methods that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time setting function. 3 digital inputs and one digital output, plus the ability to add up to 4 optional modules. The input/output option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Extensive control voltage of 20-60 VDC. Operating environment from -25 to +70°C, humidity from 5% to 95% and operating altitude up to 3000 m.

This text is machine translated.
