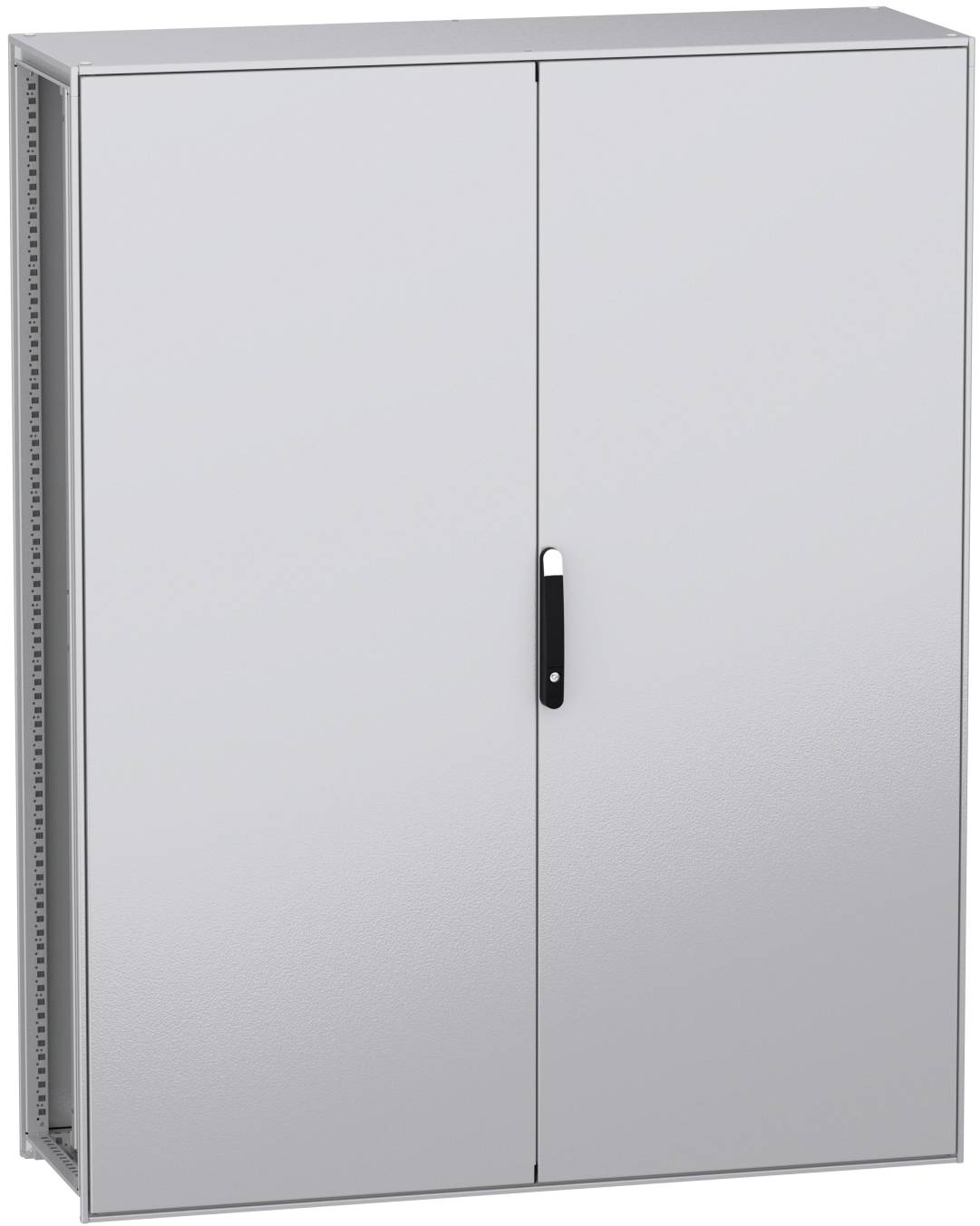

Schneider Electric NSYSFN2016502DP Free-standing switchboard cabinet 1600 x 2000 x 500 Steel 1 pc(s)

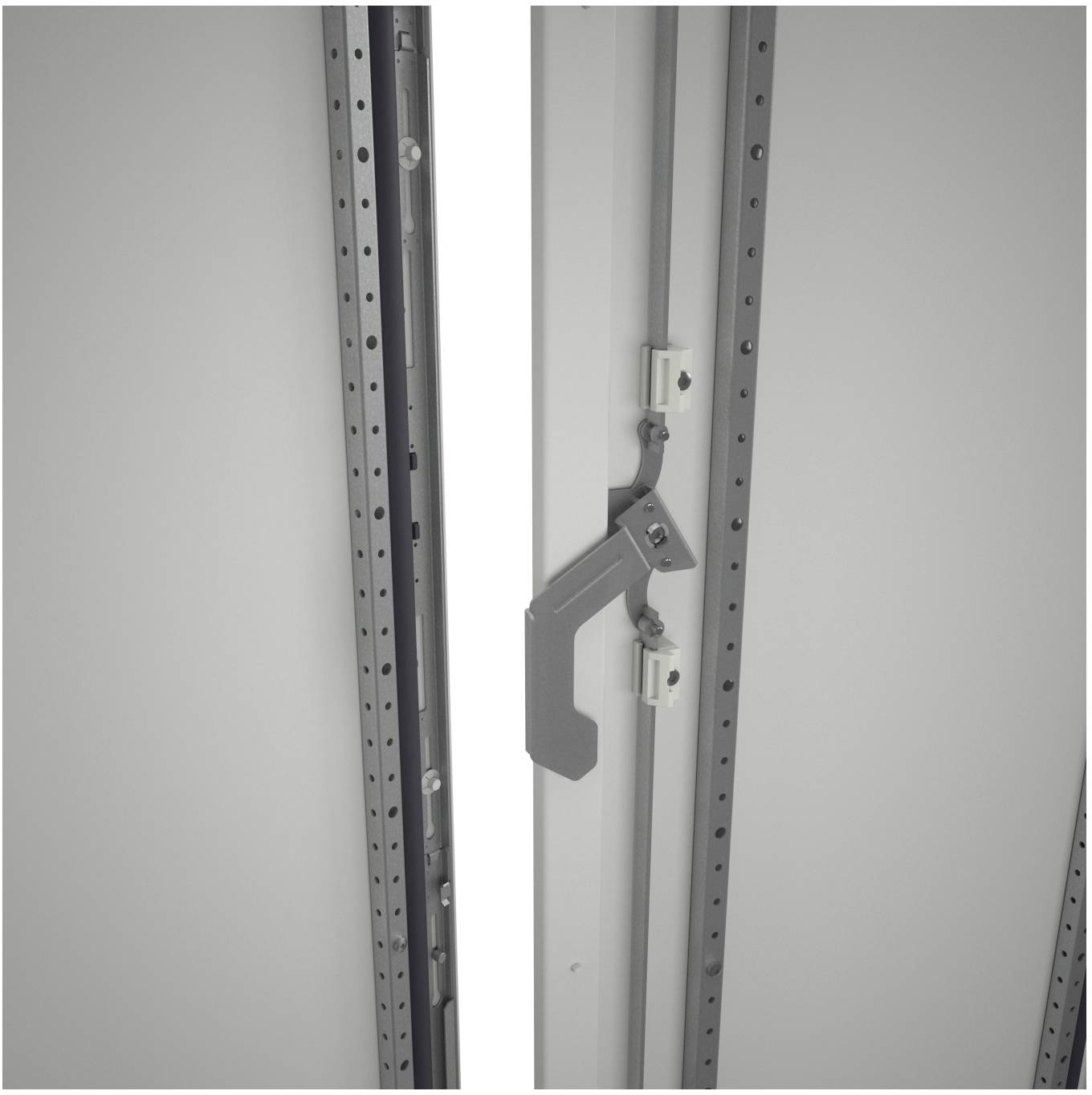

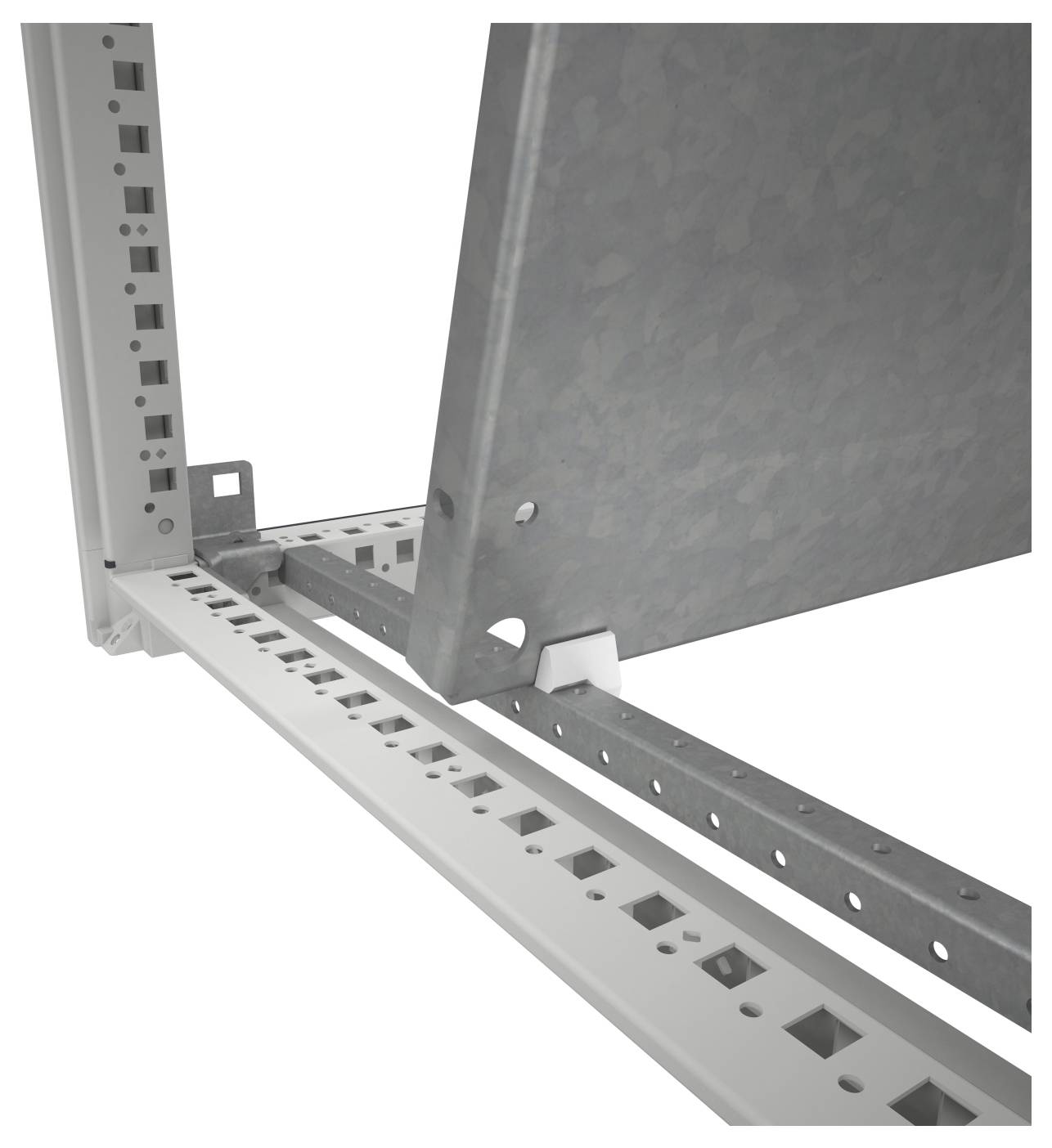

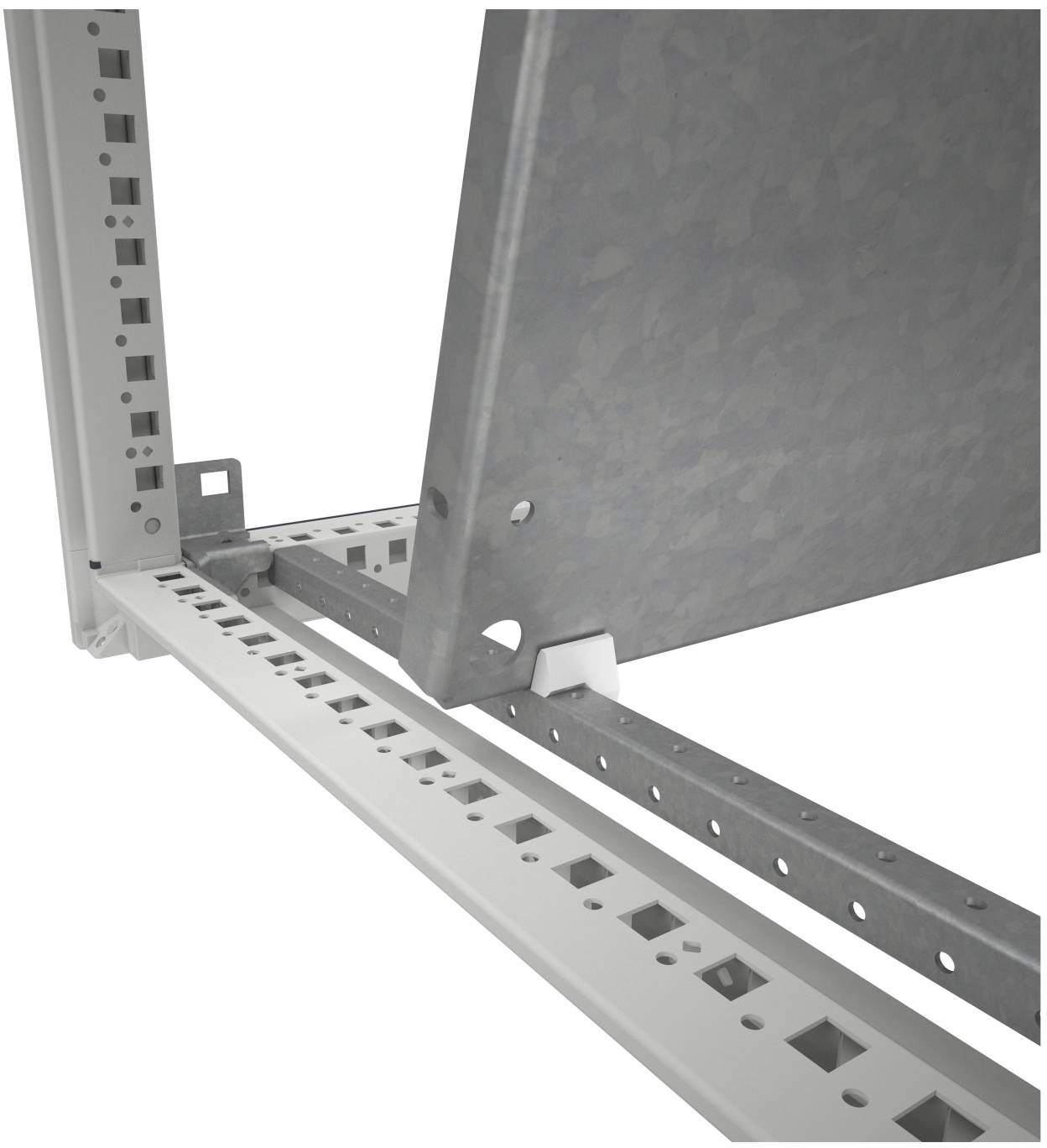

This PanelSet SFN is a two-door, decarbonized steel stand housing suitable for multi-purpose applications. It contains recycled steel produced with renewable energy, WAS leads to a significant reduction in CO2 emissions. It has a nominal height, width and depth of 2000 mm, 1600 mm or 500mm. The chassis frame and supports are made of galvanized steel to ensure a long service life. The doors and panels are made of steel, while the handle is made of polyamide 6 with 30% glass fibers. An epoxy polyester powder coating ensures a smooth appearance. The housing has a gray (RAL 7035) color with a black (RAL 9005) grip. Two simple doors, a rear wall, a roof, two runners and a kit quick mounting plate brackets. The doors have an opening angle of up to 120 degrees. The main door has a four point lock with a handle that is provided with a 5 mm double bit for safety while the side door has a locking system with a handle. The housing has the protection class IP55, i.e. it is resistant to the penetration of dust, water and oil. The enclosure is also shock resistant and has an IK10 rating. The operation is comfortable through the access from rear, front and from the side.
