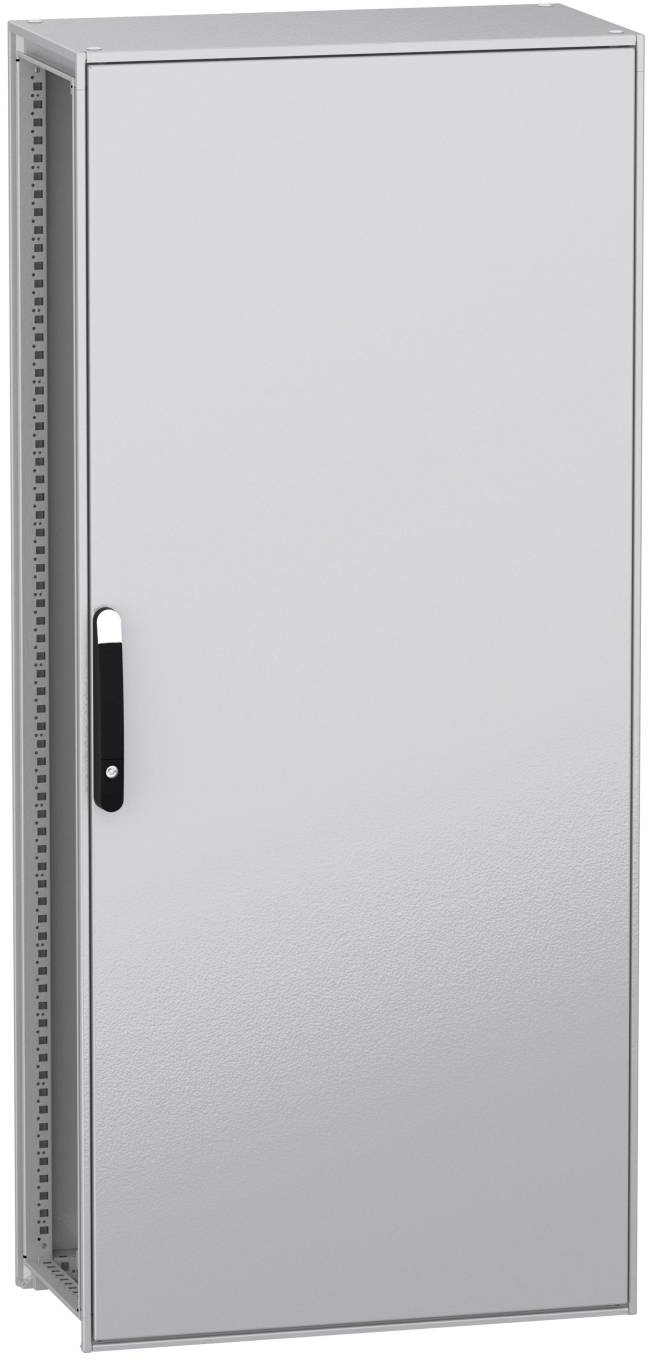

Schneider Electric PanelSeT SFN NSYSFN18840P Free-standing switchboard cabinet 800 x 1800 x 400 Steel Silver 1 pc(s) Pie
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Free-standing switchboard cabinet
Material
Steel
Width
800 mm
Height
1800 mm
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Free-standing switchboard cabinet
- Features
Double sided ward
- Material
Steel
- Factory colour
Silver
- Width
800 mm
- Height
1800 mm

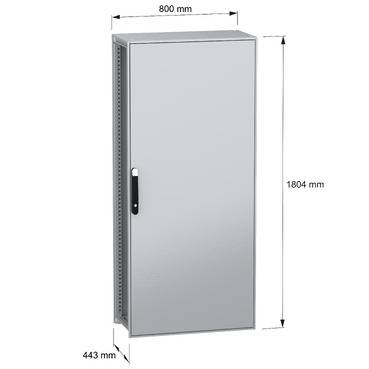

- Dimensions
1800 x 800 x 400 mm
- Weight
100.9 kg
- Content
1 pc(s)
- Type
PanelSeT SFN NSYSFN18840P
- Dim
(W x H x D) 800 x 1800 x 400 mm
- Manufacturer part #
NSYSFN18840P
- Depth
400 mm
Grey
800 mm
1800 mm
400 mm
7035
TRUE
1
1
FALSE
FALSE
FALSE
TRUE
Other
Steel
IK10
IP55
FALSE
TRUE
TRUE
FALSE
Powder coating
FALSE
FALSE
FALSE
TRUE
FALSE
FALSE
FALSE
Other
553 W
0 N
0 N
0 N
TRUE
FALSE
FALSE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3428814 Schneider Electric PanelSeT SFN NSYSFN18840P Free-standing switchboard cabinet 800 x 1800 x 400 Steel Silver 1 pc(s) Pie
User & Safety Instructions
User & Safety Instructions 3428814 Schneider Electric PanelSeT SFN NSYSFN18840P Free-standing switchboard cabinet 800 x 1800 x 400 Steel Silver 1 pc(s) Pie
Information
Repairability/durability data sheet 3428814 Schneider Electric PanelSeT SFN NSYSFN18840P Free-standing switchboard cabinet 800 x 1800 x 400 Steel Silver 1 pc(s) Pie
Conformity certificate
Conformity certificate 3428814 Schneider Electric PanelSeT SFN NSYSFN18840P Free-standing switchboard cabinet 800 x 1800 x 400 Steel Silver 1 pc(s) Pie
Conformity certificate 3428814 Schneider Electric PanelSeT SFN NSYSFN18840P Free-standing switchboard cabinet 800 x 1800 x 400 Steel Silver 1 pc(s) Pie
Conformity certificate 3428814 Schneider Electric PanelSeT SFN NSYSFN18840P Free-standing switchboard cabinet 800 x 1800 x 400 Steel Silver 1 pc(s) Pie
Conformity certificate 3428814 Schneider Electric PanelSeT SFN NSYSFN18840P Free-standing switchboard cabinet 800 x 1800 x 400 Steel Silver 1 pc(s) Pie
Conformity certificate 3428814 Schneider Electric PanelSeT SFN NSYSFN18840P Free-standing switchboard cabinet 800 x 1800 x 400 Steel Silver 1 pc(s) Pie
Conformity certificate 3428814 Schneider Electric PanelSeT SFN NSYSFN18840P Free-standing switchboard cabinet 800 x 1800 x 400 Steel Silver 1 pc(s) Pie
Description

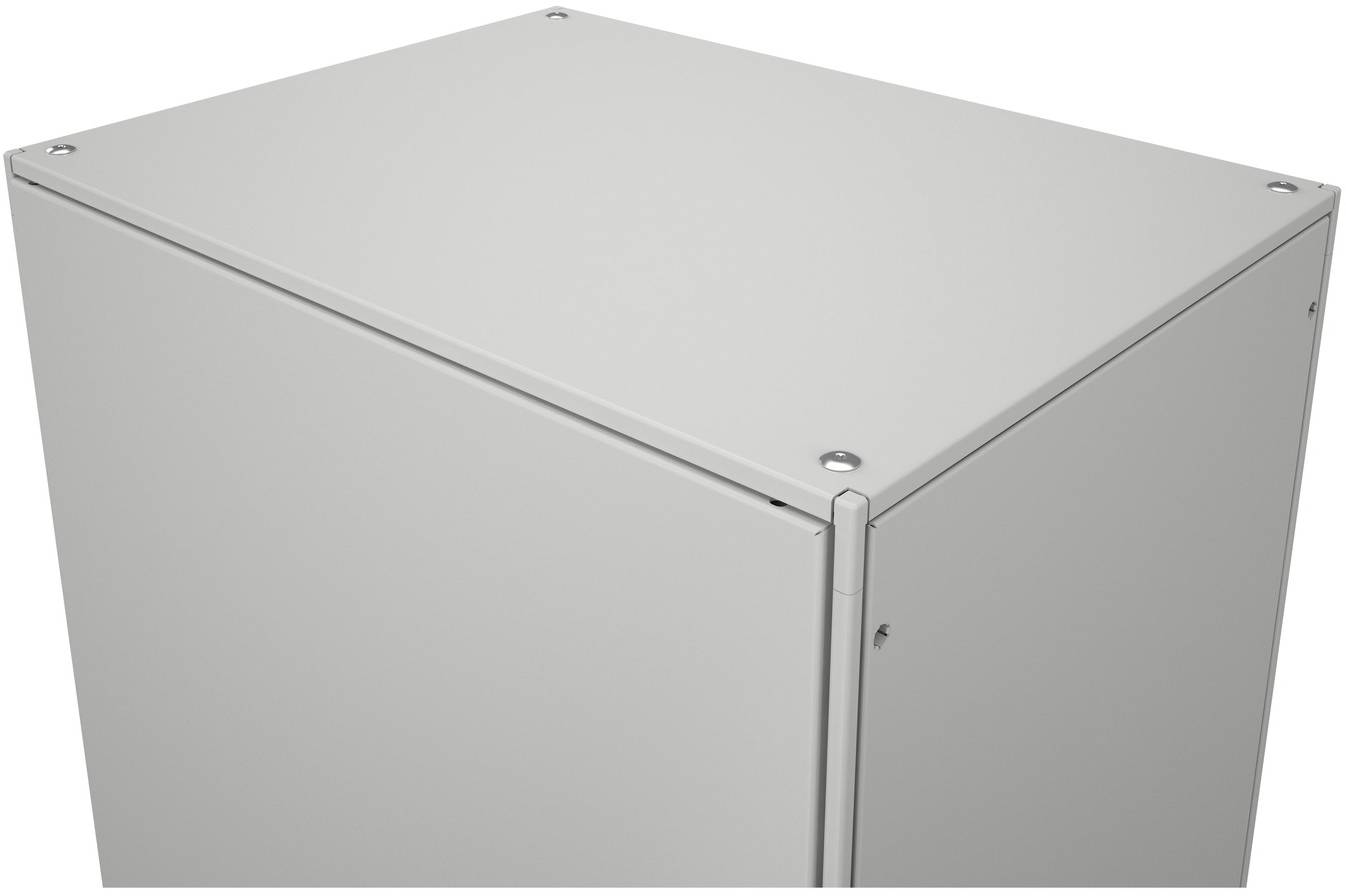

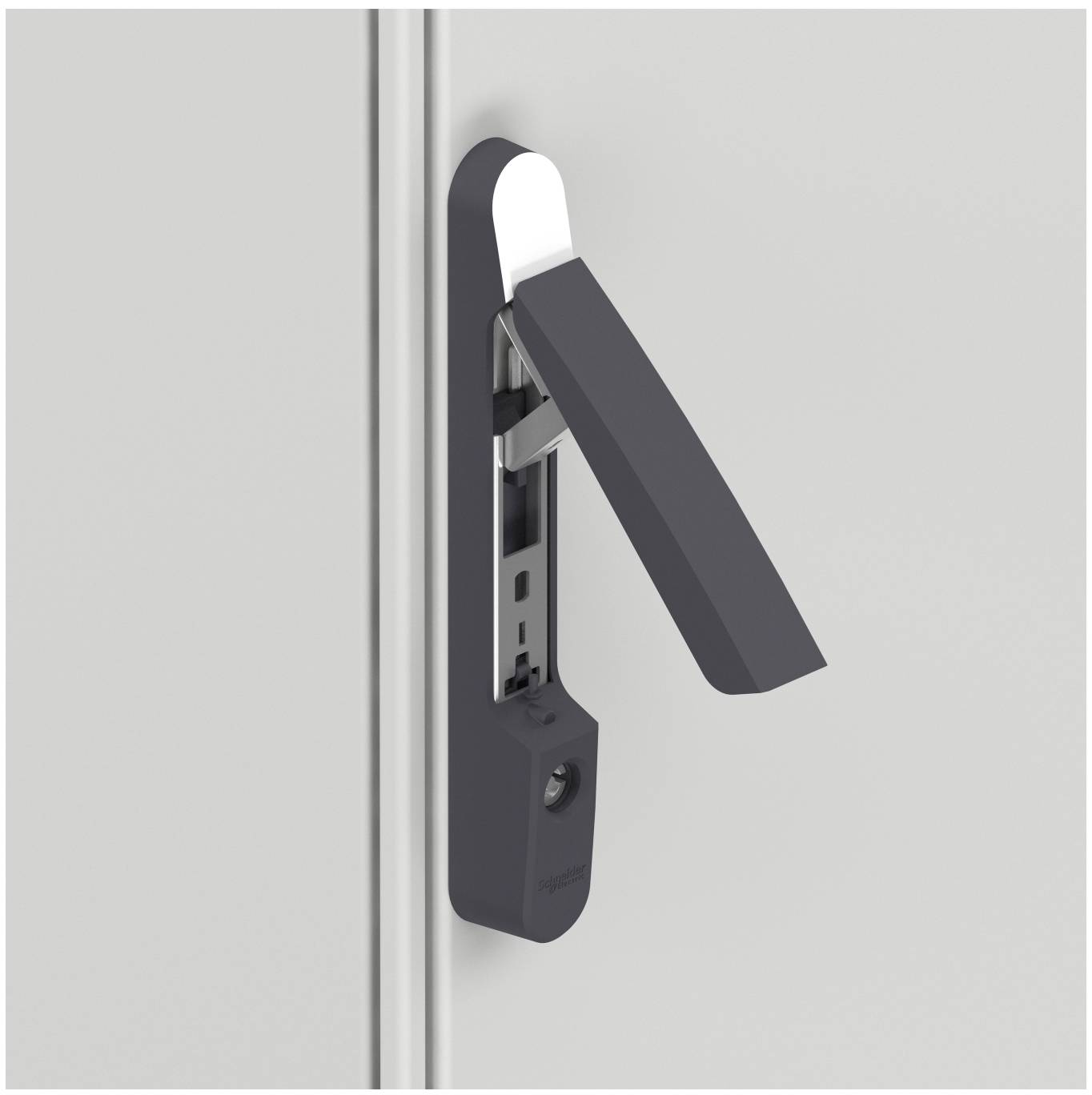

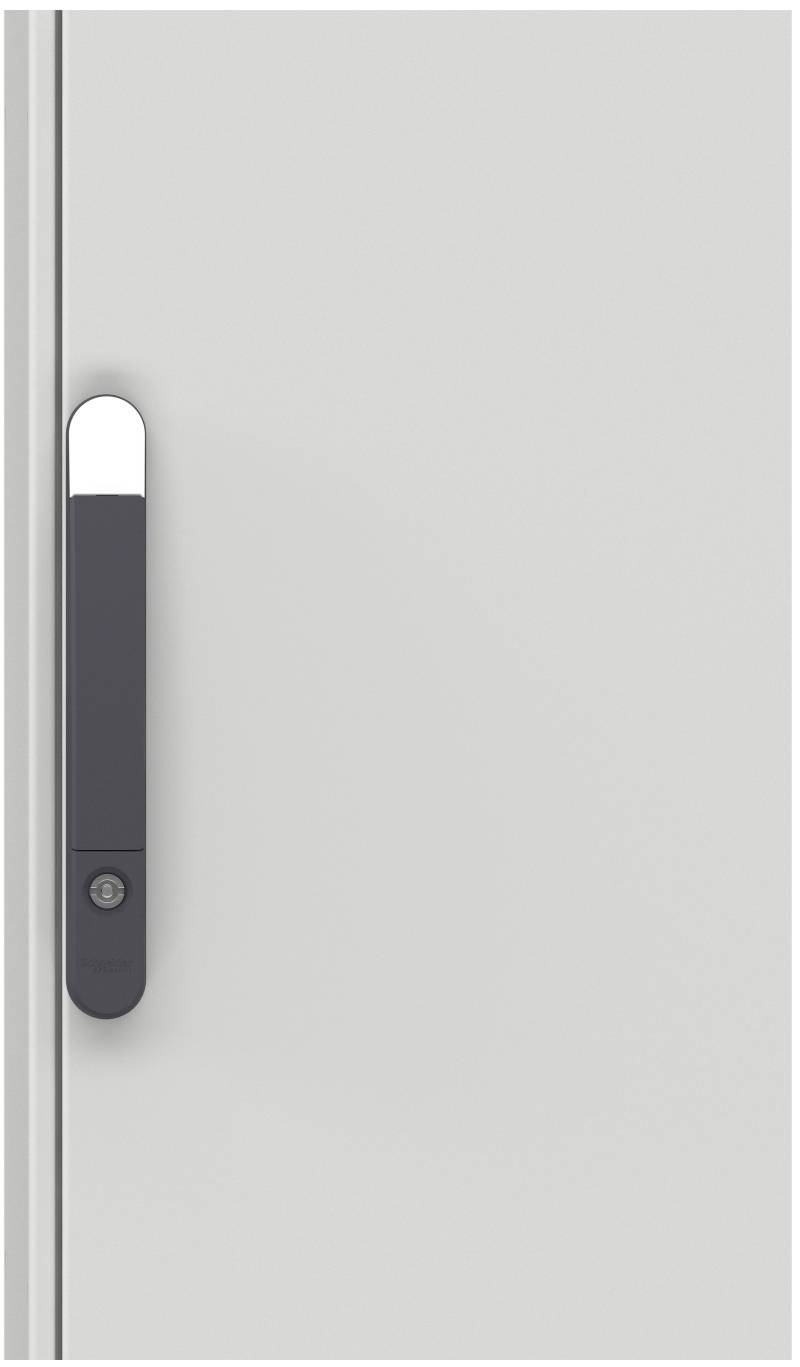

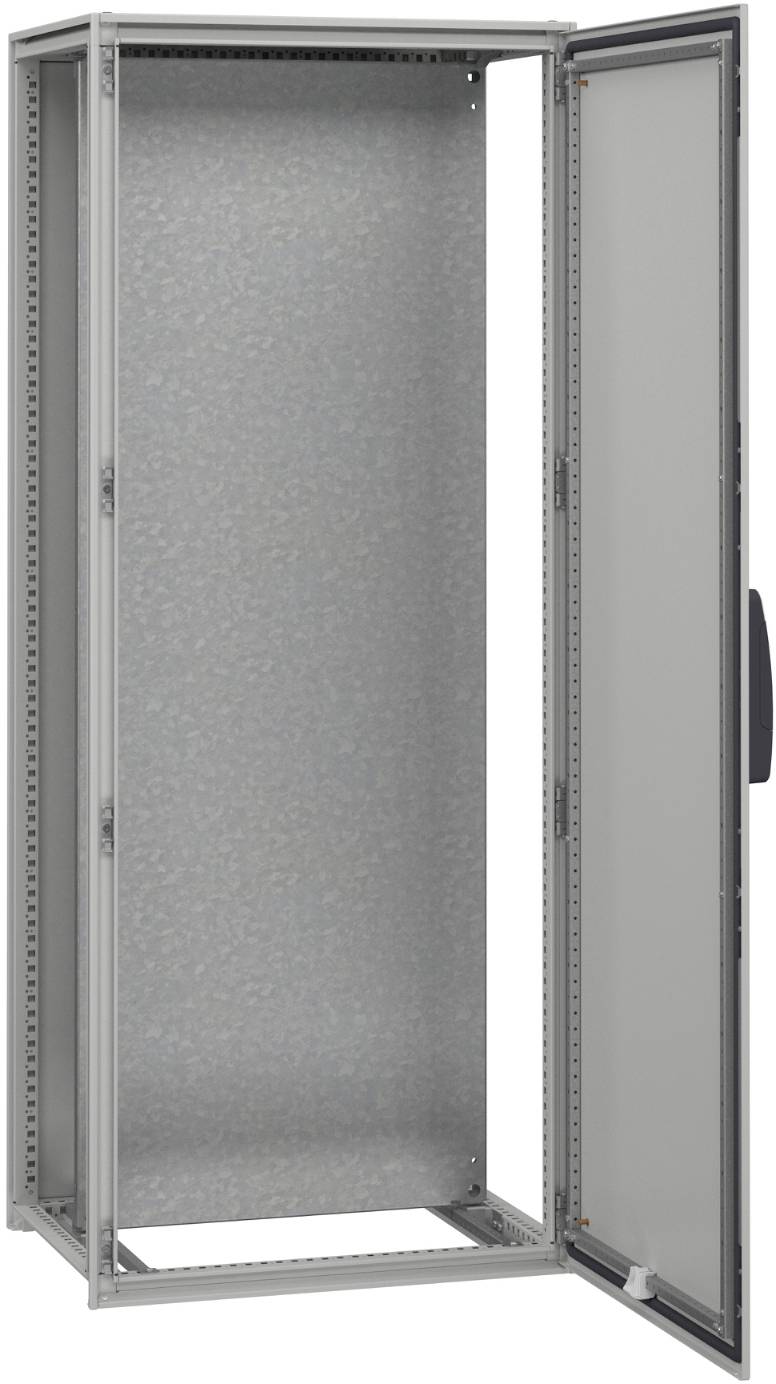

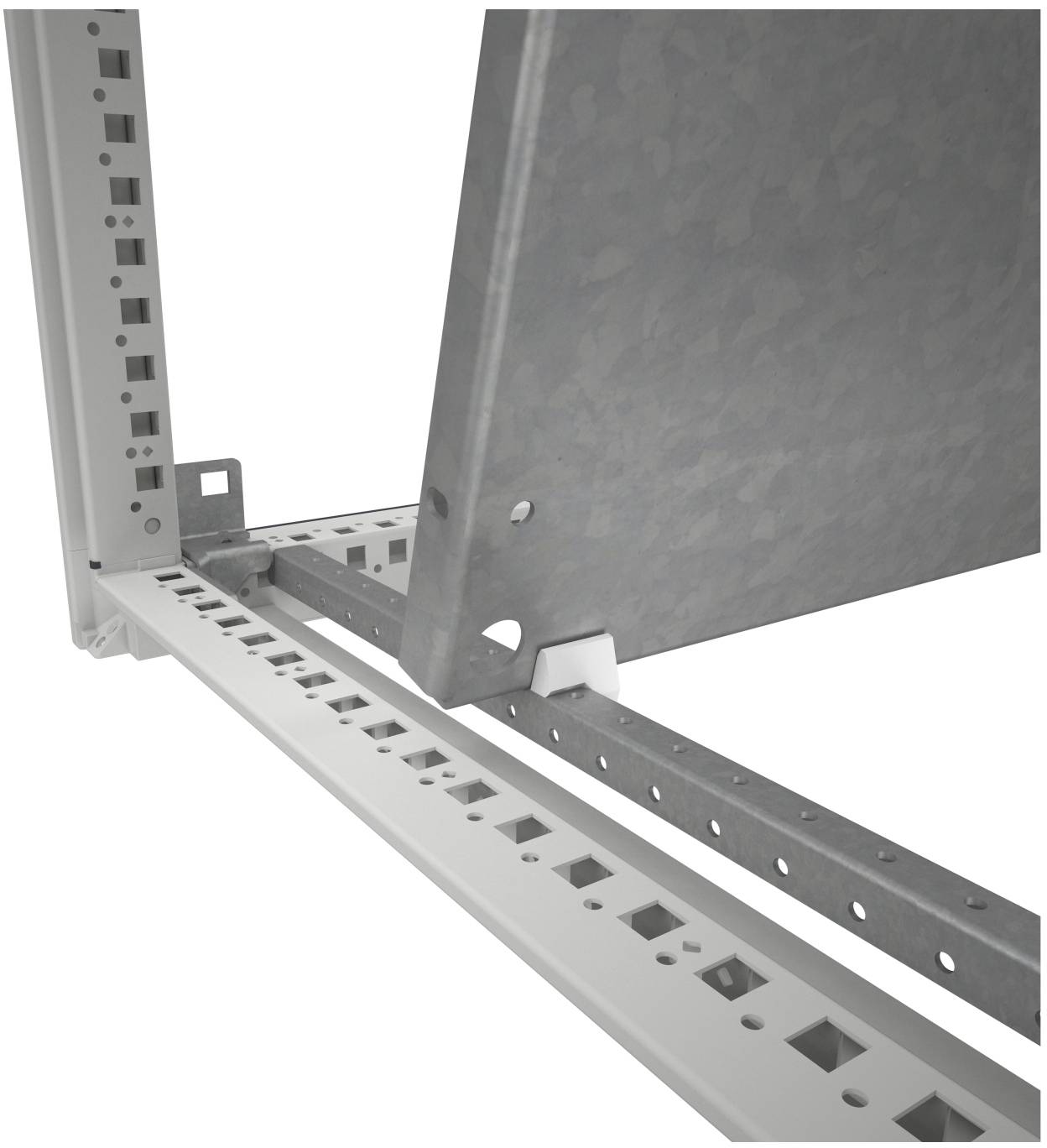

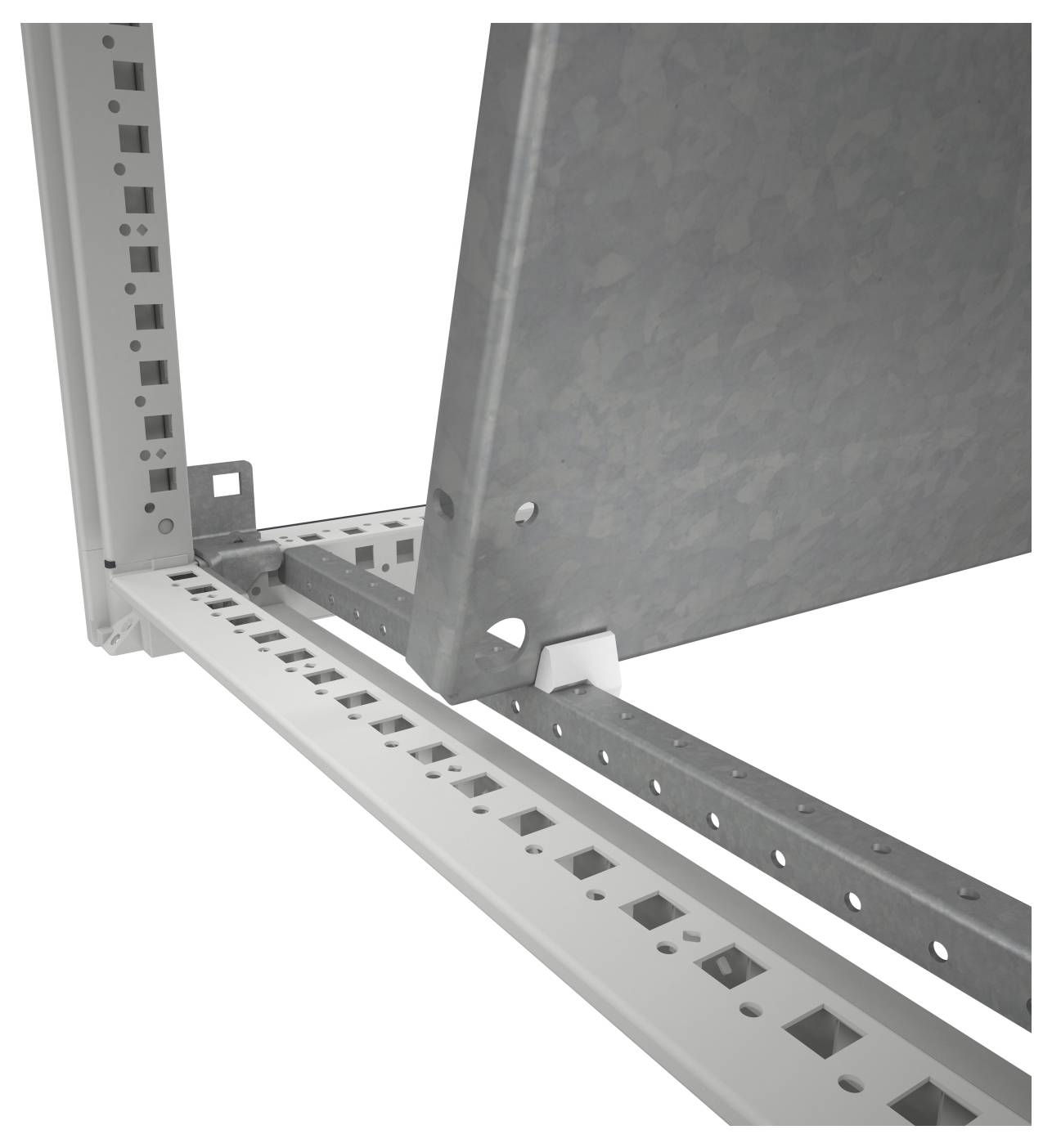

This PanelSet SFN is a decarbonized steel stand housing suitable for multi-purpose applications. It contains recycled steel produced with renewable energy, WAS leads to a significant reduction in CO2 emissions. It has a nominal height, width and depth of 1800 mm, 800 mm or 400mm. The chassis frame and supports are made of galvanized steel to ensure a long service life. The door and panels are made of steel, while the handle is made of polyamide 6 with 30% glass fibers. An epoxy polyester powder coating ensures a smooth appearance. The housing has a gray (RAL 7035) color with a black (RAL 9005) grip. A simple door, a rear wall, a roof, two runners and a kit quick mounting brackets. The door has an opening angle of up to 120 degrees and is reversible, i.e. it can be opened from both sides. The door is equipped with a four-point lock and a handle with a 5 mm double bit, which provides security. The housing has the protection class IP55, i.e. it is resistant to the penetration of dust, water and oil. The enclosure is also shock resistant and has an IK10 rating. The operation is comfortable through the access from rear, front and from the side.
This text is machine translated.
This text is machine translated.
