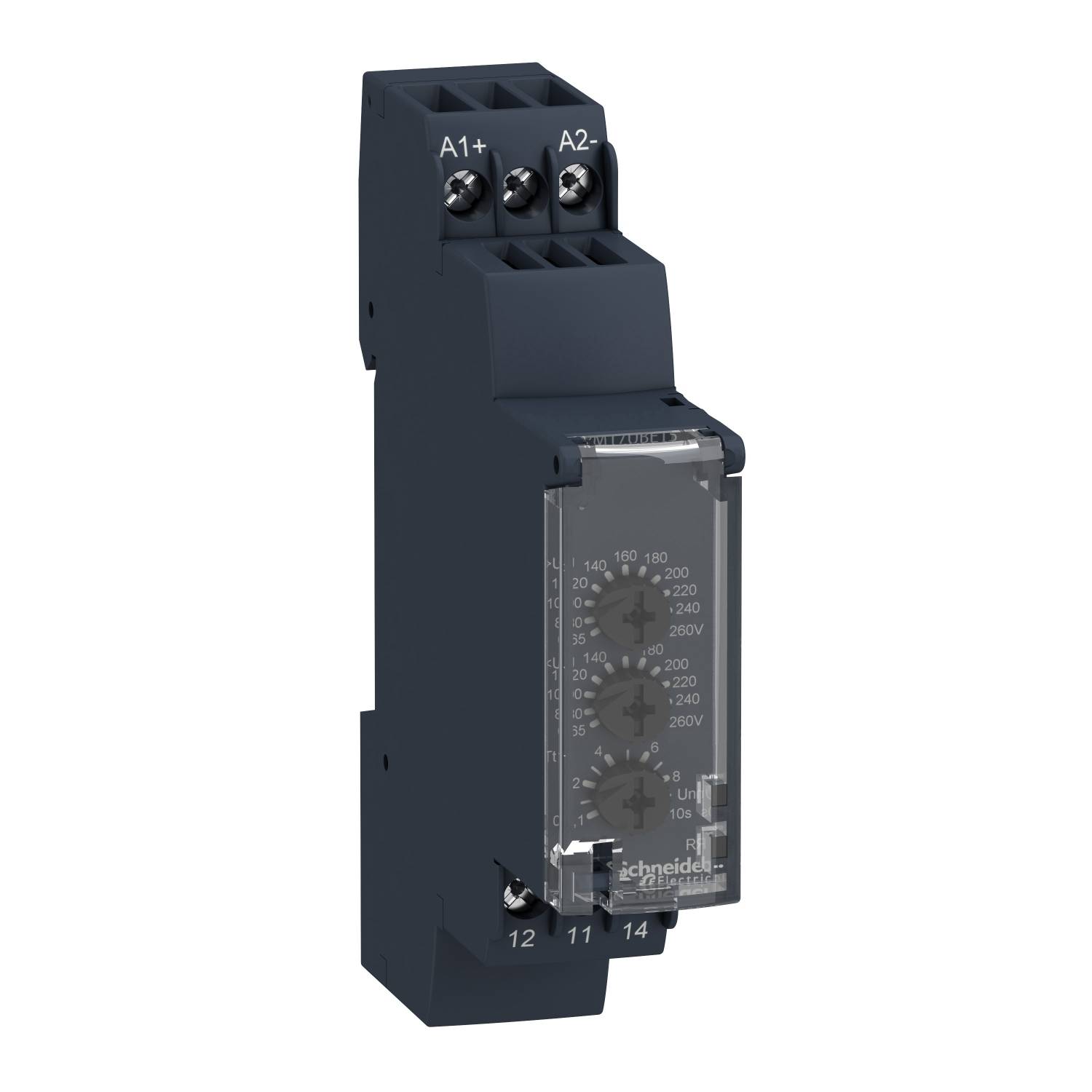

Electric time relay by Schneider Electric, black, with multiple connections and a clear casing, on a white surface.

Electric time relay by Schneider Electric, black, with multiple connections and a clear casing, on a white surface.

Product type

Voltage monitoring relay

No. of relay outputs

1

Type

RM17UBE16

Probe inputs

einphasige Versorgungen 20-80 VAC/DC (50-60 Hz)

Width

17.5 mm

Datasheet (PDF)

Schneider Electric

Dispatches on Tue 27 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 144.99 / piece)

€ 144.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: RM17UBE16

Product type: Voltage monitoring relay

No. of relay outputs: 1

Probe inputs: einphasige Versorgungen 20-80 VAC/DC (50-60 Hz)

Width: 17.5 mm

: 17.5

: 90 mm

: 72 mm

: FALSE

: TRUE

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: TRUE

: AC/DC

: Screw connection

: 10 s

: 10 s

: 0.1 s

: AC/DC

: 0

: 0

: 1

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2914395 Schneider Electric RM17UBE16 RM17UBE16 Voltage monitoring relay No. of relay outputs: 1

Datasheet 2914395 Schneider Electric RM17UBE16 RM17UBE16 Voltage monitoring relay No. of relay outputs: 1

User & Safety Instructions

User & Safety Instructions 2914395 Schneider Electric RM17UBE16 RM17UBE16 Voltage monitoring relay No. of relay outputs: 1

Information

Information 2914395 Schneider Electric RM17UBE16 RM17UBE16 Voltage monitoring relay No. of relay outputs: 1

Description

Zelio controller This voltage monitoring relay monitors single-phase power supplies 20-80 VAC/DC (50-60 Hz) for exceeding and falling below an adjustable threshold in window mode. For indication a relay changer is available that can be loaded up to 5 A. The lower and upper limit values and a switch-off delay are adjustable. Settings are made via control elements on the front that can be protected against changes using a transparent cover. Two LEDs indicate the status. The power supply of the device is taken from the measurement voltage (nominal voltage 24-48 VAC/DC, 50-60 Hz). The width is 17.5 mm and it is installed on the DIN rail.

This text is machine translated.

Description

Zelio controller This voltage monitoring relay monitors single-phase power supplies 20-80 VAC/DC (50-60 Hz) for exceeding and falling below an adjustable threshold in window mode. For indication a relay changer is available that can be loaded up to 5 A. The lower and upper limit values and a switch-off delay are adjustable. Settings are made via control elements on the front that can be protected against changes using a transparent cover. Two LEDs indicate the status. The power supply of the device is taken from the measurement voltage (nominal voltage 24-48 VAC/DC, 50-60 Hz). The width is 17.5 mm and it is installed on the DIN rail.

This text is machine translated.
