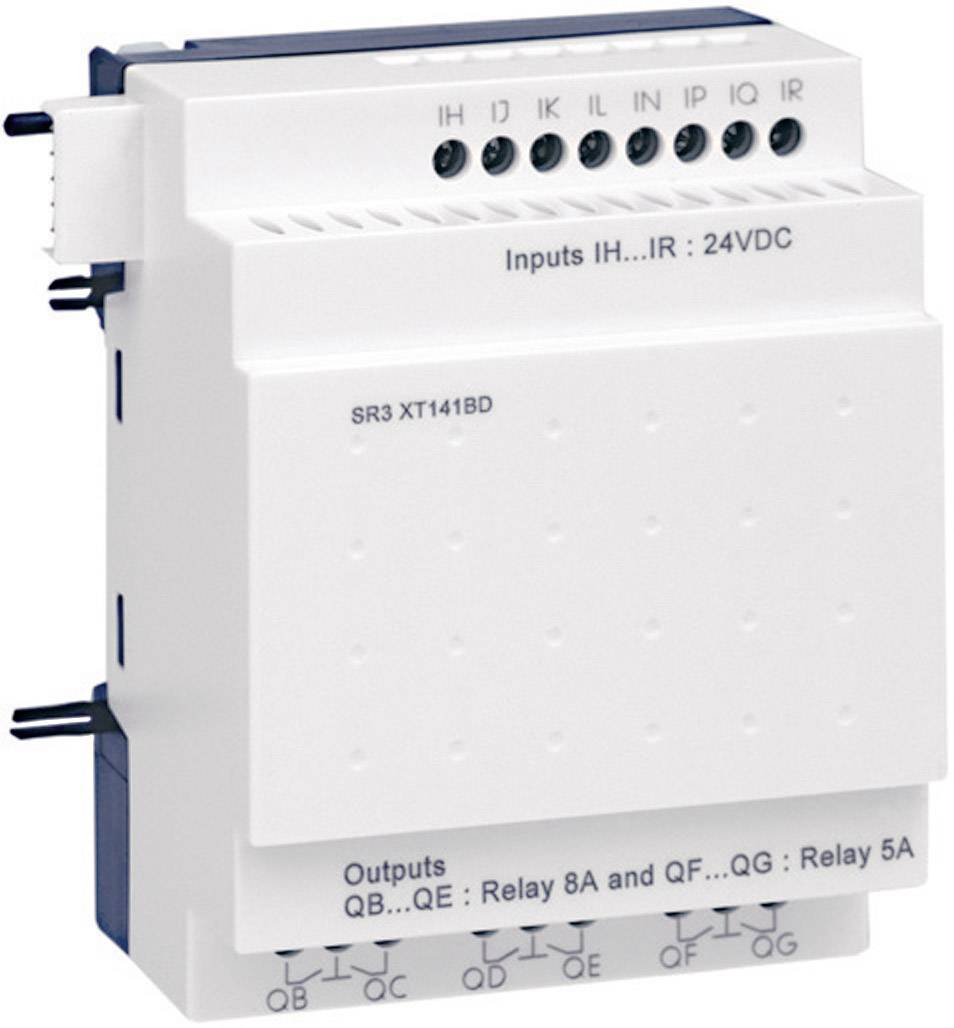

Schneider Electric SR3 XT141BD SR3XT141BD PLC add-on module 24 V DC
EAN:
Part number:
Item no:
Number
Total (€ 169.99 / piece)
€ 169.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
PLC add-on module
- Operating voltage
24 V DC
- Type
SR3 XT141BD
- Display
No
- Manufacturer part #
SR3XT141BD
- Dim
(W x H x D) 72 x 90 x 59.5 mm
- No. of outputs (max.)
6
- No. of inputs (max.)
8
- No. of relay outputs (max.)
6
- No. of digital inputs (max.)
8
- Max. permanent current
250 V/AC/8 A
- Extensible
Yes
- Interference suppression
According to European Economic Community 89/336 EN 61131-2 (Zone B) EN 61000-6-2,-3,-4
- Power backup type
10 years
- Fitting type (details)
Profile rail 35 mm
- Width
72 mm
- Depth
59.5 mm
IP20
- Clock
No
- Max. ambient temperature
55 °C
- Min. ambient temperature
-20 °C
- Height
90 mm
- Analogue outputs
0
- Analogue inputs
0
- Digital outputs
6 relays
- Digital inputs
8
- Certification
CE, UL, CSA, GL, C-Tick
- Operating voltage
24 V DC
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 198952 Schneider Electric SR3 XT141BD SR3XT141BD PLC add-on module 24 V DC
Description
For higher performance and larger flexibility, the ZELIO LOGIC modular basic units can be extended with additional inputs and outputs
