Buy Schneider Electric TM173ODM22S TM173ODM22S PLC controller 24 V DC/AC

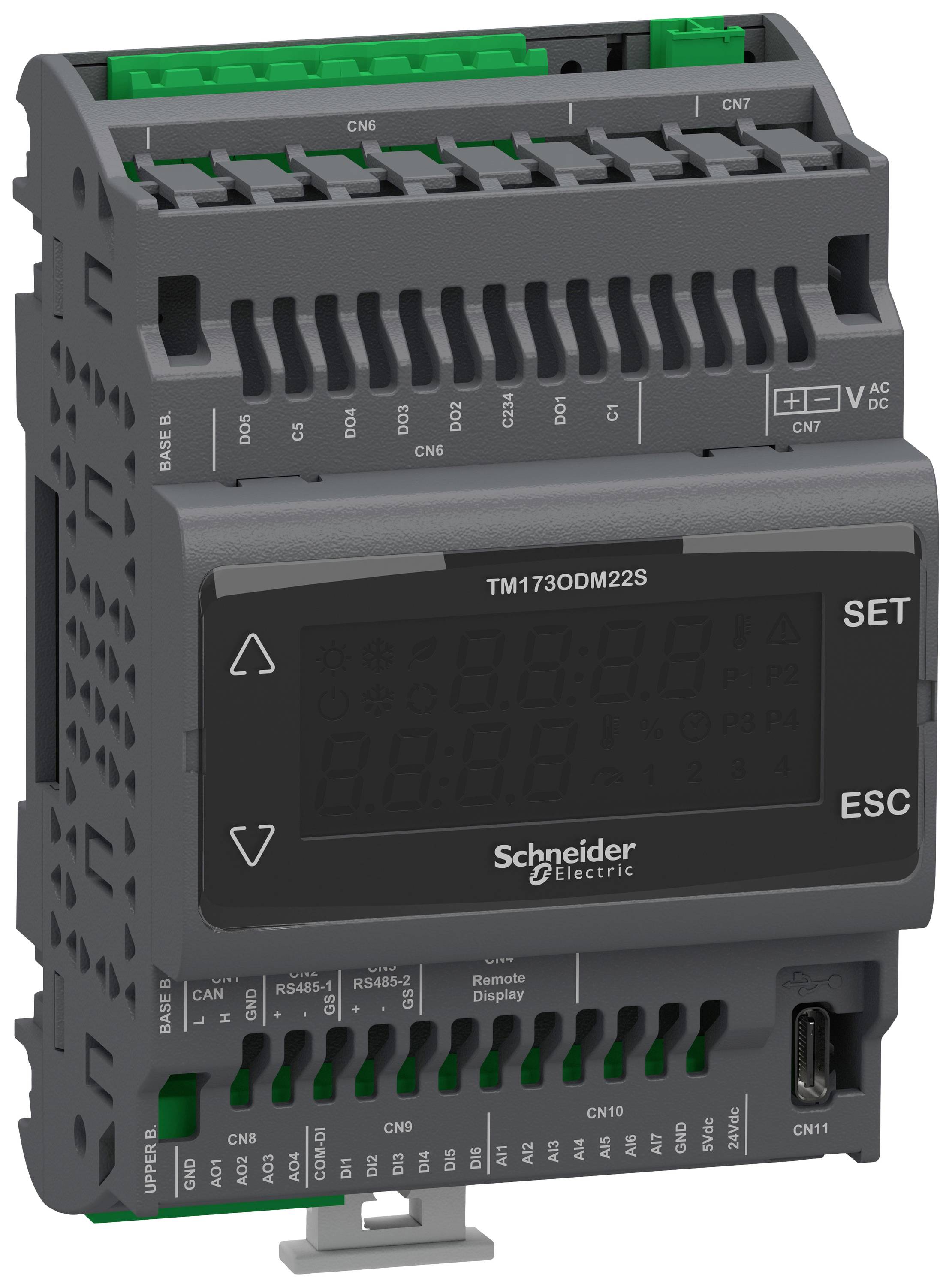

A programmable logic controller from Schneider Electric with a display and multiple connection terminals for industrial control.

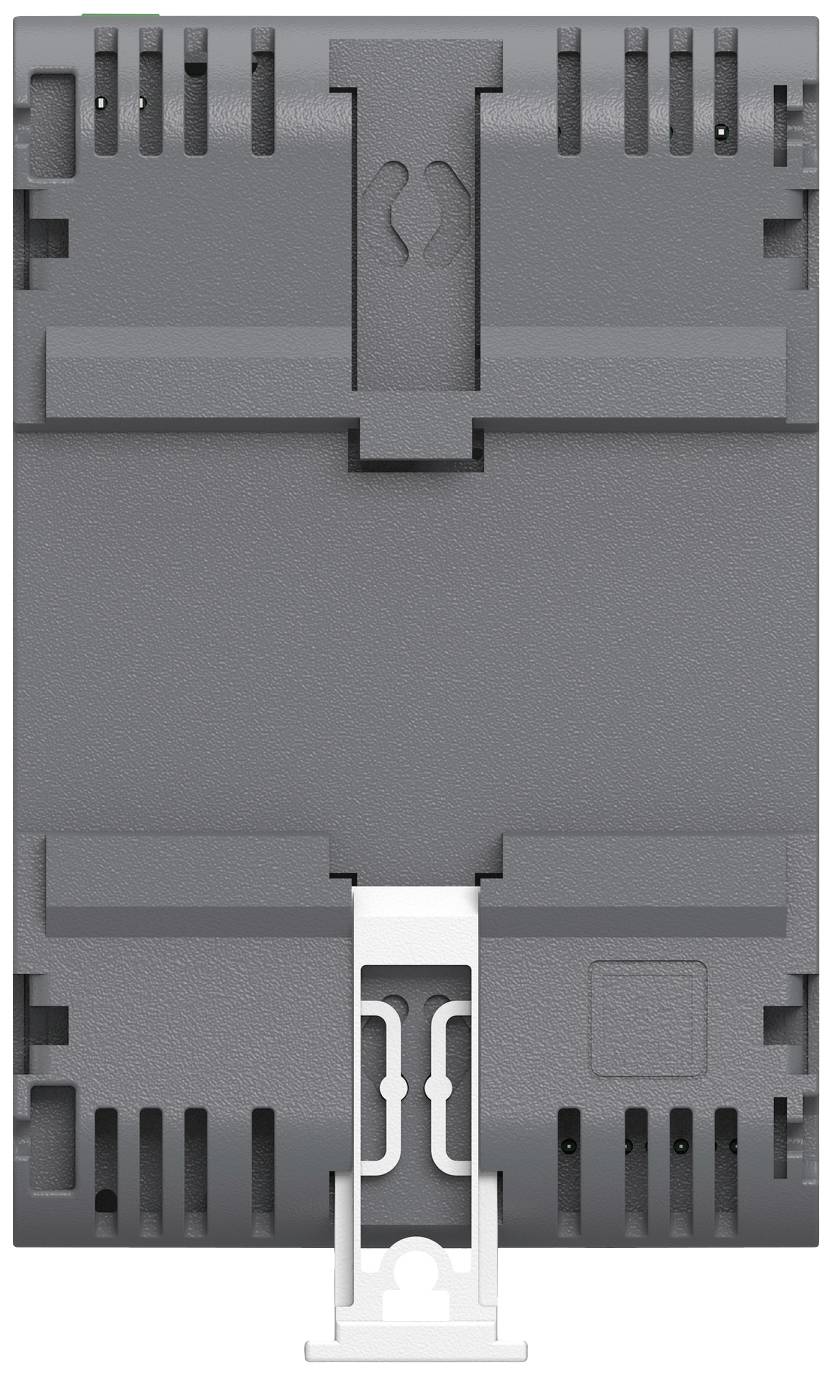

Grey electronic device, rear view, with mounting bracket at the bottom. It appears suitable for attachment to a rail.

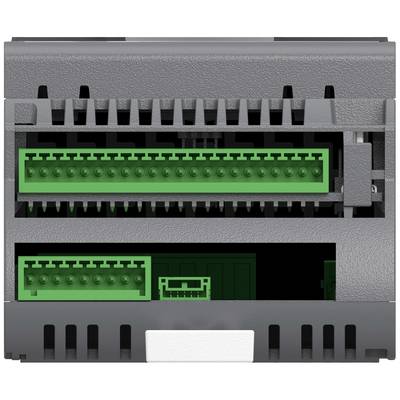

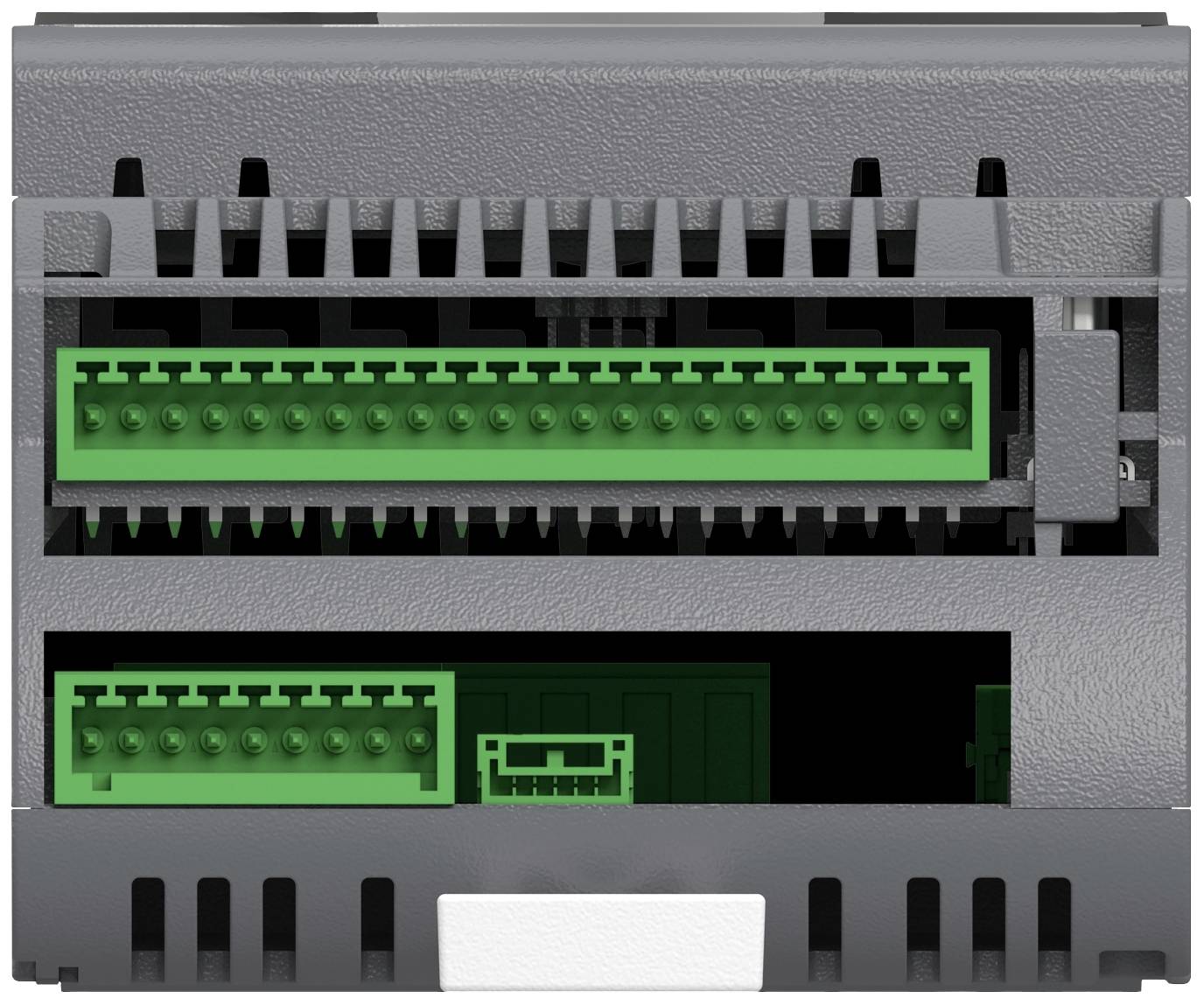

A technical device with a grey enclosure and two green terminal strips, suitable for mounting in a control cabinet.

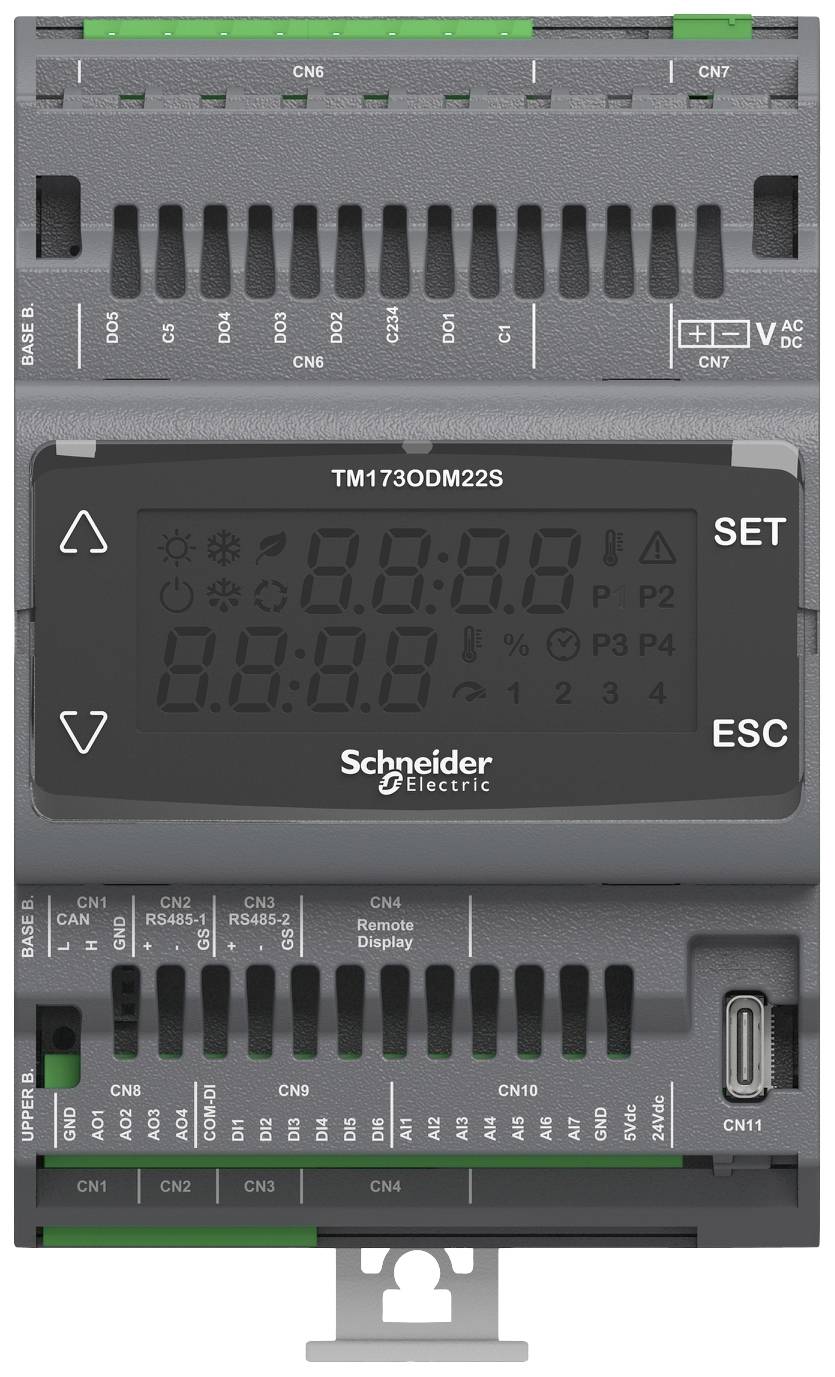

A black electric control unit with a digital display and 'SET' and 'ESC' buttons. Labelled with 'Schneider Electric'.

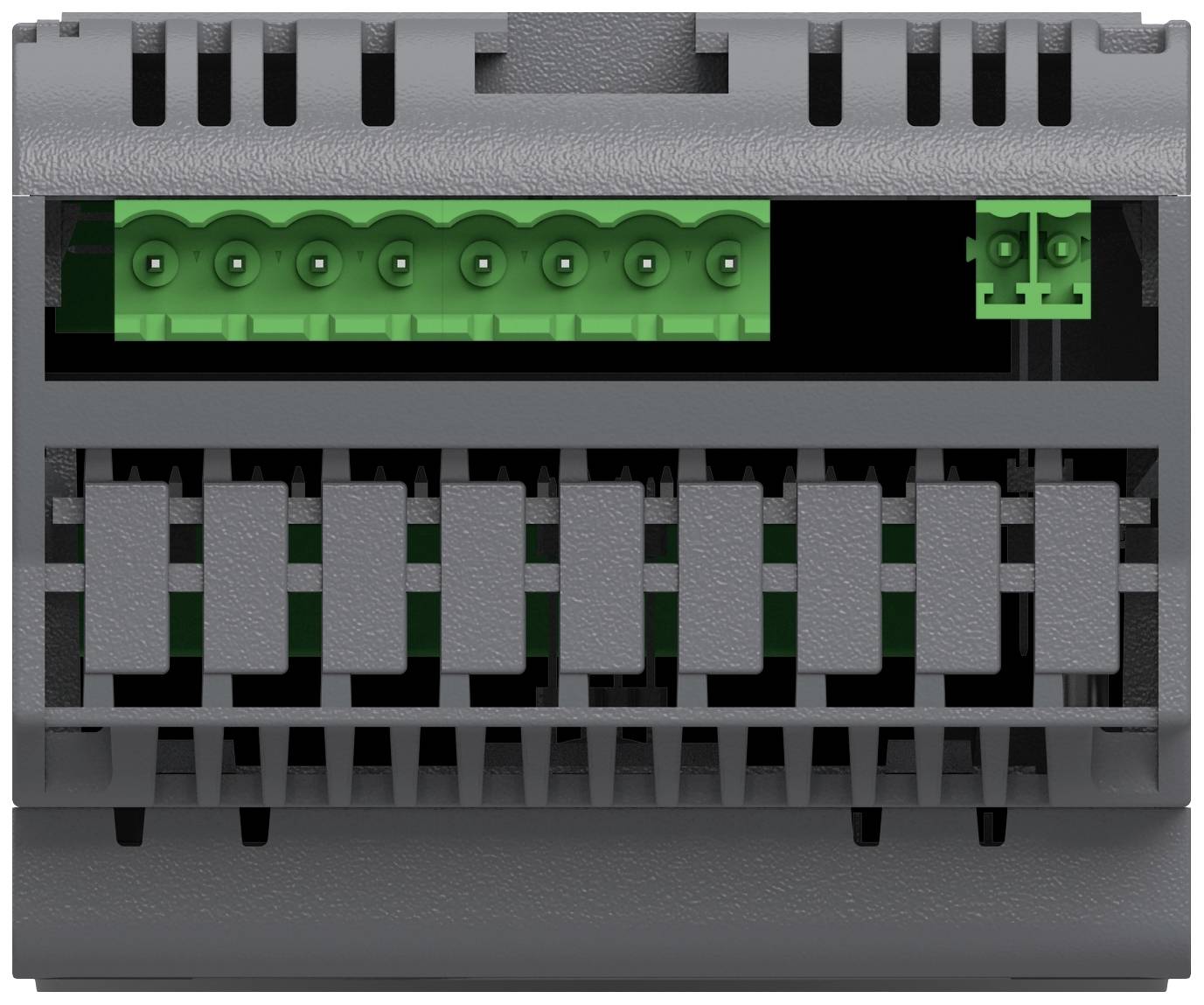

Black and grey electrical device with green connectors on top and four ventilation slots in the middle.

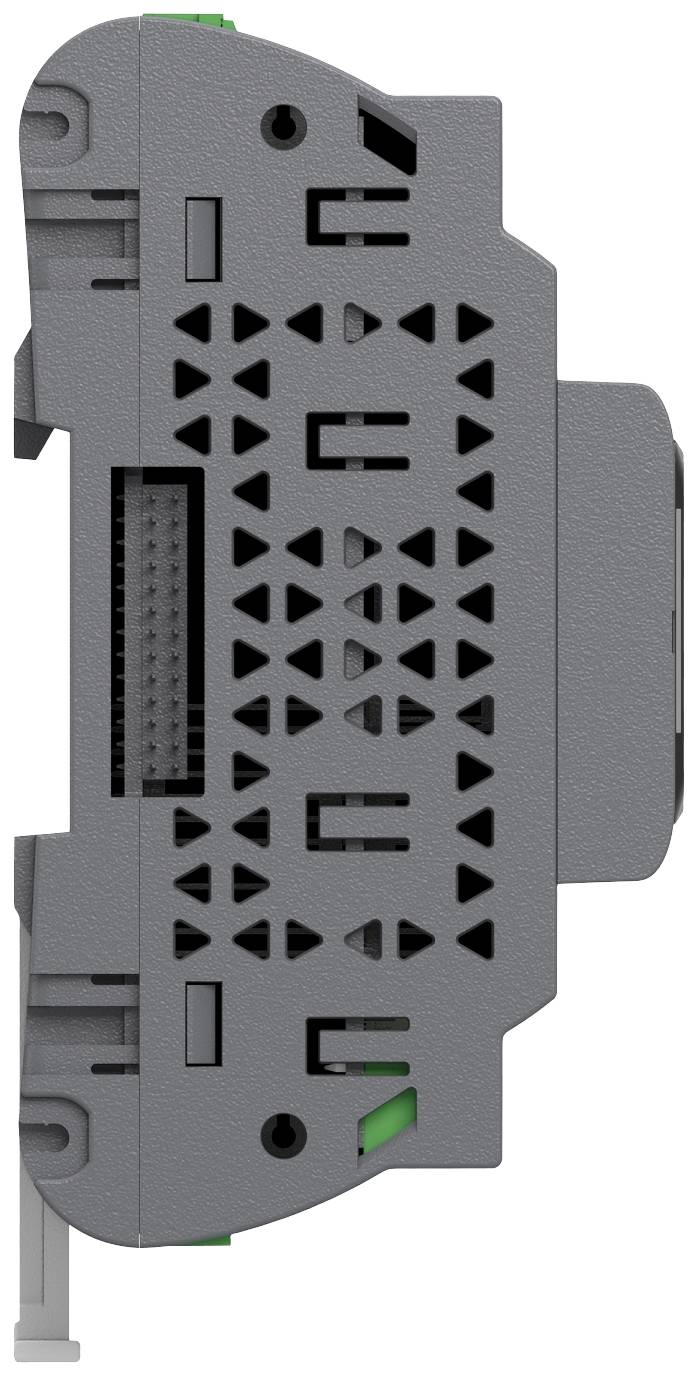

Grey electronic module with side mounting elements and a black connector on the front, likely for industrial applications.

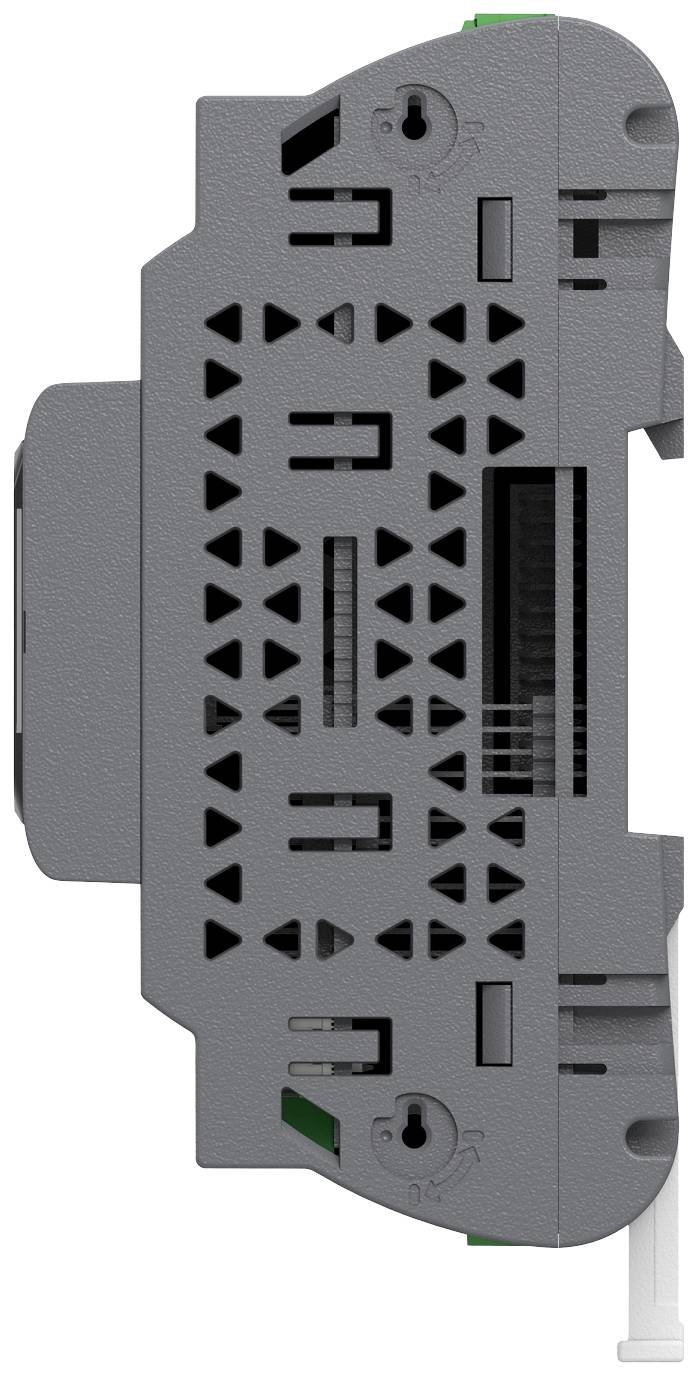

A grey, rectangular electronic module with holes and slots, pictured from the side.

1/7

Datasheet (PDF)

Dispatches on Tue, 6 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 193.27 / piece)

€ 193.27

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: PLC controller

Operating voltage: 24 V DC/AC

Type: TM173ODM22S

Display: Yes

Manufacturer part #: TM173ODM22S

No. of outputs (max.): 9

No. of inputs (max.): 13

No. of relay outputs (max.): 2

No. of analogue outputs: 4

No. of analogue inputs: 7

No. of digital inputs (max.): 6

Extensible: Compatible with

: 72 mm

: Compact

: 110 mm

: 60 mm

: TRUE

: FALSE

: 6

: 5

: 7

: 4

: AC/DC

: Other

: 1024 kB

: FALSE

: 0

: 0

: 0

: 2

: 2

: 0

: 0

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: FALSE

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: None

: None

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 0

: 0

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 5

: None

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 24-24.0 V

: FALSE

: FALSE

: FALSE

: FALSE

: None

: FALSE

: FALSE

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3304618 Schneider Electric TM173ODM22S TM173ODM22S PLC controller 24 V DC/AC

User & Safety Instructions

User & Safety Instructions 3304618 Schneider Electric TM173ODM22S TM173ODM22S PLC controller 24 V DC/AC

Description

The Modicon M173 PLC controller in Optimized version is part of the Modicon M171/M172/M173 series, a control offer for HVAC/pump applications. The controller has 6 digital inputs, 7 analogue inputs, 5 digital outputs (2 SSR), 4 analogue outputs. With integrated and optional interfaces, the control system can be flexibly networked. Two RS485 interfaces and one CAN expansion bus connection are integrated. It is a programmable logic controller for complete automation solutions for HVAC and pump systems designed and is equipped with an LCD display. The controller is compatible with I/O expansion modules and secure interfaces. Power is supplied via 24 VAC / 24 VDC. The connections are made via removable screw terminal strips (included in delivery). Mounting takes place on a 35mm top-hat rail or mounting plate with mounting accessories. Is programmed with free software EcoStruxure Machine Expert - HVAC.
