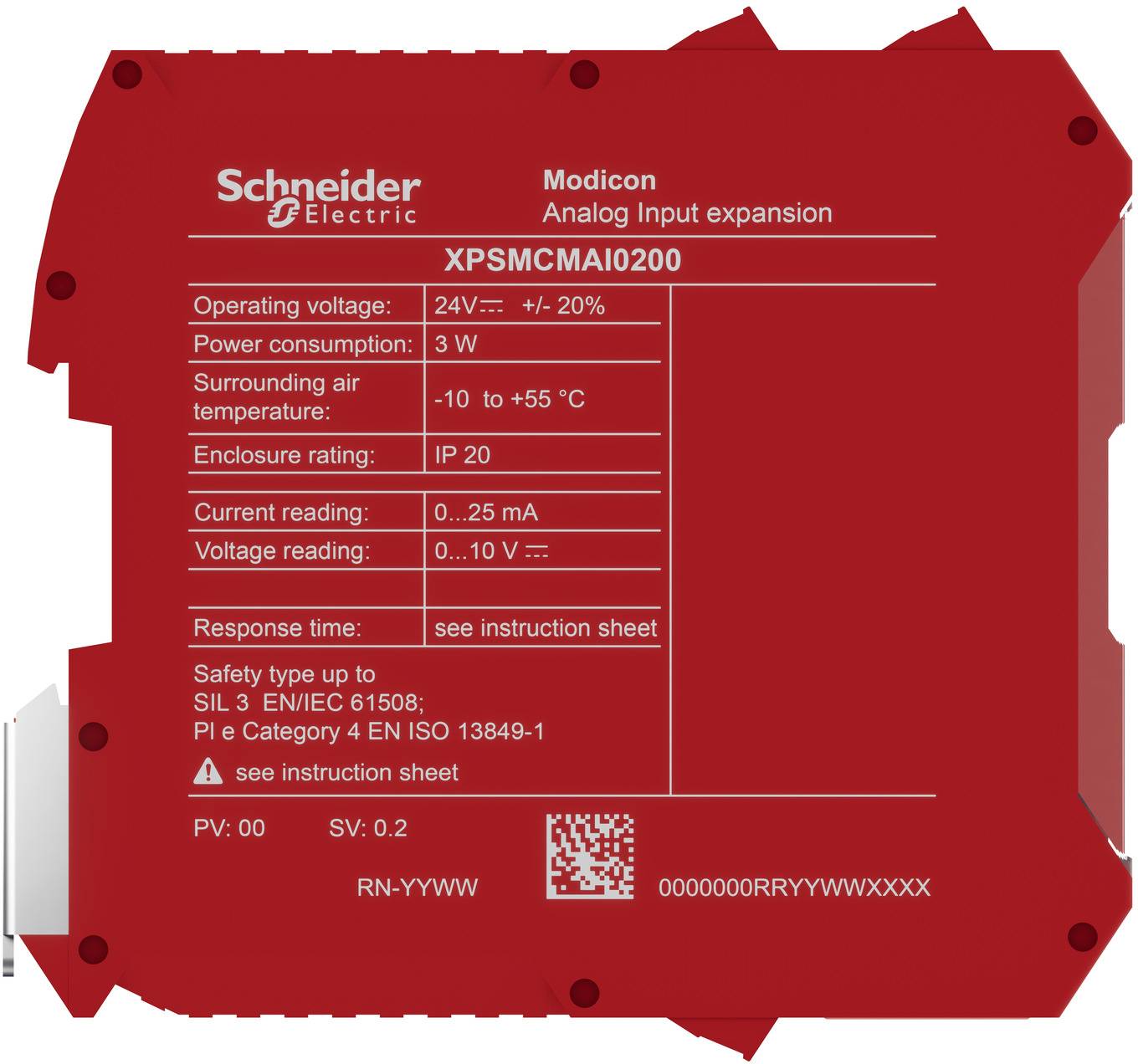

Schneider Electric XPSMCMAI0200 XPSMCMAI0200 Monitoring relay No. of digital inputs: 2
Product type
Monitoring relay
Type
XPSMCMAI0200
Probe inputs
2 analogen Eingängen
Dim
(W x H x D) 22.5 x 108 x 114.5 mm
No. of digital inputs
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 539.00 / piece)
€ 539.00
incl. VAT
14-day return policy included
Technical specifications
- Number of outputs, alarm function, undelayed, semiconductor: 0
- Number of outputs, signaling function, instantaneous, contact afflicted: 0
- Number of outputs, signaling function, delayed, semiconductor: 0
- Number of outputs, signaling function, delayed, contact afflicted: 0
- Number of outputs, safety-related, instantaneous, semiconductor: 0
- Number of outputs, safety-related, instantaneous, contact-afflicted: 0
- Number of outputs, safety-related, delayed, semiconductor: 0
- Design of electrical connection: Screw connection
- Evaluation of the inputs: Other
- Operating voltage DC 24-24 V
- Suitable for monitoring magnetic switches: No.
- Suitable for monitoring emergency-OFF circuits: No.
- Suitable for monitoring proximity switches: Yes
- Suitable for monitoring opto-electronic protection devices: No.
- Suitable for monitoring position switches: No.
- Suitable for monitoring tactile sensors: No.
- Suitable for monitoring valves: No.
- Power consumption: 3 W
- With removable terminals: Yes
- With muting function: No.
- With feedback circuit: No.
- With start input: Yes
- With TÜV approval: Yes
- With approval for BG BIA: No.
- With UL approval: Yes
- Performance level according to EN ISO 13849-1: Level e.
- Security type according to IEC 61496-1: 4
- SIL according to IEC 61508:3
- Voltage type of the operating voltage: DC
- Voltage type of supply voltage: DC
- Control voltage 1 24-24 V
- Control voltage type 1: DC
- Stop category according to IEC 60204: 0 + 1
- Rail mounting possible: Yes
- Supply voltage DC 24-24 V
- Type
XPSMCMAI0200
- Product type
Monitoring relay
- Probe inputs
2 analogen Eingängen
- Dim
(W x H x D) 22.5 x 108 x 114.5 mm
- No. of digital inputs
2
- Width
22.5 mm
- Height
108 mm
- Depth
114.5 mm
- Type
Extension device
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3756115 Schneider Electric XPSMCMAI0200 XPSMCMAI0200 Monitoring relay No. of digital inputs: 2
User & Safety Instructions
User & Safety Instructions 3756115 Schneider Electric XPSMCMAI0200 XPSMCMAI0200 Monitoring relay No. of digital inputs: 2
User & Safety Instructions 3756115 Schneider Electric XPSMCMAI0200 XPSMCMAI0200 Monitoring relay No. of digital inputs: 2
Description
With the Modicon modular safety controller XPSMCM, security applications can be easily configured and the system can be flexibly expanded with modules according to the application. This expansion module with 2 analogue inputs makes possible the safe recording of standardized signals 0/4-20 mA or 0/2-10 V. This allows signals from analogue sensors to be evaluated safely and their measurement value processed internally. The analog input circuits are electrically isolated. For connection to the internal bus, the required rear-wall bus connector is included in the package. The module has removable screw terminals. This module can only be used with the CPU version 2 or higher. To support your sustainability goals, detailed information on material content, environmental impact and recycling management is provided.
This text is machine translated.
This text is machine translated.
