Name: Schneider Electric XPSMCMAI0200G XPSMCMAI0200G Monitoring relay No. of relay outputs: 0 No. of digital inputs: 2
Brand: Schneider Electric
SKU: 3756117
Availability: BackOrder

Red Schneider Electric Modicon AI02 industrial module with labeled PWR, RUN, E/R and channel indicators.

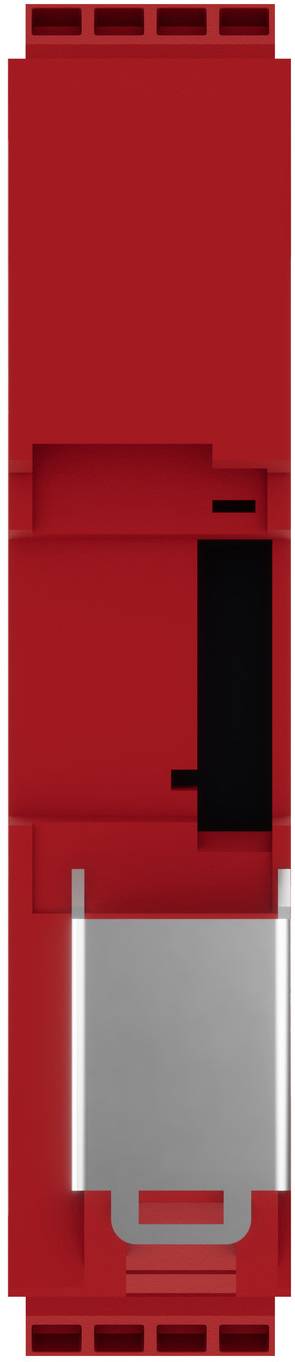

Red rectangular device with a silver bottom section and a dark vertical panel, shown front view on a plain background.

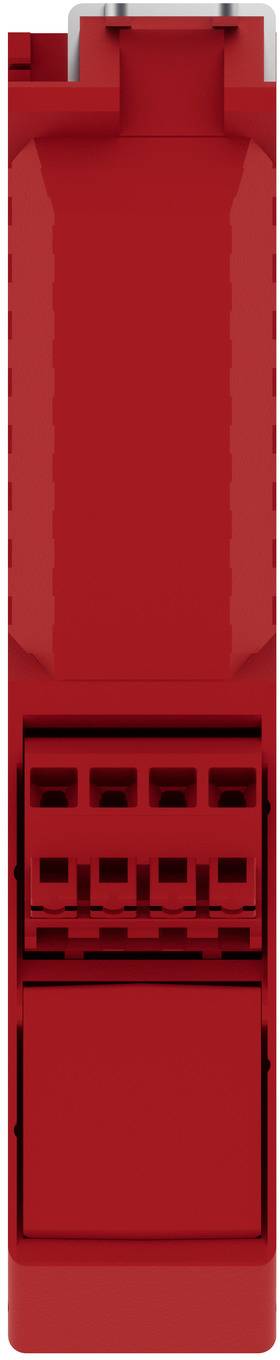

Red plastic electrical connector plug with a locking tab and multiple socket openings, shown front view on a white background

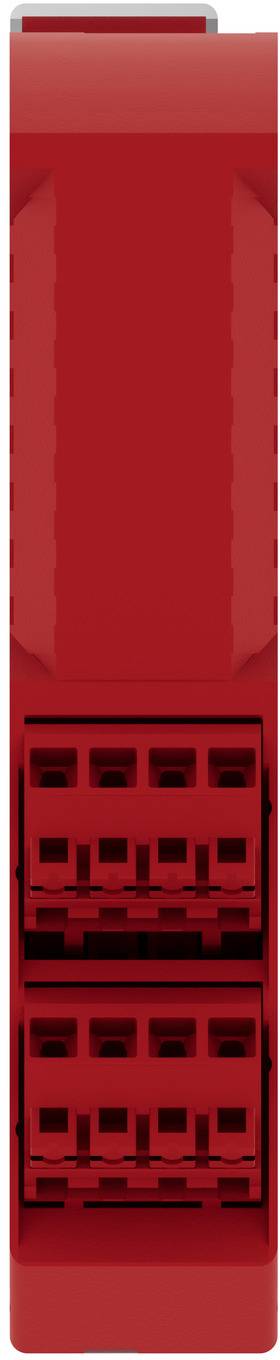

Red electrical connector or terminal block with multiple socket openings on the front.

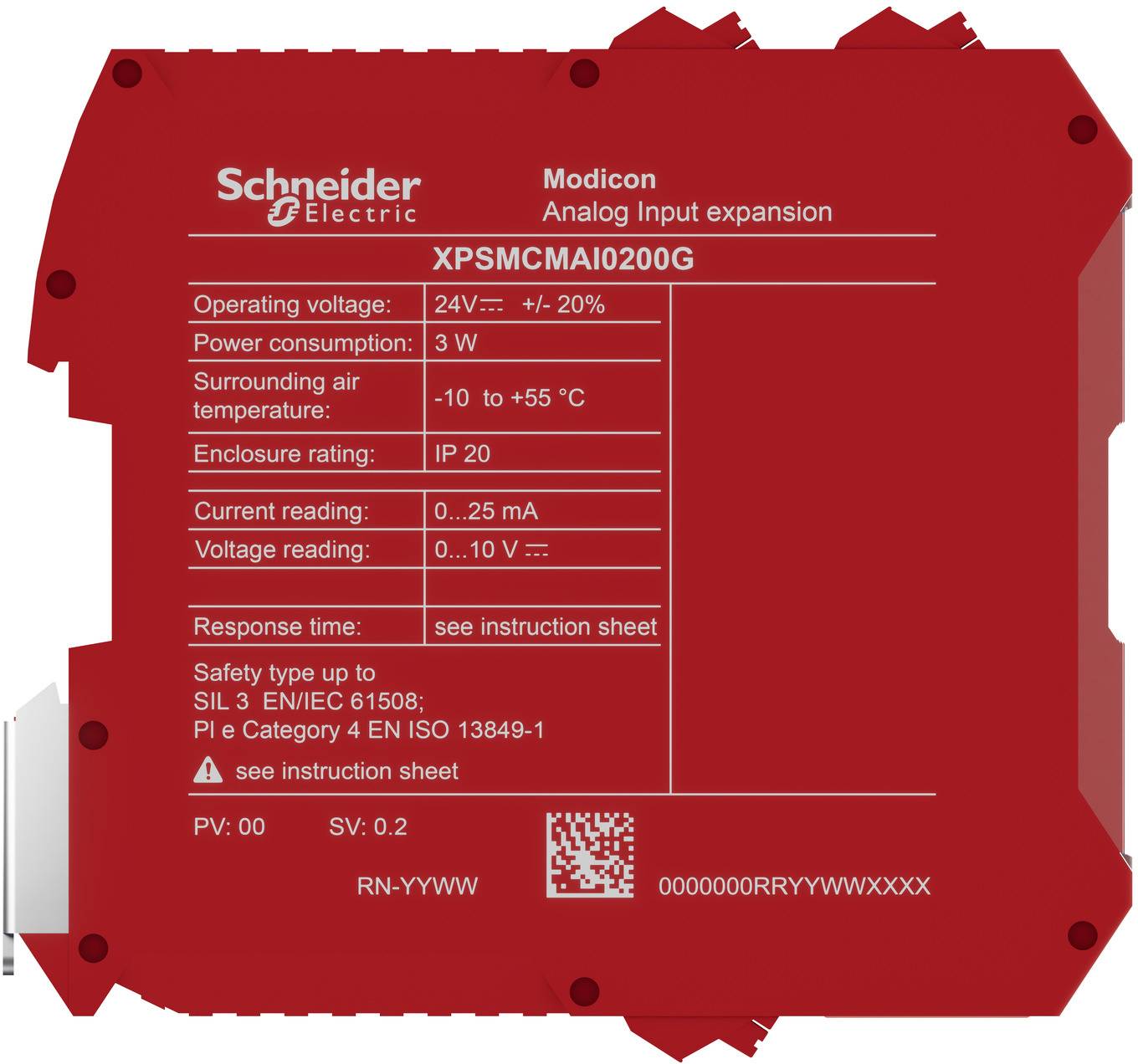

Red Schneider Electric Modicon analog input expansion module labeled XPSMCMAI0200G, showing voltage/current ranges and safety specifications.

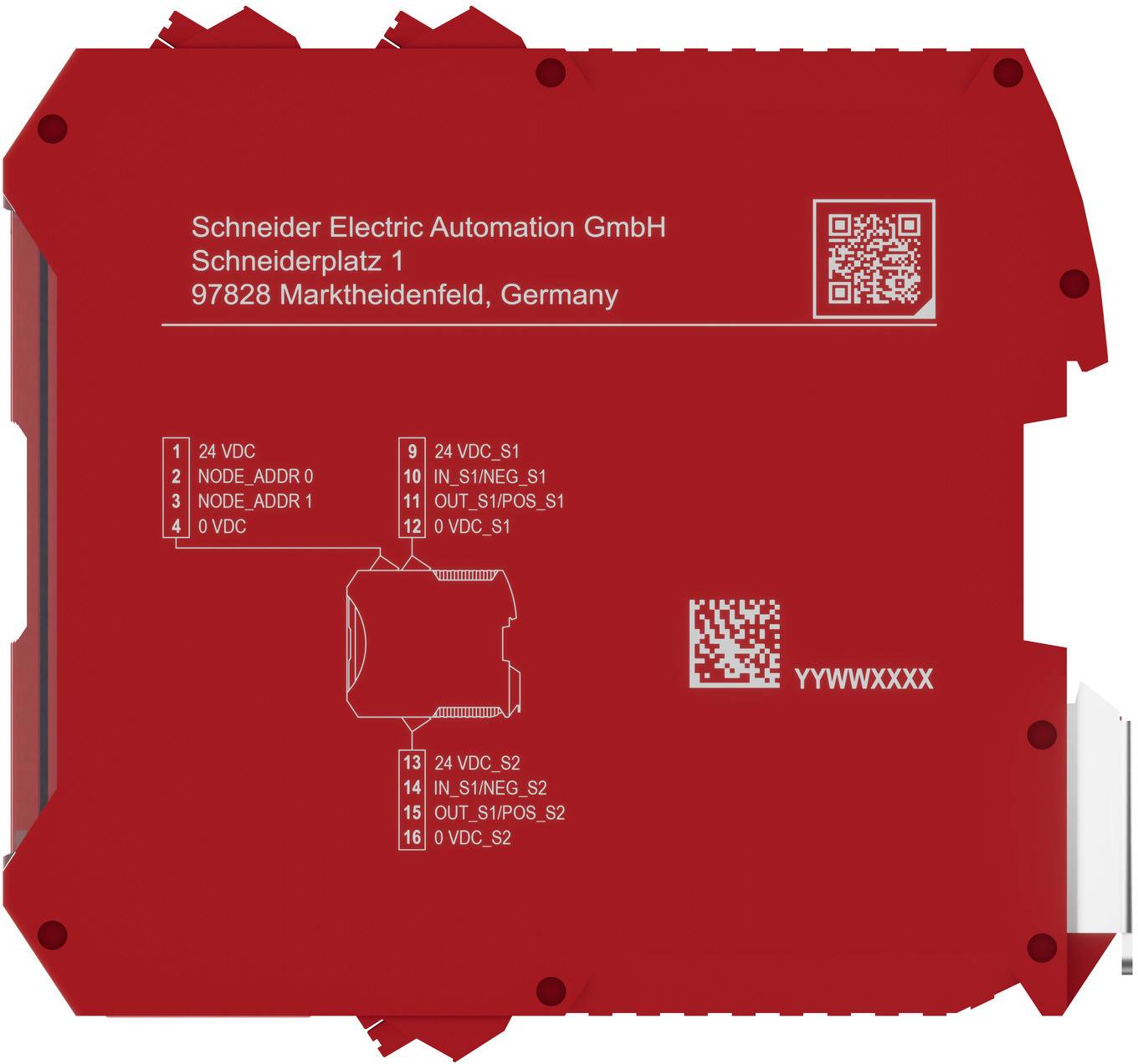

Red Schneider Electric automation module with printed wiring/terminal labels, QR codes, and model markings.

1/6

Product type

Monitoring relay

No. of relay outputs

Type

XPSMCMAI0200G

Probe inputs

0/4-20 mA oder 0/2-10 V

Dim

(W x H x D) 22.5 x 118 x 114.5 mm

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 539.00 / piece)

€ 539.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Number of outputs, alarm function, undelayed, semiconductor: 0
Number of outputs, signaling function, instantaneous, contact afflicted: 0
Number of outputs, signaling function, delayed, semiconductor: 0
Number of outputs, signaling function, delayed, contact afflicted: 0
Number of outputs, safety-related, instantaneous, semiconductor: 0
Number of outputs, safety-related, instantaneous, contact-afflicted: 0
Number of outputs, safety-related, delayed, semiconductor: 0
Design of electrical connection: Spring-loaded connection
Evaluation of the inputs: Other
Operating voltage DC 24-24 V
Suitable for monitoring magnetic switches: No.
Suitable for monitoring emergency-OFF circuits: No.
Suitable for monitoring proximity switches: Yes
Suitable for monitoring opto-electronic protection devices: No.
Suitable for monitoring position switches: No.
Suitable for monitoring tactile sensors: No.
Suitable for monitoring valves: No.
Power consumption: 3 W
With removable terminals: Yes
With muting function: No.
With feedback circuit: No.
With start input: Yes
With TÜV approval: Yes
With approval for BG BIA: No.
With UL approval: Yes
Performance level according to EN ISO 13849-1: Level e.
Security type according to IEC 61496-1: 4
SIL according to IEC 61508:3
Voltage type of the operating voltage: DC
Voltage type of supply voltage: DC
Control voltage 1 24-24 V
Control voltage type 1: DC
Stop category according to IEC 60204: 0 + 1
Rail mounting possible: Yes
Supply voltage DC 24-24 V

Type: XPSMCMAI0200G

Product type: Monitoring relay

No. of relay outputs: 0

Probe inputs: 0/4-20 mA oder 0/2-10 V

Dim: (W x H x D) 22.5 x 118 x 114.5 mm

No. of digital inputs: 2

Width: 22.5 mm

Height: 118 mm

Depth: 114.5 mm

Type: Extension device

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

No. of relay outputs

Schneider Electric XPSMCMAI0200G XPSMCMAI0200G Monitoring relay No. of relay outputs: 0 No. of digital inputs: 2

Item no:3756117

Available soon

Conrad Electronic

This article

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 539.00^*

Schneider Electric IMDIFL12H IMDIFL12H Monitoring relay No. of relay outputs: 1

Item no:3754840

Dispatches on Wed 4 Nov

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,975.00^*

Schneider Electric IMDIFL12L IMDIFL12L Monitoring relay No. of relay outputs: 1

Item no:3754842

Dispatches on Wed 4 Nov

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,479.00^*

Schneider Electric IMDIFL12LMC IMDIFL12LMC Monitoring relay No. of relay outputs: 1

Item no:3754844

Dispatches on Wed 4 Nov

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,839.00^*

Schneider Electric IMDIFL12MCT IMDIFL12MCT Monitoring relay No. of relay outputs: 1

Item no:3754846

Dispatches on Wed 4 Nov

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,899.00^*

Schneider Electric IMDIM400LTHR IMDIM400LTHR Monitoring relay

Item no:3754849

Dispatches on Wed 4 Nov

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5,815.00^*

Schneider Electric IMDIM400THR IMDIM400THR Monitoring relay No. of relay outputs: 1

Item no:3754850

Dispatches on Wed 4 Nov

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6,475.00^*

Schneider Electric LV481010 LV481010 Monitoring relay No. of relay outputs: 2

Item no:3755182

Dispatches on Wed 4 Nov

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,009.00^*

Schneider Electric RM35TF36 RM35TF36 Monitoring relay

Item no:3755843

Dispatches on Wed 4 Nov

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 179.99^*

Schneider Electric XPSMCMAI0200 XPSMCMAI0200 Monitoring relay No. of digital inputs: 2

Item no:3756115

Available soon

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 539.00^*

Documents & Downloads

Datasheet

Datasheet 3756117 Schneider Electric XPSMCMAI0200G XPSMCMAI0200G Monitoring relay No. of relay outputs: 0 No. of digital inputs: 2

User & Safety Instructions

User & Safety Instructions 3756117 Schneider Electric XPSMCMAI0200G XPSMCMAI0200G Monitoring relay No. of relay outputs: 0 No. of digital inputs: 2

Description

With the Modicon modular safety controller XPSMCM, security applications can be easily configured and the system can be flexibly expanded with modules according to the application. This expansion module with 2 analogue inputs makes possible the safe recording of standardized signals 0/4-20 mA or 0/2-10 V. This allows signals from analogue sensors to be evaluated safely and their measurement value processed internally. The analog input circuits are electrically isolated. For connection to the internal bus, the required rear-wall bus connector is included in the package. The module has removable spring terminals. This module can only be used with the CPU version 2 or higher. To support your sustainability goals, detailed information on material content, environmental impact and recycling management is provided.
