Schneider Electric XPSMCMC10804BEG XPSMCMC10804BEG Monitoring relay No. of relay outputs: 4

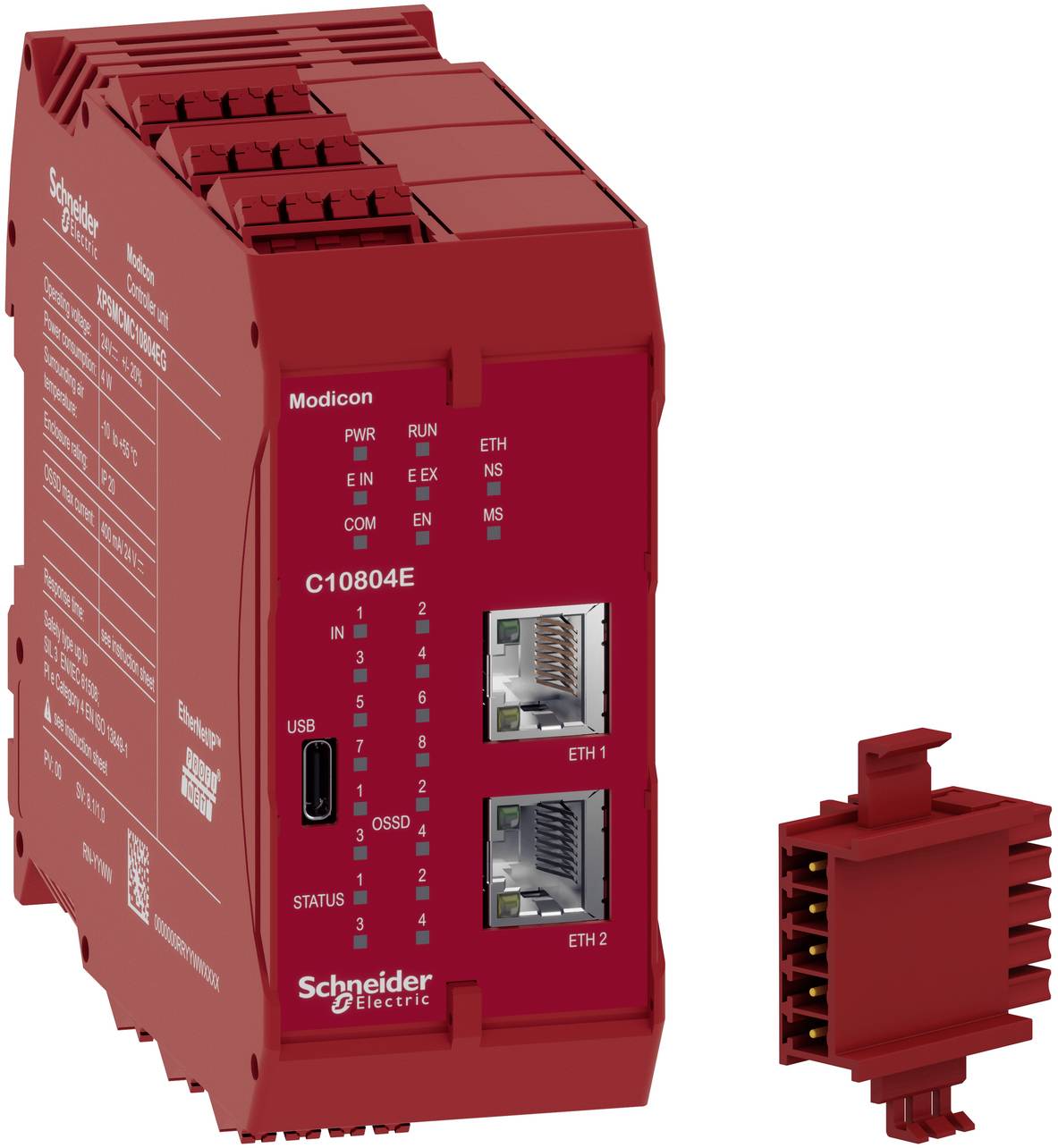

With the Modicon modular safety controller XPSMCM, security applications can be easily configured and the system can be flexibly expanded with modules according to the application. This central unit (CPU) version 2 is the basic module, which is required for every safety system on machines and systems. The CPU is used to process the configured security application. 8 safe digital inputs, 4 safe OSSD outputs and 2 status outputs are available. Up to 14 expansion modules enable the connection in the entire configuration of up to 128 safe inputs and 32 safe outputs, 48 signaling outputs, as well as speed recording and analog value evaluation. Diagnostic communication with the connected PLC via EtherCAT, Ethernet/IP, Modbus TCP or Profinet is possible via the integrated fieldbus module. Optionally, a memory card with the saved configuration can be inserted at the back of the module. The attainable safety level is PL e in category 4 or SIL 3. LED displays provide status messages for the system and for each input and output. The configuration is done by the user with the free available software SoSafe Configurable via USB-connection from the PC. Expansion modules can be connected directly using the provided rear bus connector. This CPU order number is therefore particularly suitable for larger applications where extensions are provided. Supply voltage is 24 VDC. This module has removable spring terminals and has a width of 45 mm. To support your sustainability goals, detailed information on material content, environmental impact and recycling management is provided.
