Name: Schneider Electric XPSMCMER0008 XPSMCMER0008 Monitoring relay No. of relay outputs: 8
Brand: Schneider Electric
SKU: 3756139
Availability: BackOrder

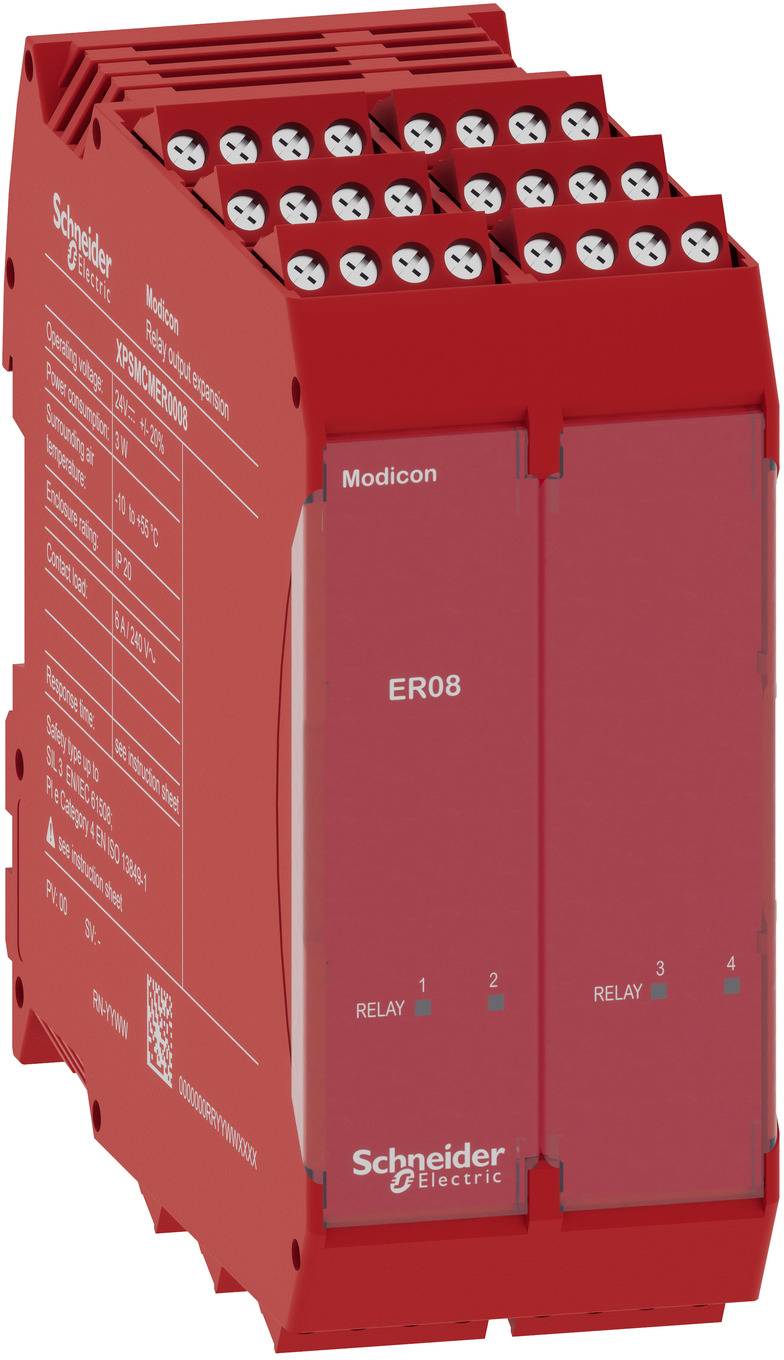

Red Schneider Electric ER08 relay module with screw terminals, shown in a product-style view.

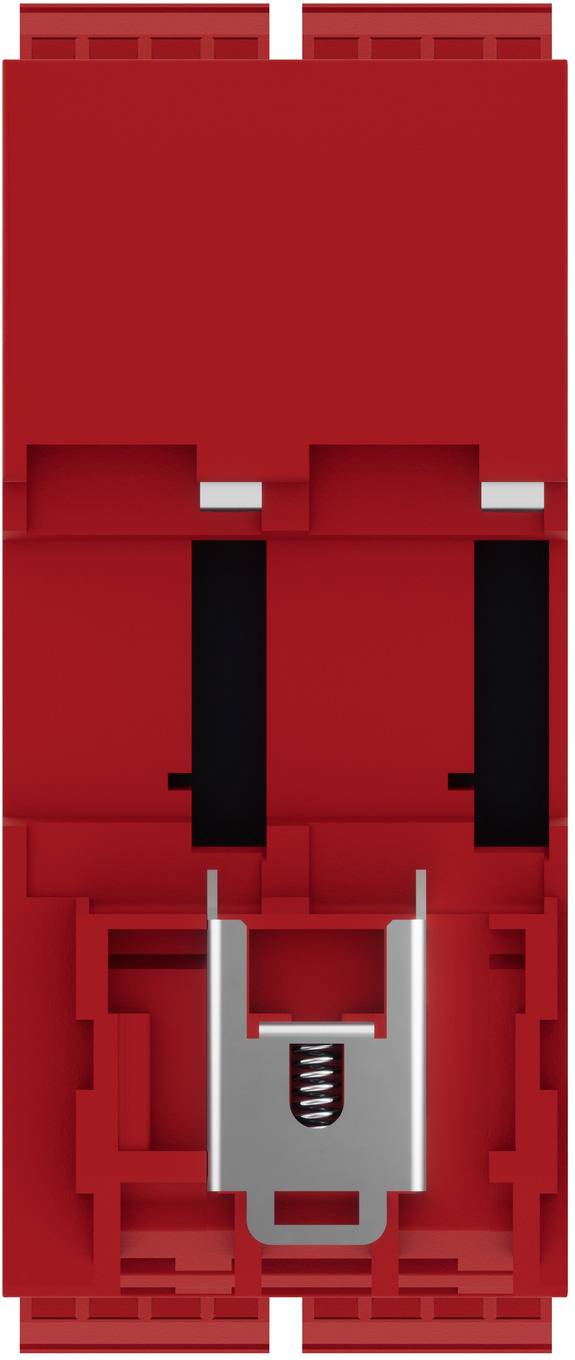

Front view of a red plastic electronic component with two black vertical slots and a central silver spring contact.

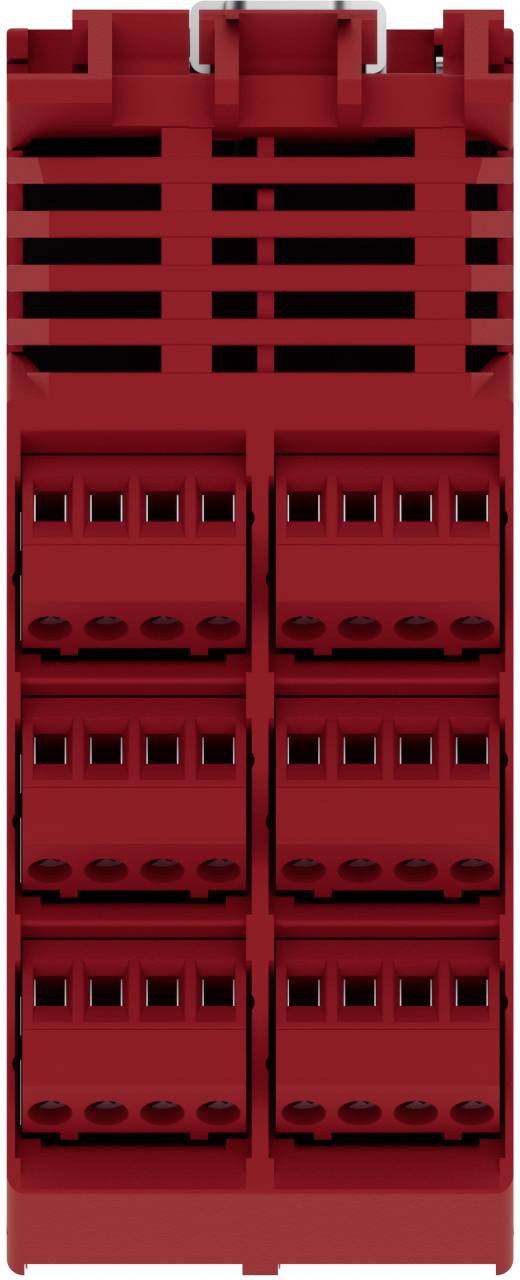

Red electrical connector block with multiple terminal slots and latch features, viewed front-on.

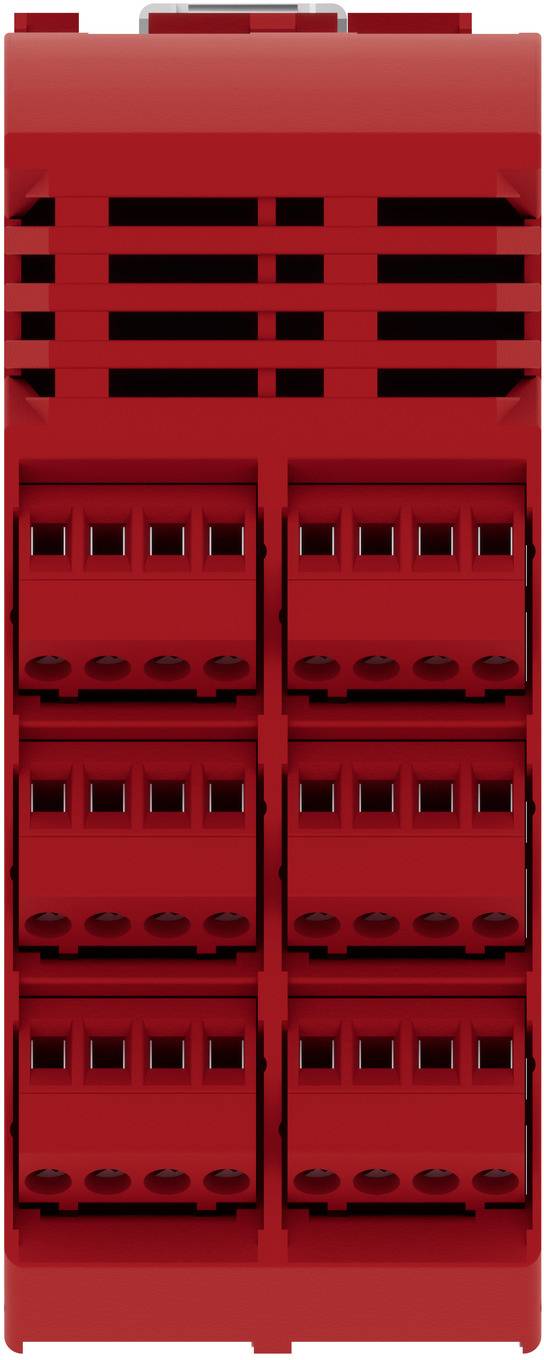

Red LEGO-style electronics module with vented top and front panels, showing six stacked connector sections and small indicator openings.

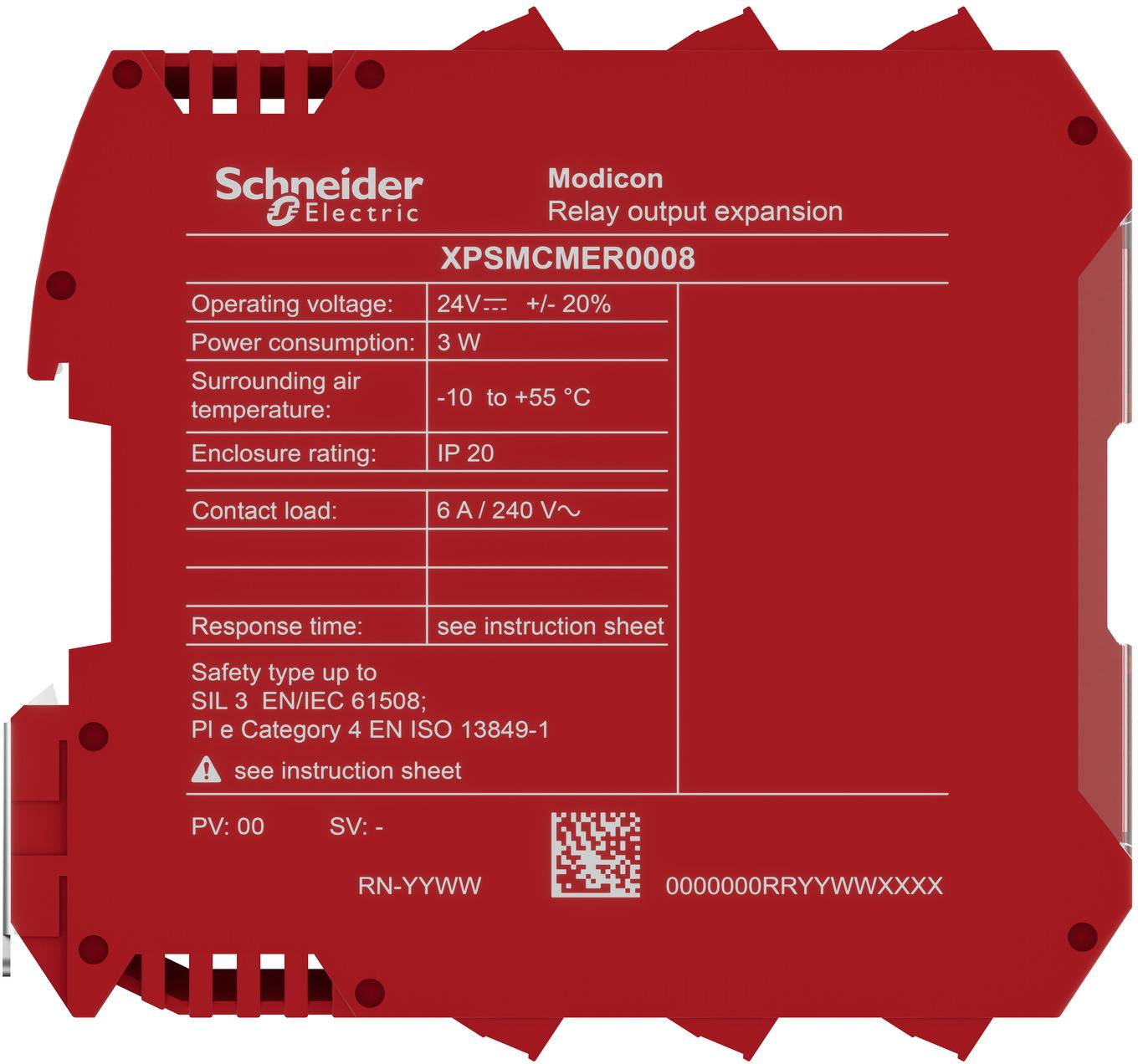

Red Schneider Electric Modicon relay output expansion module labeled XPSMCMER008 with specs including 24V supply, IP20, 6A/240V contact load, and safety ratings.

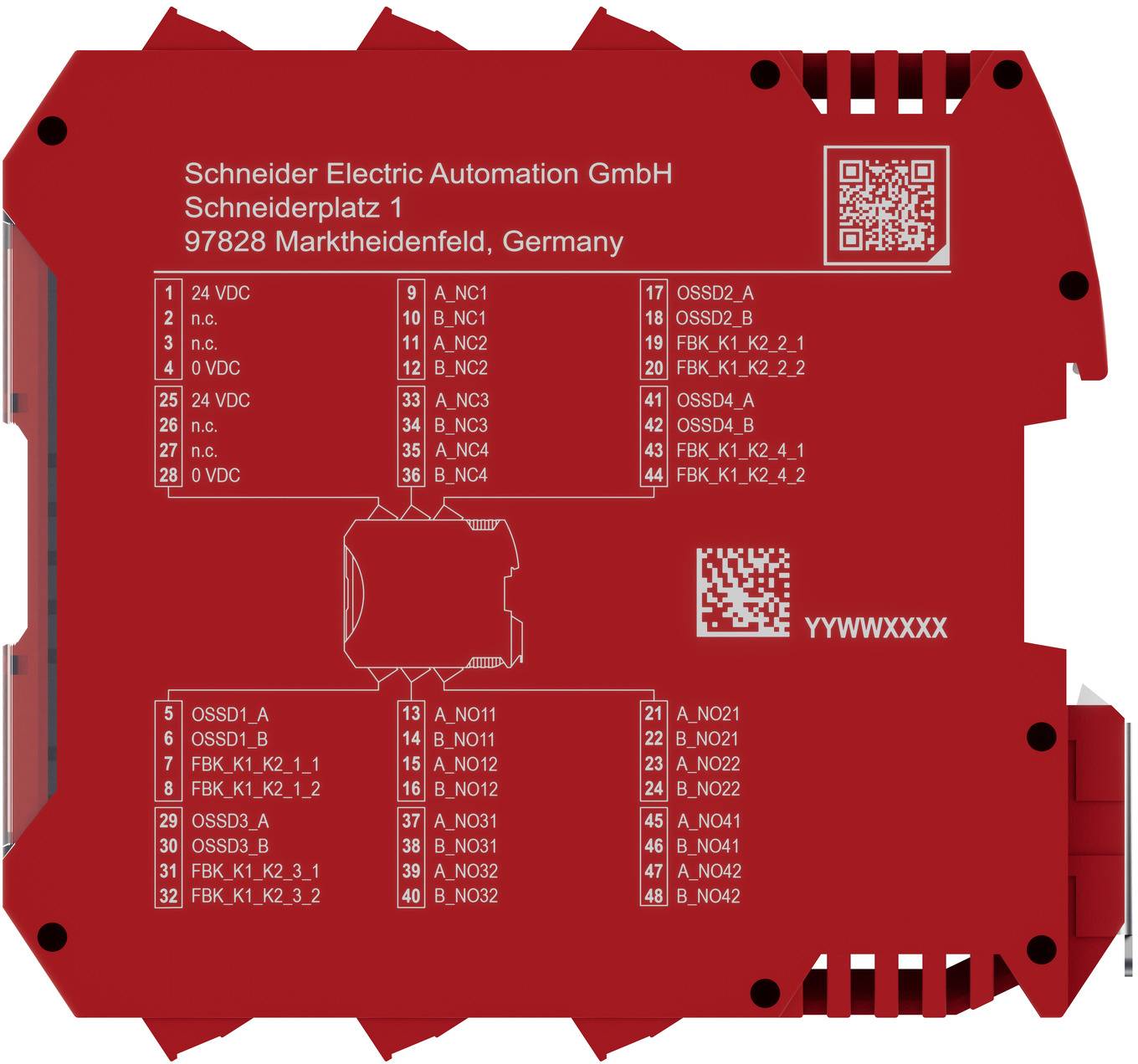

Red Schneider Electric automation module label showing company/address, QR codes, and numbered wiring/terminal connection diagrams.

1/6

Product type

Monitoring relay

No. of relay outputs

Type

XPSMCMER0008

Dim

(W x H x D) 45 x 108 x 114.5 mm

Width

45 mm

Datasheet (PDF)

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 469.00 / piece)

€ 469.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Number of outputs, alarm function, undelayed, semiconductor: 0
Number of outputs, signaling function, instantaneous, contact afflicted: 8
Number of outputs, signaling function, delayed, semiconductor: 0
Number of outputs, signaling function, delayed, contact afflicted: 0
Number of outputs, safety-related, instantaneous, semiconductor: 0
Number of outputs, safety-related, instantaneous, contact-afflicted: 8
Number of outputs, safety-related, delayed, semiconductor: 0
Design of electrical connection: Screw connection
Evaluation of the inputs: Other
Rated switching current 6 A
Operating voltage DC 24-24 V
Suitable for monitoring magnetic switches: No.
Suitable for monitoring emergency-OFF circuits: No.
Suitable for monitoring proximity switches: No.
Suitable for monitoring opto-electronic protection devices: No.
Suitable for monitoring position switches: No.
Suitable for monitoring tactile sensors: No.
Suitable for monitoring valves: No.
Power consumption: 3 W
With removable terminals: Yes
With muting function: No.
With feedback circuit: No.
With start input: No.
With TÜV approval: Yes
With approval for BG BIA: No.
With UL approval: Yes
Performance level according to EN ISO 13849-1: Level e.
Off-delay 0,012-0,012 s
Security type according to IEC 61496-1: 4
SIL according to IEC 61508:3
Voltage type of the operating voltage: DC
Voltage type of supply voltage: DC
Control voltage 1 24-24 V
Control voltage type 1: AC/DC
Stop category according to IEC 60204: 0 + 1
Rail mounting possible: Yes
Supply voltage DC 24-24 V

Type: XPSMCMER0008

Product type: Monitoring relay

No. of relay outputs: 8

Dim: (W x H x D) 45 x 108 x 114.5 mm

Width: 45 mm

Height: 108 mm

Depth: 114.5 mm

Type: Extension device

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3756139 Schneider Electric XPSMCMER0008 XPSMCMER0008 Monitoring relay No. of relay outputs: 8

User & Safety Instructions

User & Safety Instructions 3756139 Schneider Electric XPSMCMER0008 XPSMCMER0008 Monitoring relay No. of relay outputs: 8

Description

With the Modicon modular safety controller XPSMCM, security applications can be easily configured and the system can be flexibly expanded with modules according to the application. This expansion module provides 4 safe relay group outputs. One relay group consists of 2 relay closers and 1 relay openers which are reliably controlled by 2 OSSD outputs. Four return circuits (EDM) are available. This module is not included with a rear-bus connector since it is not needed. The module has removable screw terminals and has a width of 45 mm. This expansion module can be used with all CPU-versions. To support your sustainability goals, detailed information on material content, environmental impact and recycling management is provided.

This text is machine translated.
