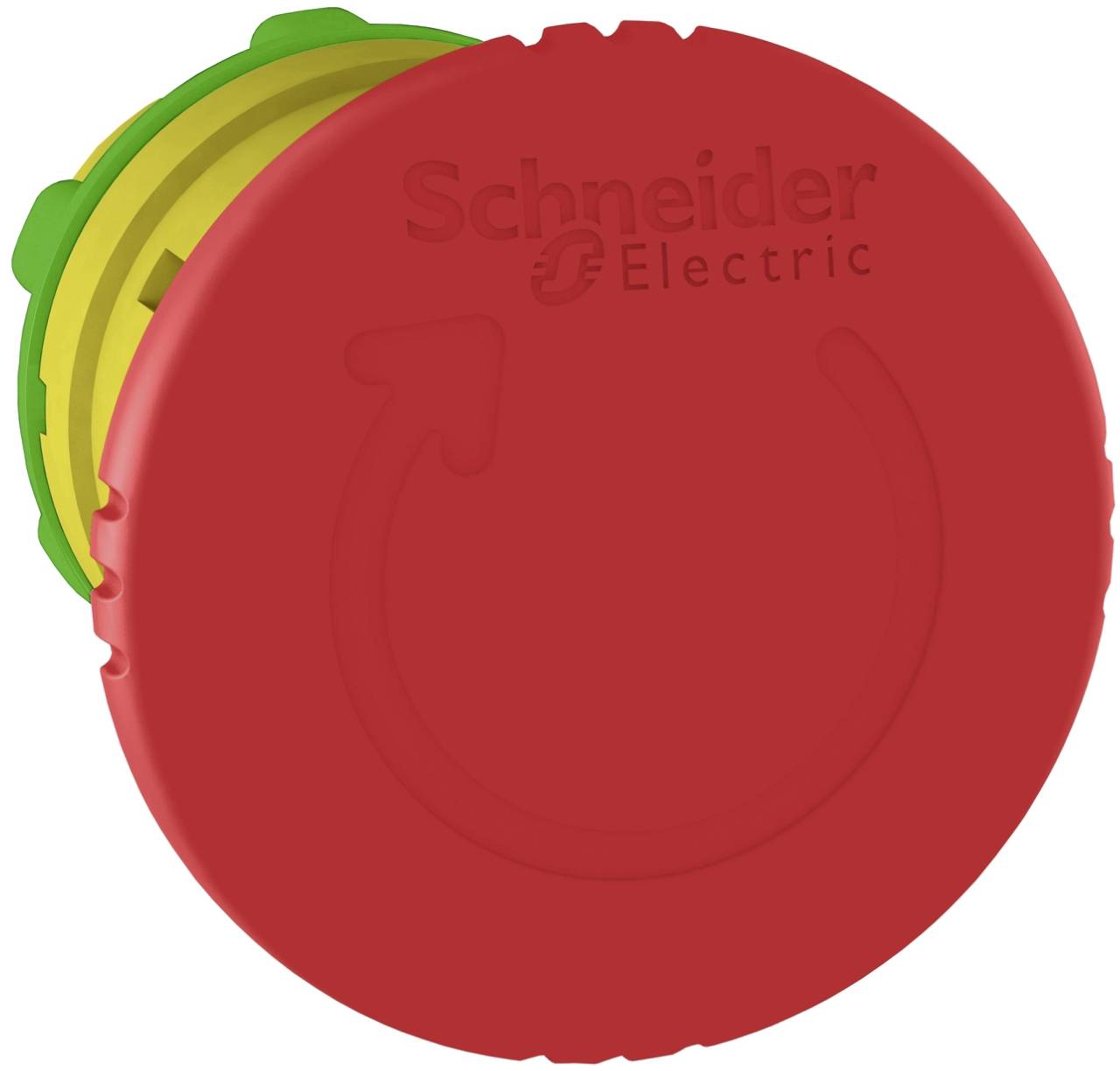

Schneider Electric ZB5AS844TQ ZB5AS844TQ Front piece Front ring (PVC), lockable, + kill switch Rotary actuator Red Turn

The Harmony XB5 series is an emergency stop button with a 40 mm red mushroom head, which is operated with a rotating mechanism. This emergency stop/stop button can be easily combined with contact blocks, fitted in standard 22 mm diameter recesses and connected with simple screw terminal connections. Thanks to its clear color and the distinctive 40 mm mushroom shape it is also clearly visible from a distance. Its IP66 / IP67 / IP69 / IP69K degree of protection makes it impact-resistant, dust-proof, waterproof and vibration-proof. It has a plastic panel, which makes Ideal suitable for applications requiring good resistance to chemical substances and/or double electrical insulation. It is designed to be installed in a standard 22 mm diameter recess, ensuring compatibility when installing on existing machines. Its wide operating temperature range from -40 °C to 70 °C enables a versatile use of the product.
