Schützinger MFK 15 / 1 / 200 / RT Test lead 200 cm Red 1 pc(s)

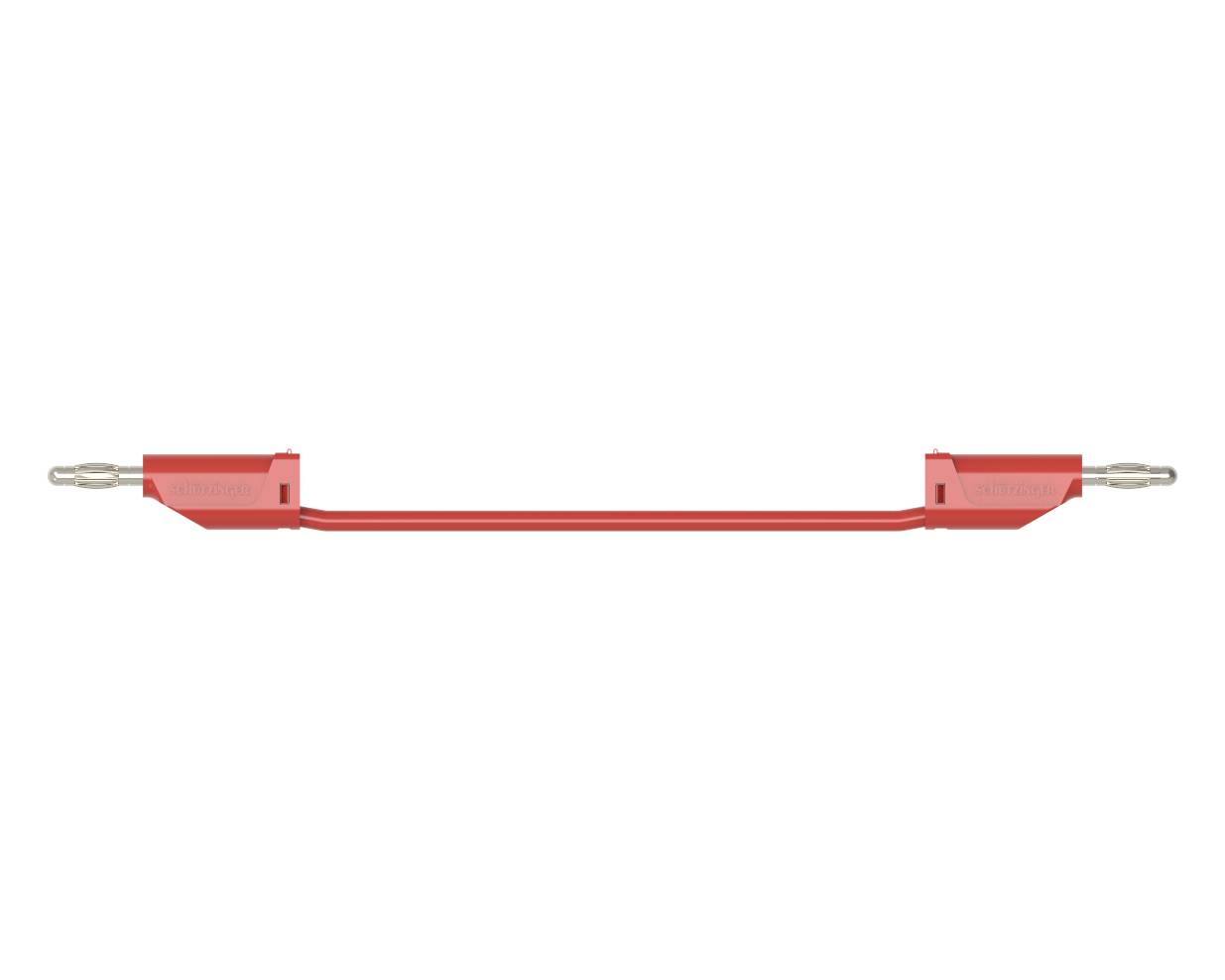

Red electrical test lead with banana plugs on both ends, shown horizontally on a white background.
Datasheet (PDF)
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
5 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 8.99 / piece)
€ 8.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 5 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Schützinger MFK 15 / 1 / 200 / Red test lead, 2 spring basket plugs Axial, 16A

  • 2 spring basket plugs with axial socket connector, made to highly flexible double insulated PVC cable 1 mm²
  • Nickel-plated contact parts
  • This text is machine translated.

Technical specifications

  • Constant resistance 40 mΩ
  • RATED VOLTAGE 30 V AC / 60 V DC
  • Rated current 16 A
Product type

Test lead

Cable length

200 cm

Factory colour

Red

Plug features

Insulated

Material

PA 6.6

PVC

Cable cross section

1 mm²

Diameter/connectortype

4 mm

Temperature range

Operating temperature from -10 °C to +70 °C. °C

Contact material

Nickel plated

Type

MFK 15 / 1 / 200 / RT
