Schützinger VSFK 8501 / SIL1 / 25 / SW Connection cable 25 cm Black 1 pc(s)

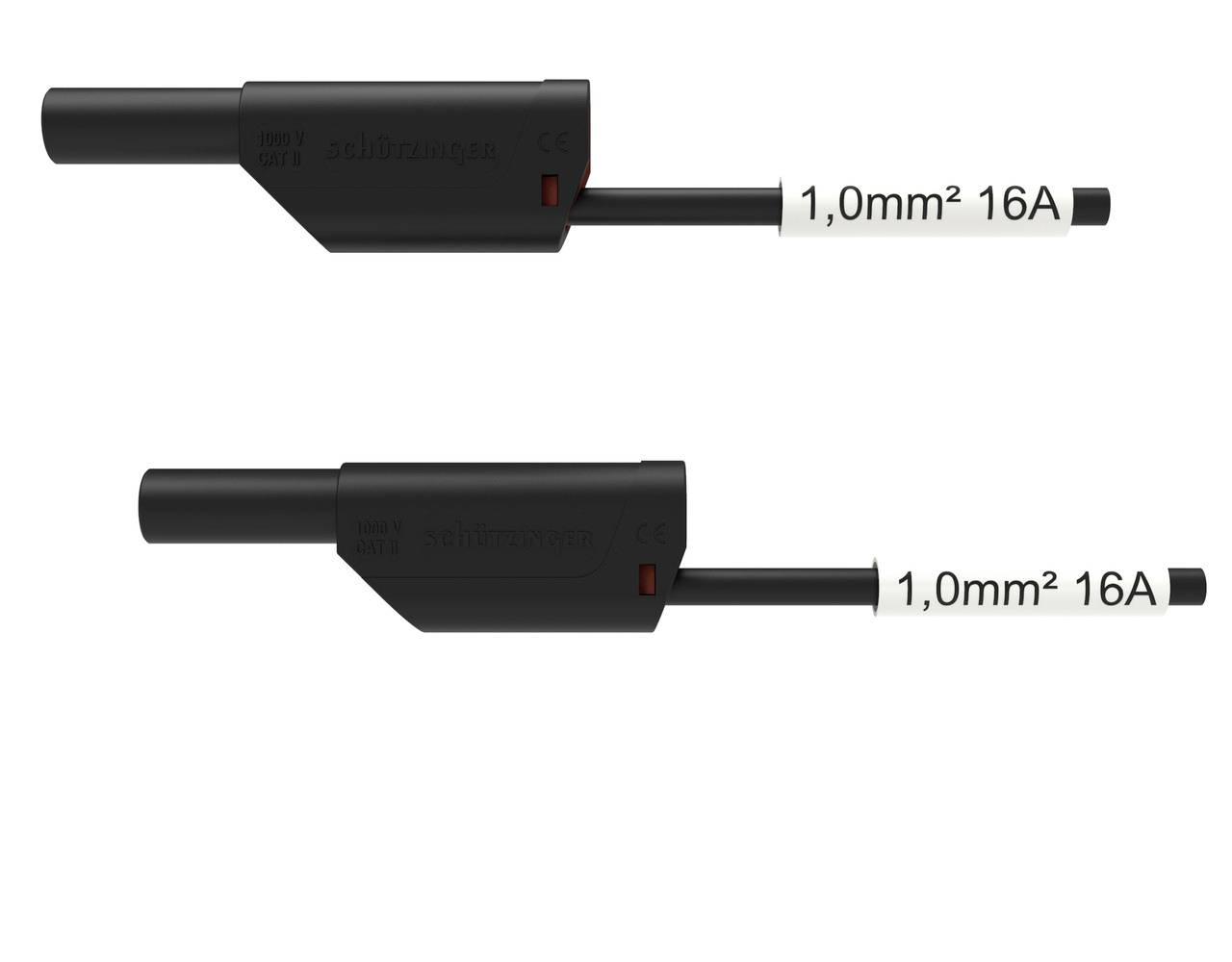

Two black electrical connector leads shown stacked, each labeled '1,0mm² 16A'.
Datasheet (PDF)
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
9 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 15.99 / piece)
€ 15.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 9 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Schützinger VSFK 8501 / SIL1 / 25 / black safety connection cable, 16A

  • 2 safety spring basket plugs with axial socket connector, made to highly flexible double insulated silicone cable 1 mm²
  • Narrow design - grid dimension 10 mm
  • The handles are made of UL-listed material
  • Further development and improvement of our successful key product VSFK 5001
  • Gold-plated contact parts
  • GRIP SLEEVES PA 6.6 (UL94-V2)
  • This text is machine translated.

Technical specifications

  • Contact resistance 5 mΩ Rated voltage 1000 V CAT II Rated current 16 A
Product type

Connection cable

Cable length

25 cm

Factory colour

Black

Plug features

Insulated

Material

Silicone

PA 6.6

Cable cross section

1 mm²

Temperature range

Operating temperature from -10 °C to +90 °C. °C

Contact material

Gold plated

Reading category

CAT II 1000 V

Type

VSFK 8501 / SIL1 / 25 / SW

Documents & Downloads

Datasheet

Datasheet 3743523 Schützinger VSFK 8501 / SIL1 / 25 / SW Connection cable 25 cm Black 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3743523 Schützinger VSFK 8501 / SIL1 / 25 / SW Connection cable 25 cm Black 1 pc(s)
