Name: Secomp 21.05.0556 RJ45 Patch cable CAT 6A S/FTP 5.00 m Violet double shielding, Halogen-free, Flame-retardant 1 pc(s)
Brand: Secomp
SKU: 3797617

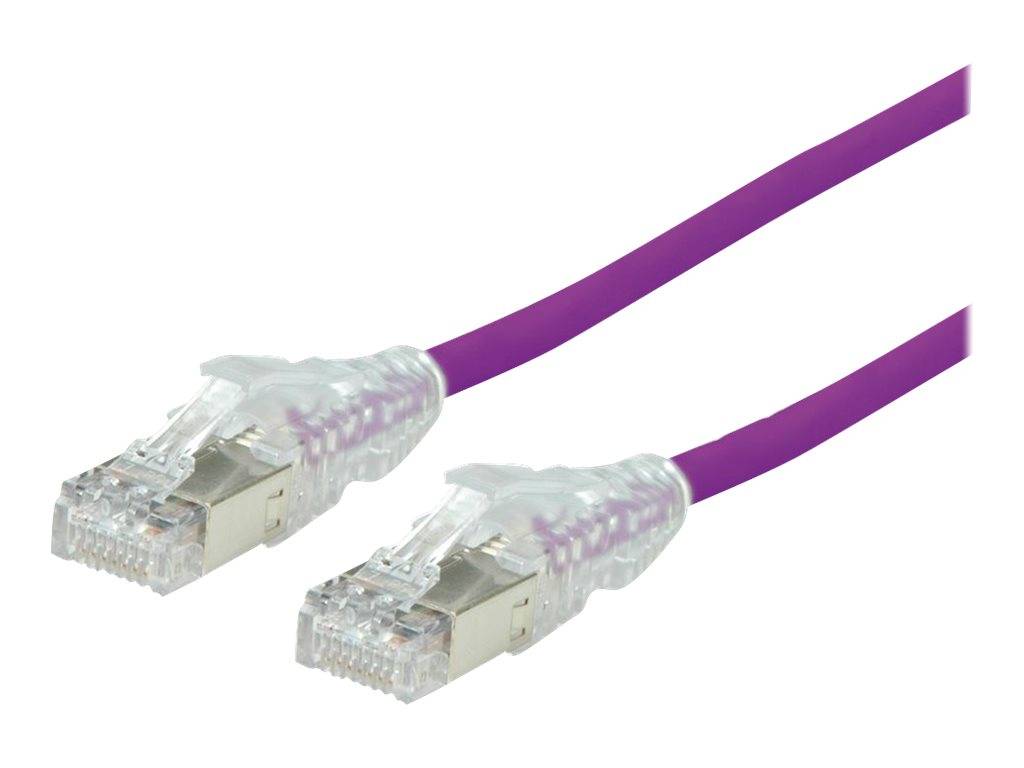

Secomp 21.05.0556 RJ45 Patch cable CAT 6A S/FTP 5.00 m Violet double shielding, Halogen-free, Flame-retardant 1 pc(s)-0

1/2

Secomp

Product type

Patch cable

Specification

CAT 6A

Shielding

S/FTP

Connection type

RJ45

Cable length

5.00 m

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Secomp 21.05.0556 network cable violet 5 m Cat6a S/FTP (S-STP)

5 m
RJ-45 straight plug
RJ-45 straight plug
Cat6a S/FTP (S-STP)
Plug & Play
Purple

Technical specifications

Connection 1 RJ-45
Connection 2 RJ-45

Product type: Patch cable

: CAT 6A

: S/FTP

Connection type: RJ45

No. of A connectors: 1 x

Type A: RJ45 plug

No. of B connections: 1 x

Type B: RJ45 plug

Cable length: 5.00 m

Factory colour: Violet

Connector version: straight

Cable features: double shielding
Halogen-free
Flame-retardant

Cable use: Networks

Version: Cable

Cable design: Round

: Copper

Halogen-free: Yes

UKCA: yes

Quantity per pack: 1 Stück(e)

Outer diameter: 6 mm

Package weight: 198 g

Plug and Play: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3797617 Secomp 21.05.0556 RJ45 Patch cable CAT 6A S/FTP 5.00 m Violet double shielding, Halogen-free, Flame-retardant 1 pc(s)

Description

Dätwyler patch cable - RJ-45 (M) to RJ-45 (M) - 5 m - SFTP, PiMF - CAT 6a - shielded, halogen-free, stranded - purple

This text is machine translated.

Features

High-quality flexible patch cable with pair and overall shielding based on the Dätwyler CU 7702 (Cat. 7)
Both sides fitted with Cat. 6A plugs (AMP EMT plug)
Kink protection and protective strap for locking pin
8 wires TP-copper-stranded conductor, twisted pair shield: Laminated aluminum foil, overall shield: Tinned copper braid
Cable sheath: Flame-resistant, smoke-free, halogen-free polyolefin (FRNC/LSOH)
Outside ø 6.0 mm guide value
Cat. 6A Class-EA according to ANSI/TIA
Contact assignment 8 wires 1:1 according to EIA/TIA 568A

Description

Dätwyler patch cable - RJ-45 (M) to RJ-45 (M) - 5 m - SFTP, PiMF - CAT 6a - shielded, halogen-free, stranded - purple

This text is machine translated.

Features

High-quality flexible patch cable with pair and overall shielding based on the Dätwyler CU 7702 (Cat. 7)
Both sides fitted with Cat. 6A plugs (AMP EMT plug)
Kink protection and protective strap for locking pin
8 wires TP-copper-stranded conductor, twisted pair shield: Laminated aluminum foil, overall shield: Tinned copper braid
Cable sheath: Flame-resistant, smoke-free, halogen-free polyolefin (FRNC/LSOH)
Outside ø 6.0 mm guide value
Cat. 6A Class-EA according to ANSI/TIA
Contact assignment 8 wires 1:1 according to EIA/TIA 568A
