Name: Senseca Radar fluid level gauge Radarcont RU4S 490500 Operating voltage (range): 9 - 35 V DC Reading range: 0.3 - 10 m 1
Brand: Senseca
SKU: 3804411
Availability: InStock

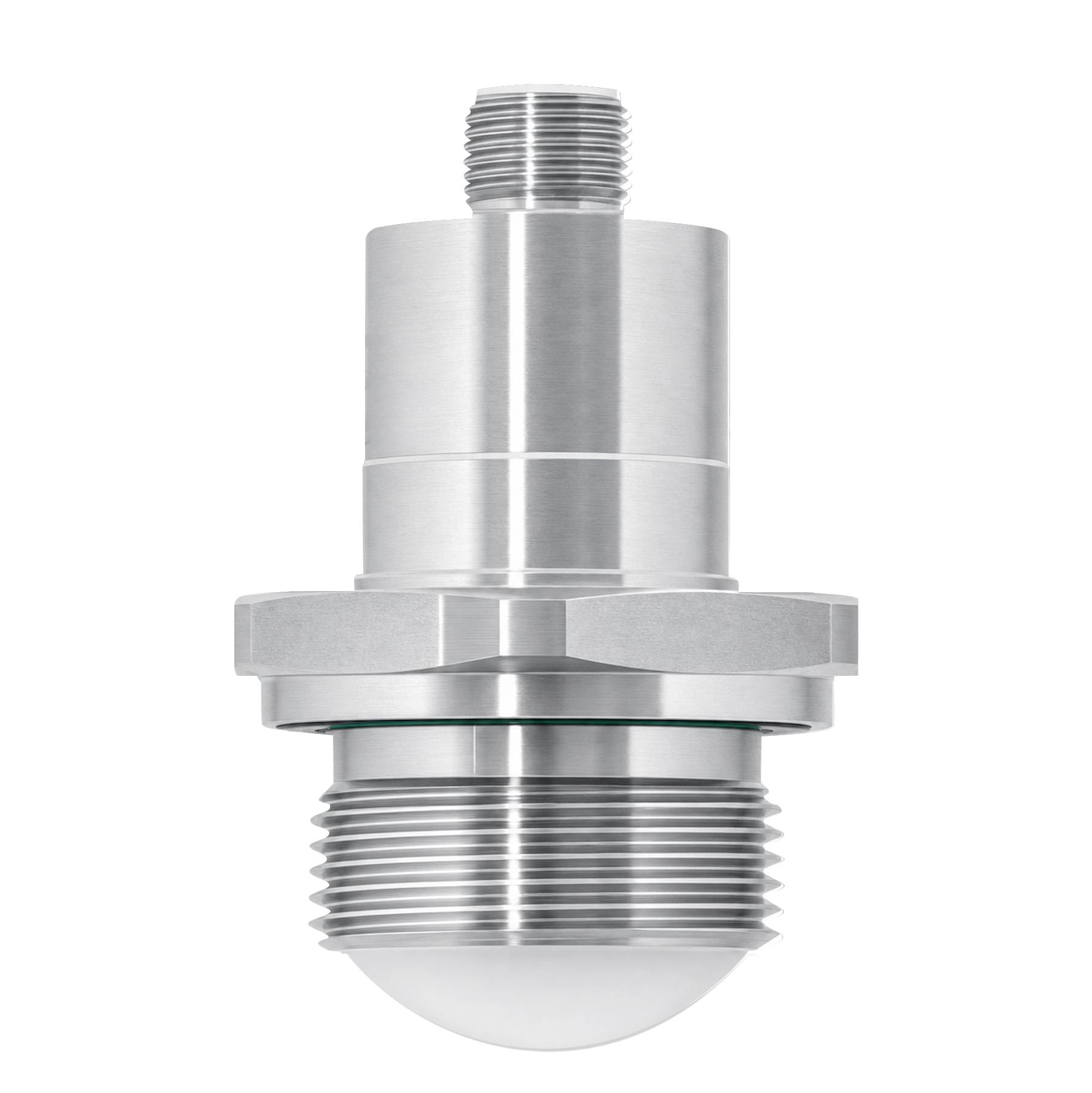

Stainless steel threaded industrial sensor or fitting with hex body and rounded white tip on a white background.

Product type

Radar fluid level gauge

Min. operating voltage

9 V DC

Max. operating voltage

35 V DC

Reading range (max.)

10 m

Type

Radarcont RU4S

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 695.00 / piece)

€ 695.00

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Reliable radar level measurement for bulk materials and demanding industrial applications

Precise 122 GHz radar technology for bulk materials and solids
Non-contact, maintenance-free measurement even in the event of dust or dirt
Easy integration with IO-Link and Modbus-RTU

Technical specifications

Continuous FMCW radar, aperture angle 8°
Contact-free measurement
IO-Link parameterization
Radiates plastic containers

Product type: Radar fluid level gauge

Type: Radarcont RU4S

Operating voltage: 24 V DC

Min. operating voltage: 9 V DC

Max. operating voltage: 35 V DC

Operating voltage: 9 - 35 V DC

Features: Incl. enclosure

Connector: M12 plug (4-pin, A coded)

Response time: 100 ms

Outputs: Analogue
IO link

Case colour: Silver

Material: Stainless steel

Material properties: anti-corrosive
acid-resistant

Sealant: FKM

Enclosure material: Stainless steel

Media temperature (min.): -40 °C

Max. media temperature: 85 °C

Max. operating pressure: 20 bar

Accuracy ±: 2 mm

Reading range (min.): 0.3 m

Reading range (max.): 10 m

Reading range: 0.3 - 10 m

Switching voltage (max.): 35 V DC

Switching current (max.): 100 mA

Max. switching capacity: 3.5 W

: IP67/IP69K

Weight: 350 g

Min. ambient temperature: -40 °C

Max. ambient temperature: 85 °C

Length: 79 mm

(Ø): 39 mm

Dim: (Ø x L) 39 mm x 79 mm

Content: 1 pc(s)

Nominal voltage: 24 V DC

Documents & Downloads

Datasheet

Datasheet 3804411 Senseca Radar fluid level gauge Radarcont RU4S 490500 Operating voltage (range): 9 - 35 V DC Reading range: 0.3 - 10 m 1

User & Safety Instructions

User & Safety Instructions 3804411 Senseca Radar fluid level gauge Radarcont RU4S 490500 Operating voltage (range): 9 - 35 V DC Reading range: 0.3 - 10 m 1

Conformity certificate

Conformity certificate 3804411 Senseca Radar fluid level gauge Radarcont RU4S 490500 Operating voltage (range): 9 - 35 V DC Reading range: 0.3 - 10 m 1

Description

The RADARCONT® RU4SR has been specially developed for non-contact level measurement of bulk materials and solids. The powerful 122-GHz radar technology provides precise measurement results even with dust development, changing material properties or difficult installation situations. The narrow beam angle minimizes interference and guarantees reliable measurements. The robust design as well as modern communication interfaces make this sensor the ideal solution for industrial applications.

This text is machine translated.
