Shuttle Barebone Shuttle Box BPCRL02-i5 i5-1335U DDR5 Intel® Core™ i5 1335U Intel Intel® Iris® Xe BPCRL02-I5
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Shuttle Shuttle Box BPCRL02-i5 i5-1335U DDR5 Barebone
- Intel® Core™ i5 1335U 13th Gen (Raptor Lake)
- RAM: 0 GB DDR5 RAM
- Intel Intel® Iris® Xe
- w/o OS
Technical specifications
- Cooling system: Fanless
- Housing: Robust aluminum/steel housing
- IP30 rating
- DC-input voltage: 19 V
- Product type
Barebone
- Model
BPCRL02-I5
- CPU series
Intel® Core™ i5
- CPU
Intel® Core™ i5 1335U
- Processor/type
1335U
- Processor generation
13th Gen (Raptor Lake)
- Processor cores (No.)
10 x
- No. of processor E cores
8
- No. of processor P cores
2
- CPU efficiency core base clock speed
0.9 GHz
- CPU efficiency core boost clock
3.4 GHz
- CPU performance core base clock speed
1.3 GHz
- CPU performance core boost clock
4.6 GHz
- CPU cache
12 MB
0 GB
- RAM type
DDR5 RAM
- No. of memory slots
2
- RAM / Max. upgrade
64 GB
- Onboard graphics card
Yes
- Onboard graphics card (GPU manufacturer)
Intel
- Onboard graphics card (version)
Intel® Iris® Xe
- SSD size (total)
0 GB
- SSD
0 GB
- SSD connection
M.2 PCIe NVMe
- HDD capacity (total)
0 GB
- Hard drive
0 GB
- Keyboard layout
Keyboard not included
- No. of Gigabit LANs
2 x
- No. of HDMI ports
1 x
- No of. USB type A 3.1 /3.2 2nd gen
4 x

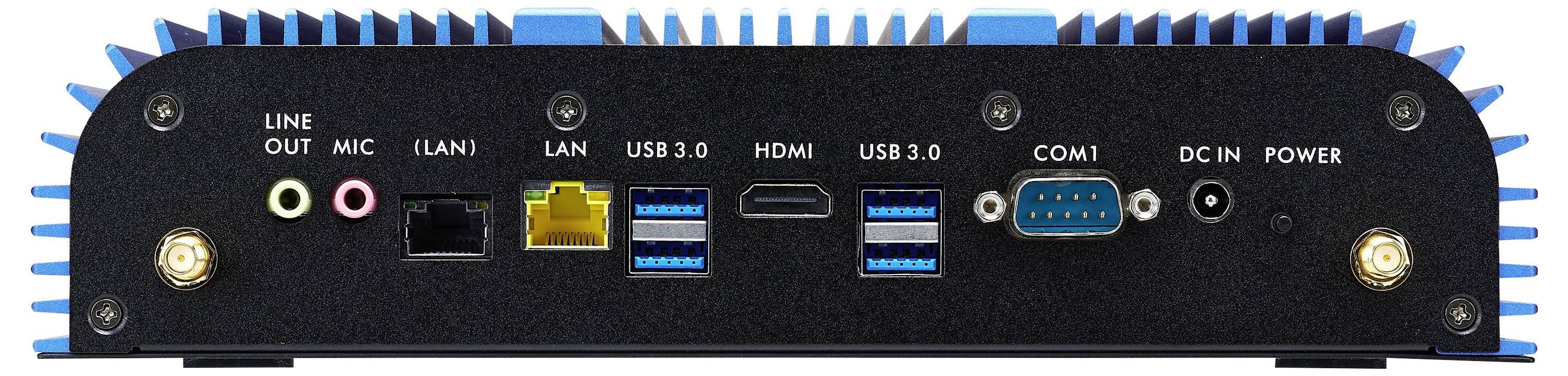

- Interfaces
HDMI® 2.0b
USB A (USB 3.2 2nd gen)
RJ45
RS232
Microphone input
Audio line out
- Width
24.5 cm
- Height
5.7 cm
- Depth
16.9 cm
- Weight
2.85 kg
- PSU power
90 W
- Features
w/o RAM
TPM2.0 module
- Operating system (Version)
w/o OS
Documents & Downloads
Datasheet
Datasheet 3820441 Shuttle Barebone Shuttle Box BPCRL02-i5 i5-1335U DDR5 Intel® Core™ i5 1335U Intel Intel® Iris® Xe BPCRL02-I5
User & Safety Instructions
User & Safety Instructions 3820441 Shuttle Barebone Shuttle Box BPCRL02-i5 i5-1335U DDR5 Intel® Core™ i5 1335U Intel Intel® Iris® Xe BPCRL02-I5
Description

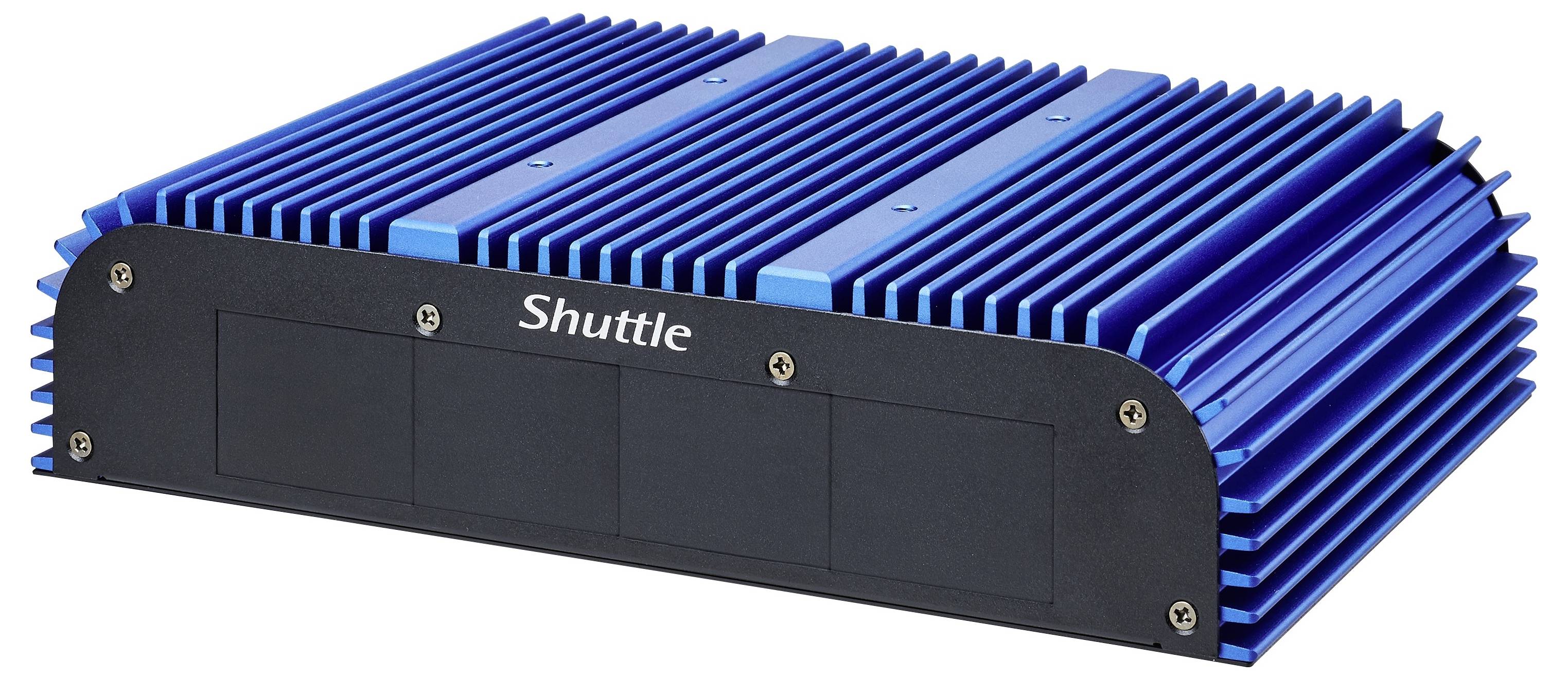

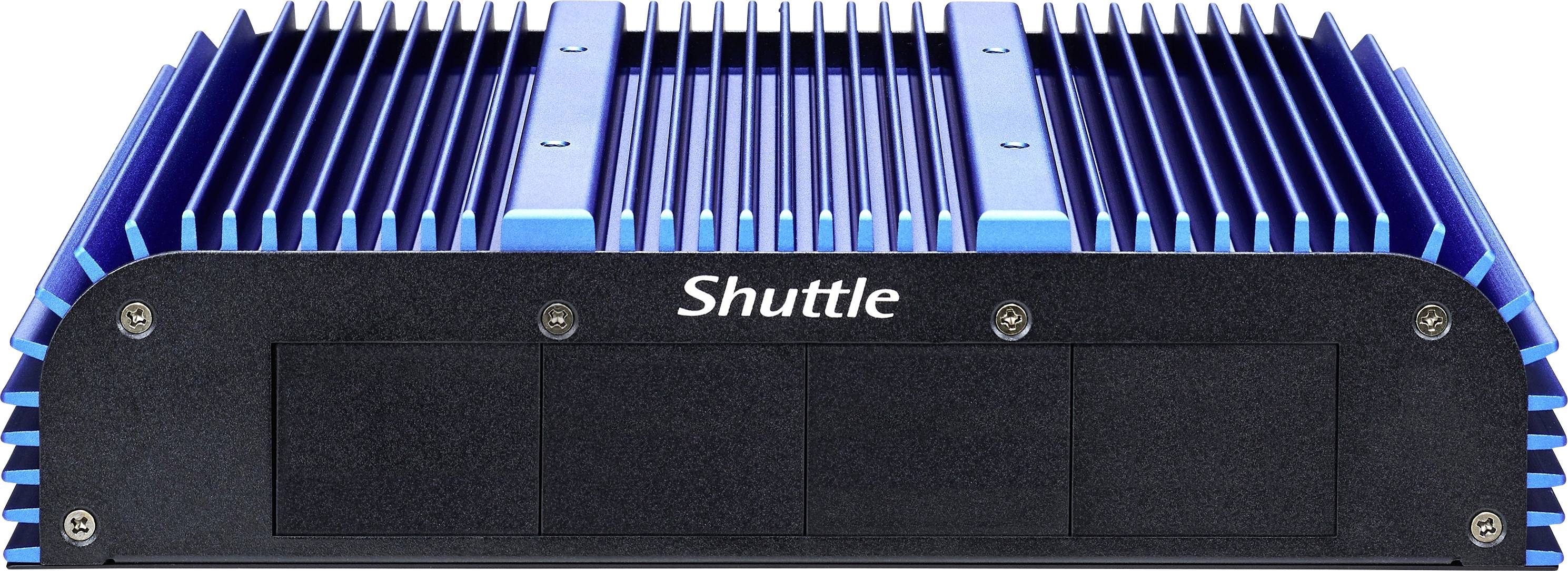

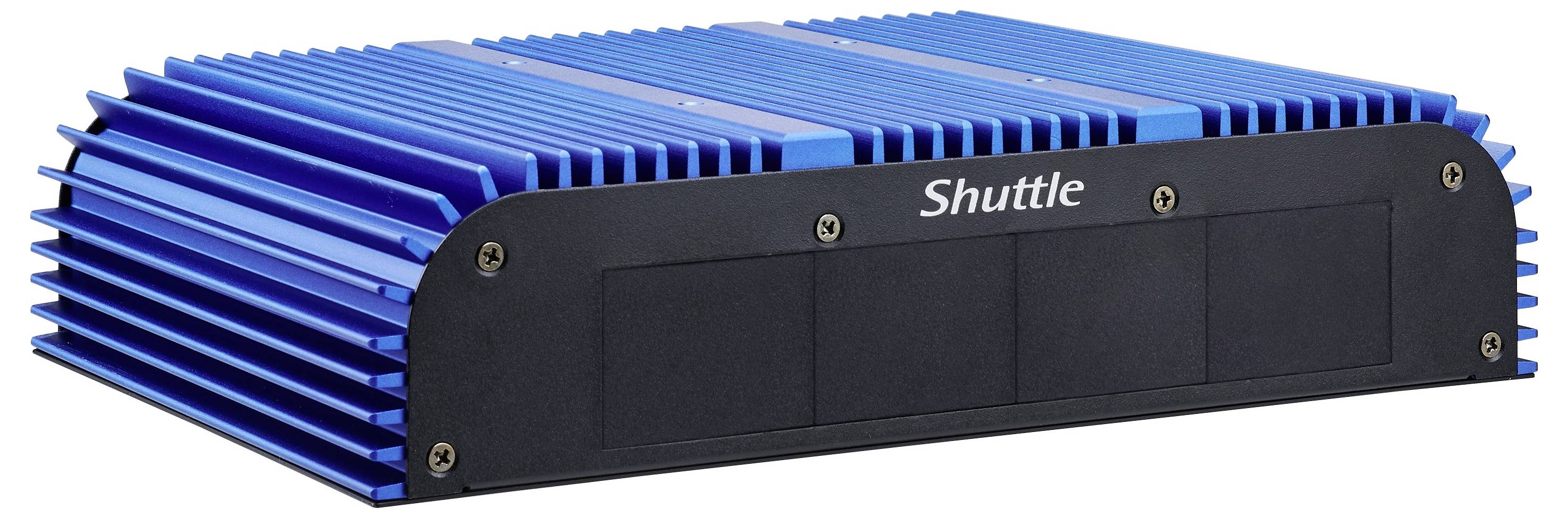

Fanless box PC with Intel core processor in a robust casing

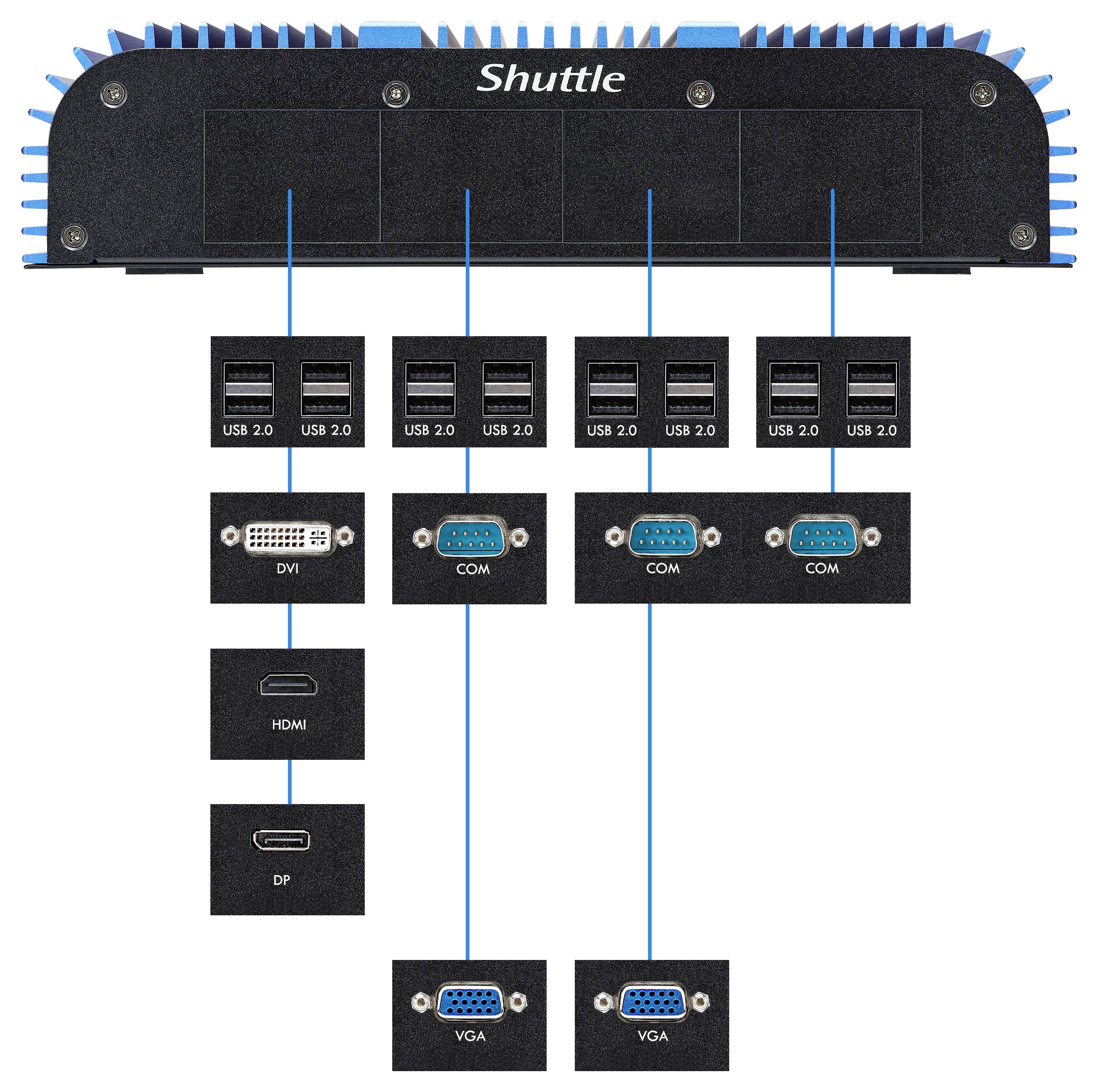

Shuttles BPCRL02 series of fanless Box PCs are powered by Intel's 13 core processors. Generation ("Raptor Lake") driven and have a durable, robust housing. It offers modular expansion options for a wide range of interfaces and mounting options. With advanced technology and flexible design, this industrial PC offers a reliable solution for a variety of customer-specific requirements in industrial environments.
This text is machine translated.
Shuttles BPCRL02 series of fanless Box PCs are powered by Intel's 13 core processors. Generation ("Raptor Lake") driven and have a durable, robust housing. It offers modular expansion options for a wide range of interfaces and mounting options. With advanced technology and flexible design, this industrial PC offers a reliable solution for a variety of customer-specific requirements in industrial environments.
This text is machine translated.
Hints
HDMI® is a registered trademark of HDMI Licensing LLC
Image may differ from actual product.
