Name: Shuttle Barebone XPC slim DH610 DH610
Brand: Shuttle
SKU: 2898551

A black, compact mini PC from Shuttle with multiple USB ports and audio ports on the front panel.

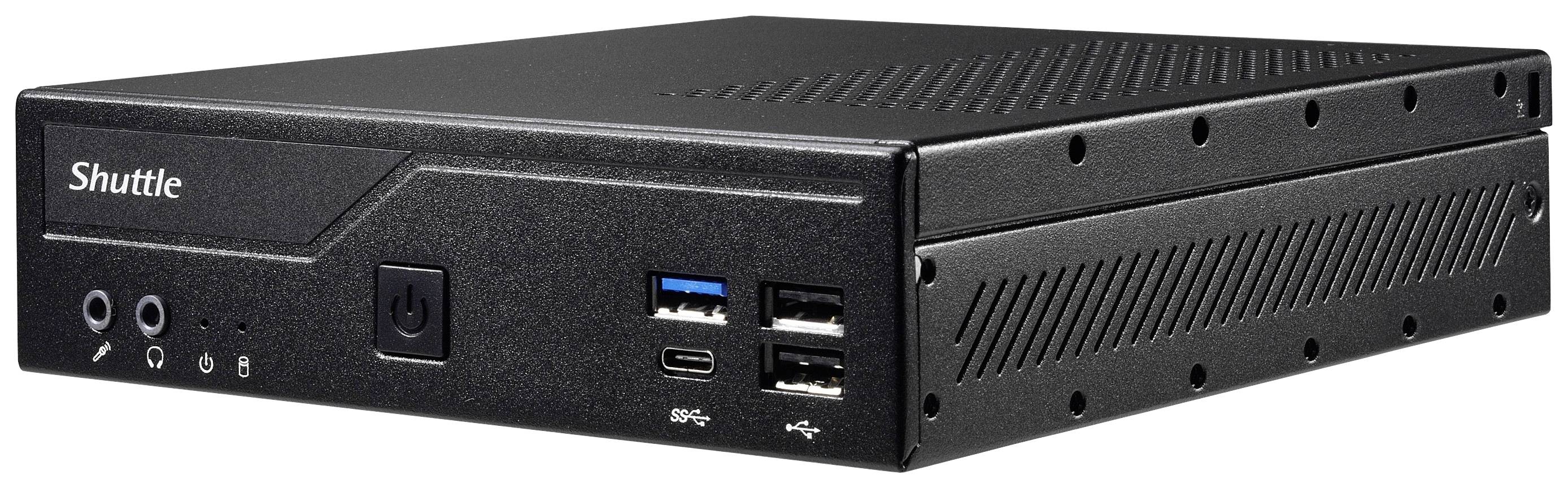

Small black computer with multiple USB ports and audio sockets on the front panel.

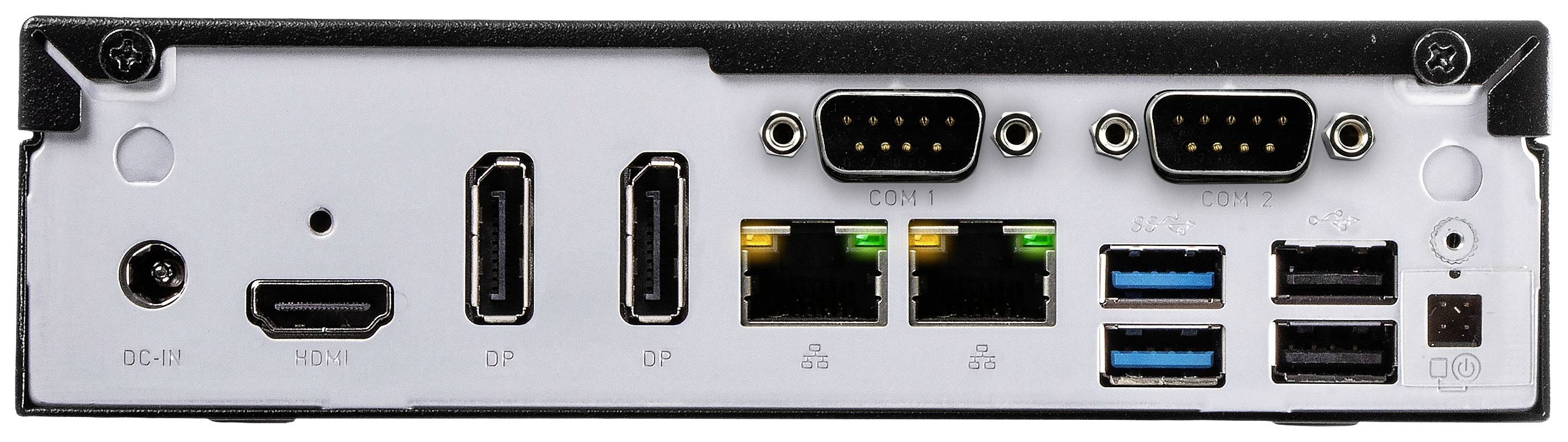

Rear view of a computer case with various ports: HDMI, DisplayPort, serial ports, Ethernet and USB ports.

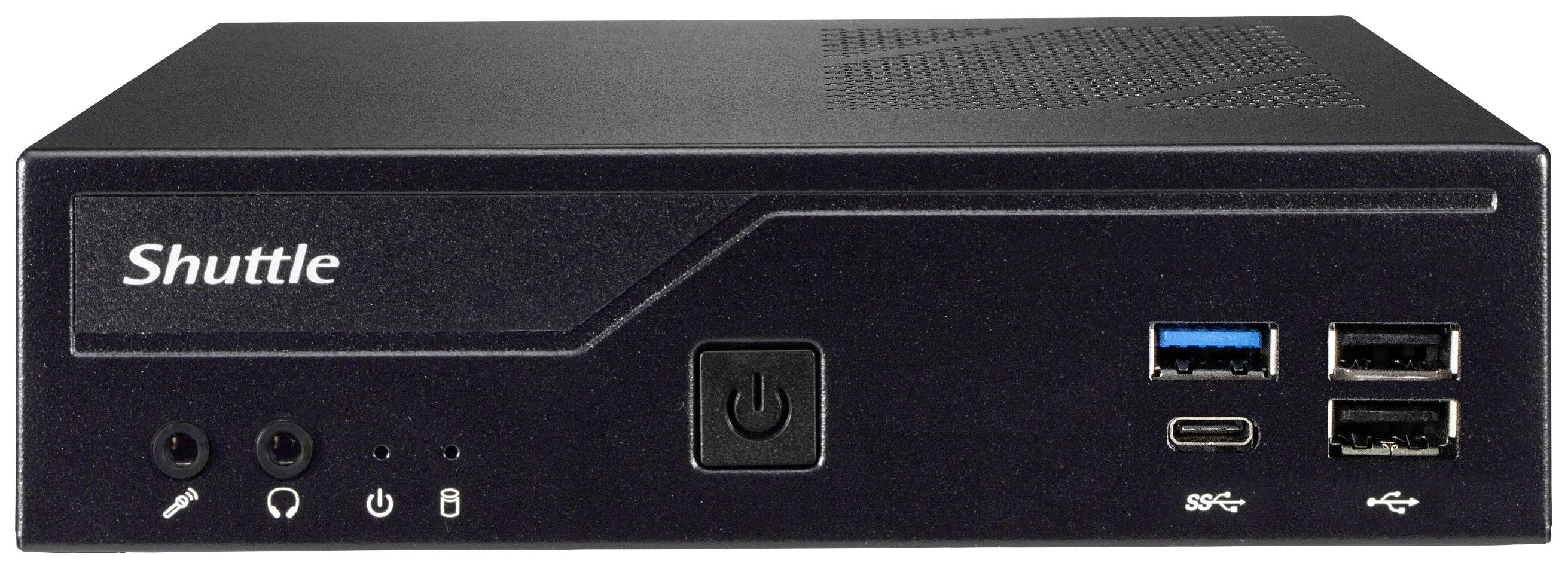

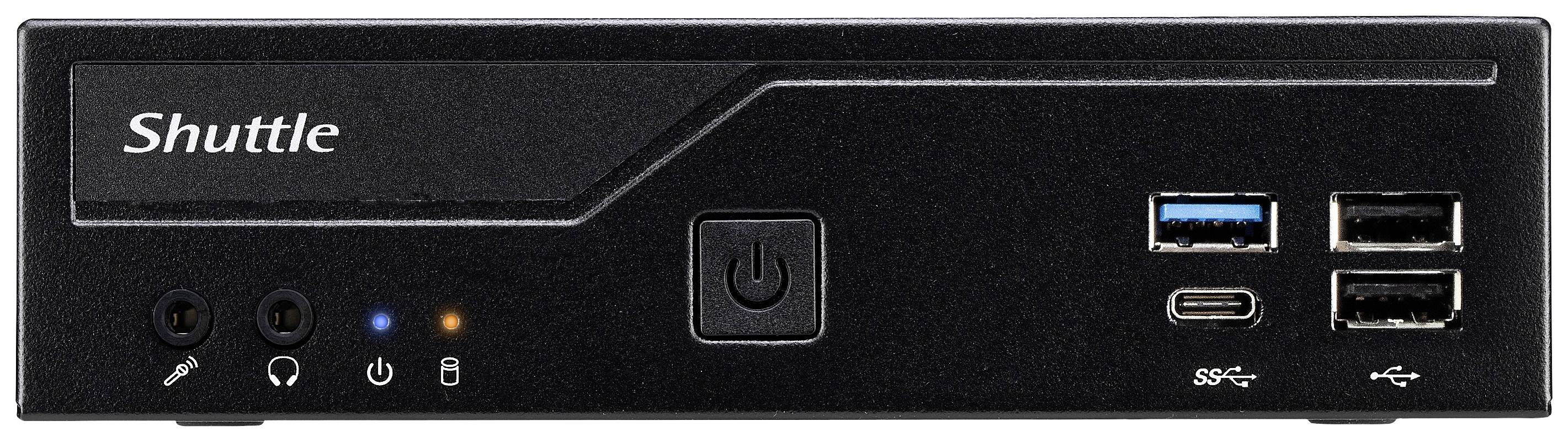

A compact black mini-PC with 'Shuttle' printed on it, front ports for audio and USB, and a power button.

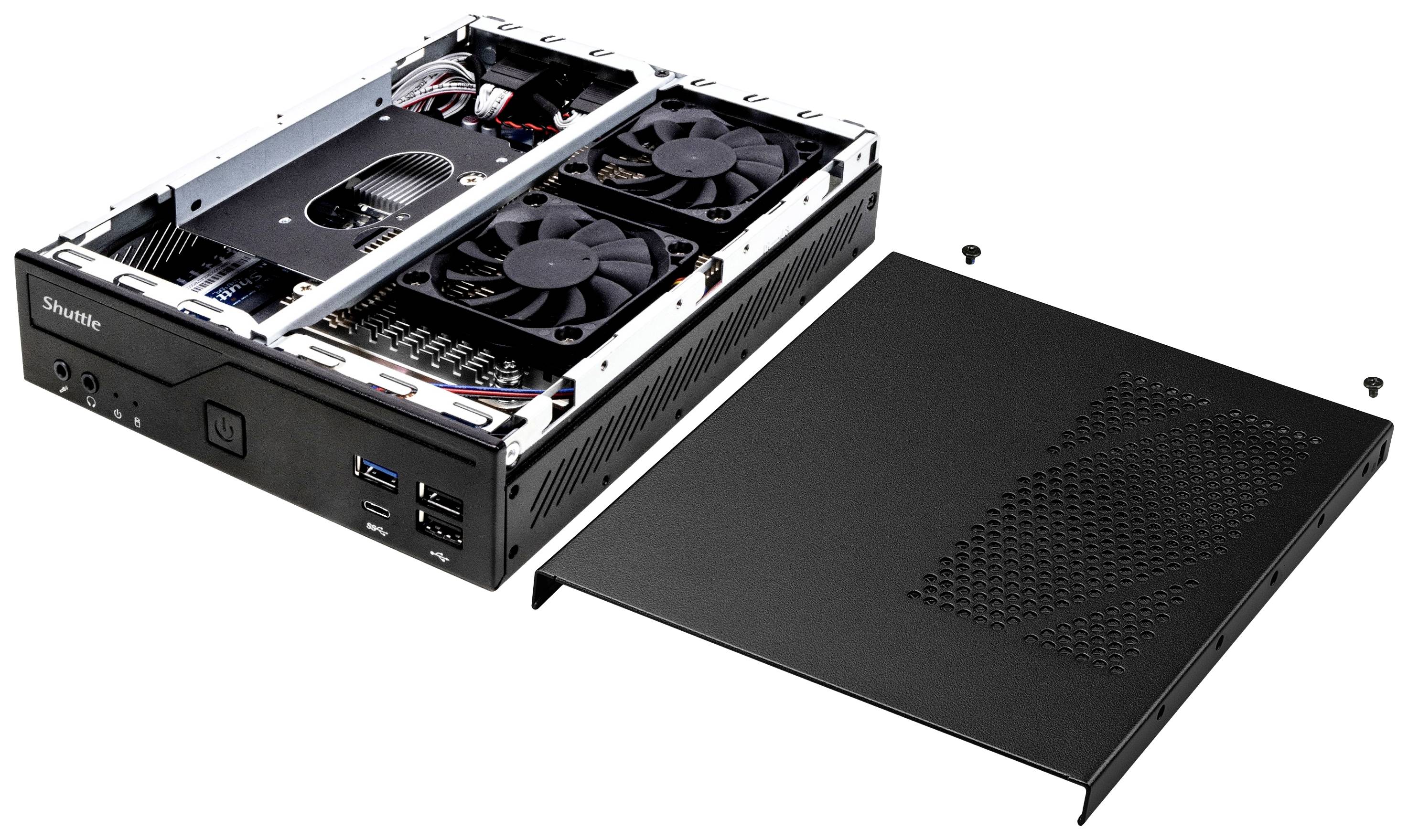

Open mini PC with removed case lid, showing internal components such as fan and ports. Suitable for compact computing.

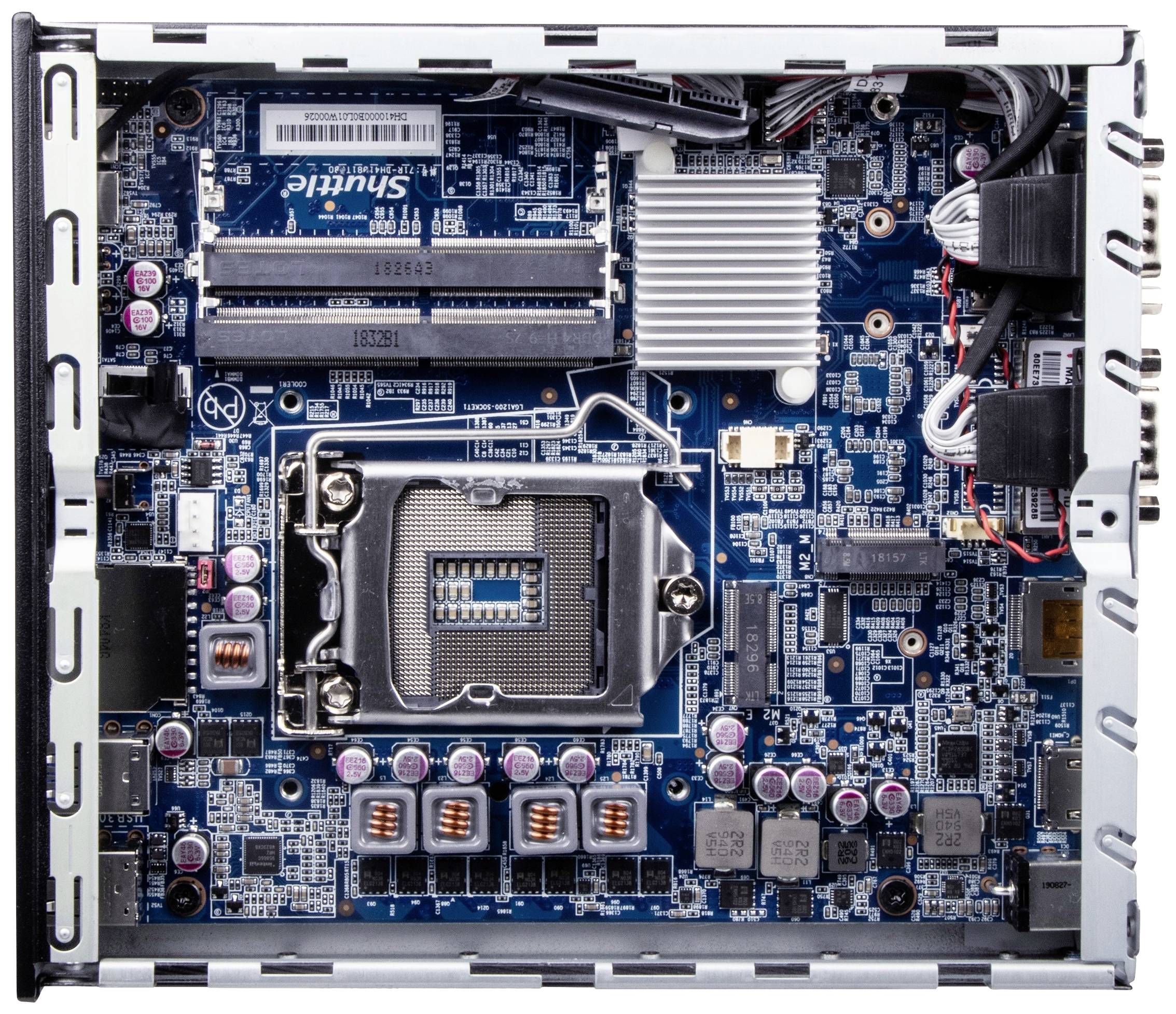

A computer motherboard with visible components such as processor socket, RAM slots, heatsinks, and connectors.

1/7

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Shuttle XPC slim DH610 Barebone

RAM: 0 GB DDR4 SDRAM 3200 MHz
w/o OS

Technical specifications

Product type: Barebone

Model: XPC slim DH610

CPU: Intel processors with socket 1700

: 0 GB

RAM type: DDR4 SDRAM

Memory clock speed: 3200 MHz

No. of memory slots: 2

RAM / Max. upgrade: 64 GB

Onboard graphics card: No

Dedicated graphics card: No

SSD size (total): 0 GB

SSD: 0 GB

SSD connection: SATA III (600 MB/s)

HDD capacity (total): 0 GB

Hard drive: 0 GB

Drive: w/o hard drive

Keyboard layout: Keyboard not included

No. of DisplayPort: 2 x

No. of Gigabit LANs: 2 x

No. of HDMI ports: 1 x

No. of serial ports: 2 x

No. of USB A 2.0 ports: 4 x

No. of USB type A 3.1 / 3.2 1st Gen: 3 x

No. of USB 3.0 ports: 1 x

Interfaces: Microphone (3.5 mm jack)
Headphone jack (3.5 mm)
DisplayPort
HDMI™
RJ45
USB A (USB 3.2 1st gen)
USB C®
USB A (USB 2.0)
Serial (9-pin)

Factory colour: Black

Width: 190 mm

Height: 43 mm

Depth: 165 mm

Weight: 1.3 kg

PSU power: 120 W

Features: w/o CPU
w/o RAM
w/o HDD

Operating system (Version): w/o OS

Wireless charging: Yes

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2898551 Shuttle Barebone XPC slim DH610 DH610

Description

The Shuttle XPC slim Barebone DH610 with H610 chipset brings the performance of Intel 12. Generation of core desktop processors (codename "Alder Lake- S") with socket LGA1700 in a compact 1.3-liter format. It supports the simultaneous operation of three Ultra HD displays via 1x HDMI and 2x DisplayPort. Dual Intel network (one port with 2.5G speed), eight USB ports and two COM ports are also available. Its flat metal casing with VESA mount, the versatile connectivity options and reliable operation at an ambient temperature of up to 50 °C make the DH610 Ideal suitable for professional applications such as digital signage, POS, POI, gaming machines, office, Healthcare and industry.

This text is machine translated.
