Name: Shuttle Mini PC workstation NS03A Rockchip RK3568 2 GHz NS03A
Brand: Shuttle
SKU: 3221553

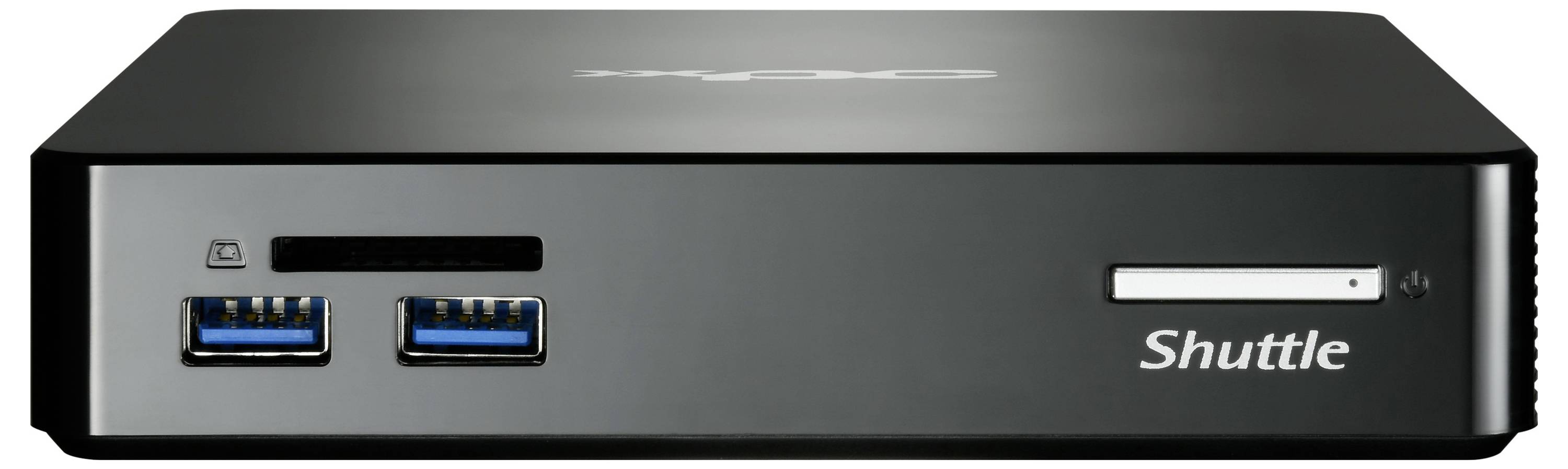

Compact, black mini PC with two USB 3.0 ports, SD card reader and optical drive on the front panel.

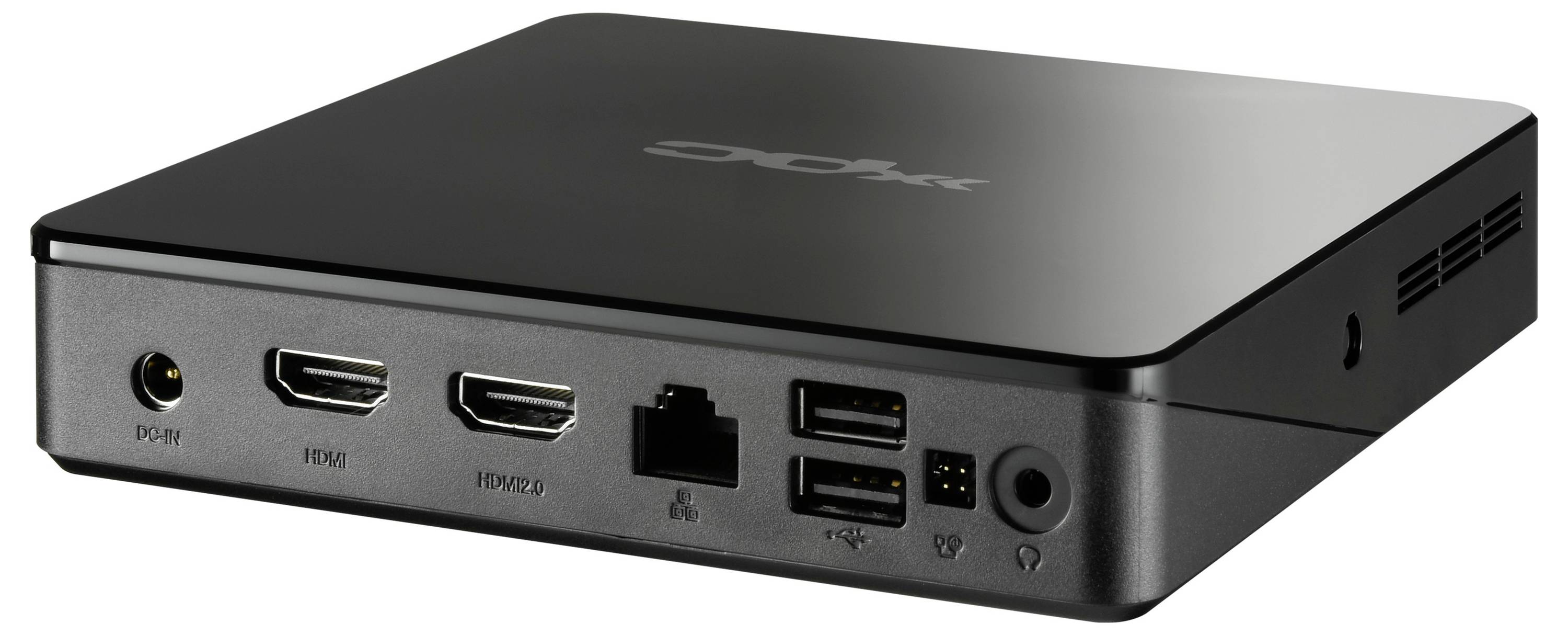

A black, rectangular media player with HDMI ports, Ethernet port and USB ports.

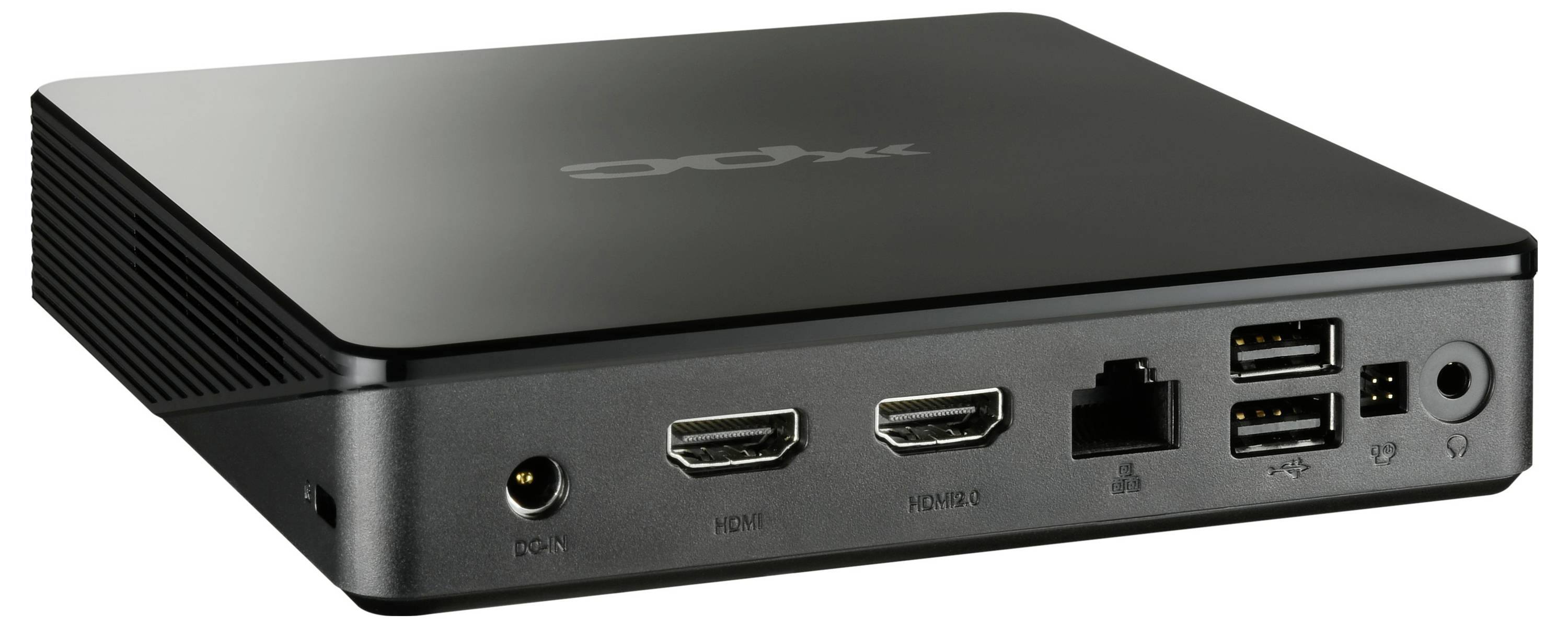

Compact black mini PC with multiple ports: two HDMI, two USB, Ethernet and power supply located at the rear. Ideal for multimedia applications.

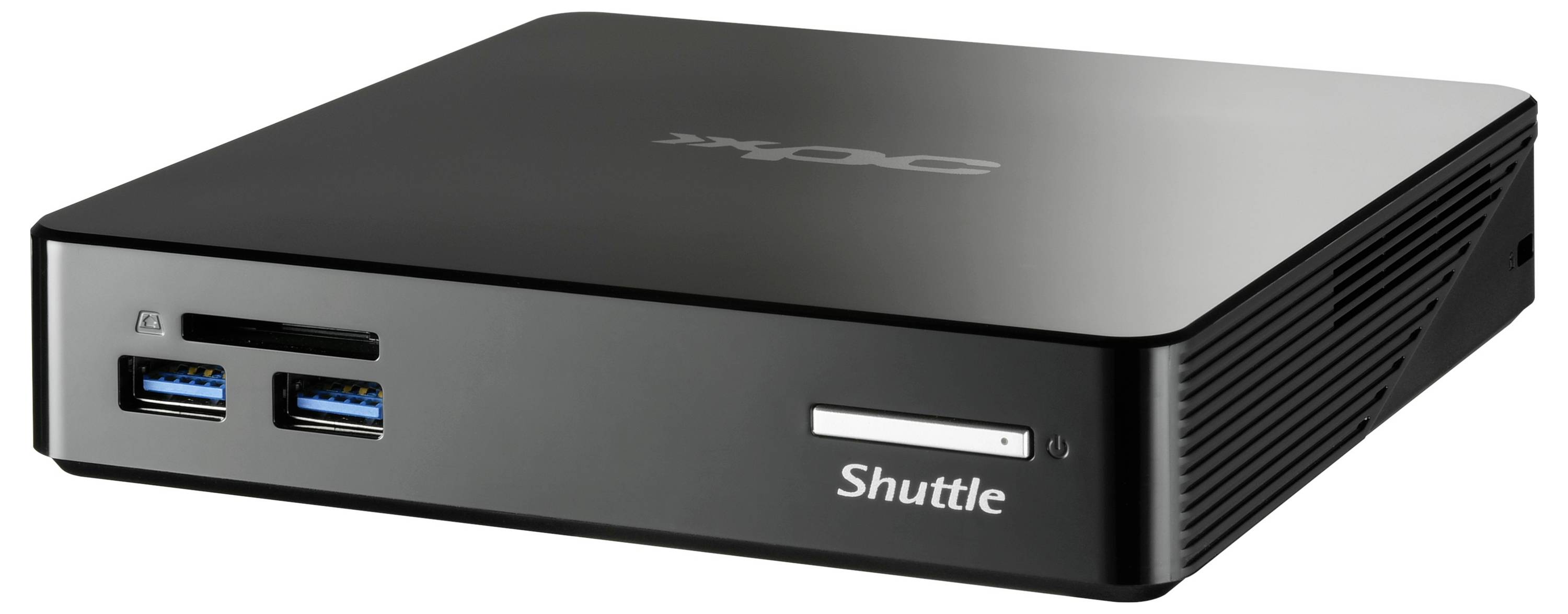

A black Shuttle mini-PC with USB ports and an SD card slot on the front panel. Ideal for compact workspaces.

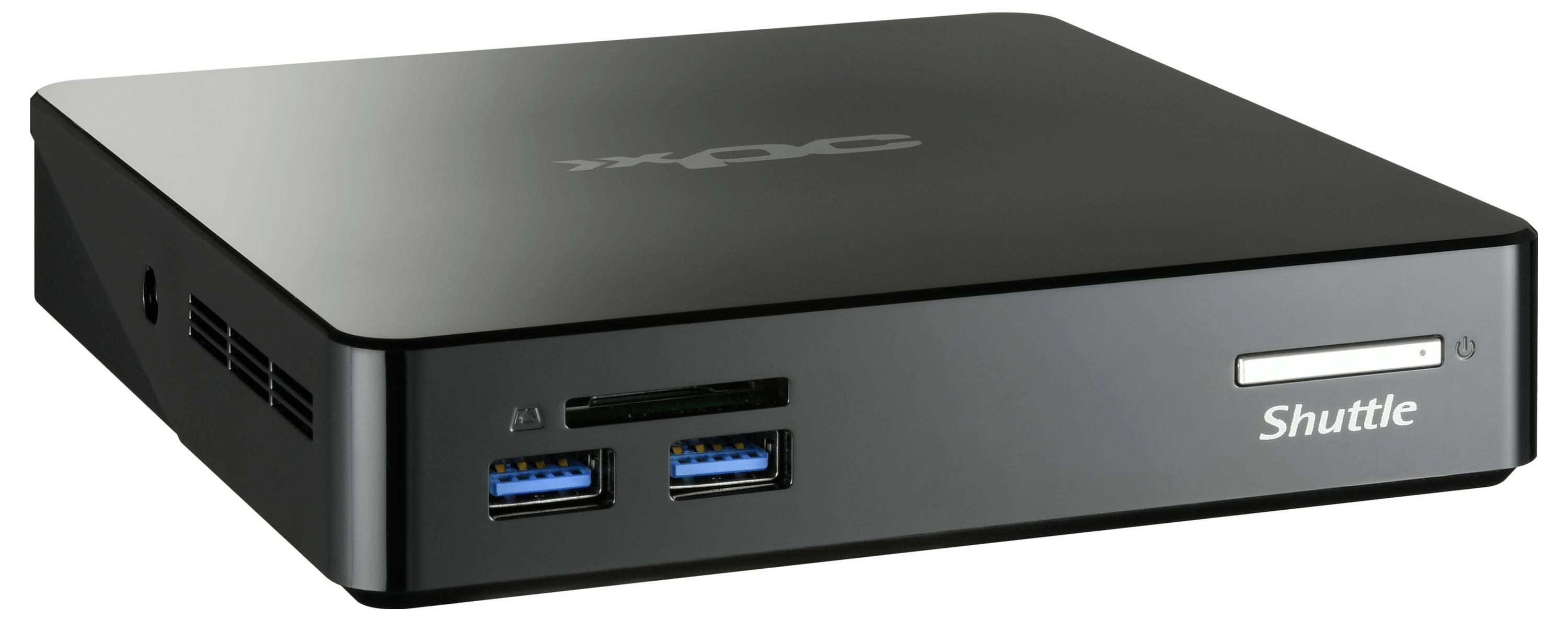

A black mini PC with 'Shuttle' written on the front, two USB ports, a card slot and a small drive.

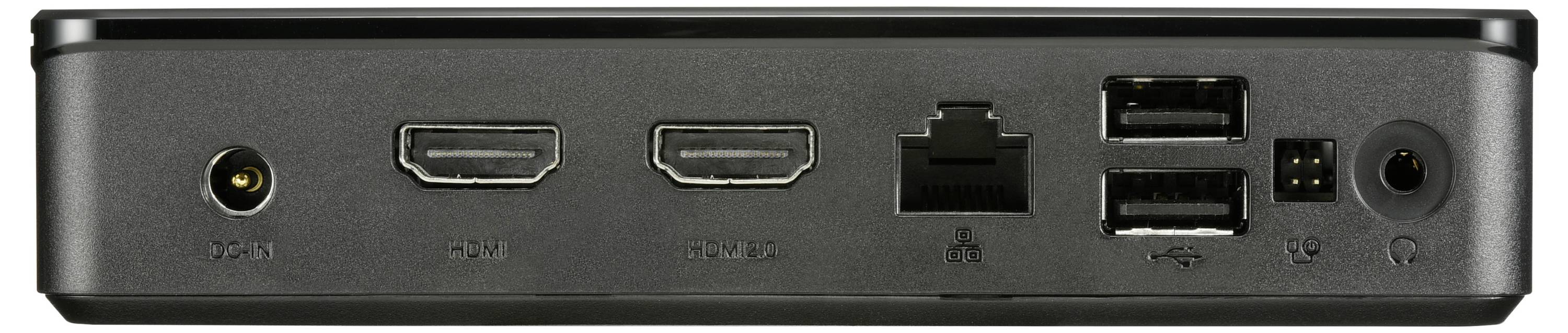

Small, rectangular computer unit with multiple ports on the rear: power, two HDMI, Ethernet, two USB, audio output.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Shuttle NS03A Mini PC workstation

Rockchip RK3568 4 core(s) / max. 2 GHz

Technical specifications

Product type: Mini PC workstation

Model: NS03A

CPU series: Rockchip

CPU: Rockchip RK3568

Processor/type: RK3568

Processor cores (No.): 4 x

CPU turbo clock speed (max.): 2 GHz

RAM / Max. upgrade: 2 GB

Onboard graphics card: Yes

HDD capacity (total): 0 GB

Hard drive: 0 GB

Drive: w/o hard drive

Bluetooth: 5.2

Mobile internet: WiFi

Keyboard layout: Keyboard not included

No. of HDMI ports: 2 x

No. of USB A 2.0 ports: 2 x

No. of USB type A 3.1 / 3.2 1st Gen: 2 x

Supported memory cards: SD
SDHC
SDXC

Factory colour: Black

Width: 141 mm

Height: 29 mm

Depth: 141 mm

Weight: 270 g

PSU power: 36 W

Bluetooth: Yes

Design height: 29 mm

No. of 10 Gb LAN ports: 1 x

No. of USB ports: 2 x

Range of uses: Office

Cooling: Passive

LAN transfer rate: 1000 MBit/s

Power supply (LOV): mains-powered

No. of HDMI connections: 2

Wi-Fi: built-in

Wi-Fi: Yes

Documents & Downloads

Datasheet

Datasheet 3221553 Shuttle Mini PC workstation NS03A Rockchip RK3568 2 GHz NS03A

User & Safety Instructions

User & Safety Instructions 3221553 Shuttle Mini PC workstation NS03A Rockchip RK3568 2 GHz NS03A

Description

The Shuttle XPC nano NS03 series is one of the most affordable models in the Shuttle XPC family. It is impressive not only with its stylish appearance and stability, but is also especially powerful thanks to the four-Kern ARM processor and the pre-installed Android 11 operating system. Two HDMI ports support either two full HD displays or one 4K display. With 4x USB, Gigabit LAN, WLAN-ac, slot for M.2-SSDs and SD card reader, various connection options are available for various application scenarios. While NS03A is supplied with power via the supplied AC adapter, NS03E is supplied via the network port (Power-over-Ethernet). The NS03 Series is designed specifically for digital signage and thin client applications.

This text is machine translated.
