Siemens 3KF13080LB51 Circuit breaker Fuse size = 00 80 A 690 V AC 1 pc(s)
Product type
Circuit breaker
Fuse size
00
Number of pins
3
Nominal current - rounded value
80 A
Type
3KF circuit breakers with fuses
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Design of electrical connection / for main circuit: Frame terminal
- Display design / for door clutch rotary actuator switch position indicator: ON-OFF TEST
- Layout of electrical connection / for main circuit: Top and bottom
- Number of changers / for auxiliary contacts: 4
- Tightening torque / with screw connection / minimum: 5 Nm
- Tightening torque / for screw connection / maximum: 6.5 Nm
- Design of the device: Fixed installation
- Frame size of the separation pad: 00 and 000
- Design size of the circuit breaker: 1
- Limited short-circuit current (IQ): 100000 A.
- Mounting type: Floor mounting and snap-on mounting on rails 35 mm
- Operating power / at AC-23 A / at 400 V: 37000 W
- Operating power / at AC-23 A / at 690 V: 75 kW
- Forward current / with switch closed / at 690 V / with combination switch + AM fuse / maximum permissible: 11200 A.
- Forward current / with closed switch / at 690 V / with combination switch + gG fuse / maximum permissible: 11200 A.
- Forward current / with switch closed / for combination switch + fuse / at 500 V / maximum permissible: 10400 A.
- Forward current / the fuse / at 400 V / maximum permissible: 11800 A.
- Forward current / the fuse / at 690 V / maximum permissible: 11800 A.
- Suitability for use / main switch: Yes
- Suitable for use / switch disconnectors: Yes
- Suitable for use / EMERGENCY STOP switch: Yes
- Suitable for use / safety switch: Yes
- Suitable for use / Maintenance/Repair switch: Yes
- All mounting positions permitted
- Electrical life (switching cycles) / at AC-23 A / at 440 V: 10000
- Electrical life (switching cycles) / at AC-23 A / at 690 V: 6000
- Electrical life (switching operations) / at DC-23 A / at 440 V: 1500
- Mechanical life (cycles) / typical: 15000
- Insulation voltage (UI) 1000 V
- Position / of actuator: Front
- Position / manual actuator: At the left end.
- Product extension / auxiliary switch: Yes
- Product extension / optional / lockable: Yes
- Product extension / optional / fuse monitoring: Yes
- Protection class IP: IP00
- Protection class IP / with switch closed / with aperture or cable shoe cover: IP00
- Surge voltage resistance: 12 kV
- Ambient temperature / during operation / minimum: -25 °C.
- Ambient temperature / during operation / maximum: 70 °C.
- Power loss/maximum 44.4 W.
- Pollution level 3
- Type of connectable conductor cross-sections / with flexible conductor rails: 2x (0.8 x 9 mm²)
- Type of connectable conductor cross-sections / for copper conductors / single-wire: 1x (1 ... 16 mm²) / 1x (AWG 14 ... 6)
- Type of connectable conductor cross-sections / for copper conductors / fine-wired / with wire-end processing: 1x (6 ... 25 mm²) / 1x (AWG 12 ... 4)
- Type of connectable conductor cross-sections / for copper conductors / multi-wired: 1x (6 ... 25 mm²) / 1x (AWG 14 ... 4)
- Type of connectable conductor cross-sections / for Cu power rails: 1x (12 x 2 mm²)
- Type
3KF circuit breakers with fuses
- Product type
Circuit breaker
- Fuse size
00
- Number of pins
3
- RoHS-compliant
Yes

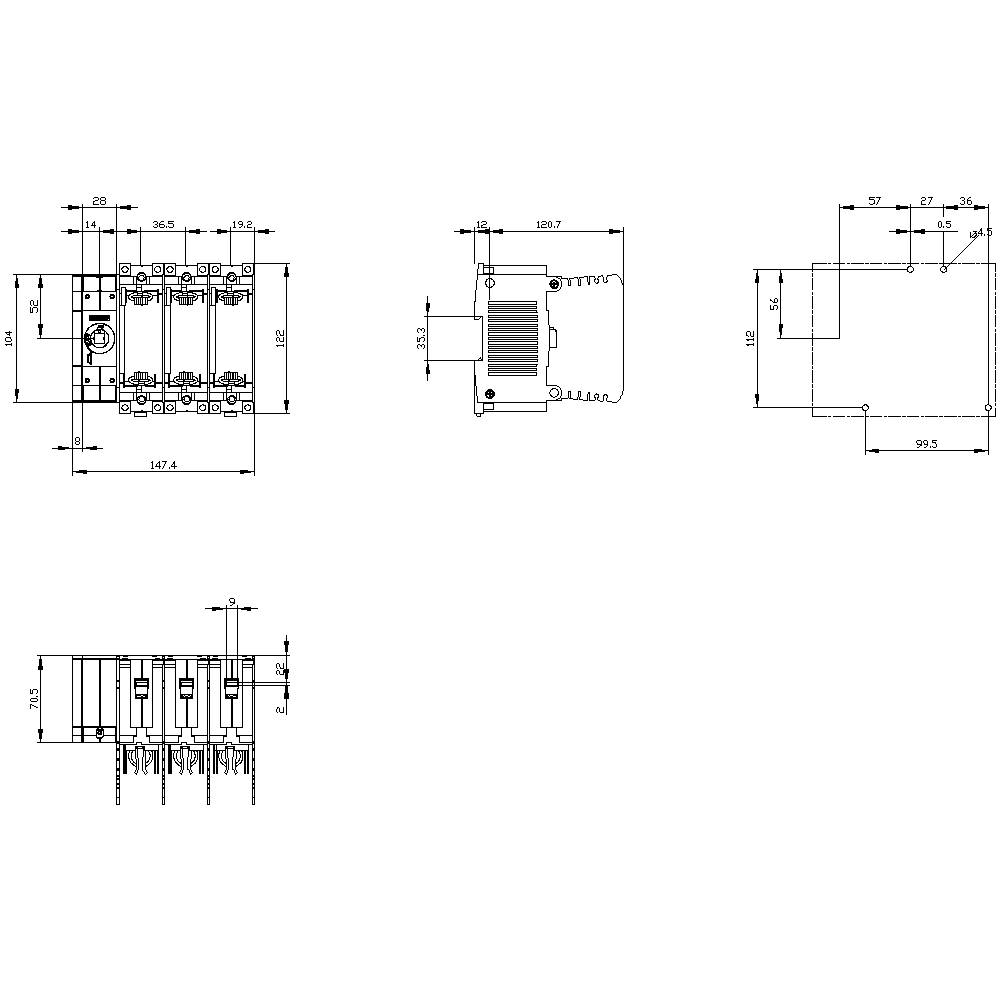

- Dim
(W x H x D) 148.3 x 153 x 132.7 mm
- Content
1 pc(s)
- Nominal current
80 A
- Nominal current - rounded value
80 A
- Nominal voltage
690 V AC
- Width
148.3 mm
- Height
153 mm
- Depth
132.7 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2864047 Siemens 3KF13080LB51 Circuit breaker Fuse size = 00 80 A 690 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2864047 Siemens 3KF13080LB51 Circuit breaker Fuse size = 00 80 A 690 V AC 1 pc(s)
Description

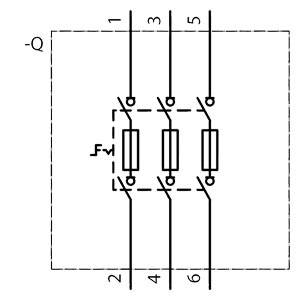

Circuit-breakers with fuse 3KF SITOR, 80A, Size 1, 3-pole, for NH fuse size 000 for left-hand front-wheel drive semiconductor protection, base unit without handle, frame clamp without fuses
This text is machine translated.
This text is machine translated.
