Name: Siemens 3NP11311CA10 Switch disconnector fuse Fuse size = 00 160 A 240 V AC, 120 V DC 1 pc(s)
Brand: Siemens
SKU: 2262486
Availability: InStock

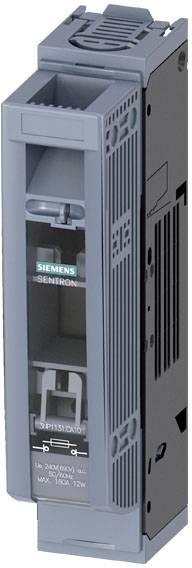

A grey electronic control unit, labelled 'Siemens', for industrial applications. Visible connections and ventilation slots.

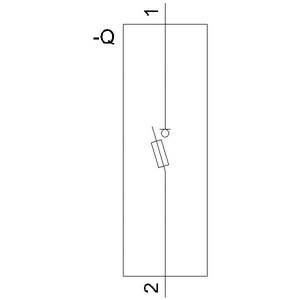

Diagram of a capacitor with two vertical plates, marked by the electric field. An adjustable resistor is positioned diagonally between the plates.

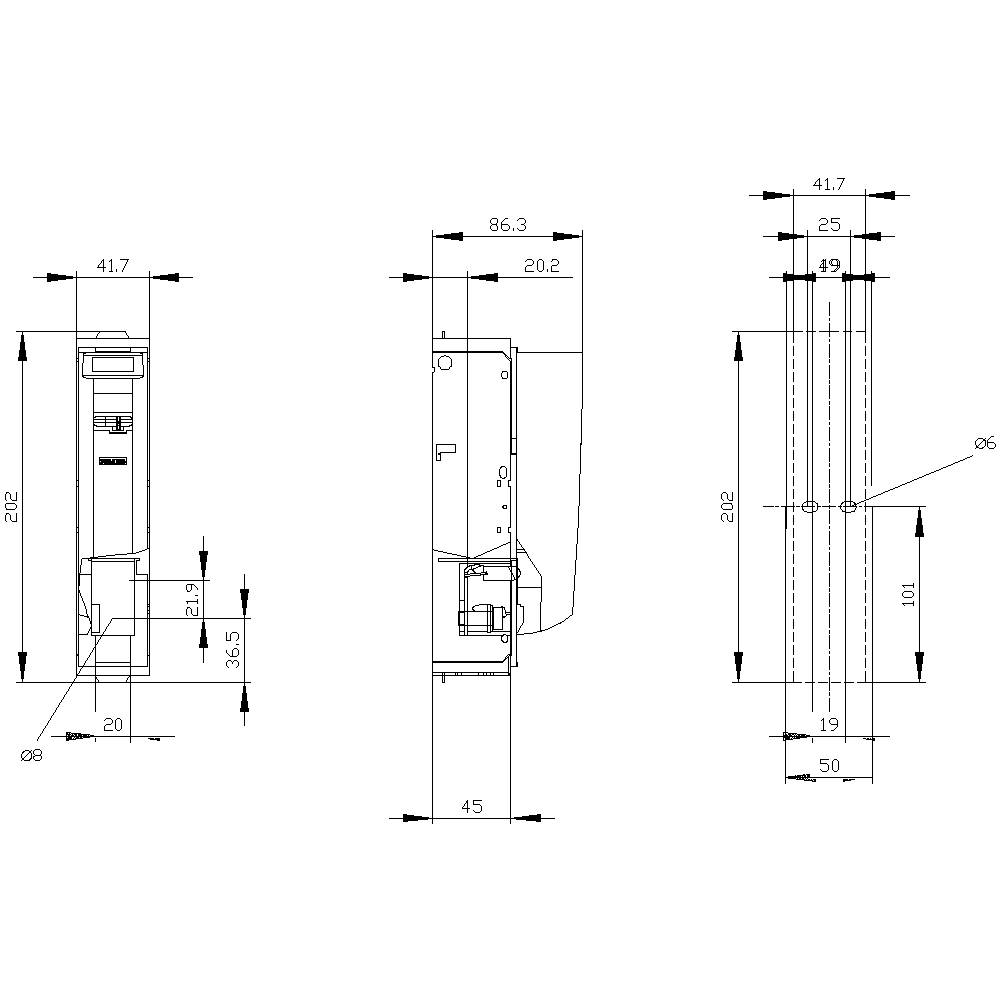

Technical drawing of a device from three perspectives with detailed dimensions such as width, height, and spacing between components.

1/3

Image similar

Product type

Switch disconnector fuse

Fuse size

Number of pins

Nominal current - rounded value

160 A

Type

Cover level 45 mm

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

4 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (€ 33.99 / piece)

€ 33.99

incl. VAT

Only 4 Set(s) available

14-day return policy included

Report legal concerns

Technical specifications

Electrical connection type / for main circuit: Rail connection
Type of connection: Flat connection
Actuator type: Cover handle
Tightening torque / for screw connection / minimum: 10 Nm
Tightening torque / for screw terminals / maximum 12 Nm
Design of the device: For assembly and installation on mounting plate
Size of the isolating tab: 00 and 000
Mounting type: Mounting plate
Suitability for use / switch disconnectors: Yes
Suitability for use / safety switch: Yes
Suitability for use / maintenance/repair switch: Yes
Mounting position: Horizontal/vertical
Mechanical life (operations) / typical: 2000
Position / actuator: Front
Product equipment / locking: Yes
Product property / sealable: Yes
Product extension / auxiliary switch: Yes
Product extension / optional / Lockability: Yes
Product extension / optional / fuse monitoring: Yes
Product expansion / optional / phase failure monitoring: Yes
Product expansion / optional / surge protection monitoring: Yes
Protection class IP: IP40
Protection class IP / with closed switch / with cover or cable lug cover: IP40
Protection class IP / with closed switch / without aperture or cable lug cover: IP30
Protection class IP/open: IP20
Surge voltage resistance: 8 kV
Ambient temperature / during operation / minimum: -25 °C.
Ambient temperature / during operation / maximum 55 °C.
Power loss / maximum 17 W.
Pollution level 3
Insulation voltage 690 V.
Connectable conductor cross-section / for main contacts / multi-wired / minimum: 2.5 mm²
Connectable conductor cross-section / for main contacts / multi-wired / maximum: 95 mm²
Connectable conductor cross-section / for main contacts / single-wire or multi-wire / minimum: 2.5 mm²
Connectable conductor cross-section / for main contacts / single-wire or multi-wire / maximum: 95 mm²
Type of connectable conductor cross-sections / of laminated conductors / maximum: 24 x 12 mm

Type: Cover level 45 mm

Product type: Switch disconnector fuse

Fuse size: 00

Number of pins: 1

RoHS-compliant: Yes

Dim: (W x H x D) 41.8 x 202 x 86.2 mm

Content: 1 pc(s)

Nominal current: 160 A

Nominal current - rounded value: 160 A

Nominal voltage: 240 V AC
120 V DC

Width: 41.8 mm

Height: 202 mm

Depth: 86.2 mm

: Other

: 160 A

: 1

: 80 kA

: IP40

: NH000, NH00

: FALSE

: Rail connection

: FALSE

: Cover grip

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: 240 V

: FALSE

: FALSE

: Front side

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Number of pins

Siemens 3NC1091 Switch disconnector fuse 32 A 690 V AC, 800 V DC 12 pc(s)

Item no:2262479

Fast track dispatch on Thu 15 Oct

2 Set(s)Conrad Electronic

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 164.99^*

Siemens 3NJ41013BF01 Switch disconnector fuse Fuse size = 0 160 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862199

Unavailable

Conrad Electronic

160 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NJ41033CF02 Switch disconnector fuse Fuse size = 00 160 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862200

Unavailable

Conrad Electronic

160 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NJ41033CF12 Switch disconnector fuse Fuse size = 00 160 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862201

Unavailable

Conrad Electronic

160 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NJ41213BF01 Switch disconnector fuse Fuse size = 1 250 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862202

Unavailable

Conrad Electronic

250 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NJ41233BT01 Switch disconnector fuse Fuse size = 1 250 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862203

Unavailable

Conrad Electronic

250 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NJ41233CF01 Switch disconnector fuse Fuse size = 1 250 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862204

Unavailable

Conrad Electronic

250 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NJ41233CF11 Switch disconnector fuse Fuse size = 1 250 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862205

Unavailable

Conrad Electronic

250 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NJ41333BF01 Switch disconnector fuse Fuse size = 2 400 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862206

Unavailable

Conrad Electronic

400 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NJ41333BT01 Switch disconnector fuse Fuse size = 2 400 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862207

Unavailable

Conrad Electronic

400 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2262486 Siemens 3NP11311CA10 Switch disconnector fuse Fuse size = 00 160 A 240 V AC, 120 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2262486 Siemens 3NP11311CA10 Switch disconnector fuse Fuse size = 00 160 A 240 V AC, 120 V DC 1 pc(s)

Description

SENTRON, 3NP1 fuse disconnector, 1-pole, NH00, 160 A, for installation and mounting on mounting plate, flat connection, cover level 45mm fuse disconnectors 3NP to 630 A with improved passenger and system protection and comfortable connection technology. The fuse switch disconnectors protect equipment in industry or infrastructure from overload and short circuit and are suitable for cross-sector use. The standard grip and contact protection of the new Sentron series 3NP1 prevents the user from touching live parts when mounting busbar systems, even when rear access is performed.In addition, the user can easily detect the fuses used by the large viewing windows. The Siemens 3NP fuse switch disconnectors are characterized above all by: 1. Highly flexible thanks to modular design and universal accessories. 2. Suitable for floor mounting, top hat rail, and Siemens 8US 3 busbar system. Electronic fuse monitoring function including network monitoring. 4. Five sizes from 100 A to 630 A up to IP40. 5. Quick and safe conversion for cable outlet on top/bottom. 6. Flexible switching times of the auxiliary switch possible (simultaneous or leading). 7. Can be closed and sealed.

This text is machine translated.
