Name: Siemens 3RA2316-8XB30-1AP0 Reversing contactor combo 3 makers 4 kW 690 V AC 9 A Compatible with (relay brand): Siemens 1
Brand: Siemens
SKU: 1704760
Availability: InStock

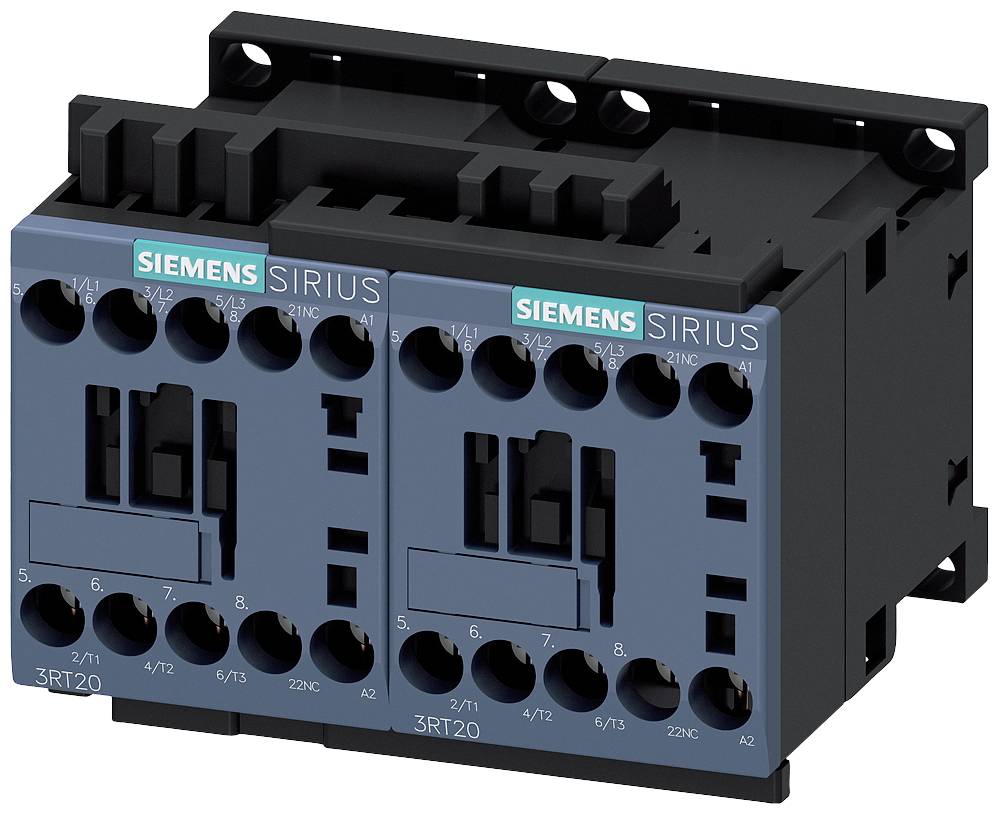

A Siemens Sirius contactor, an electrical component used for motor control, shown in two units side by side.

An open electrical cabinet with multiple shelves filled with electrical components and wiring. Used for system control.

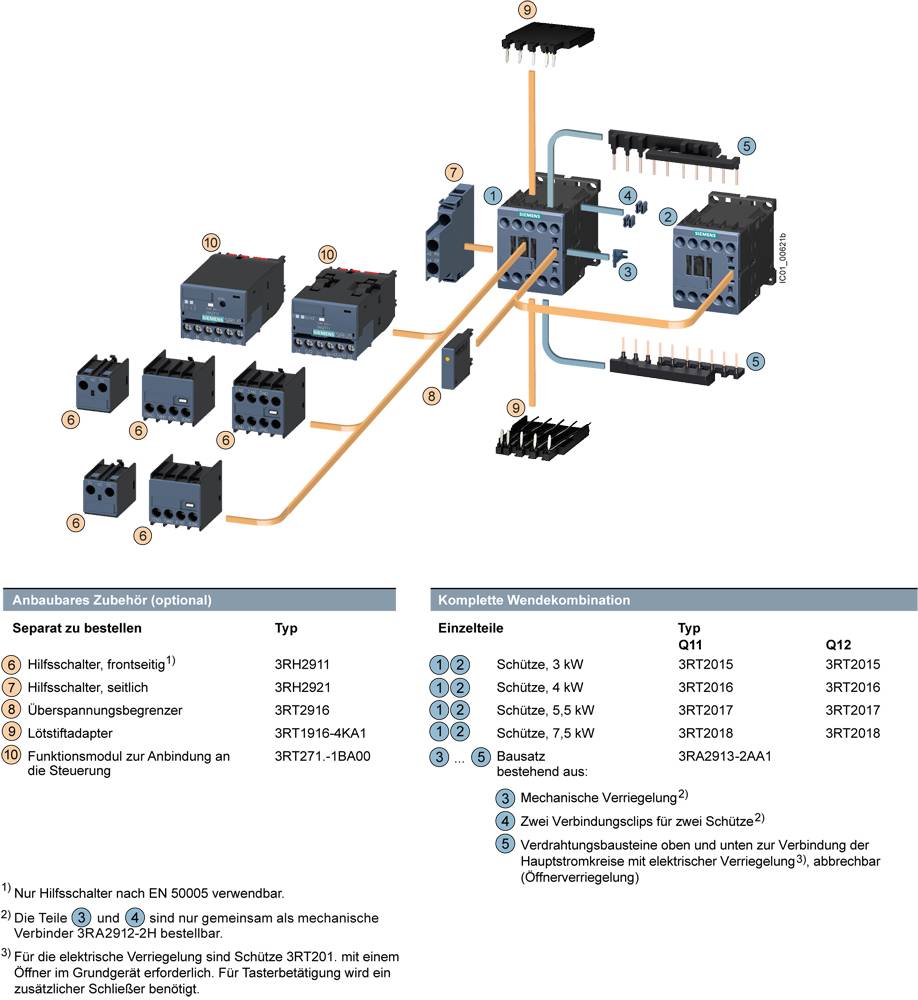

A technical drawing of a circuit diagram for a reversing combination. Components are numbered and described, including contactors and accessories.

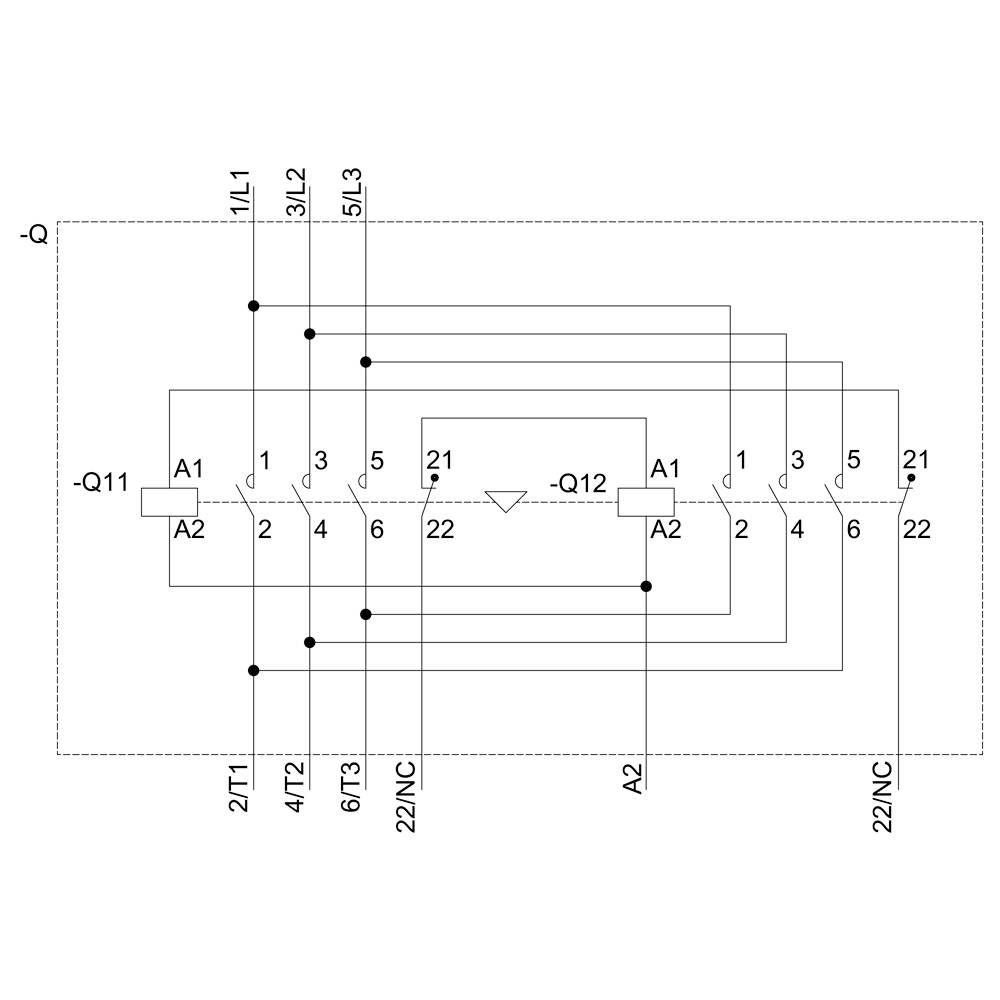

Circuit diagram of an electrical system with multiple interconnected nodes and marked components Q11, Q12, A1, A2.

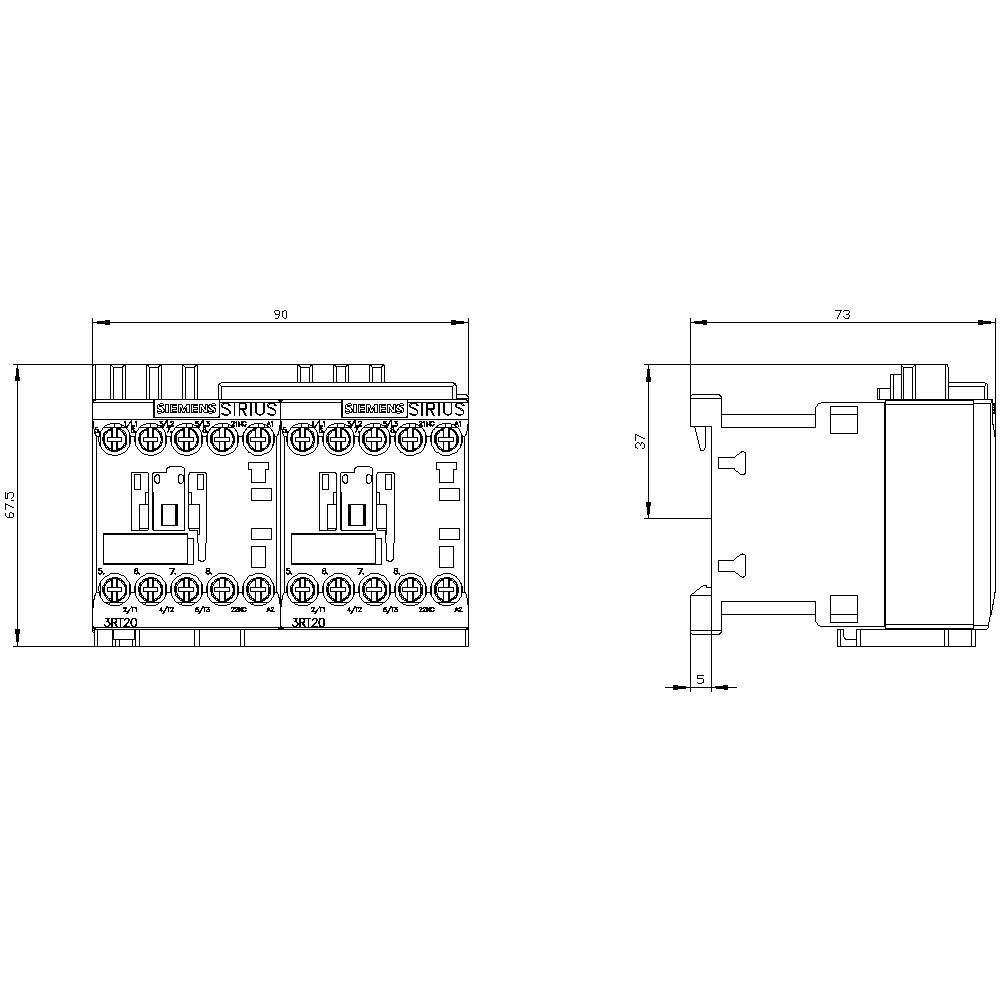

'Technical drawing of a switching device with dimensions: front view 63 mm x 90 mm, side view 63 mm x 73 mm.'

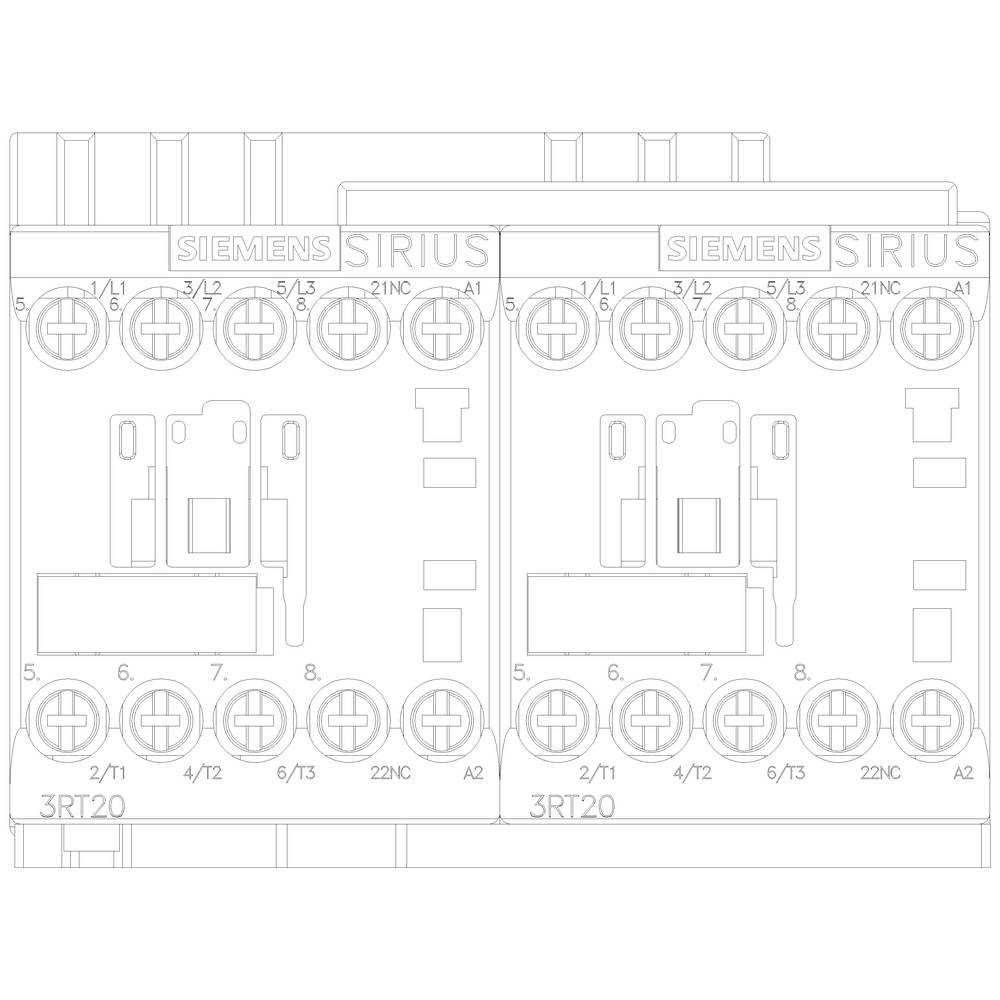

Two switching devices from Siemens Sirius 3RT20. Each device shows connections and switching contacts used for control applications.

1/6

Image similar

Product type

Reversing contactor combo

No. of pins

3-pin

Nominal voltage

690 V AC

Current load

9 A

Power

4 kW

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-wire: 4 mm²
Conductor cross-section for fine-wire: 2.5 mm²

Product type: Reversing contactor combo

Type: 3RA2316-8XB30-1AP0

Type: S00

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: 3 makers

Nominal voltage: 690 V AC

Control voltage (min.): 230 V AC

Control voltage (max.): 230 V AC

Control voltage range: 230 - 230 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 9 A

Current load: 9 A

: 4 kW

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 90 mm

Height: 68 mm

Depth: 73 mm

Dim: (W x H x D) 90 x 68 x 73 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: Reversing contactor

: 4 kW

: 3

: 0

: 9 A

: 230-230 V

: 230-230 V

: IP20

: Screw connection

: AC

: Other

: 3.677

UKCA: yes
