Name: Siemens 3RA2317-8XB30-1AP0 Reversing contactor combo 3 makers 5.5 kW 690 V AC 11 A Compatible with (relay brand): Siemen
Brand: Siemens
SKU: 1744685
Availability: InStock

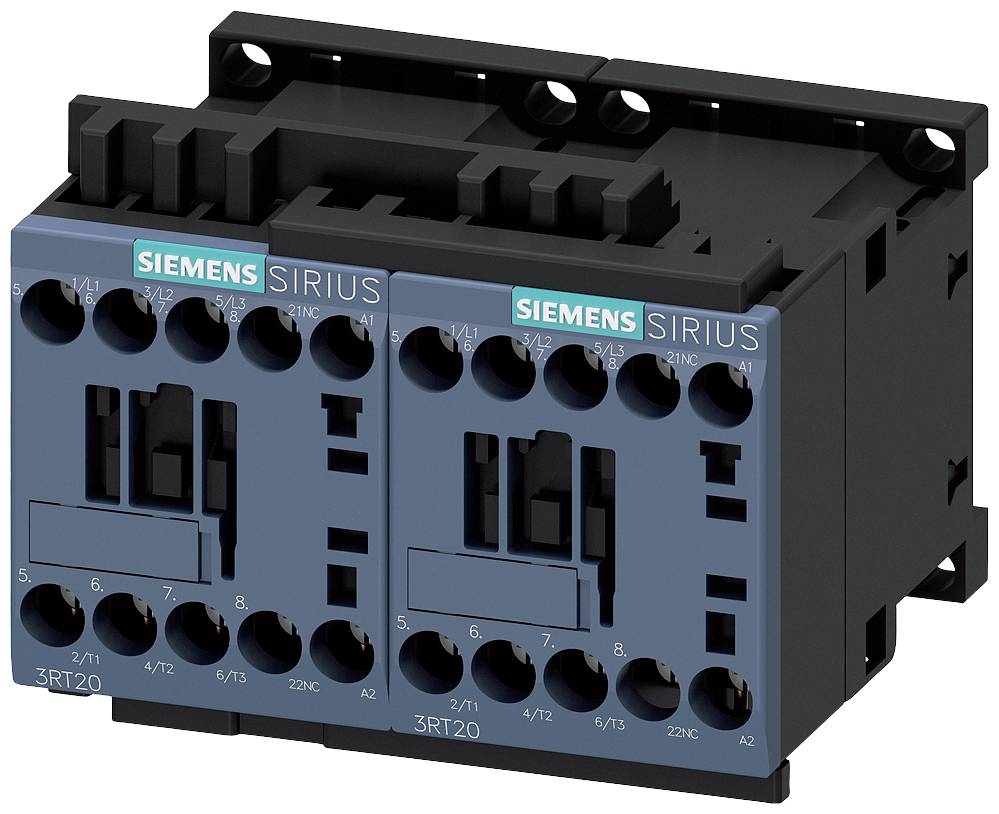

A Siemens Sirius series electrical contactor, consisting of two blue modules, connected for controlling electrical equipment.

Open electrical cabinet with various electronic components and cables, arranged in an orderly manner across multiple levels.

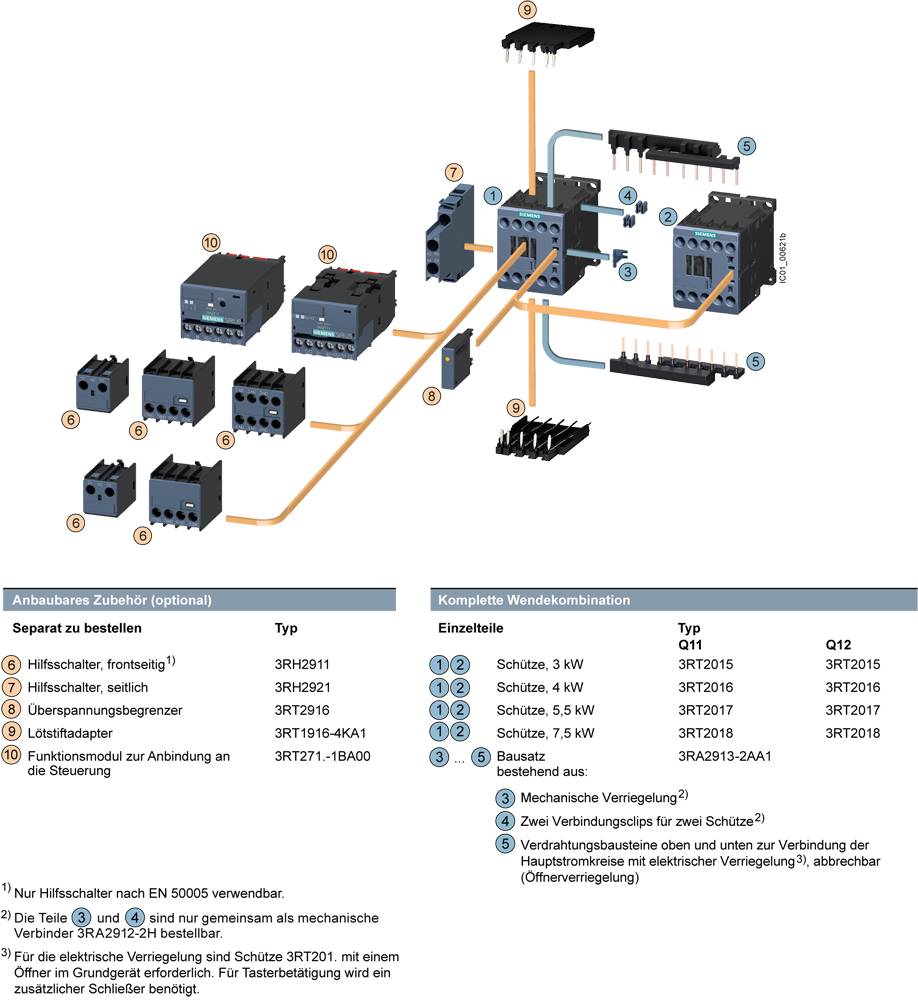

'Schütz' diagram shows parts of a reversing combination with designations and item numbers. On the left: Auxiliary and overcurrent protection devices. On the right: Electrical contactor systems.

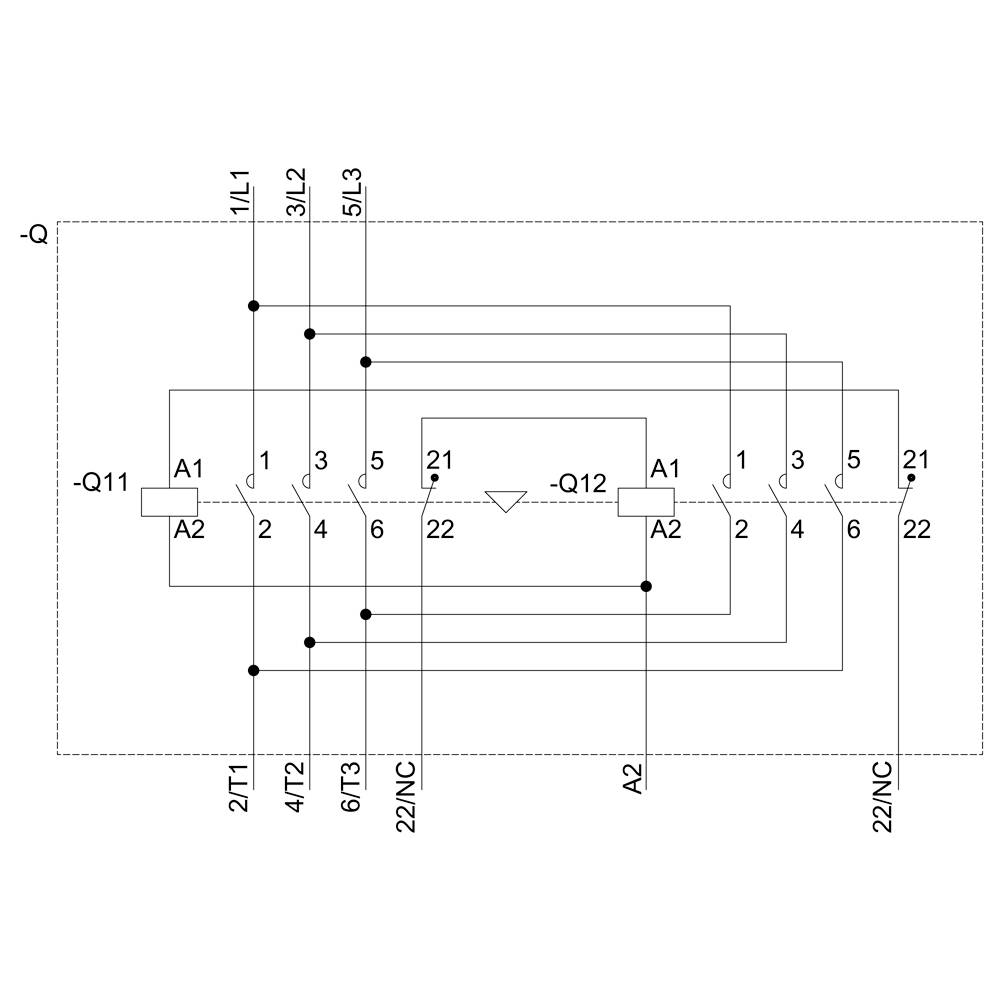

Circuit diagram for controlling an electronic circuit with relays 'Q11' and 'Q12'. Connections and switching contacts are numbered.

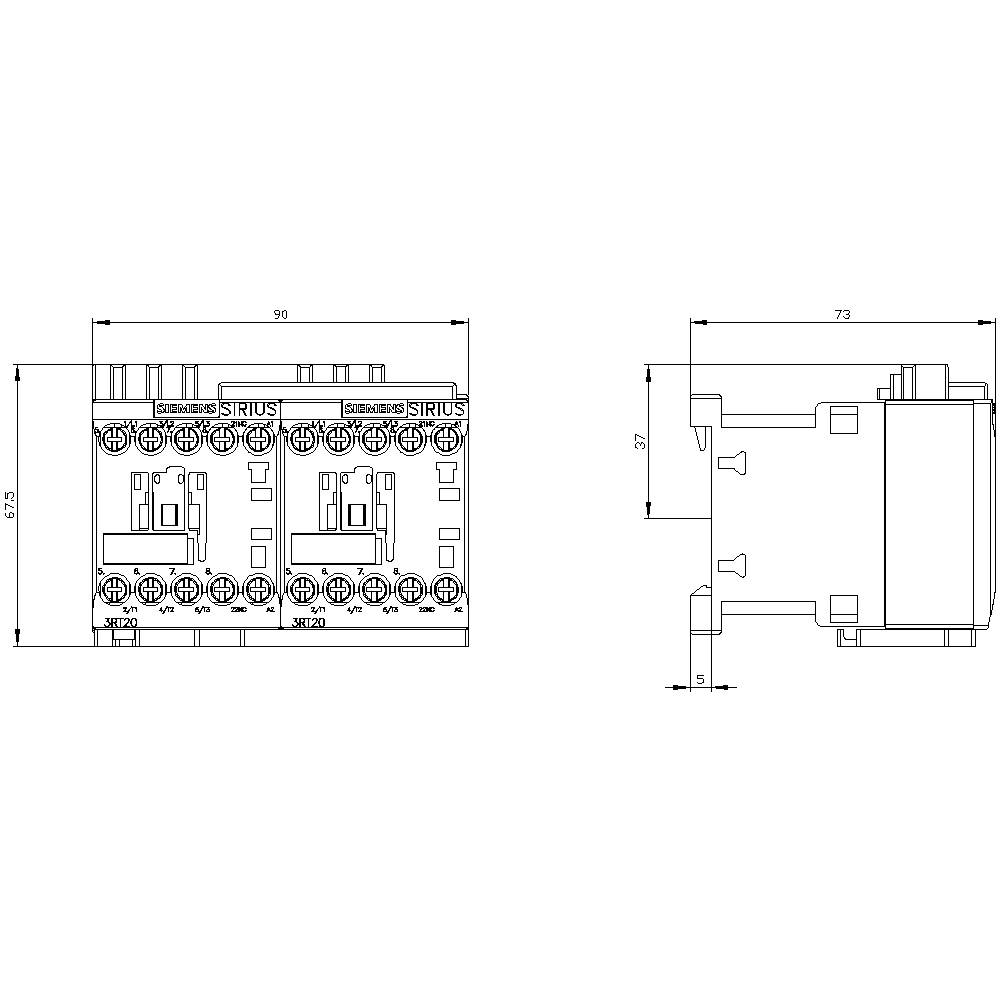

'Technical drawing of a double-width SIRIUS switching device with dimensional specifications. Shows front and side views with detailed labelling.'

1/6

Image similar

Product type

Reversing contactor combo

No. of pins

3-pin

Nominal voltage

690 V AC

Current load

11 A

Power

5.5 kW

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 134.99 / piece)

€ 134.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-wire: 4 mm²
Conductor cross-section for fine-wire: 2.5 mm²

Packaging type: Piece

Product type: Reversing contactor combo

Type: 3RA2317-8XB30-1AP0

Type: S00

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: 3 makers

Nominal voltage: 690 V AC

Control voltage (min.): 230 V AC

Control voltage (max.): 230 V AC

Control voltage range: 230 - 230 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 11 A

Current load: 11 A

: 5.5 kW

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 90 mm

Height: 68 mm

Depth: 73 mm

Dim: (W x H x D) 90 x 68 x 73 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: Reversing contactor

: 5.5 kW

: 3

: 0

: 12 A

: 230-230 V

: 230-230 V

: IP20

: Screw connection

: AC

: Other

: 5.516

UKCA: yes
