Name: Siemens 3RA28321DG10 3RA2832-1DG10 TDR Off-delay 1 pc(s) Time range: 0.05 - 100 s
Brand: Siemens
SKU: 1741890
Availability: BackOrder

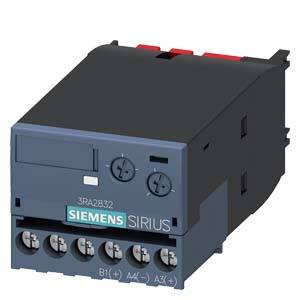

A Siemens electronic switching device from the SIRIUS series, model number 3RA2832, with screw contacts and adjustable controllers.

An open electrical cabinet displays various switching components and cables. It serves to control and distribute electrical systems.

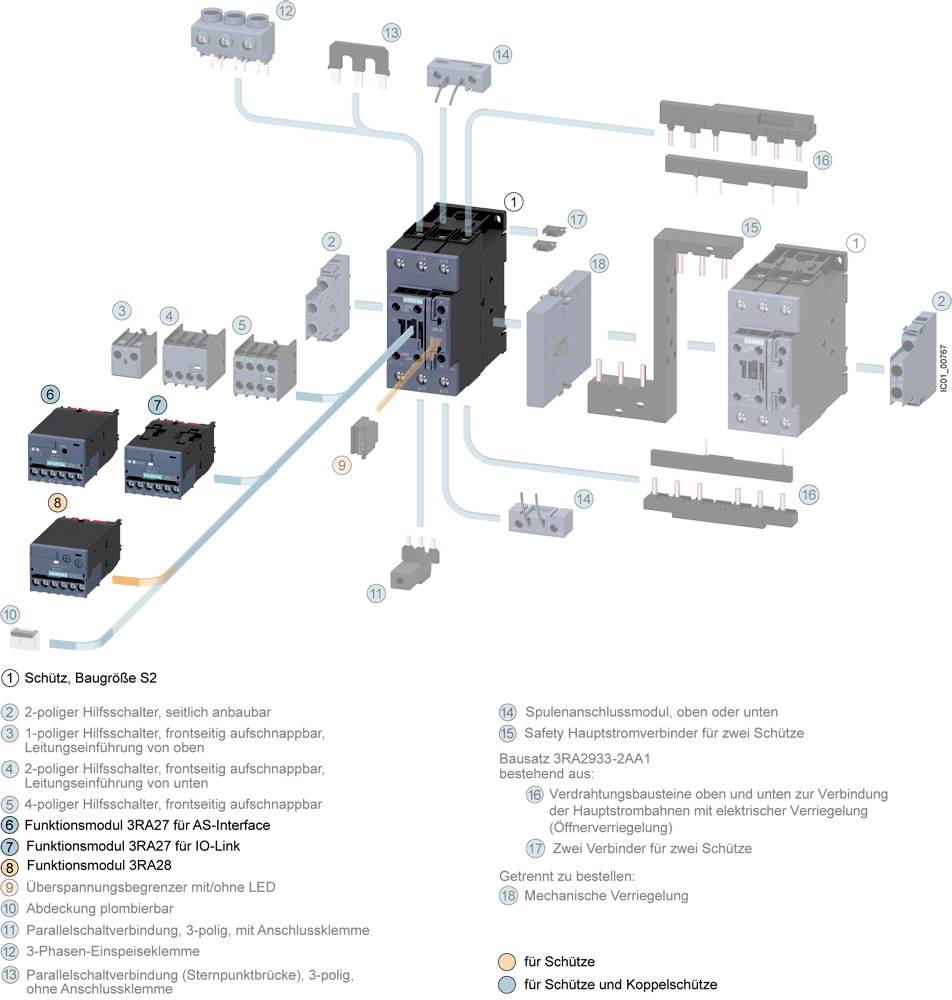

Diagram of Switchgear: Shows various modules and their connection possibilities. Main device in the centre, with lines to extension modules. Primary use for contactors and coupling contactors.

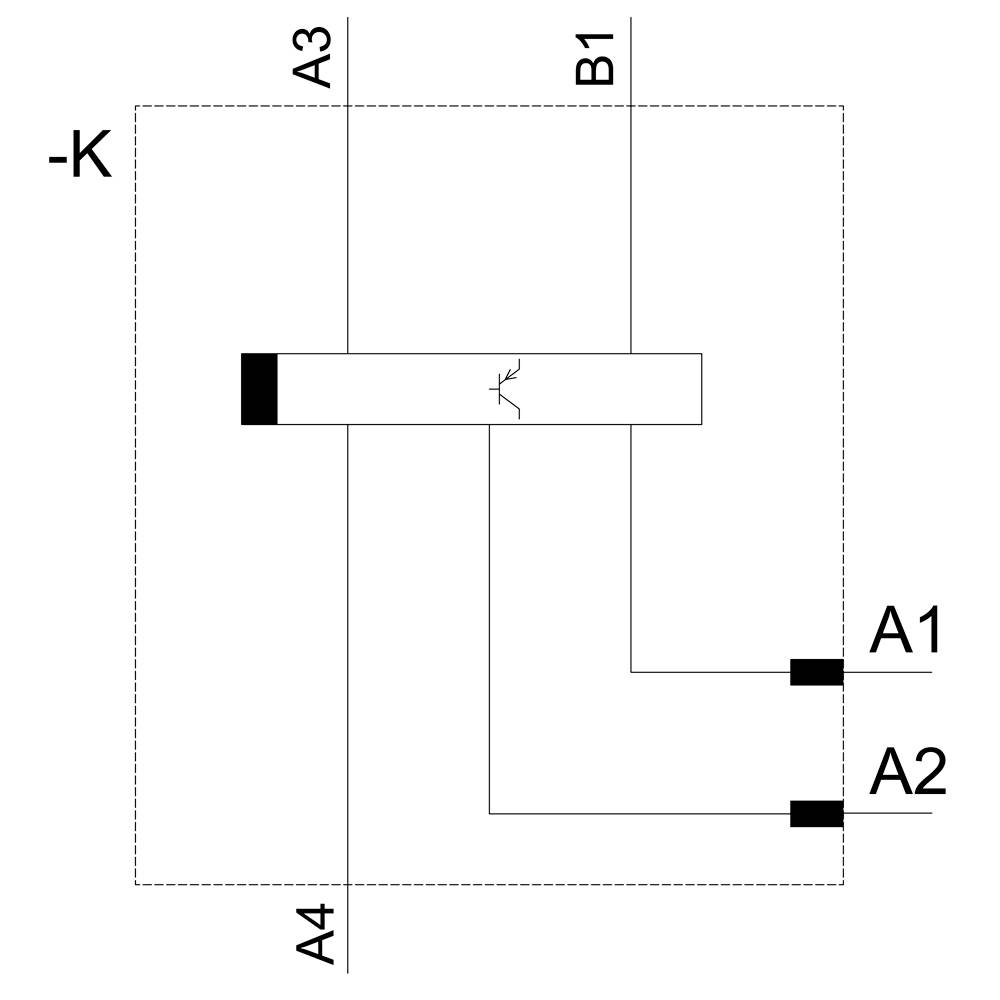

Schematic sketch of an electronic circuit system with connections marked as 'A1', 'A2', 'A3', 'A4', 'B1' and '-K'.

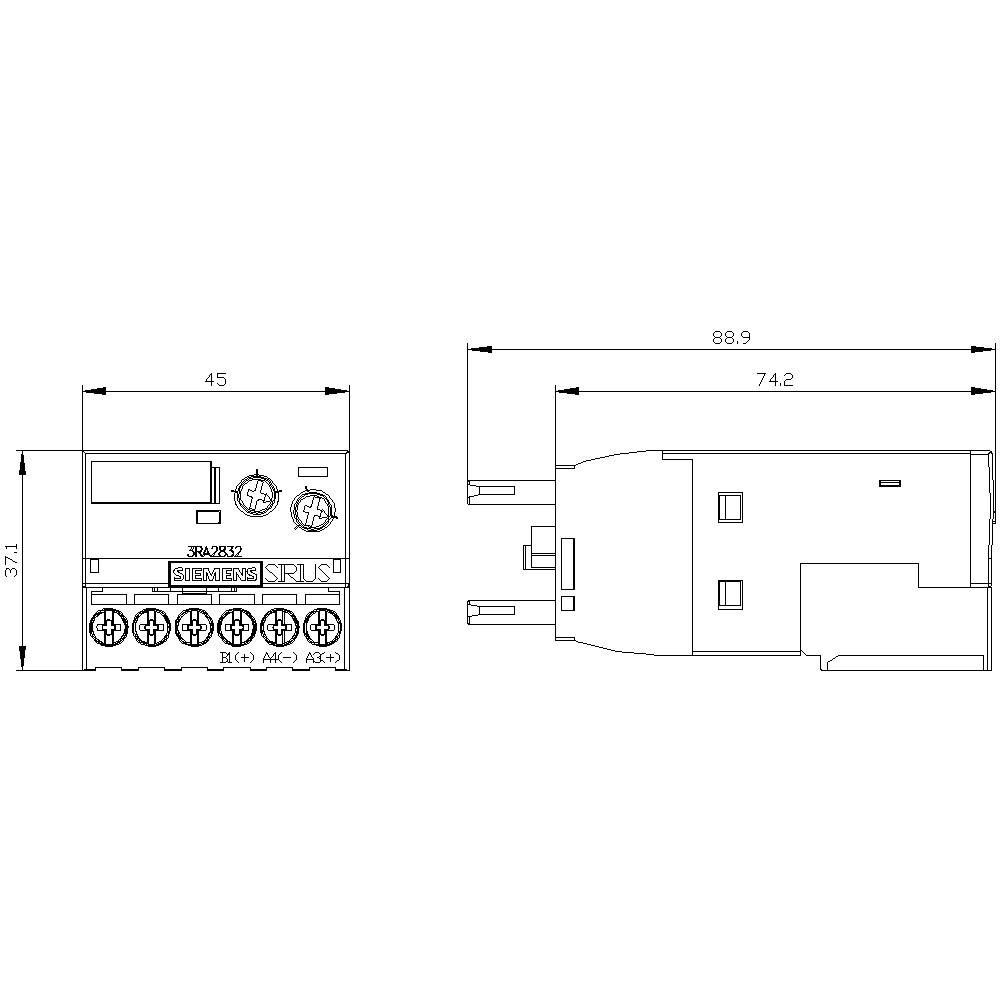

Technical drawing of an electrical relay with front and side views. Dimensions 45x37.1 mm and 88.9x74.2 mm are indicated.

1/5

Image similar

Product type

TDR

Type

Off-delay

Functions

Off-delay

Min. operating voltage

24 V

Max. operating voltage

90 V

Datasheet (PDF)

Dispatches on Tue 20 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: TDR

Type: 3RA2832-1DG10

Type: Off-delay

Connection: Screw terminal

Functions: Off-delay

Min. operating voltage: 24 V

Max. operating voltage: 90 V

Operating voltage: 24 - 90 V

Time range (min.): 0.05 s

Time range (max.): 100 s

Min. temperature: -25 °C

Max. temperature: +60 °C

: IP20

Electrical lifespan: 1000 0000

Durability: 1000 00000

Width: 45 mm

Height: 38 mm

Depth: 74 mm

Dim: (W x H x D) 45 x 38 x 74 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: Electronic

: 0

: 1

: 0

UKCA: yes
