Name: Siemens 3RA28321DH10 3RA2832-1DH10 TDR Off-delay 1 pc(s) Time range: 0.05 - 100 s 1 change-over
Brand: Siemens
SKU: 1746559
Availability: BackOrder

A Siemens Sirius overload relay, model number 3RA2832, with six connection terminals. Used for electric motor protection.

'Opened electrical cabinet with electrical components, cables and control devices, visible in vertical arrangement.'

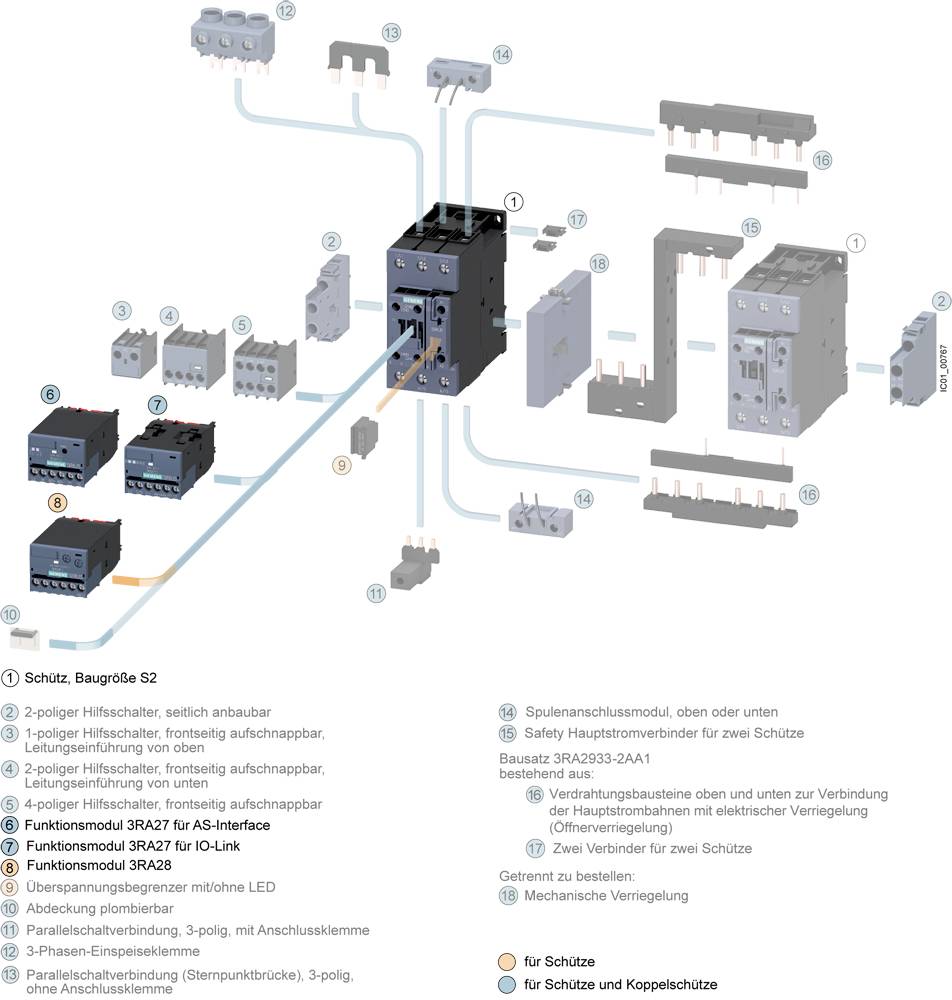

'Schütz Size S2' with modules. Various connections and accessories are shown and explained with numbered illustrations.

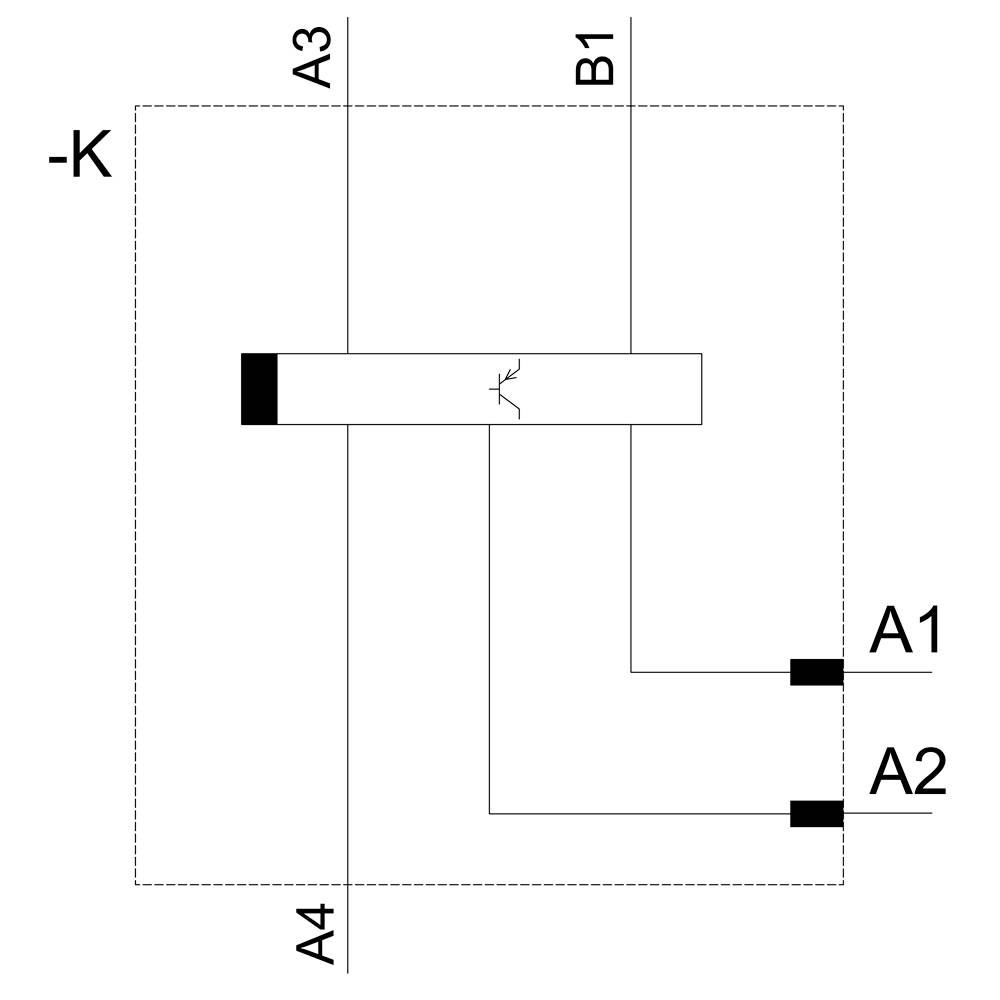

Technical drawing of an electrical circuit diagram with markings: A1, A2, A3, A4, B1. Core components and connections shown.

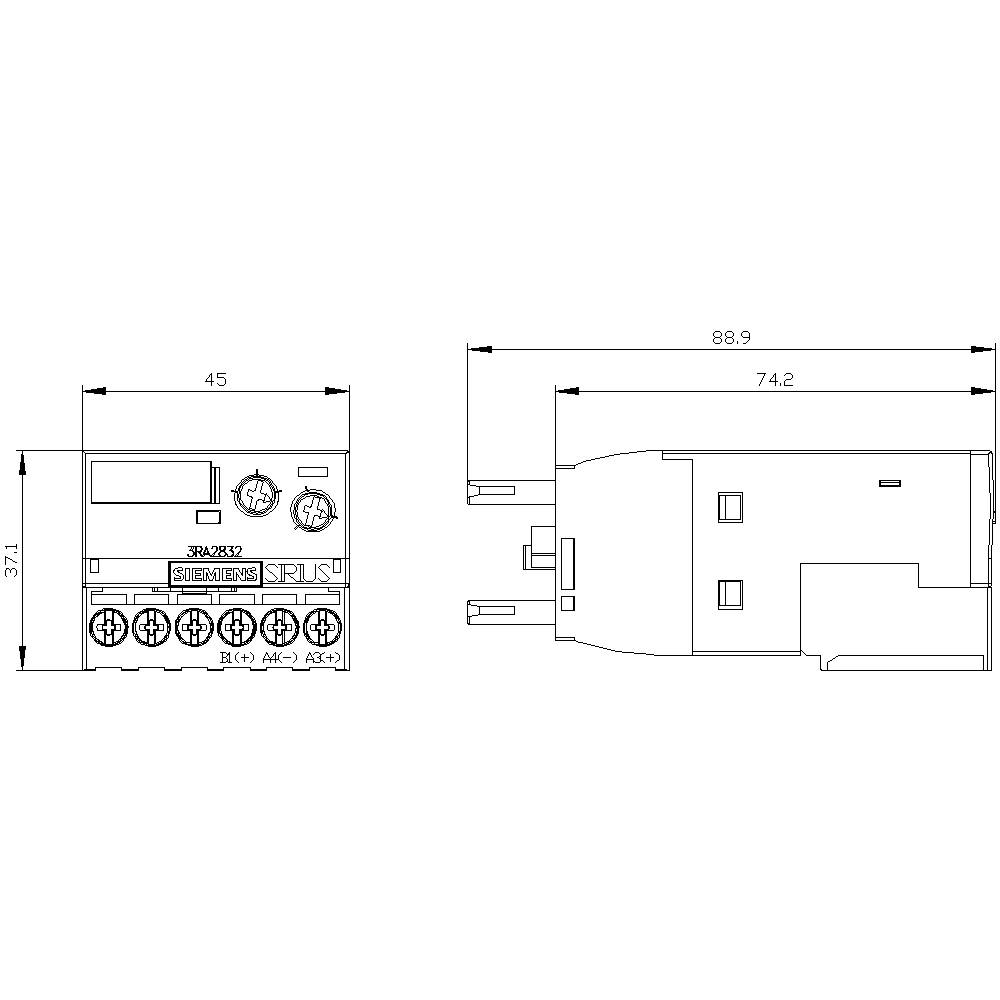

Technical drawing of a relay with dimensions in millimetres: 45 mm width, 37 mm height, 88.9 mm length. Shows front and side view.

1/5

Image similar

Product type

TDR

Type

Off-delay

Functions

Off-delay

Min. operating voltage

90 V

Max. operating voltage

240 V

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: TDR

Type: 3RA2832-1DH10

Type: Off-delay

Functions: Off-delay

Min. operating voltage: 90 V

Max. operating voltage: 240 V

Operating voltage: 90 - 240 V

Contact type: 1 change-over

Time range (min.): 0.05 s

Time range (max.): 100 s

Min. temperature: -25 °C

Max. temperature: +60 °C

: IP20

Electrical lifespan: 1000 0000

Durability: 1000 00000

Width: 45 mm

Height: 38 mm

Depth: 74 mm

Dim: (W x H x D) 45 x 38 x 74 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: Electronic

: 0

: 1

: 0

UKCA: yes
