Name: Siemens 3RA28322DG10 3RA2832-2DG10 TDR Off-delay 24 V 1 pc(s) Time range: 0.05 - 100 s
Brand: Siemens
SKU: 1746560
Availability: BackOrder

Industrial switchgear in a rectangular form, described as 'Siemens Sirius', front side with cable connections and two rotary controls.

Large, open distribution cabinet with various electrical components and wiring visible. Main switch located at the top.

'Diagram shows various switching and functional modules for contactor wiring in detail, according to labelling on ABB products.'

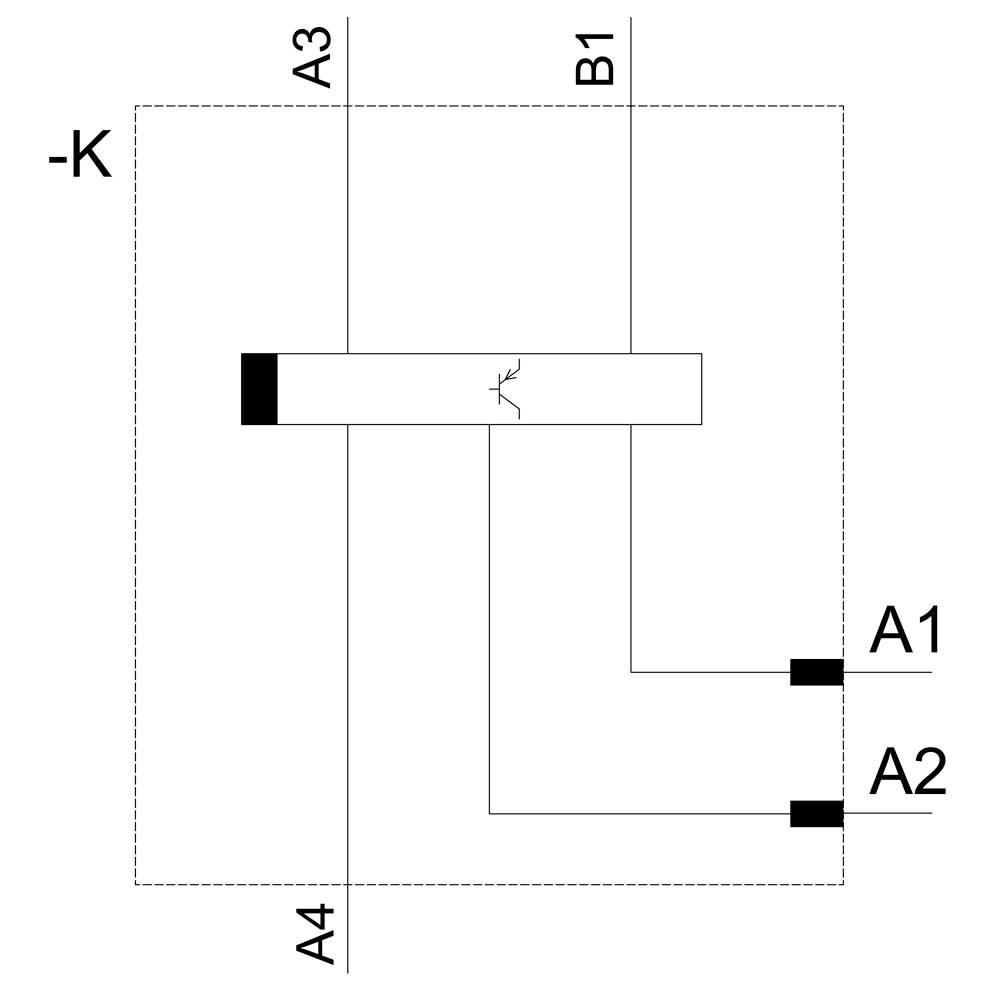

A box with four lines. Lines are labelled A1, A2, A3, B1, and -K. Connections show an electrical circuit.

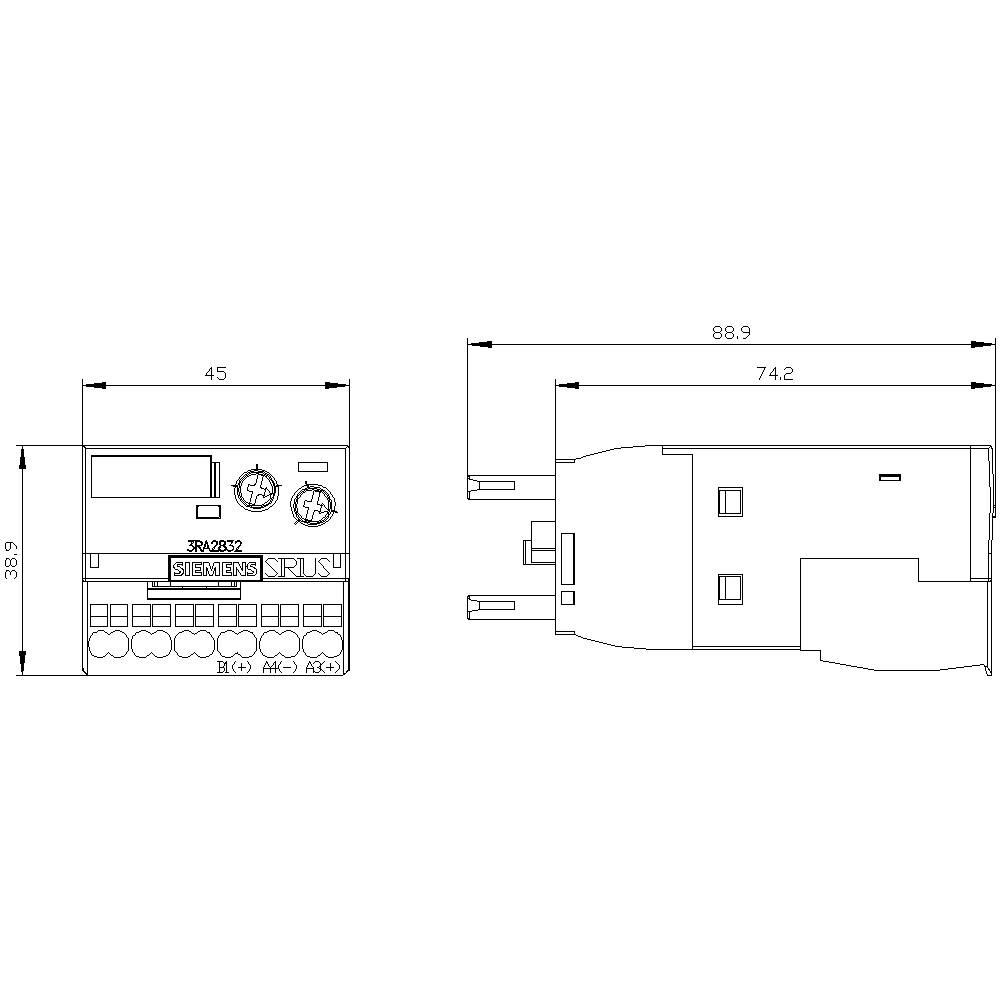

Technical drawing of an electronic device with dimensions: 45 mm width, 88.9 mm and 74.2 mm length, 303 mm height.

1/5

Image similar

Product type

TDR

Type

Off-delay

Functions

Off-delay

Operating voltage

24 V

Type

3RA2832-2DG10

Datasheet (PDF)

Dispatches on Tue 20 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: TDR

Type: 3RA2832-2DG10

Type: Off-delay

Connection: Spring-loaded connector

Functions: Off-delay

Operating voltage: 24 V

Time range (min.): 0.05 s

Time range (max.): 100 s

Min. temperature: -25 °C

Max. temperature: +60 °C

: IP20

Electrical lifespan: 1000 0000

Durability: 1000 00000

Width: 45 mm

Height: 38 mm

Depth: 74 mm

Dim: (W x H x D) 45 x 38 x 74 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: Electronic

: 0

: 1

: 0

UKCA: yes
