Name: Siemens 3RP25252BB30 3RP2525-2BB30 TDR Multifunction 24 V 1 pc(s) Time range: 0.05 s - 100 h 2 change-overs
Brand: Siemens
SKU: 1699165
Availability: BackOrder

A blue Siemens blower device, model 'SIRIUS'. Front view shows rotary controls and a QR code. Device for mounting in an electrical control cabinet.

'Interior view of an electrical cabinet with various electrical components and colour-coded cables.'

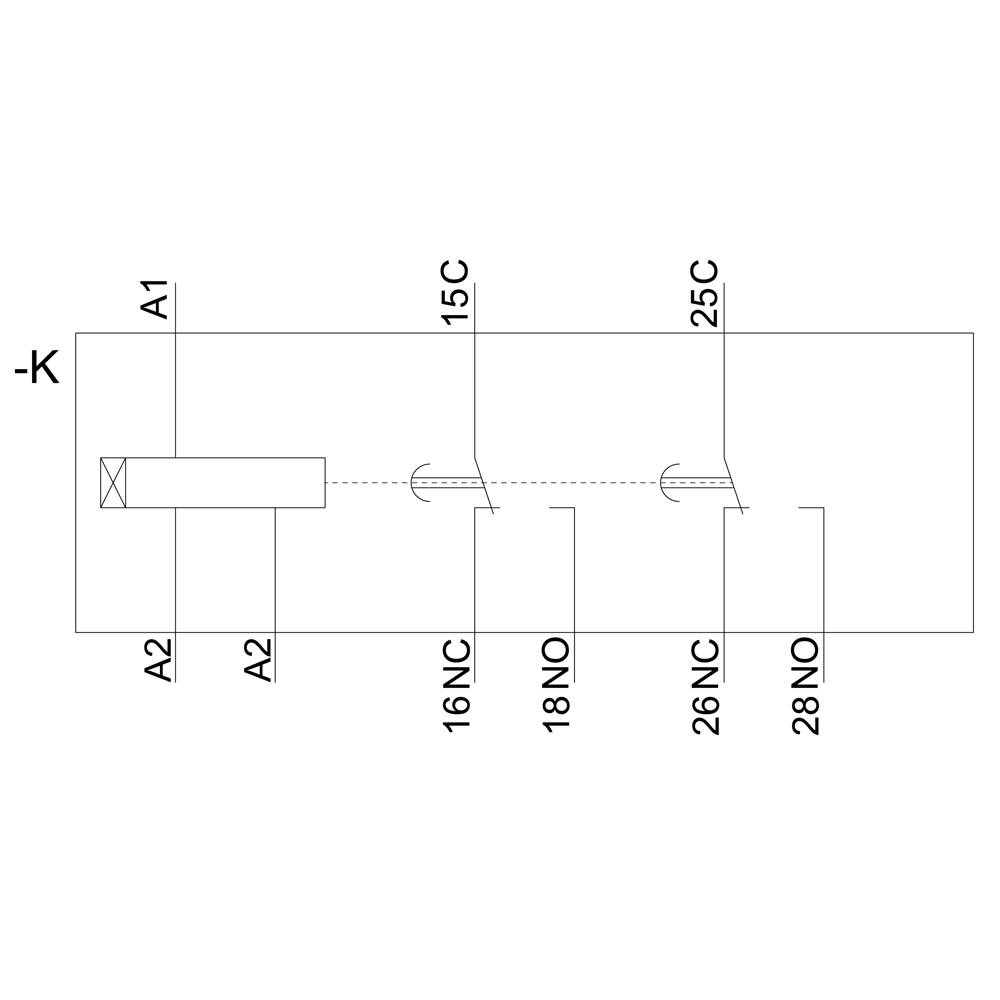

Circuit diagram shows a relay with contacts: A1, A2, 16 NO, 18 NC, 26 NC, 28 NO. Connections and arrangement of contacts are illustrated.

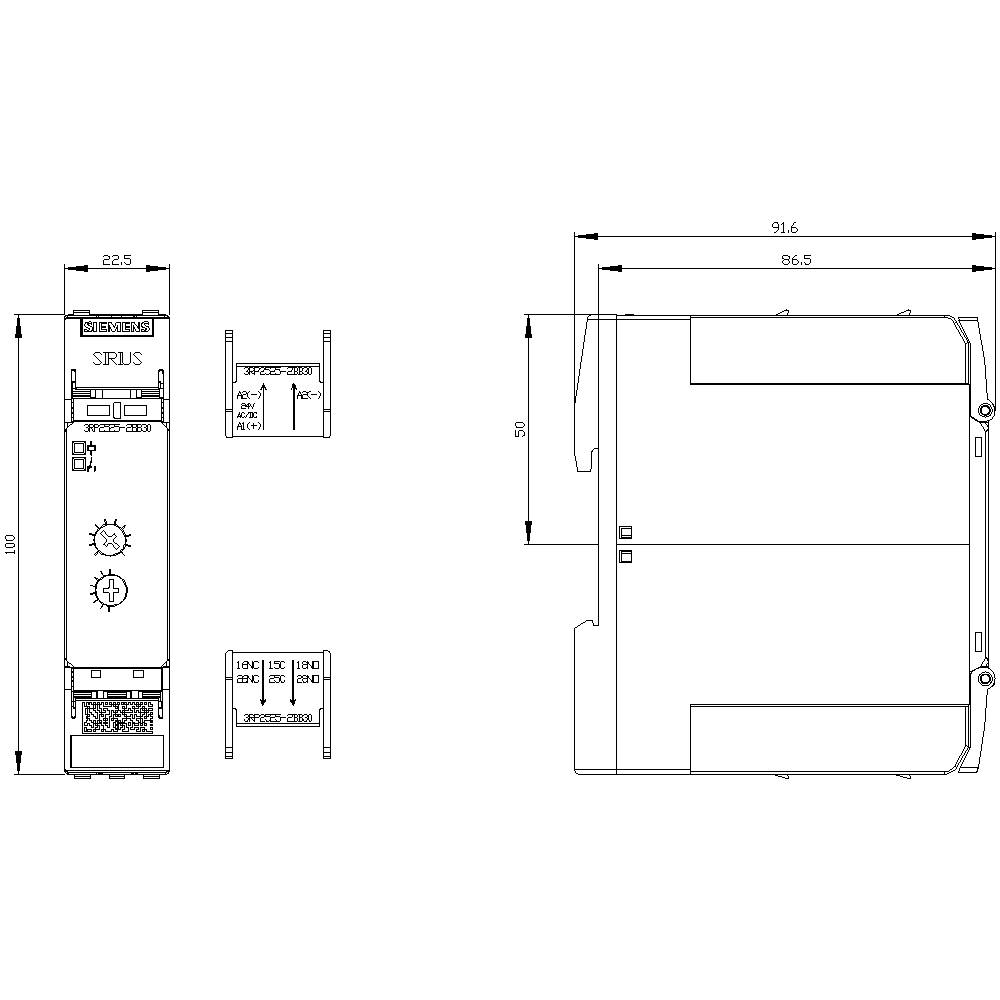

Technical drawing of an electronic device with dimensions: height 100 mm, width 22.5 mm, side depth 91.6 mm. Switch at the front.

1/4

Image similar

Product type

TDR

Type

Multifunction

Functions

On-delay

Operating voltage

24 V

Contact type

2 change-overs

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 139.99 / piece)

€ 139.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

3RW55 480V 18A 110-250V spring

Our service for you

Technical specifications

Product type: TDR

Type: 3RP2525-2BB30

Type: Multifunction

Connection: Spring-loaded connector

Functions: On-delay

Operating voltage: 24 V

Contact type: 2 change-overs

Time range (min.): 0.05 s

Time range (max.): 100 h

Time range(s): 100 h

Min. temperature: -25 °C

Max. temperature: +60 °C

: IP20

Electrical lifespan: 100000

Durability: 1000 0000

Width: 22.5 mm

Height: 100 mm

Depth: 90 mm

Dim: (W x H x D) 22.5 x 100 x 90 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 22.5

: 100 mm

: 90 mm

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: Spring clamp connection

: 0

: 0

: 0

: 0

: 0

: 2

: FALSE

: FALSE

: TRUE

: AC/DC

UKCA: not relevant
