Name: Siemens 3RP25762NM20 3RP2576-2NM20 TDR Multifunction 1 pc(s) Time range: 3 - 60 s 1 maker
Brand: Siemens
SKU: 1746054
Availability: BackOrder

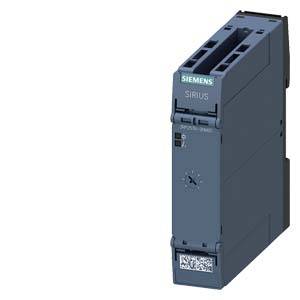

A Siemens SIRIUS switching device, cylindrical, dark grey, with rotary switch and model number 3RK1 903-0AB04.

A control cabinet with various electrical devices and wiring, including fuses, relays and controls. A signal light is located in the top right corner.

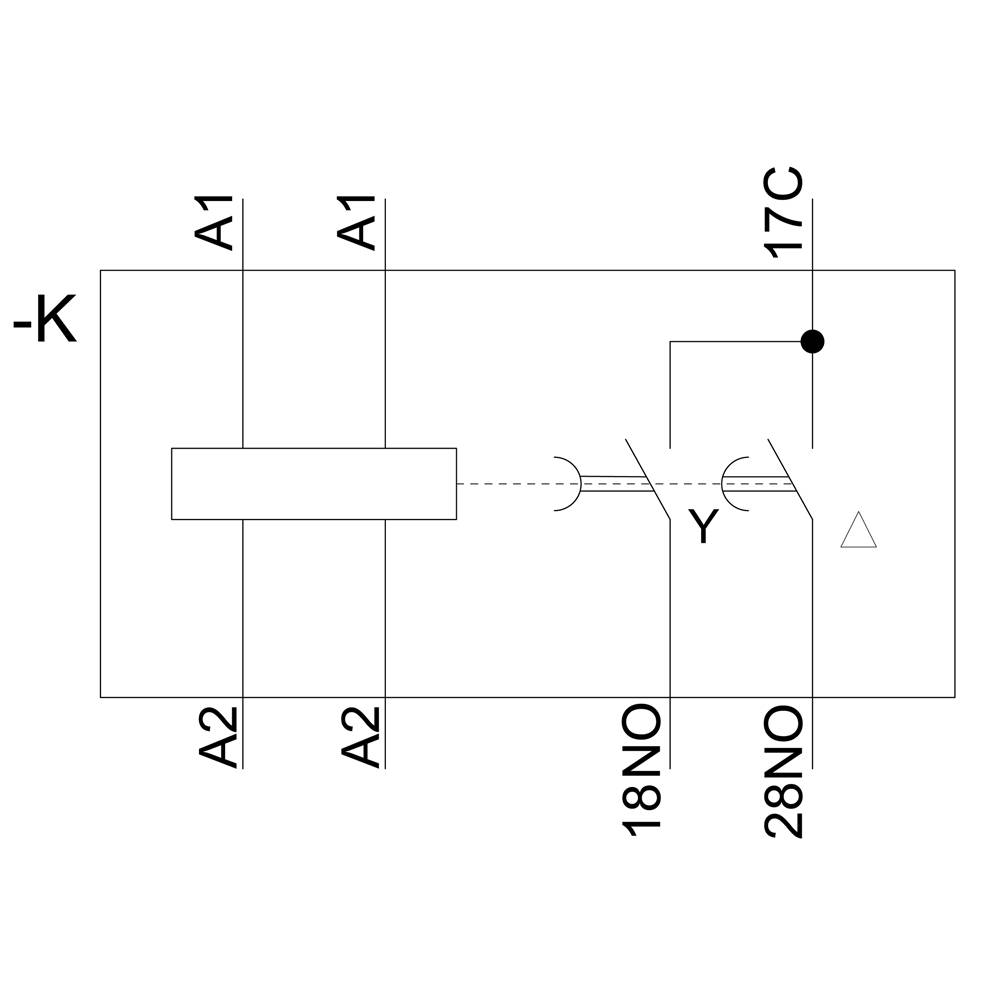

Circuit diagram of a relay: Rectangular symbol for relay with two terminals A1, A2 on the left. Double lines on the right with contacts 18NO and 28NO.

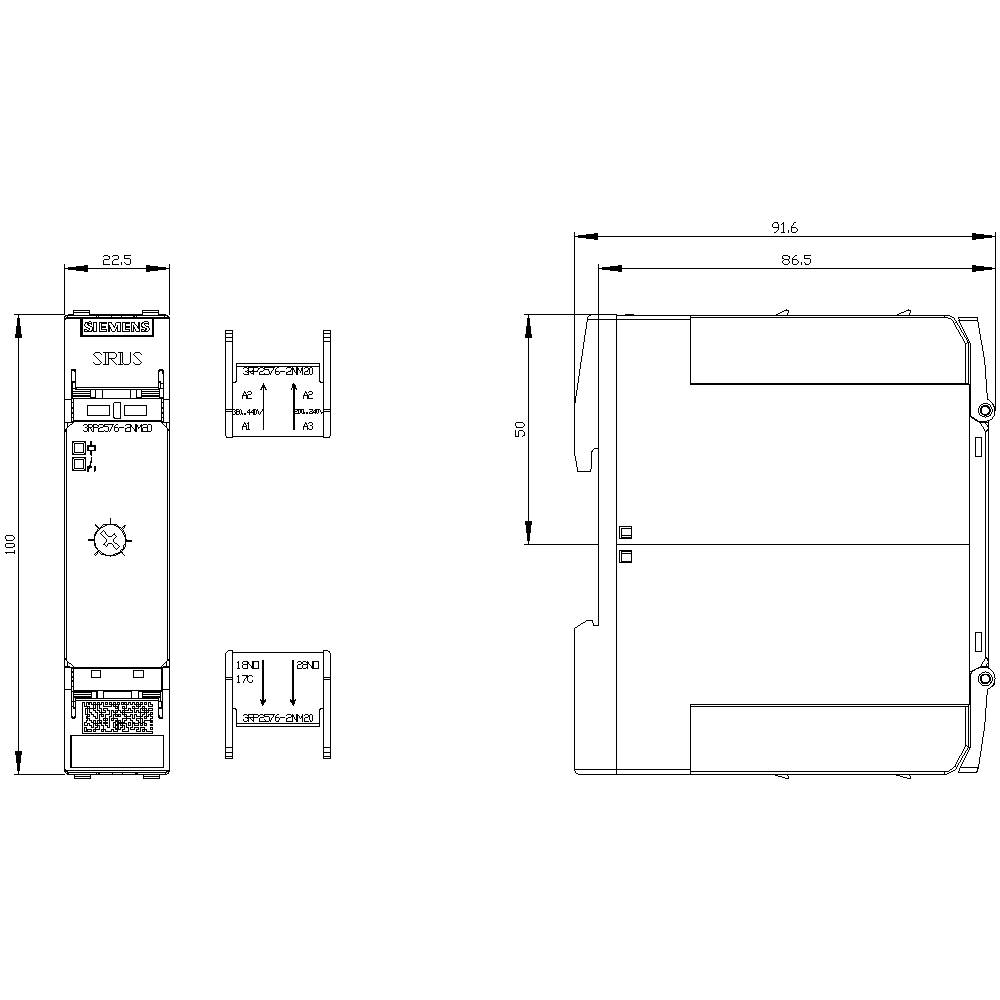

Technical drawing of a switchgear with front and side view. Dimensions and components are shown in detail.

1/4

Image similar

Product type

TDR

Type

Multifunction

Functions

Star delta TDR

Min. operating voltage

200 V

Max. operating voltage

240 V

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 144.99 / piece)

€ 144.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: TDR

Type: 3RP2576-2NM20

Type: Multifunction

Connection: Spring-loaded connector

Functions: Star delta TDR

Min. operating voltage: 200 V

Max. operating voltage: 240 V

Operating voltage: 200 - 240 V

Contact type: 1 maker

Time range (min.): 3 s

Time range (max.): 60 s

Min. temperature: -25 °C

Max. temperature: +60 °C

: IP20

Electrical lifespan: 100000

Durability: 1000 0000

Width: 22.5 mm

Height: 100 mm

Depth: 90 mm

Dim: (W x H x D) 22.5 x 100 x 90 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 22.5

: 100 mm

: 90 mm

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: Spring clamp connection

: 0

: 1

: 0

: 0

: 1

: 0

: FALSE

: FALSE

: TRUE

: AC

UKCA: yes
