Name: Siemens 3RT2317-1AK60 Contactor 4 makers + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)
Brand: Siemens
SKU: 1729876
Availability: BackOrder

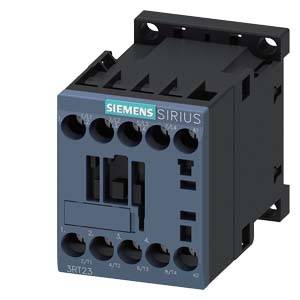

Industrial contactor by Siemens with 'SIRIUS' inscription, black casing, multiple connection terminals visible.

Industrial installation with an open electrical cabinet full of electronic components on the left. On the right, a rain-soaked window through which machines are visible.

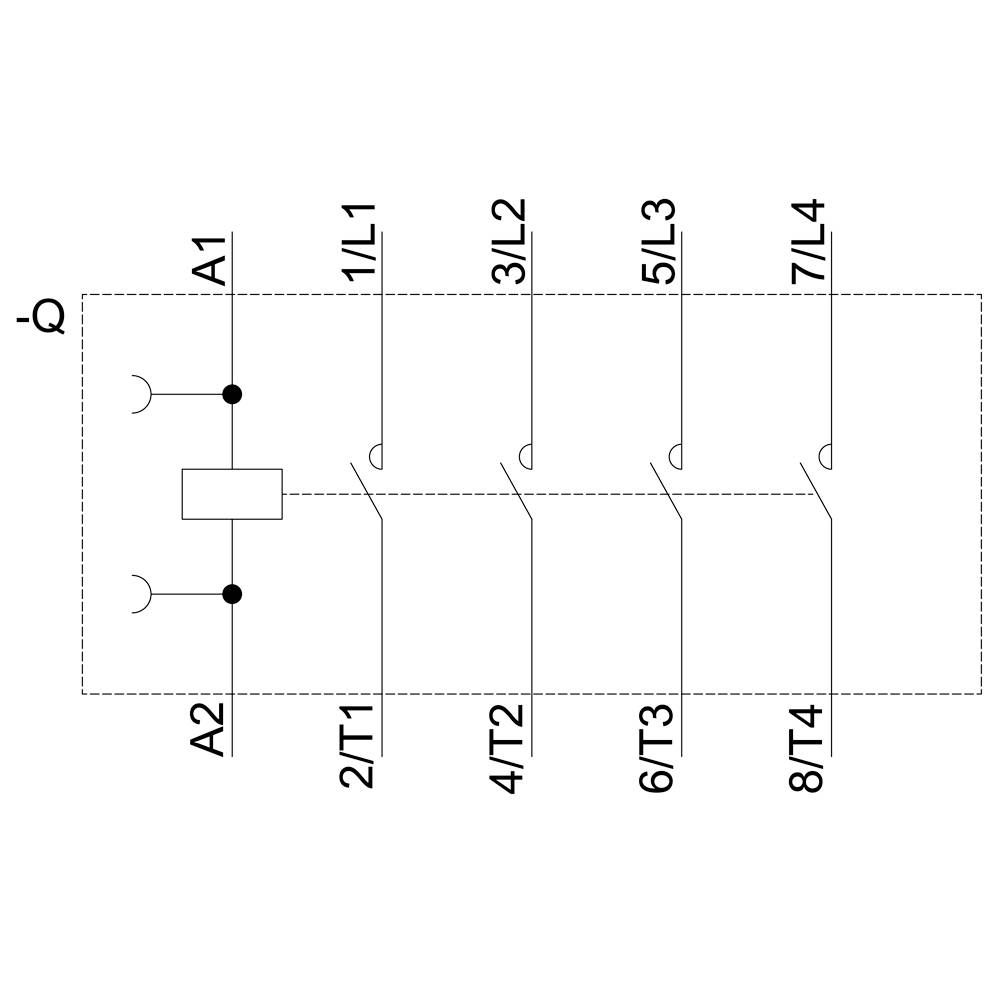

Circuit diagram of a contactor with coil terminals A1 and A2, and four normally open contacts 1/2, 3/4, 5/6, 7/8 for controlling electrical circuits.

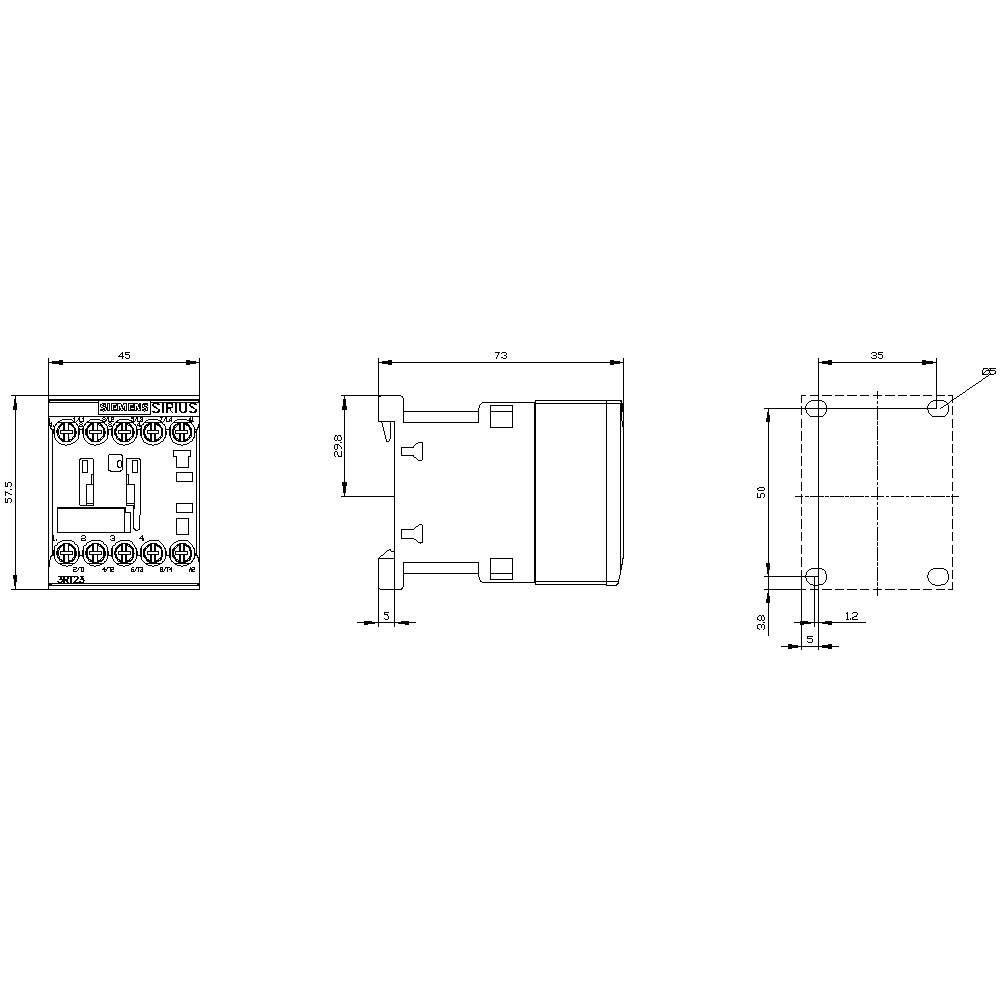

Technical drawing of a component with dimensions. Shows side and front views with detailed measurements.

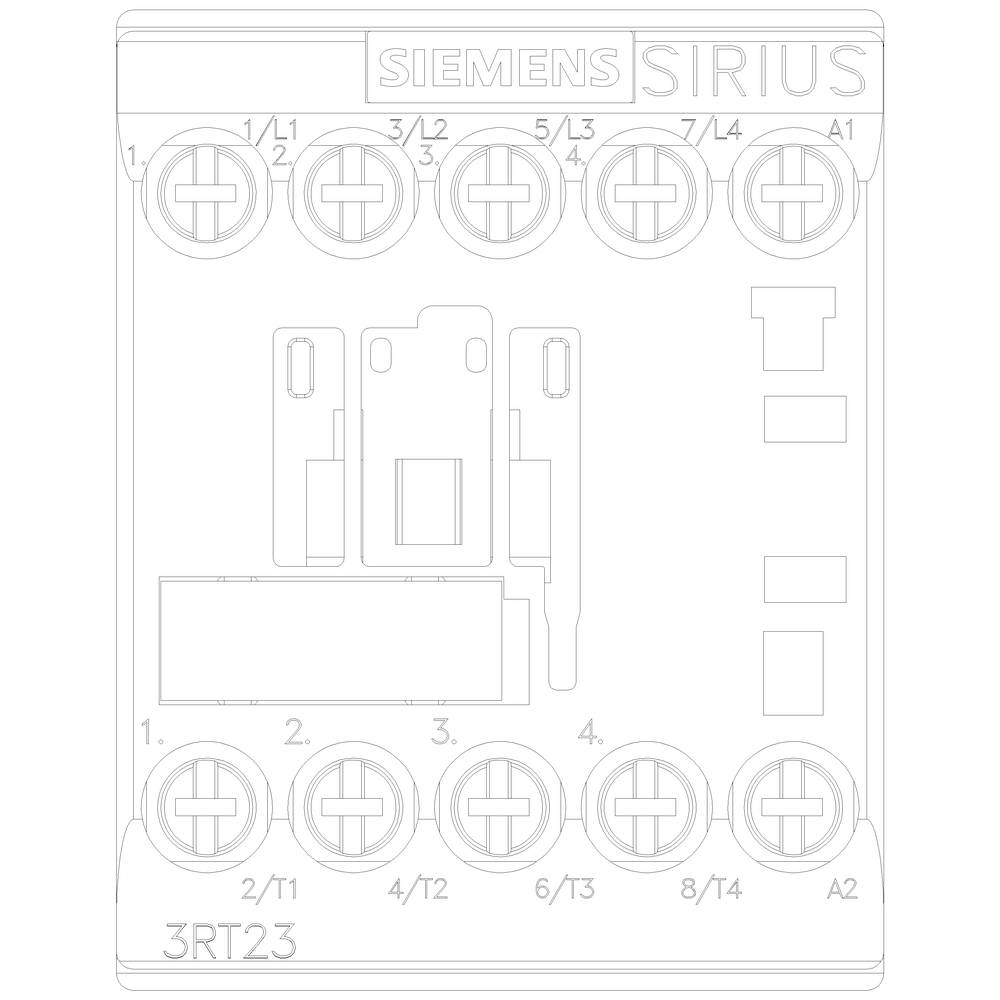

'Siemens Sirius Contactor Diagram': Shows the connections of a Siemens SIRIUS contactor, Model 3RT23. Connections: L1, L2, L3, T1, T2, T3, A1, A2.

1/5

Image similar

Product type

Contactor

No. of pins

4-pin

Connection

Screws

Type

3RT2317-1AK60

Type

S00

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 83.99 / piece)

€ 83.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-wire: 4 mm²
Conductor cross-section for fine-wire: 2.5 mm²

Product type: Contactor

Type: 3RT2317-1AK60

Type: S00

No. of pins: 4-pin

Contact type: 4 makers

Auxiliary contact type: 4 makers

Control voltage (min.): 110 V AC

Control voltage (max.): 120 V AC

Control voltage range: 110 - 120 V AC

Switching voltage (max.): 400 V AC

Permanent current (max.): 22 A

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 3000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 58 mm

Depth: 73 mm

Dim: (W x H x D) 45 x 58 x 73 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 5.5 kW

: 4

: 12 A

: 22 A

: Screw connection

: AC

: 8.5 A

: 4 kW

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Nominal voltage

Siemens 3RT2015-1AB01 Contactor 3 makers 690 V AC + auxiliary contact Compatible with (relay brand): Siemens Single 1 pc(s)

Item no:1749917

Dispatches on Thu 22 Oct

Conrad Electronic

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 55.99^*

Siemens 3RT2015-1AP01 Contactor 3 makers 3 kW 230 V AC 7 A + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1431023

Fast track dispatch on Wed 14 Oct

19 Piece(s)Conrad Electronic

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

Siemens 3RT2015-1AP02 Contactor 3 makers 3 kW 230 V AC 7 A + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1431140

Fast track dispatch on Wed 14 Oct

12 Piece(s)Conrad Electronic

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 42.99^*

Siemens 3RT2015-1BB41 Contactor 3 makers 3 kW 24 V DC 7 A + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1431141

Fast track dispatch on Wed 14 Oct

23 Piece(s)Conrad Electronic

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Siemens 3RT2015-1BB42 Contactor 3 makers 3 kW 24 V DC 7 A + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1431115

Fast track dispatch on Wed 14 Oct

40 Piece(s)Conrad Electronic

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Siemens 3RT2015-1BB44-3MA0 Contactor 3 makers 3 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1730331

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 61.99^*

Siemens 3RT2015-1FB41 Contactor 3 makers 690 V AC + diode Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1730339

Fast track dispatch on Wed 14 Oct

4 Piece(s)Conrad Electronic

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Siemens 3RT2015-2AP01 Contactor 3 makers 3 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1730363

Fast track dispatch on Wed 14 Oct

4 Piece(s)Conrad Electronic

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 55.99^*

Siemens 3RT2015-2BB41 Contactor 3 makers 3 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1730505

Dispatches on Tue 20 Oct

Conrad Electronic

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Siemens 3RT2015-2BB42 Contactor 3 makers 3 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1730507

Fast track dispatch on Wed 14 Oct

9 Piece(s)Conrad Electronic

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Documents & Downloads

Datasheet

Datasheet 1729876 Siemens 3RT2317-1AK60 Contactor 4 makers + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1729876 Siemens 3RT2317-1AK60 Contactor 4 makers + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Description

Contactor, 4 NO, AC-1: 18 A 230 V AC, 50 / 60 Hz, 4-pole, 4 NO, Size S00, Spring-type terminal Upright mounting position

Description

Contactor, 4 NO, AC-1: 18 A 230 V AC, 50 / 60 Hz, 4-pole, 4 NO, Size S00, Spring-type terminal Upright mounting position
