Name: Siemens 3RV1011-0GA10 Circuit breaker 1 pc(s) 3 makers Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max
Brand: Siemens
SKU: 502419
Availability: BackOrder

An electrical switch with the label 'Siemens Sirius', showing a changeover switch from 'I' (On) to 'O' (Off), with a green button for 'Test'.

Interior view of an electrical cabinet with various cables and electronic components. To the right, a machine can be seen through a window.

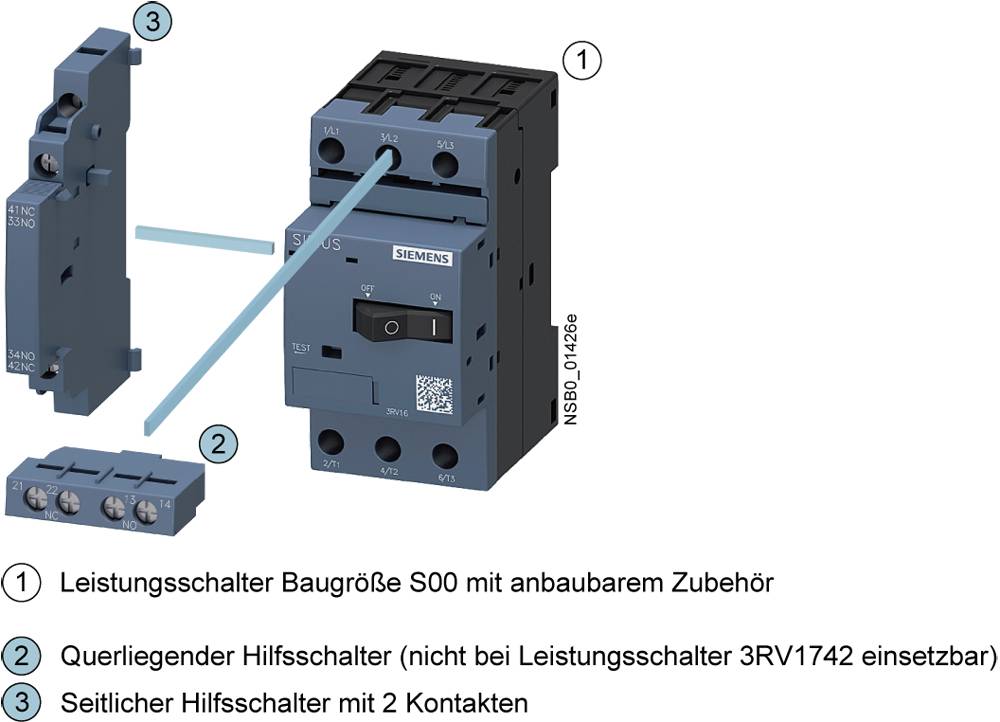

'Miniature circuit breaker Size S00 with attachable accessories. Includes transverse auxiliary switch and side auxiliary switch with 2 contacts.'

Technical drawing of an electrical circuit diagram with labels '1/L1', '2/T1', '3/L2', '4/T2', '5/L3', '6/T3'.

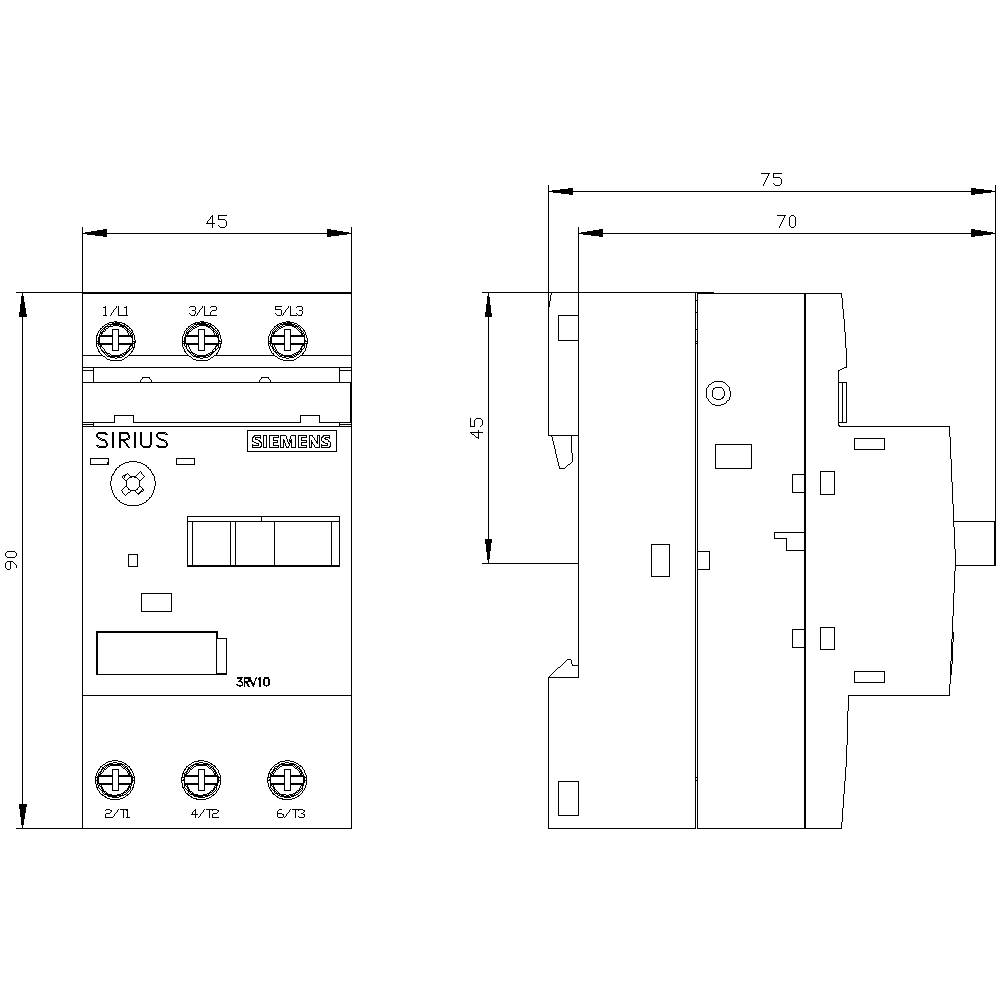

Technical drawing of an electrical switching device 'Sirius' with side and front views, including dimensional specifications in millimetres.

1/5

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

0.63 A

Contact type

3 makers

Connection

Screw terminal

Type

3RV1011-0GA10

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 79.99 / piece)

€ 79.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Circuit breaker

Type: 3RV1011-0GA10

Type: S00

Amperage adjustment range (min.): 0.45 A

Amperage adjustment range (max.): 0.63 A

Adjustment range (amperage): 0.45 - 0.63 A

Contact type: 3 makers

No. of pins: 3-pin

Auxiliary contact type: 3 makers

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Connection: Screw terminal

: IP20

Depth: 81 mm

Width: 45 mm

Height: 90 mm

Dim: (W x H x D) 45 x 90 x 81 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Type: Circuit Breakers

Adjustment range: 0.45 - 0.63 A

Type: 3RV1011-0GA10

Operating voltage: 690 V 50/60 Hz

: 45

: 90 mm

: 75 mm

: 0.18 kW

: FALSE

: 0.63 A

: FALSE

: 3

: 690-690 V

: 0.45-0.63 A

: IP20

: TRUE

: Screw connection

: Rocker lever

: Magnetic

: 0.1 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3RV1011-0GA10 Circuit breaker 1 pc(s) 3 makers Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 81 mm

Item no:502419

Dispatches on Tue 10 Nov

Conrad Electronic

This article

0.63 A

0.45 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

Siemens 3RV1011-0EA10 Circuit breaker 1 pc(s) 3 makers Adjustment range (amperage): 0.28 - 0.4 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 81 mm

Item no:502417

Dispatches on Tue 10 Nov

Conrad Electronic

0.4 A

0.28 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 93.99^*

Siemens 3RV1011-0FA10 Circuit breaker 1 pc(s) 3 makers Adjustment range (amperage): 0.35 - 0.5 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 81 mm

Item no:502418

Fast track dispatch on Tue 3 Nov

1 Piece(s)Conrad Electronic

0.5 A

0.35 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 61.99^*

Siemens 3RV1011-0HA10 Circuit breaker 1 pc(s) 3 makers Adjustment range (amperage): 0.55 - 0.8 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 81 mm

Item no:502420

Fast track dispatch on Tue 3 Nov

2 Piece(s)Conrad Electronic

0.8 A

0.55 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

Siemens 3RV1011-0JA10 Circuit breaker 1 pc(s) 3 makers Adjustment range (amperage): 0.7 - 1 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 81 mm

Item no:502427

Dispatches on Fri 6 Nov

Conrad Electronic

1 A

0.7 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 85.99^*

Siemens 3RV1011-0KA10 Circuit breaker 1 pc(s) 3 makers Adjustment range (amperage): 0.9 - 1.25 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 81 mm

Item no:502428

Fast track dispatch on Tue 3 Nov

2 Piece(s)Conrad Electronic

1.25 A

0.9 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 87.99^*

Siemens 3RV1011-1AA10 Circuit breaker 1 pc(s) 3 makers Adjustment range (amperage): 1.1 - 1.6 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 81 mm Piece

Item no:502429

Fast track dispatch on Tue 3 Nov

3 Piece(s)Conrad Electronic

1.6 A

1.1 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 87.99^*

Siemens 3RV1011-1BA10 Circuit breaker 1 pc(s) 3 makers Adjustment range (amperage): 1.4 - 2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 81 mm Piece

Item no:502431

Fast track dispatch on Tue 3 Nov

2 Piece(s)Conrad Electronic

2 A

1.4 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Siemens 3RV1011-1CA10 Circuit breaker 1 pc(s) 3 makers Adjustment range (amperage): 1.8 - 2.5 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 81 mm

Item no:502432

Dispatches on Fri 6 Nov

Conrad Electronic

2.5 A

1.8 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Siemens 3RV1011-1DA10 Circuit breaker 1 pc(s) 3 makers Adjustment range (amperage): 2.2 - 3.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 81 mm Piece

Item no:502433

Dispatches on Fri 6 Nov

Conrad Electronic

3.2 A

2.2 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Documents & Downloads

Datasheet

Datasheet 502419 Siemens 3RV1011-0GA10 Circuit breaker 1 pc(s) 3 makers Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max

User & Safety Instructions

User & Safety Instructions 502419 Siemens 3RV1011-0GA10 Circuit breaker 1 pc(s) 3 makers Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max

Description

General Description :
3RV1 breakers are compact, current-limiting circuit breakers, which are optimized for load feeders. The switches are used to Switch General Description and protecting three-phase motors to 45 kW at 400 V AC or to other consumers with current ratings to 100A Breaker 3RV1 and 3RT1 contactors are electrically and coordinated in design and can therefore be easily combined to divert consumers.
The circuit breaker 3RV1 can be used with its short-circuit and overload protection for motor protection, transformer protection and system protection
Main features:
Climate-proof, feeding from the top or bottom screw without auxiliary switch, comprehensive, uniform accessories for all sizes, Class10, 60079-7/14 complies with EN, EN 60947-1/-4-1, approvals UL, CSA, shock protection to DIN VDE 0106 Part 100, max. Rated current 50 A (45 kW at 400 V / AC), extreme long-term stability.
