Name: Siemens 3RV1011-1EA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 2.8 - 4 A Switching voltage (max.): 690 V AC
Brand: Siemens
SKU: 1745464
Availability: BackOrder

A blue Siemens electrical switch with 'SIRIUS' written on it, featuring multiple connections and an ON/OFF switch.

A technical room with an open electrical cabinet full of cables and devices, beside a wet glass pane with a blurred machine visible in the background.

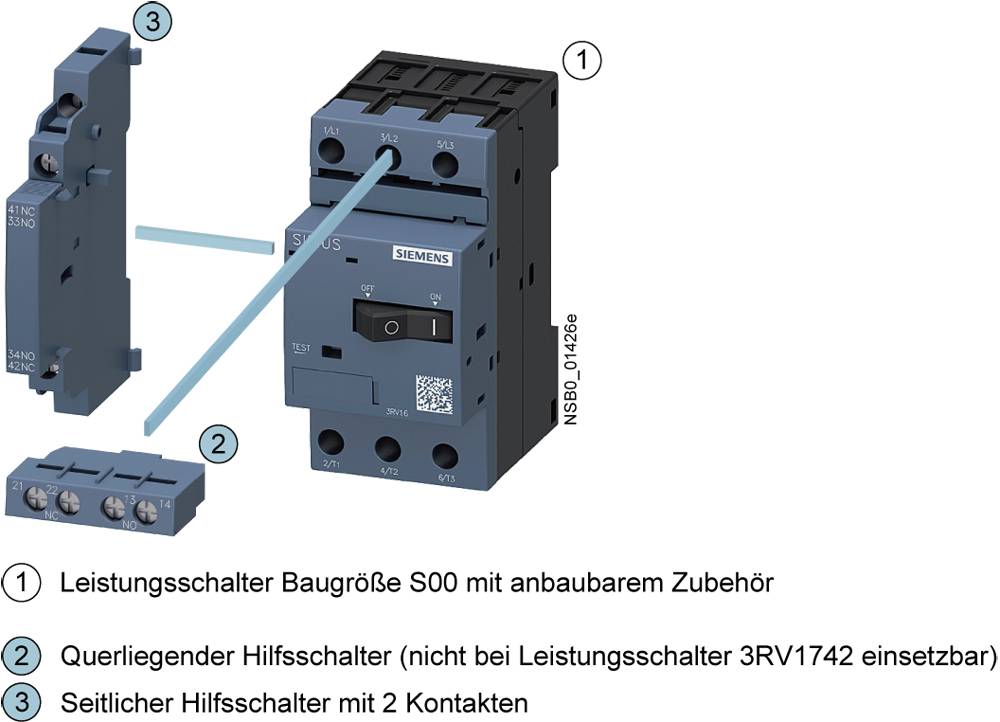

Circuit breaker size S00 with three extensions: main switch, transverse and side auxiliary switch with contacts.

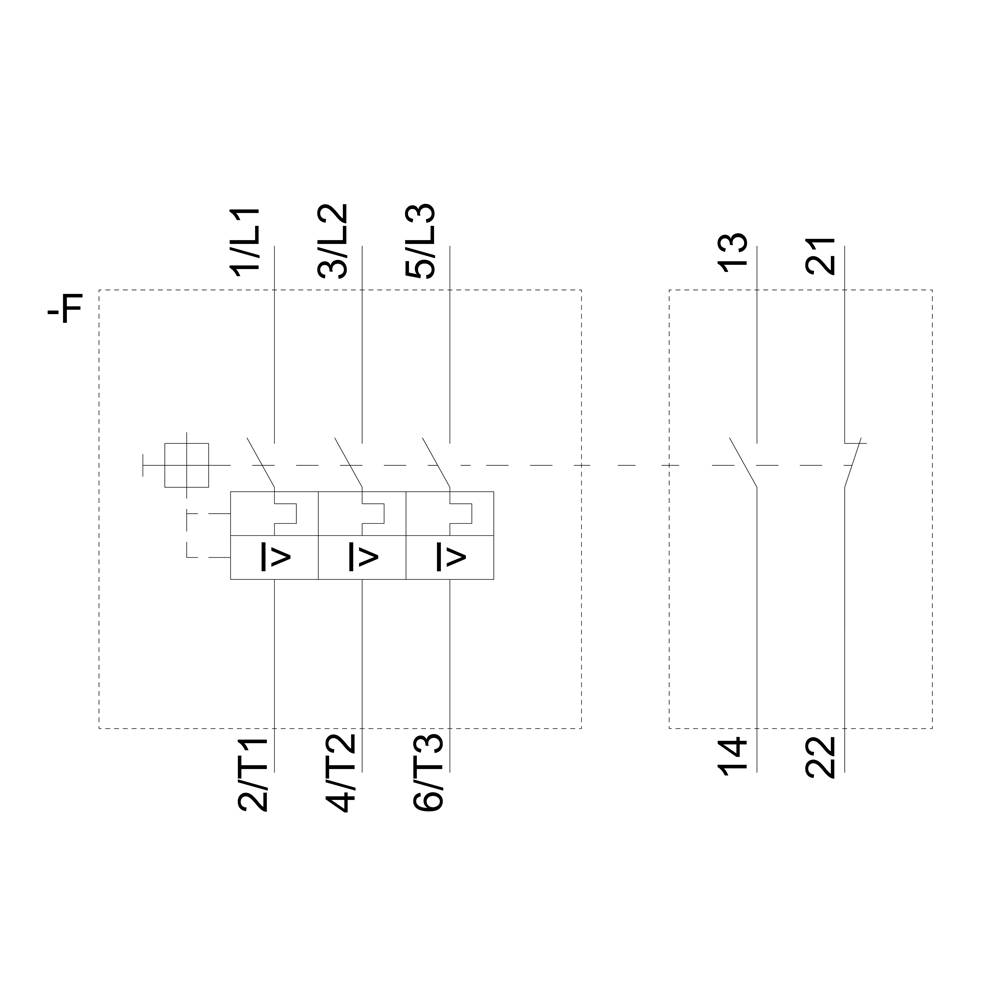

Technical drawing of an electrical circuit diagram with numbered terminals: 1/L1, 2/T1, 3/L2, 4/T2, 5/L3, 6/T3, 13-14, 21-22.

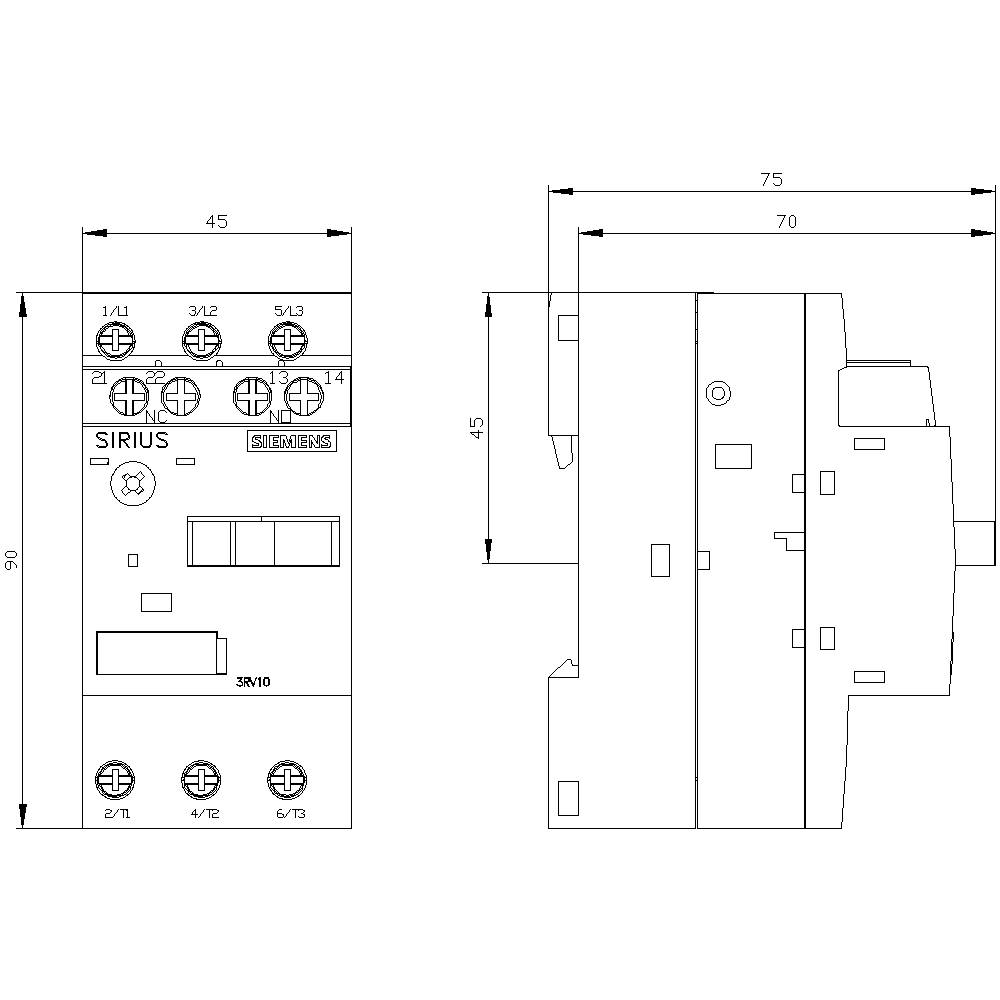

Technical drawing of a SIRIUS switching device with dimensional specifications. Shows front and side views with connection and mounting information.

1/5

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

4 A

Connection

Screws

Type

3RV1011-1EA15

Type

S00

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 129.99 / piece)

€ 129.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Continuous current: 4 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Product type: Circuit breaker

Type: 3RV1011-1EA15

Type: S00

Amperage adjustment range (min.): 2.8 A

Amperage adjustment range (max.): 4 A

Adjustment range (amperage): 2.8 - 4 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

Depth: 75 mm

Width: 45 mm

Height: 90 mm

Dim: (W x H x D) 45 x 90 x 75 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 90 mm

: 75 mm

: 1.5 kW

: TRUE

: 4 A

: FALSE

: 3

: 690-690 V

: 2.8-4 A

: IP20

: TRUE

: Screw connection

: Rocker lever

: Magnetic

: 0.8 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3RV1011-1EA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 2.8 - 4 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745464

Dispatches on Tue 10 Nov

Conrad Electronic

This article

4 A

2.8 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

Siemens 3RV1011-0AA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745448

Dispatches on Tue 10 Nov

Conrad Electronic

0.16 A

0.11 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Siemens 3RV1011-0AA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745449

Dispatches on Tue 10 Nov

Conrad Electronic

0.16 A

0.11 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0BA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745450

Dispatches on Tue 10 Nov

Conrad Electronic

0.2 A

0.14 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Siemens 3RV1011-0BA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745452

Dispatches on Tue 10 Nov

Conrad Electronic

0.2 A

0.14 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.18 - 0.25 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745453

Dispatches on Tue 10 Nov

Conrad Electronic

0.25 A

0.18 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0DA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.22 - 0.32 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745454

Dispatches on Tue 10 Nov

Conrad Electronic

0.32 A

0.22 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0EA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.28 - 0.4 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745455

Dispatches on Tue 10 Nov

Conrad Electronic

0.4 A

0.28 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0FA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.35 - 0.5 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Single

Item no:1745456

Dispatches on Tue 10 Nov

Conrad Electronic

0.5 A

0.35 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0GA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745457

Dispatches on Tue 10 Nov

Conrad Electronic

0.63 A

0.45 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Documents & Downloads

Datasheet

Datasheet 1745464 Siemens 3RV1011-1EA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 2.8 - 4 A Switching voltage (max.): 690 V AC

User & Safety Instructions

User & Safety Instructions 1745464 Siemens 3RV1011-1EA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 2.8 - 4 A Switching voltage (max.): 690 V AC

Description

Circuit breaker size S00 for motor protection CLASS 10 A-release 7...10 A Short-circuit release 130 A Spring-type terminal !!! Phased-out product !!! Successor is SIRIUS 3RV2 Preferred successor type is 3RV2011-1JA20
