Name: Siemens 3RV2011-1DA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 2.2 - 3.2 A Switching voltage (max.): 690 V A
Brand: Siemens
SKU: 1741878
Availability: InStock

A grey Siemens protective switch with multiple connection terminals, switch position set to 'ON', for electrical safety and control.

An electronic control cabinet is open, beside a machine viewed through a rain-spattered window. Technology and production in focus.

'Diagram shows mounting accessories for circuit breakers with numbered components: Transverse auxiliary switch, lateral auxiliary switch, voltage drop, signalling contact, and separator base.'

'A single-pole operating electrical circuit with phase busbar, fuse and contact points, depicted in a schematic circuit diagram.'

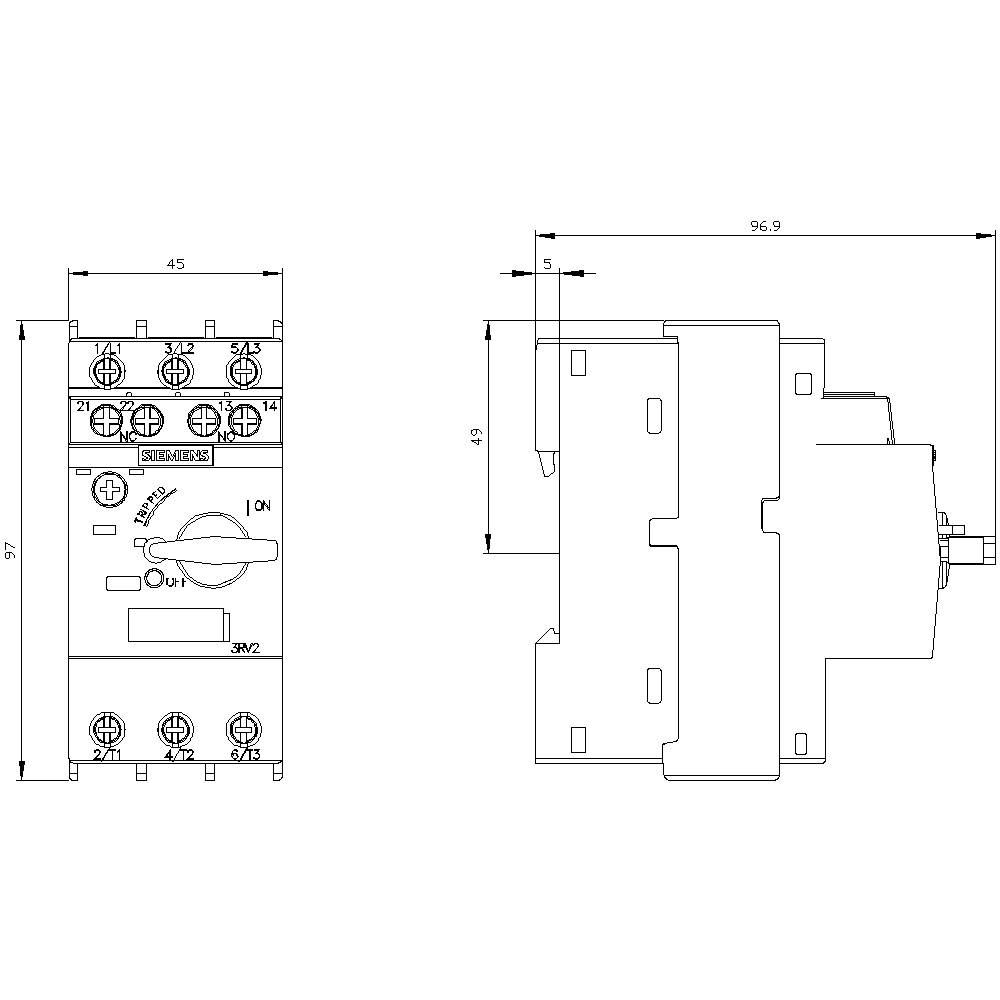

Technical drawing of an electrical switch with dimensions: Width 45 mm, Height 97 mm, Depth 96.9 mm. Shows front and side view.

'Siemens switching device with multiple connections, switch in the "ON" position. Labels: 'TRIPPED', 'ON', '3RV2'.'

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

3.2 A

Connection

Screws

Type

3RV2011-1DA15

Type

S00

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Mon 2 Nov

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 104.99 / piece)

€ 104.99

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Continuous current: 3.2 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Product type: Circuit breaker

Type: 3RV2011-1DA15

Type: S00

Amperage adjustment range (min.): 2.2 A

Amperage adjustment range (max.): 3.2 A

Adjustment range (amperage): 2.2 - 3.2 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 97 mm

Dim: (L x W x H) 150 cm x 45 mm x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Factory colour: Multicolour

Length: 150 cm

: 45

: 97 mm

: 97 mm

: 1.1 kW

: TRUE

: 3.2 A

: FALSE

: 3

: 690-690 V

: 2.2-3.2 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 0.6 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes
