Name: Siemens 3RV2011-1FA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 3.5 - 5 A Switching voltage (max.): 690 V AC
Brand: Siemens
SKU: 1741895
Availability: InStock

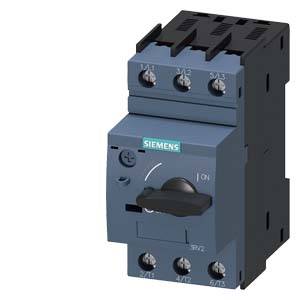

A grey electrical power switch with a rotary lever in the centre. Connection terminals are visible at the top and bottom.

'View of an open machine control system with electronic components on the left; in the background, a rain-wet window view of production machinery.'

'Attachable Accessories' diagram shows electrical components and connections, numbered: Transverse auxiliary switch, signalling switch, etc. for circuit breaker 3RV2.

Circuit diagram of a three-pole power circuit breaker. Shows input terminals 1/L1, 3/L2, 5/L3 and output terminals 2/T1, 4/T2, 6/T3.

'Technical drawing of a switch with dimensions: width 45 mm, height 97 mm. Side view shows depth of 96.9 mm.'

A Siemens electrical switch, with various connections at the top and bottom, featuring a central switch marked with 'ON' and 'OFF' indicators.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

5 A

Connection

Screws

Type

3RV2011-1FA10

Type

S00

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 89.99 / piece)

€ 89.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Continuous current: 5 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Product type: Circuit breaker

Type: 3RV2011-1FA10

Type: S00

Amperage adjustment range (min.): 3.5 A

Amperage adjustment range (max.): 5 A

Adjustment range (amperage): 3.5 - 5 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 97 mm

Dim: (W x H x D) 45 x 97 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 97 mm

: 97 mm

: 1.5 kW

: FALSE

: 5 A

: FALSE

: 3

: 690-690 V

: 3.5-5 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 1.1 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes
