Name: Siemens 3RV2011-1JA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 7 - 10 A Switching voltage (max.): 690 V AC (
Brand: Siemens
SKU: 1741924
Availability: InStock

An open electrical cabinet reveals electronic components and cables. In the background, a machine can be seen through a rain-streaked window.

'Attachable Accessories' Diagram: Shows various switches and modules with connections, numbered 1 to 8, illustrating compatibility.

The diagram shows a three-phase circuit diagram with labels such as '1/L1', '3/L2', '5/L3'. Fuses are located on the left, with a switch on the right.

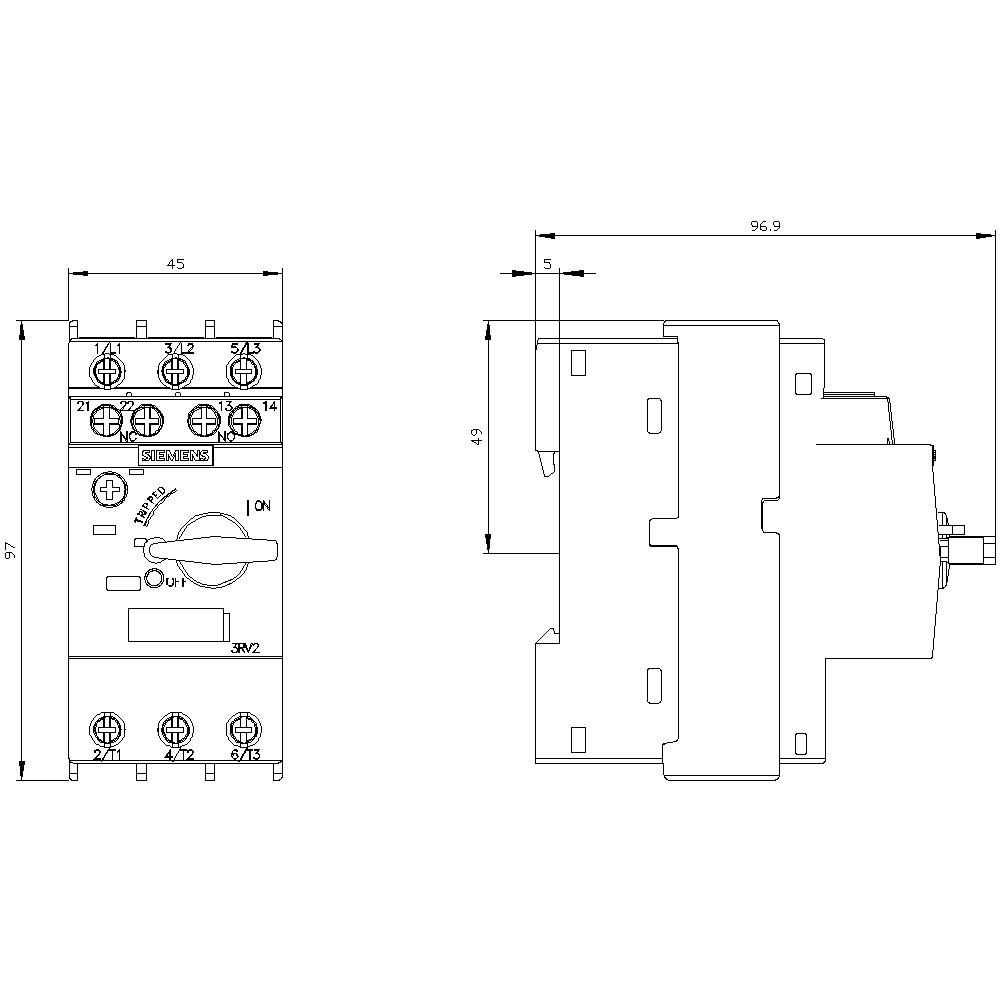

Drawing of an electrical device with dimensions. Shows front and side view with switch position and connection terminals. Dimensions: 96.9 mm width, 97 mm height.

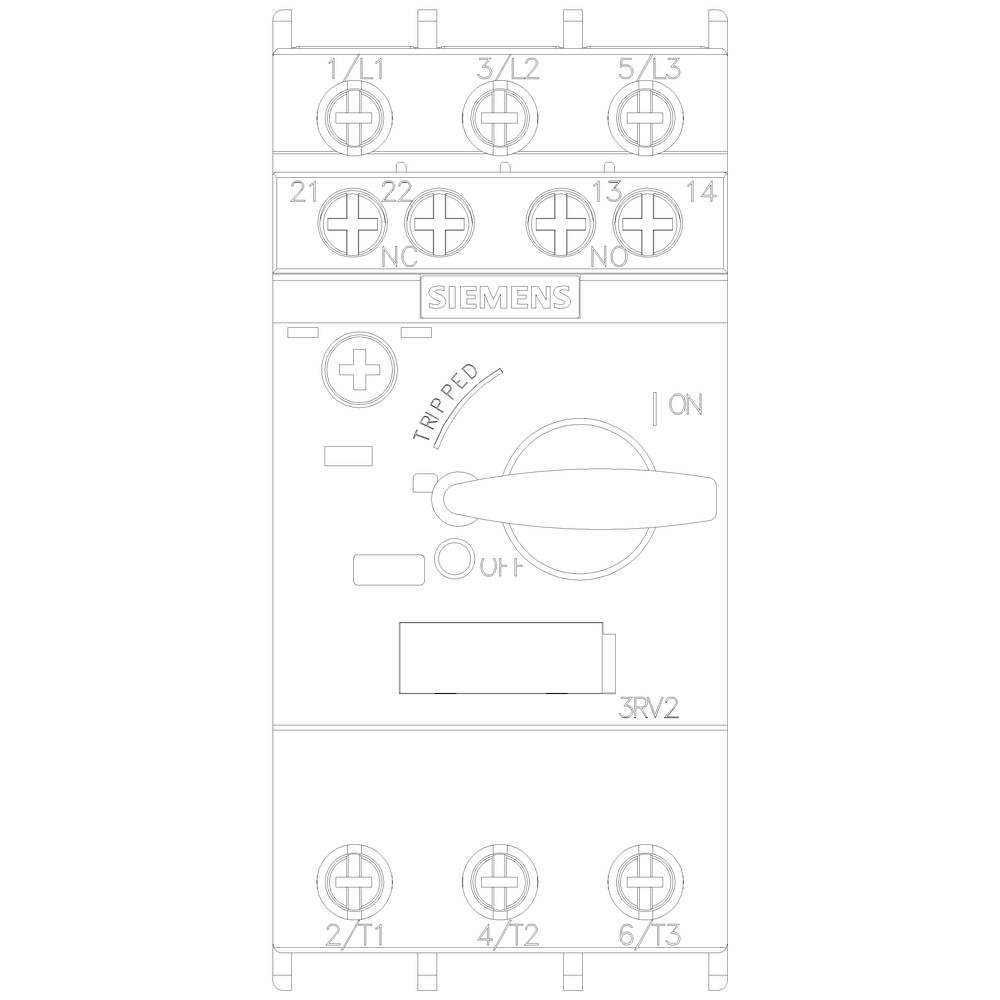

A switchgear with multiple connection terminals and a central rotary switch indicating the 'ON' and 'TRIPPED' positions.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

10 A

Connection

Screws

Type

3RV2011-1JA15

Type

S00

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 3 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

4NO CONTAC., AC1: 40A, 125 VDC

Our service for you

Technical specifications

Continuous current: 10 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Product type: Circuit breaker

Type: 3RV2011-1JA15

Type: S00

Amperage adjustment range (min.): 7 A

Amperage adjustment range (max.): 10 A

Adjustment range (amperage): 7 - 10 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 97 mm

Dim: (W x H x D) 45 x 97 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 97 mm

: 97 mm

: 4 kW

: TRUE

: 10 A

: FALSE

: 3

: 690-690 V

: 7-10 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 2.2 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: not relevant
