Name: Siemens 3SE22836GA43 3SE2283-6GA43 Hinge switch 2 A Rotary actuator IP65 1 pc(s)
Brand: Siemens
SKU: 1704541
Availability: BackOrder

Hinge with integrated safety switch, mounted on metal surface, for industrial applications.

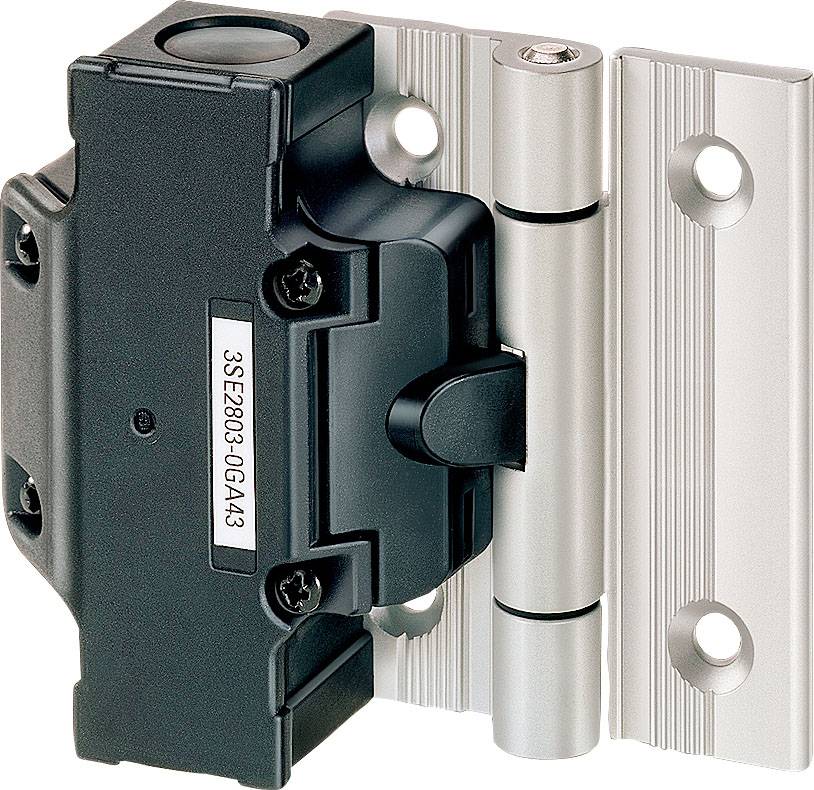

Secure hinge lock in close-up, mounted on a metal plate, with the inscription '3SE2803-0GA43'.

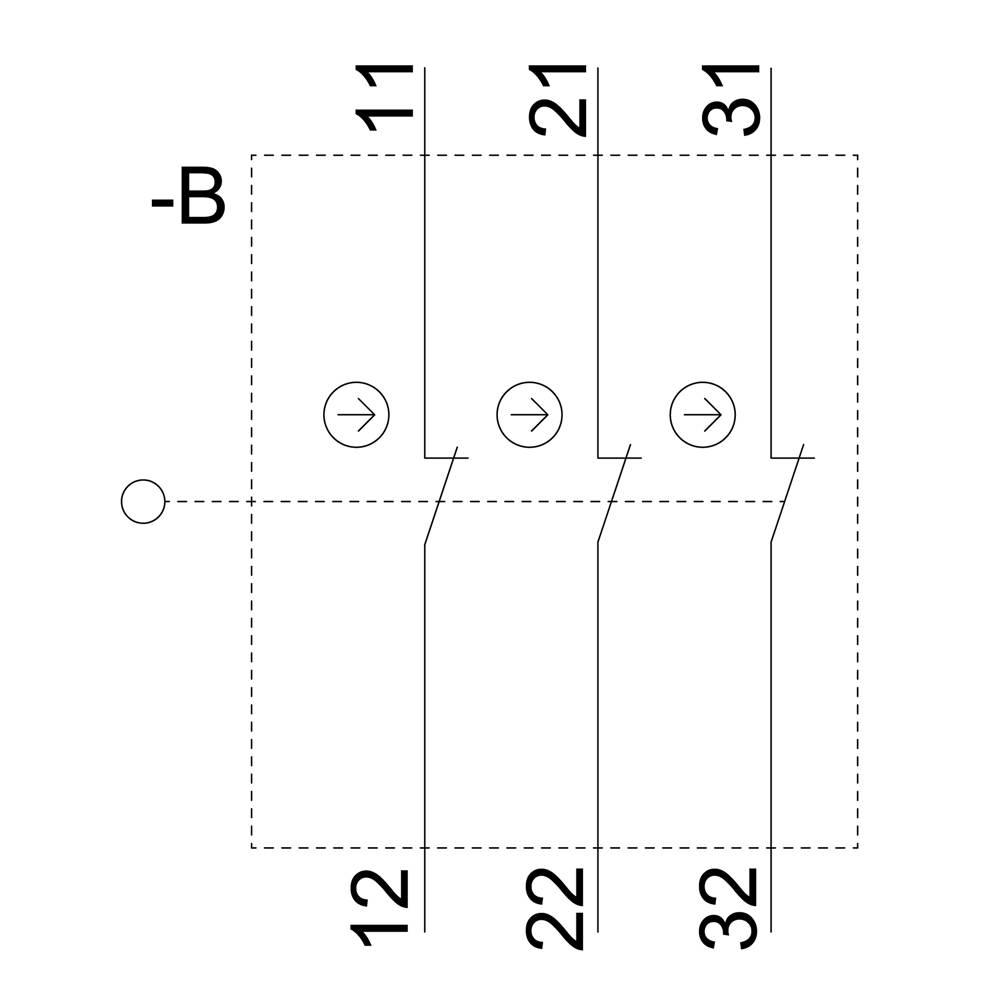

'Three vertical lines with arrows at positions 11, 21, 31; marked as -B. Lines connected with points at 12, 22, 32.'

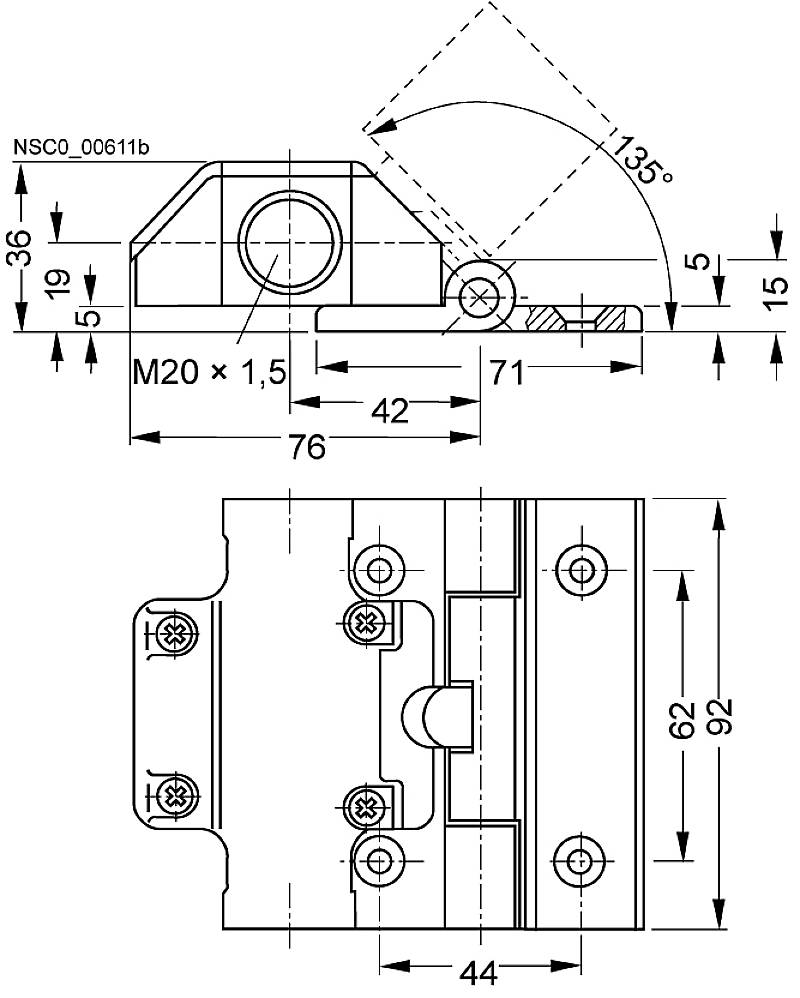

Technical drawing of a component with dimensions: Height 36 mm, Width 44 mm, Length 76 mm. 135-degree angle marked.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 295.00 / piece)

€ 295.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: screw fastening
Number of switching contacts: 3
Isolation voltage: 250 V

Packaging type: Piece

Product type: Hinge switch

Connection: Screws

Operation type: Rotary actuator

Switching current (max.): 2 A

Contact type: 3 breakers

Weight: 386 g

Min. temperature: -25 °C

Max. temperature: +65 °C

: IP65

Thread size: M20 x 1.5

Durability: 1000000

Material: Plastic (fibreglass reinforced)

Width: 111.5 mm

Type: 3SE2283-6GA43

Content: 1 pc(s)

Dim: (L x W) 92 mm x 111.5 mm

RoHS-compliant: Yes

Length: 92 mm

Depth: 36 mm

: 2 A

: Plastic

: TRUE

: Other

: FALSE

: None

: None

: None

: Special construction

: IP65

: TRUE

: 3

: Other

: None

: 4.2 A

: 1 A

: 111.5 mm

: 36 mm

: 92 mm

: 3

: 0

: 0

: Roller cam straight

UKCA: yes
